Simpson Anchors | SKU: HTT5KT | Barcode: 707392357803

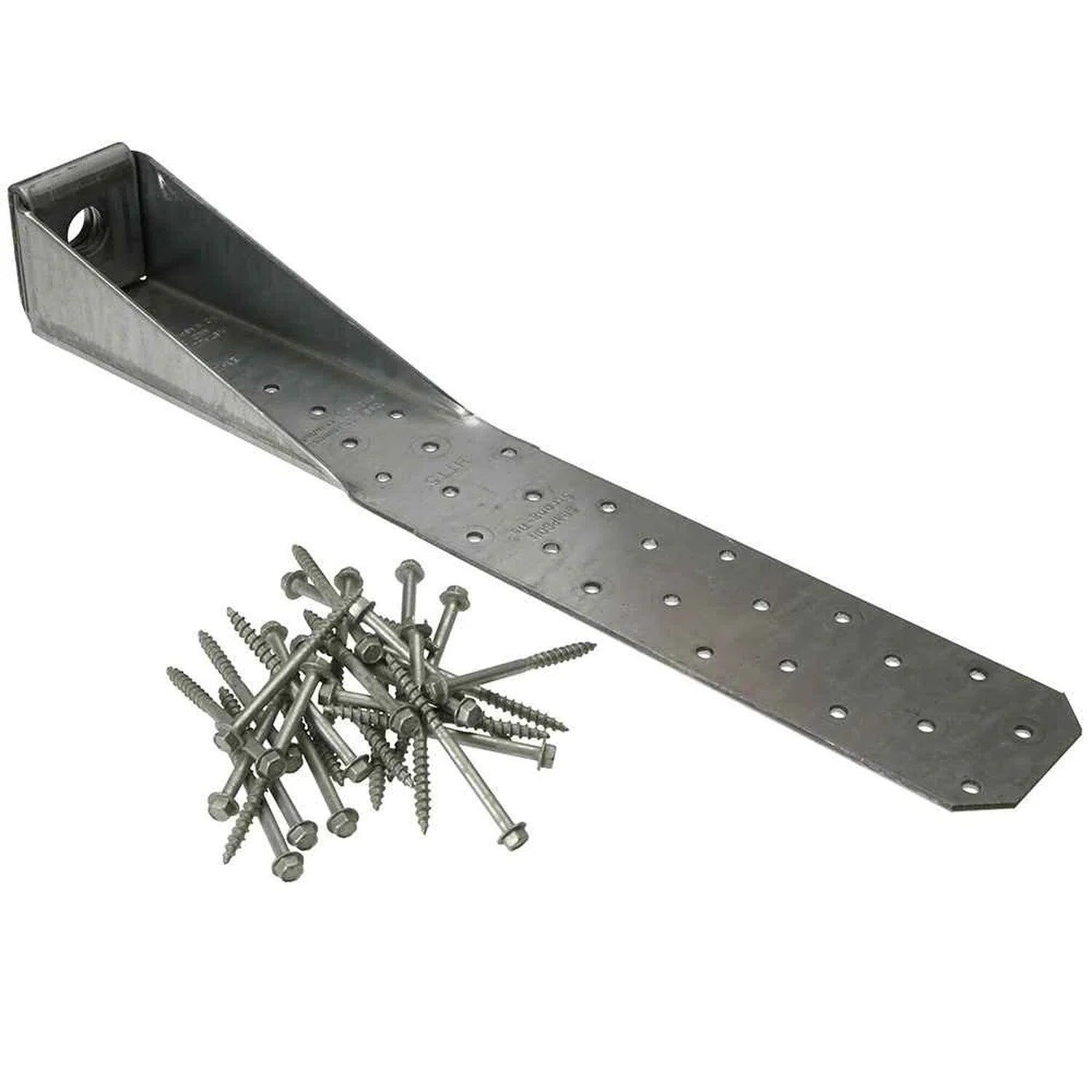

Simpson Strong-Tie HTT5KT (16") Heavy Tension Tie Kit for Wood-to-Concrete Connections - G90 Galvanized

Name: Simpson Strong-Tie HTT5KT (16") Heavy Tension Tie Kit for Wood-to-Concrete Connections - G90 Galvanized
Brand: Simpson Anchors
SKU: 824109
Price: 45.88 USD
Availability: InStock

$45.88

Shipping calculated at checkout.

Stock Up & Save

1-Pack

$45.88

10-Pack

10% OFF

$412.92

$458.80

10, 10,

default, percentage,

1, 10,

{ "Default Title":{"price":"4588","compare_at_price":"","id":"52011209916783","quantity":"10","inv_p":"continue","inv_m":"shopify"} }

{ "Default Title":{"price":"4588","compare_at_price":"","id":"52011209916783","quantity":"10","title":"Default Title","inventory_policy":"continue","inventory_management":"shopify"} }

{ "Default Title":{"id":"52011209916783"} }

Bulk Pricing Available

Need to place a large order? Request a quote

Key Specifications

For treated lumber: No

Length: 16"

Type: Tension Tie Kit

Description

Simpson HTT5KT Description

The HTT5KT Heavy Tension Tie Kit is designed for wood-to-concrete connections, offering high load capacity and durable construction for residential and commercial applications.

Simpson HTT5KT Includes

(1) 16" Heavy Tension Tie
(1) Set of Fasteners

Simpson HTT5KT Features

High Load Capacity: Achieves allowable loads up to 7,650 lbs.
Optimized Design: Features a four-fold seat and tapered base to reduce deflection.
Versatile Installation: Compatible with standard pneumatic nail sizes and Strong-Drive® SD Connector screws.
Durable Construction: Made from 10-gauge galvanized steel for corrosion resistance.

Simpson HTT5KT Applications

Wood-to-concrete connections in residential buildings.
Light-frame commercial construction requiring tension resistance.
Retrofit and new construction projects demanding high load capacity.

Simpson HTT5KT Installation Overview

Install using specified nails or Strong-Drive® SD Connector screws.
Ensure the use of a 3/4" diameter anchor bolt and standard cut washer.
Verify wood member size meets minimum requirements of 3" x 3 1/2".

Simpson HTT5KT Specifications

Length	16"
Fasteners required	All Fasteners Included
For Treated Lumber	No
Manufacturer name	Simpson Strong-Tie

NOTE: Ensure proper installation by using the specified fasteners and anchor bolt to achieve published load values
