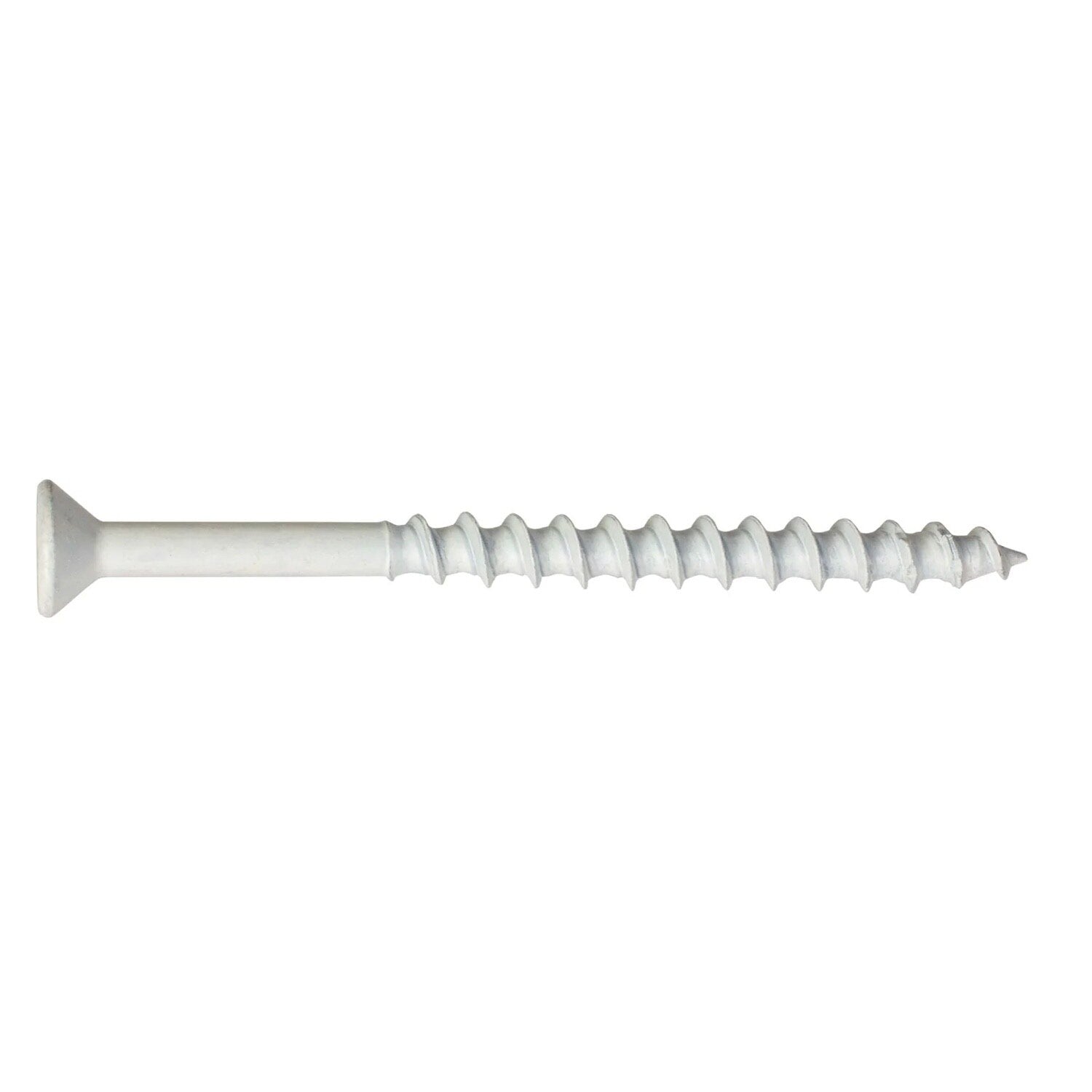

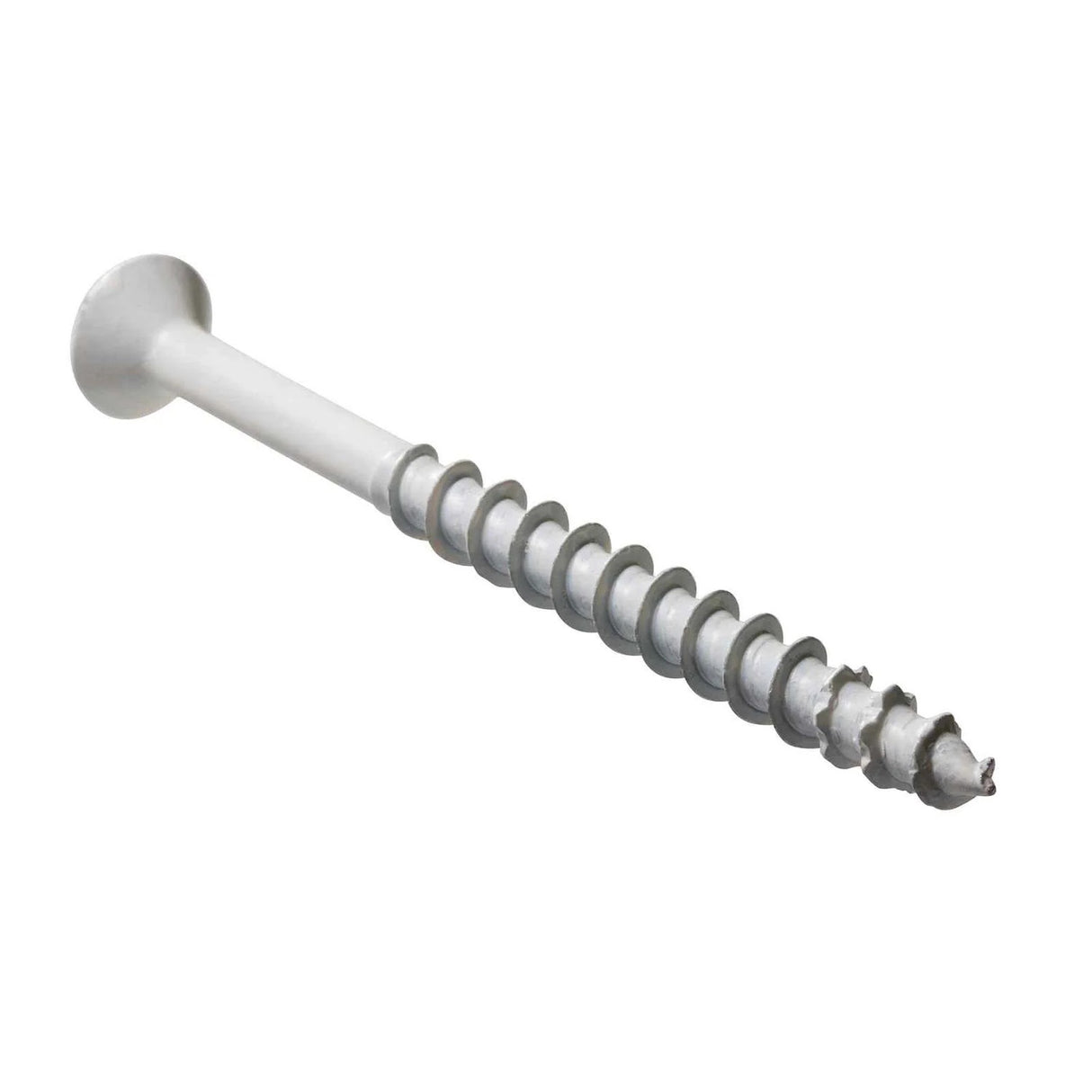

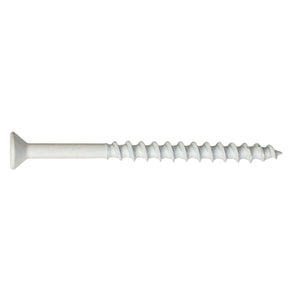

Simpson Strong-Tie TNTW18334TF Titen Turbo (3/16" x 3-3/4") T25 Flat-Head Concrete and Masonry Screw, White (100 Pack)
Couldn't load pickup availability
Bulk Pricing Available
Bulk Pricing Available
Need to place a large order? Request a quote
Simpson Strong-Tie TNTW18334TF Titen Turbo (3/16" x 3-3/4"...
Key Specifications
Description
Description
Simpson Strong-Tie TNTW18334TF Description
The Simpson Strong-Tie Titen Turbo screw anchor is a heavy-duty fastener designed for quick and easy installation in concrete and masonry applications. It features a patented torque reduction channel for smooth driving and superior holding power.
Simpson Strong-Tie TNTW18334TF Includes
- (100) 3/16 x 3-3/4 in. Titen Turbo Concrete and Masonry Screw
- (1) T25 driver bit
Simpson Strong-Tie TNTW18334TF Features
- Patented Torque Reduction Channel for reduced binding and smooth driving
- Available in multiple finishes including White
- Flat head design for a flush profile

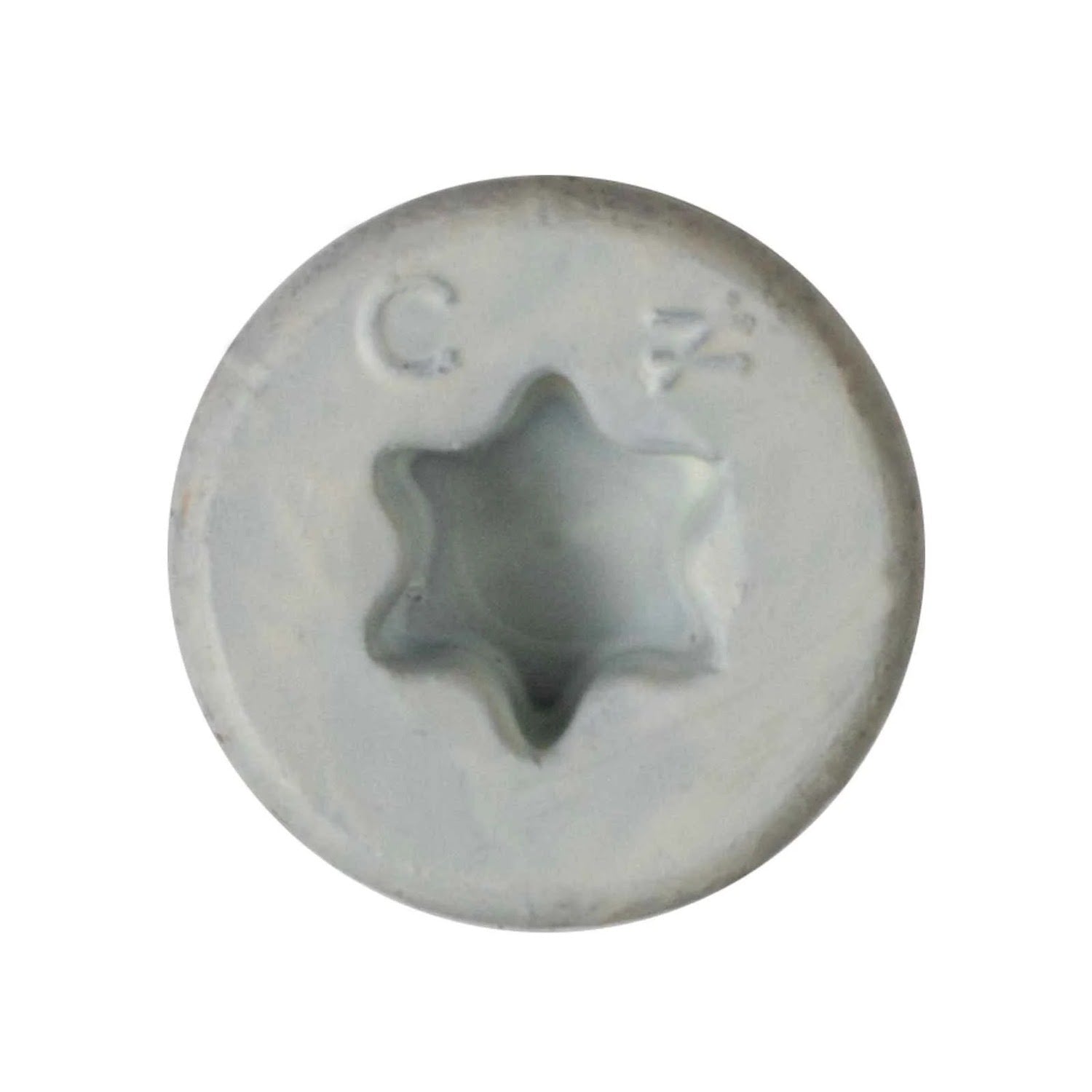

- 6-lobe drive for positive bit engagement
- Superior tension load performance
- Designed for use with standard ANSI drill bits
- Serrated screw point for easier starts
- Recommended for use with impact drivers or cordless drills
Simpson Strong-Tie TNTW18334TF Applications
- Electrical boxes and conduit mounting
- Switch boxes and light fixtures installation
- Window and threshold anchoring
- Basement furring strips attachment
- Shelf mounting to concrete or CMU
- Handrail installation
Simpson Strong-Tie TNTW18334TF Installation Overview
- Drill a hole using the specified diameter carbide drill bit to the required depth.
- Position the fixture and insert the screw.
- Tighten using a drill and the Titen Turbo screw installation tool fitted with a hex socket or 6-lobe bit socket.
Simpson Strong-Tie TNTW18334TF Specifications
| Material | Carbon Steel |
| Finish | White Zinc |
| Diameter | 3/16 in. |
| Length | 3-3/4 in. |
| Drill Bit Size | 5/32 in. |
| Drive Type | T25 Star Drive |
| Head Type | Flat Head |
| Packaging Quantity | 100 |
NOTE: Designed for installation with an impact driver or cordless drill. Installation using the Titen Turbo Installation Tool is recommended. Matched-tolerance bit not required; use a standard ANSI drill bit for installation. Intended for use in dry interior environments only.
