Simpson Strong-Tie STB2-50414 Strong-Bolt (1/2 in. x 4-1/4 in.) Wedge Anchor - Zinc Plated (25 Pack)
Couldn't load pickup availability
Bulk Pricing Available
Bulk Pricing Available
Need to place a large order? Request a quote
Simpson Strong-Tie STB2-50414 Strong-Bolt (1/2 in. x 4-1/4 in.) Wed...
Key Specifications
Description
Description
Simpson STB2-50414 Description

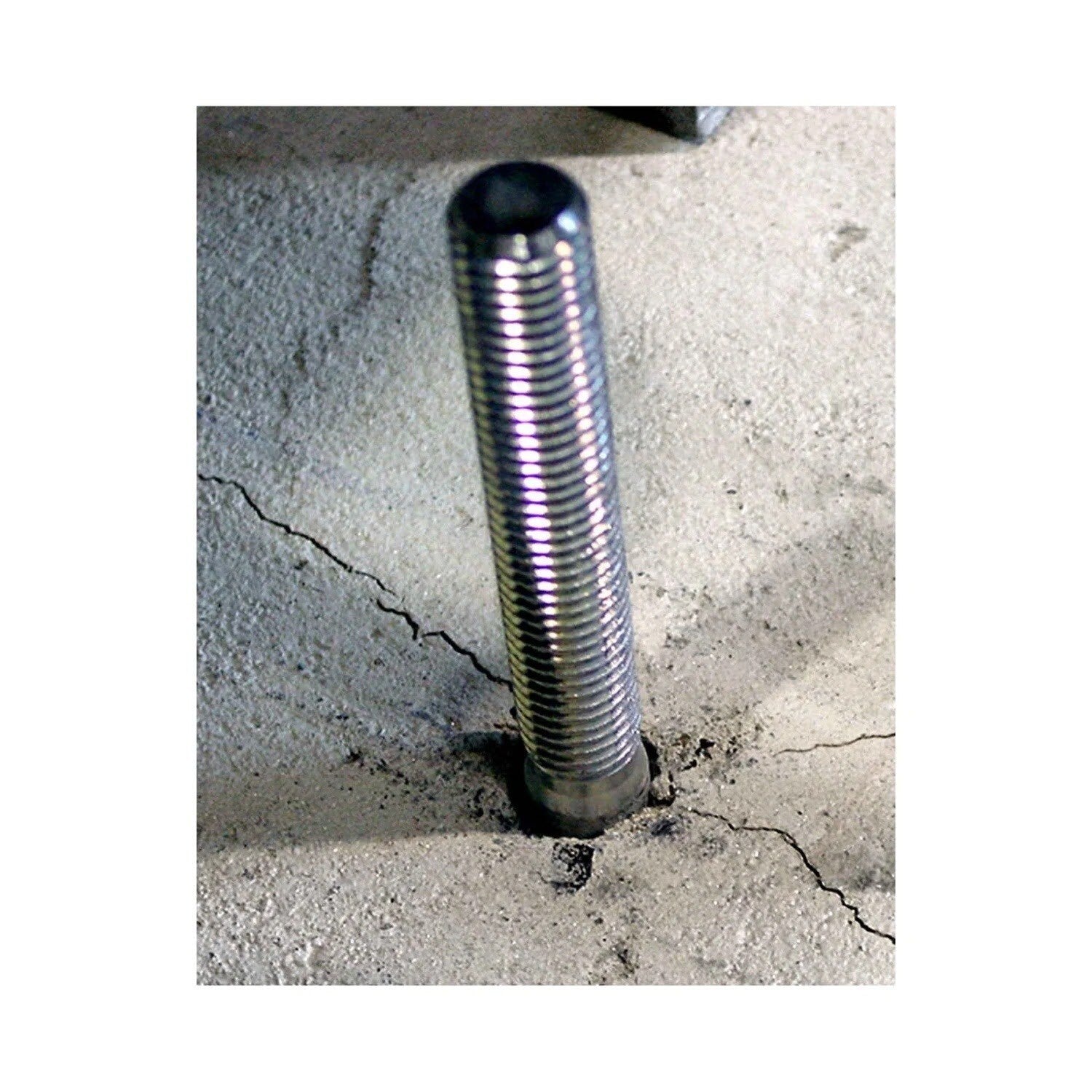

The Simpson Strong-Bolt 2 Wedge Anchors are engineered for reliable performance in both cracked and uncracked concrete, and masonry applications. These fully assembled anchors are suitable for static and seismic loading conditions, making them ideal for a variety of construction projects.
Simpson STB2-50414 Includes
- (25) Strong-Bolt 2 Wedge Anchor
Simpson STB2-50414 Features
- Dual undercutting embossments for enhanced load-carrying capacity

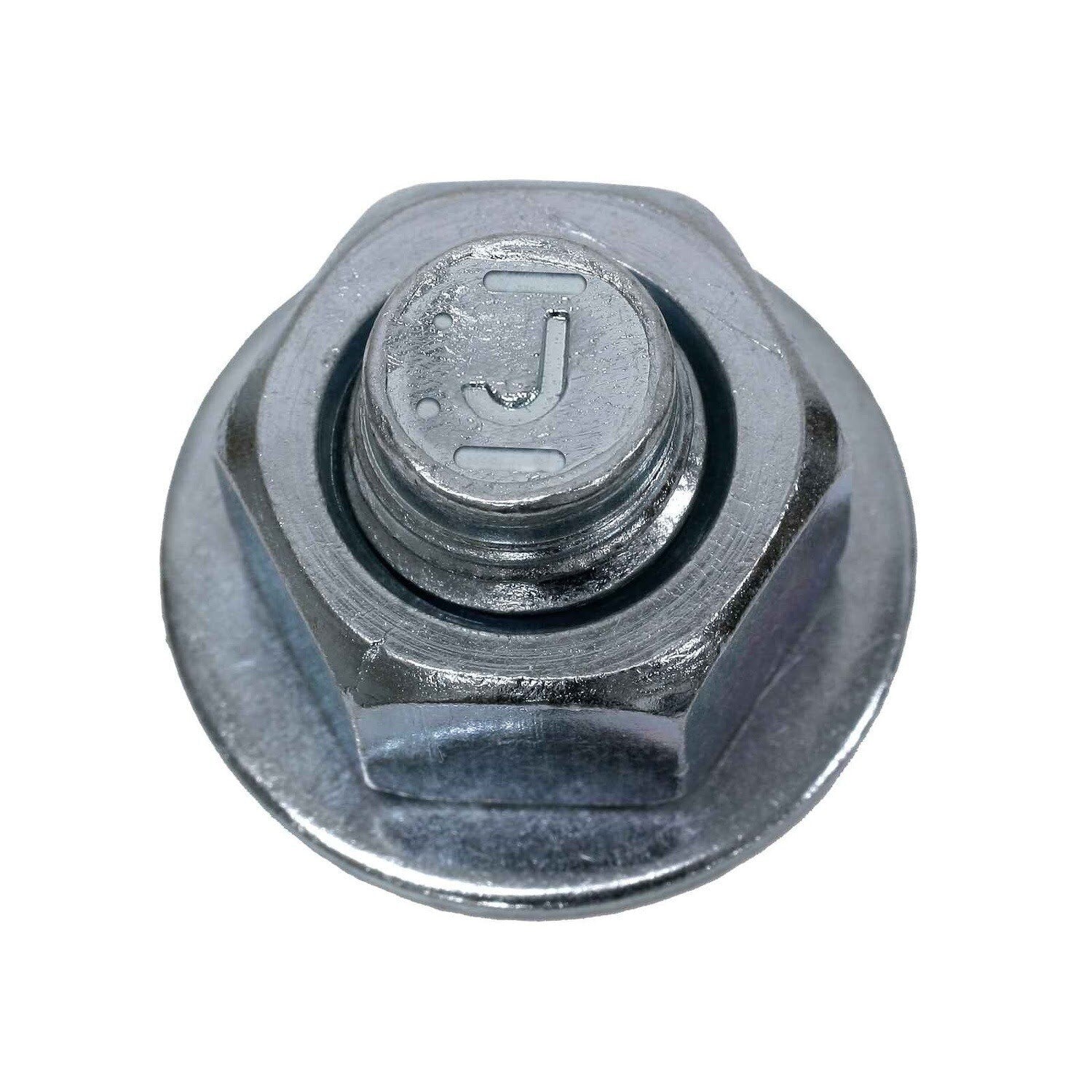

- Chamfered top prevents mushrooming during installation
- Suitable for horizontal, vertical, and overhead applications
- Qualified for static and seismic loading conditions
- Tested per ACI355.2 and AC193
Simpson STB2-50414 Applications

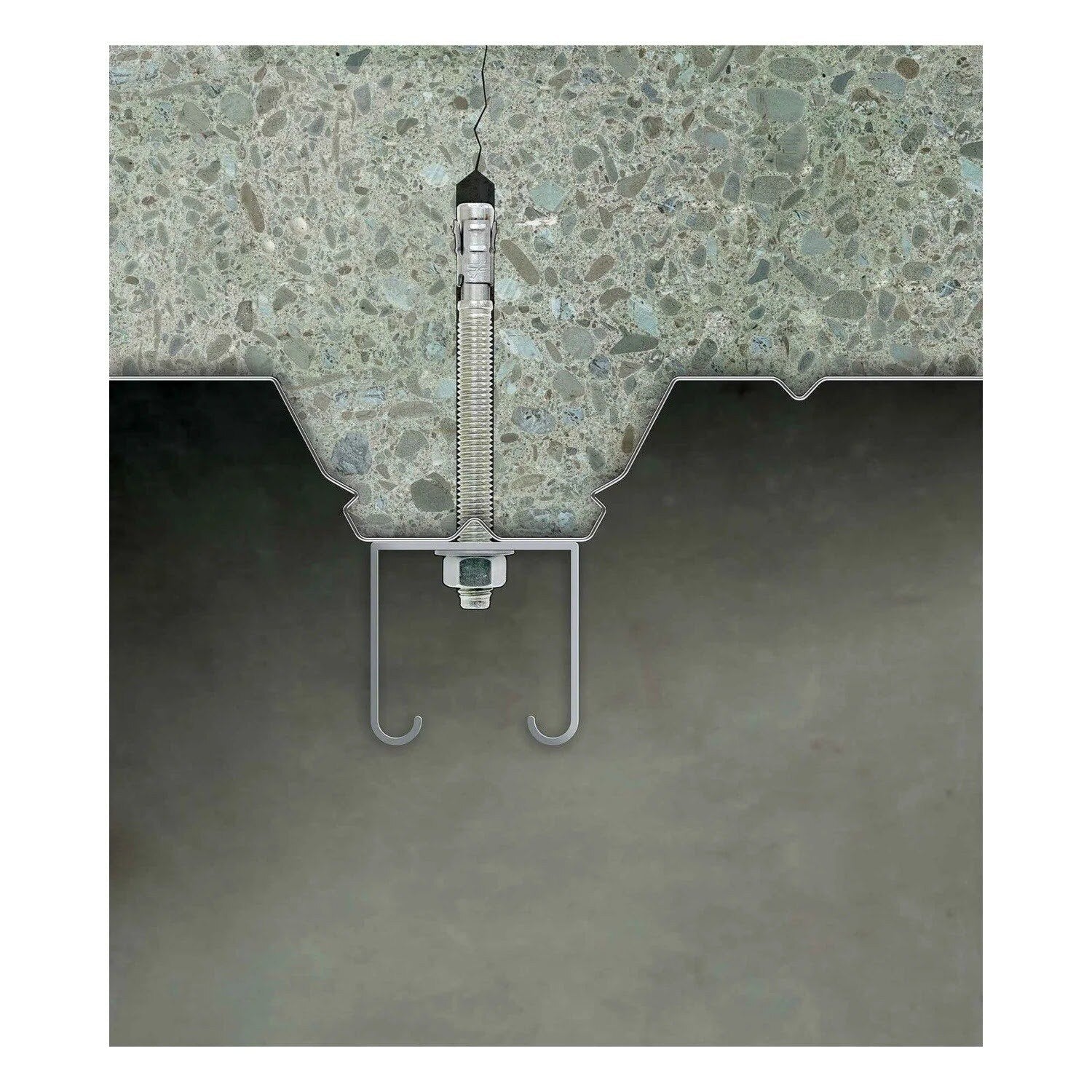

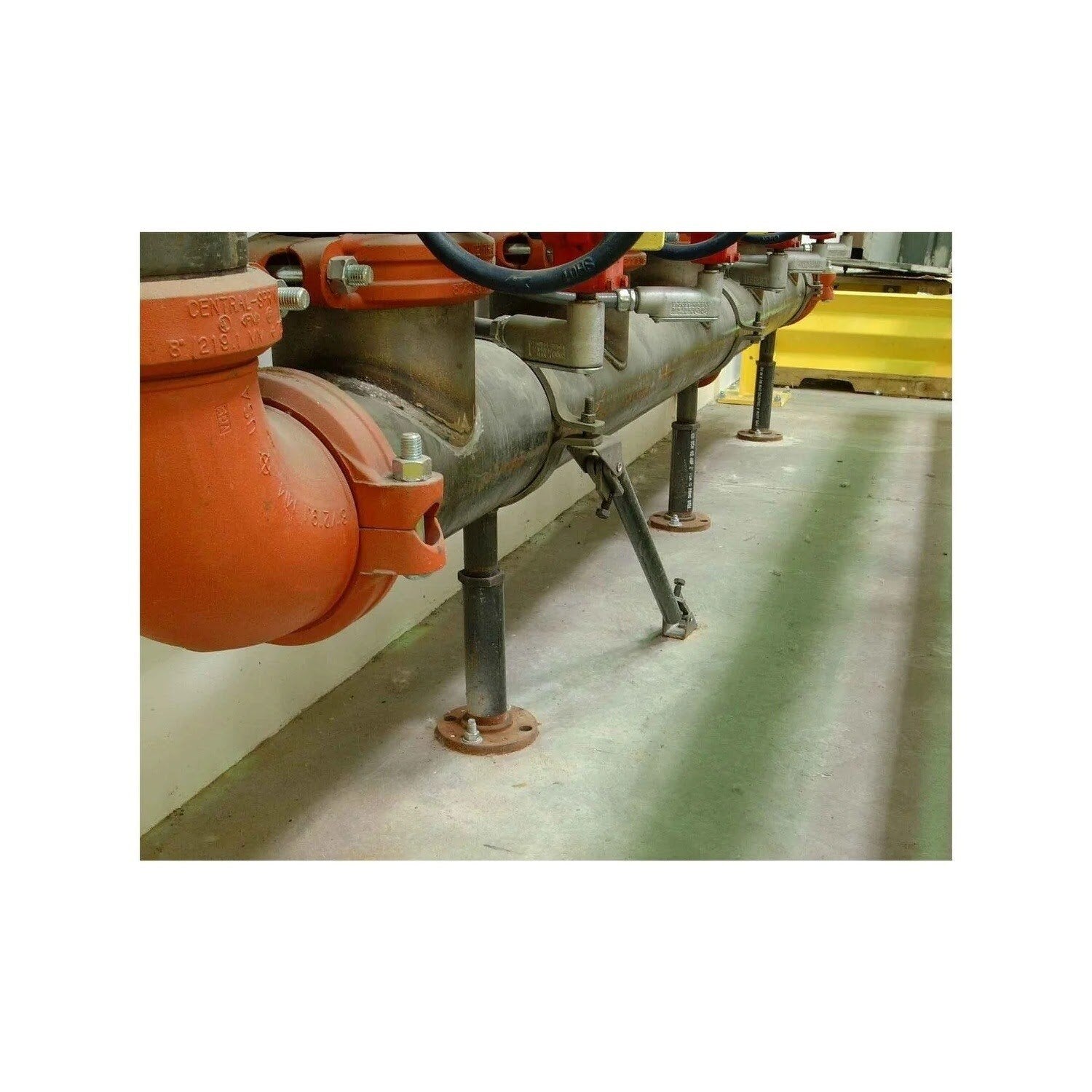

- Anchoring structural and non-structural elements such as pipes, struts, and fixtures
- Overhead indoor construction
- Mounting electrical equipment
- Warehouse racking
Simpson STB2-50414 Installation Overview
- Drill a hole in the base material using a carbide drill bit of the same diameter as the anchor.
- Blow the hole clean using compressed air.
- Assemble the anchor with nut and washer, ensuring the nut is flush with the top of the anchor.

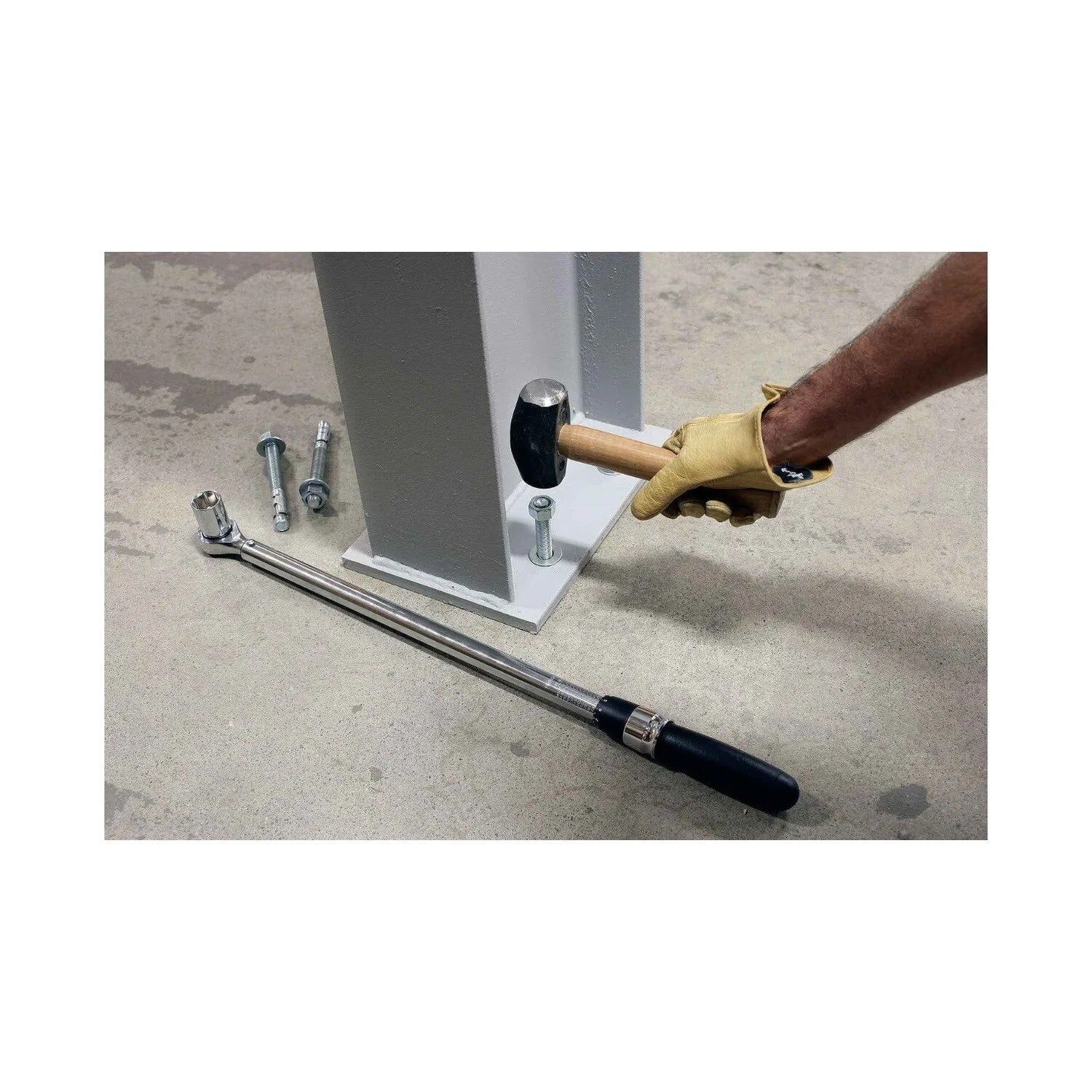

- Place the anchor in the fixture and drive it into the hole until the washer and nut are tight against the fixture.

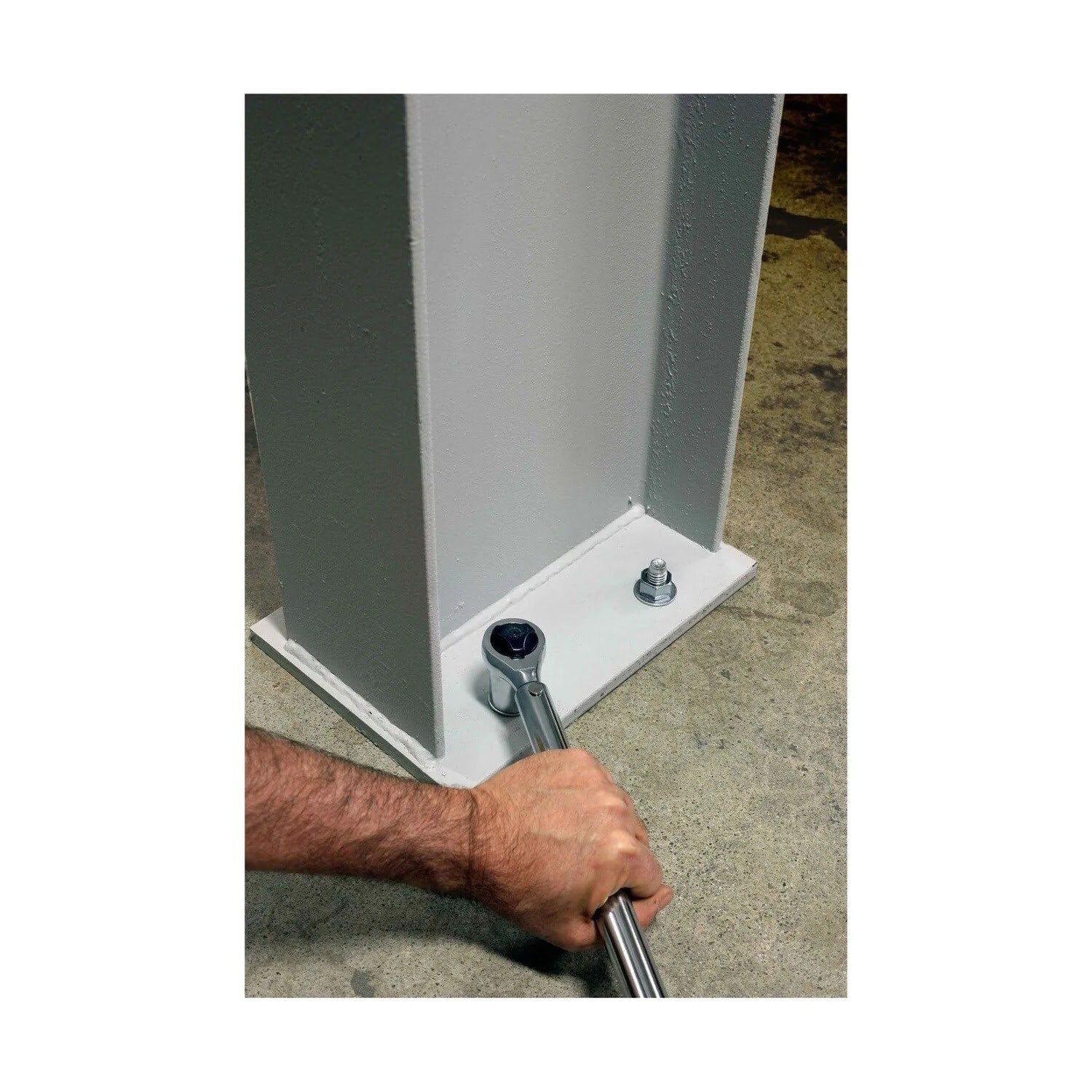

- Tighten to the required installation torque.
Simpson STB2-50414 Specifications
| Diameter | 1/2" |
| Finish | Zinc Plated |
| Length | 4-1/4" |
| Material | Carbon Steel |
| Drill bit size | 1/2" |
| Thread length | 2-9/16" |
NOTE: Ensure the correct fasteners are installed in the correct position to achieve published load values
