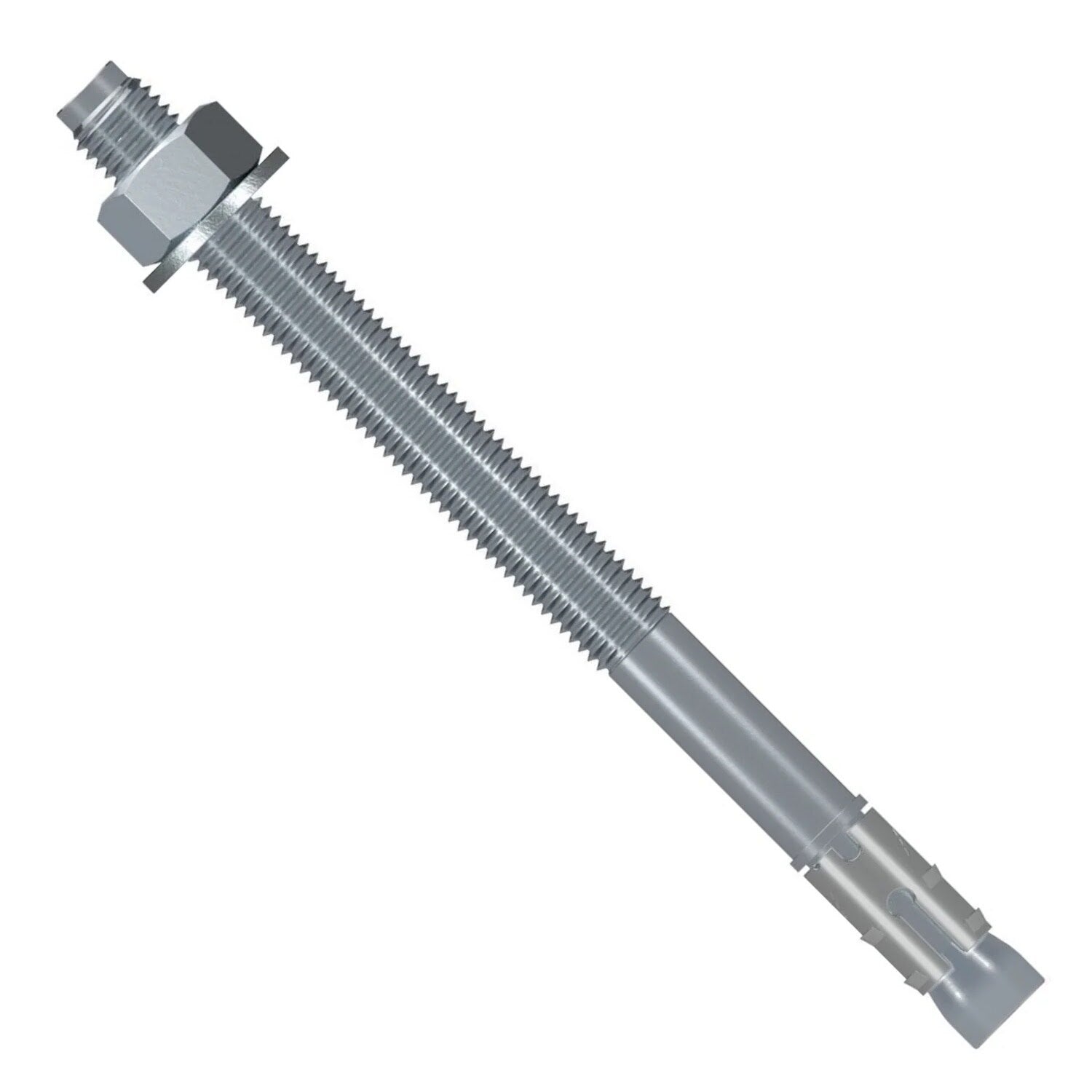

Simpson Strong-Tie STB2-1001000 Strong Bolt(1" x 10") Carbon Steel 2 Wedge Anchor - Fully Assembled (5 Pack)
Couldn't load pickup availability
Bulk Pricing Available
Bulk Pricing Available
Need to place a large order? Request a quote
Simpson Strong-Tie STB2-1001000 Strong Bolt(1" x 10") Car...
Key Specifications
Description
Description
Simpson STB2-1001000 Description
The Strong-Bolt 2 Wedge Anchor is a high-performance anchor designed for use in cracked and uncracked concrete. It is suitable for static and seismic loading conditions and features a zinc-plated finish for durability.
Simpson STB2-1001000 Includes
- (5) Strong-Bolt 2 Wedge Anchor
Simpson STB2-1001000 Features
- Chamfered top prevents mushrooming during installation
- Qualified for static and seismic loading conditions
- Suitable for horizontal, vertical, and overhead applications
- Standard fractional sizes for compatibility with common tools
- Tested per ACI355.2 and AC193
Simpson STB2-1001000 Applications
- Concrete anchoring in cracked and uncracked surfaces
- Seismic applications requiring reliable anchoring
- Horizontal, vertical, and overhead installations

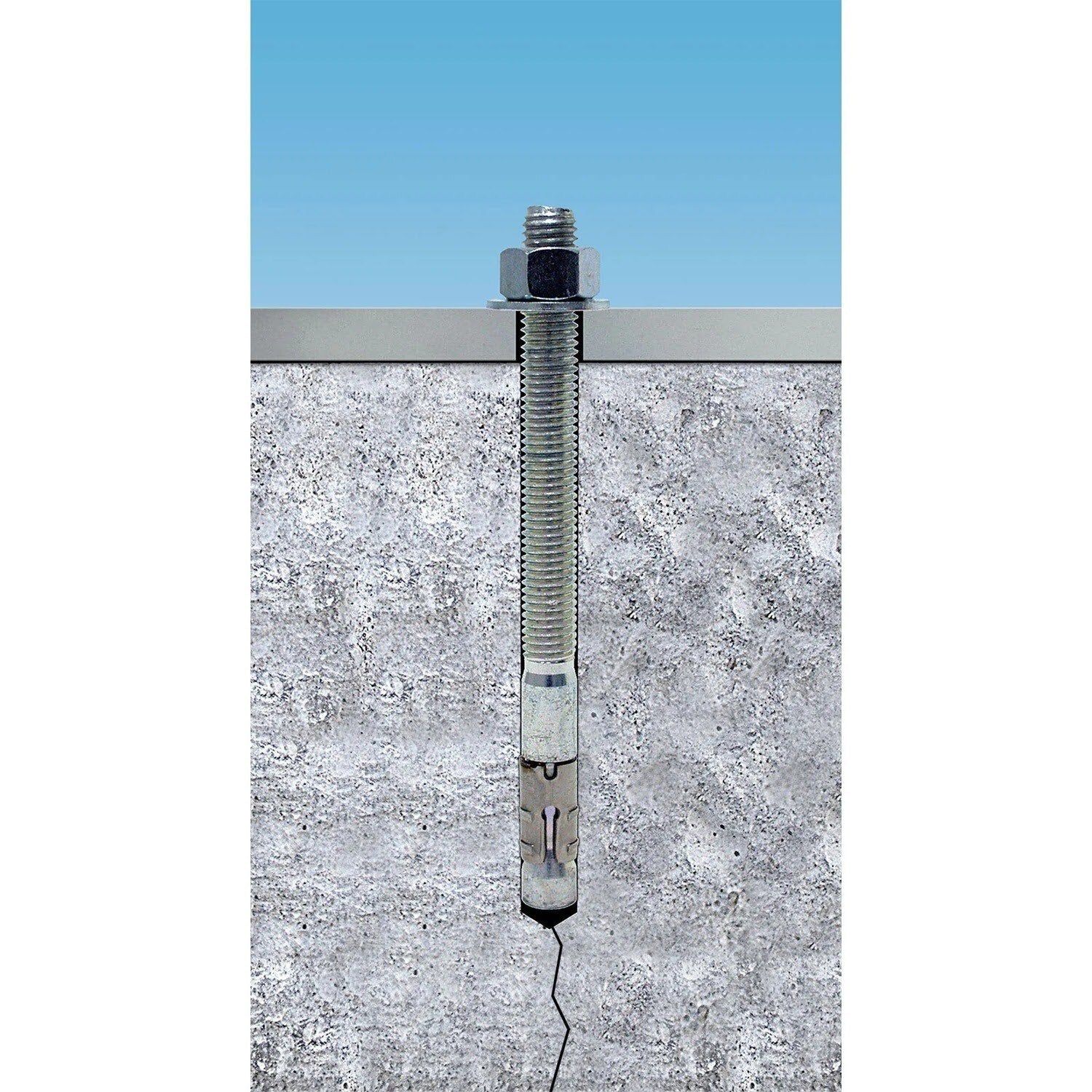

Simpson STB2-1001000 Installation Overview
- Drill a hole using a carbide drill bit matching the anchor diameter
- Clean the hole using compressed air
- Assemble the anchor with nut and washer
- Insert the anchor into the hole and tighten to specified torque
Simpson STB2-1001000 Specifications
| Material | Zinc-plated carbon steel |
| Diameter | 1" |
| Length | 10" |
| Drill Bit Size | 1" |
| Installation Torque | 230 ft. lbs |
| Thread Length | 3-1/2" |
NOTE: Ensure proper installation torque is applied to achieve optimal performance.
