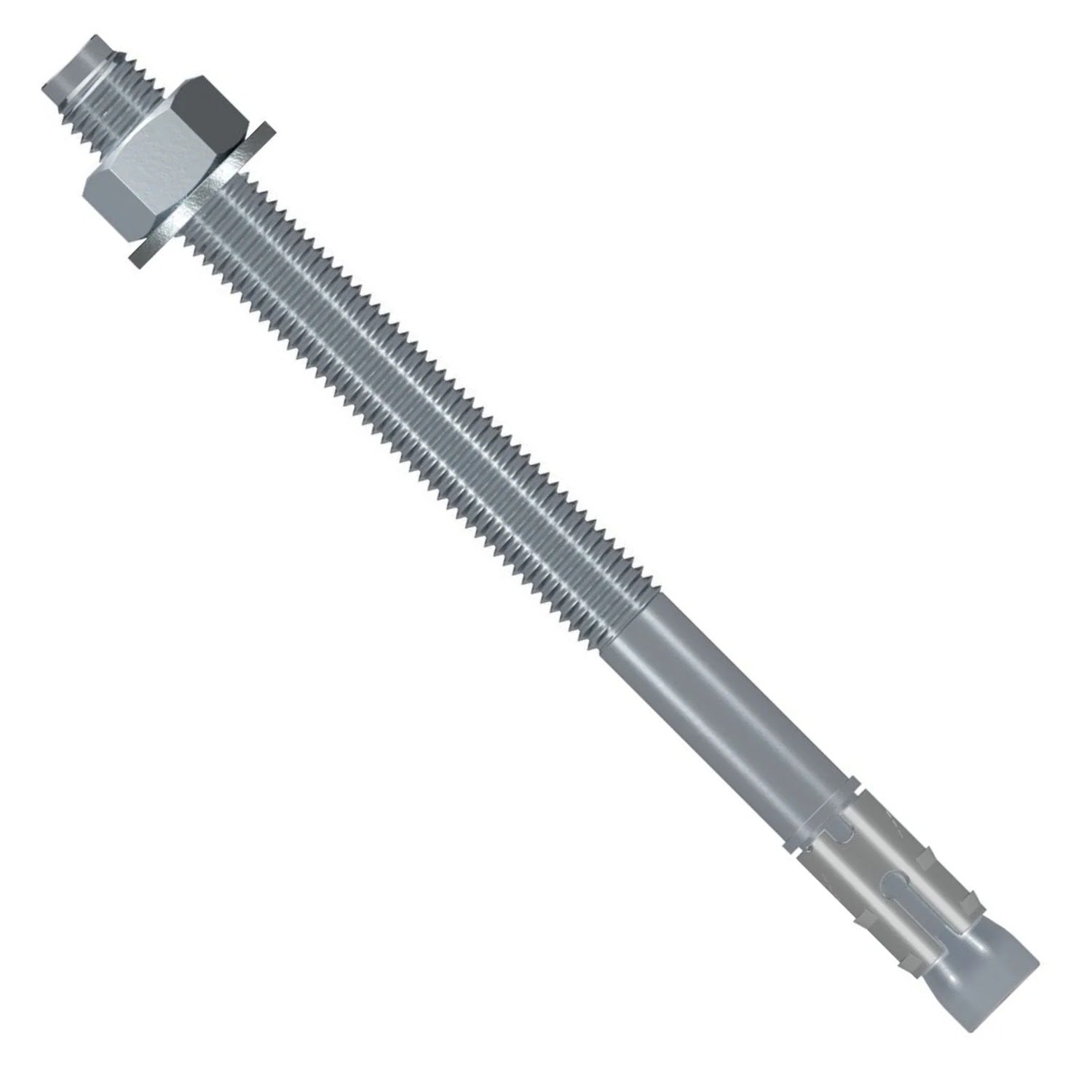

Simpson Strong-Tie STB2-75100-R Strong-Bolt (3/4" x 10") 2 Wedge Anchor - Zinc-Plated Carbon Steel (4 Pack)
Couldn't load pickup availability
Bulk Pricing Available
Bulk Pricing Available
Need to place a large order? Request a quote
Simpson Strong-Tie STB2-75100-R Strong-Bolt (3/4" x 10") ...
Key Specifications
Description
Description
Simpson Strong-Tie STB2-75100-R Description
The Simpson Strong-Bolt 2 Wedge Anchor is a reliable solution for anchoring in cracked or uncracked concrete, suitable for static and seismic loading.
Simpson Strong-Tie STB2-75100-R Includes
- (4) 3/4 in. x 10 in. Zinc Plated Wedge Anchor
Simpson Strong-Tie STB2-75100-R Features
- Chamfered top designed to prevent mushrooming during installation
- Qualified for static and seismic loading conditions
- Suitable for horizontal, vertical, and overhead applications
- Tested per ACI355.2 and AC193
Simpson Strong-Tie STB2-75100-R Applications
- Anchoring in cracked or uncracked concrete
- Seismic and static load applications
- Horizontal, vertical, and overhead installations
Simpson Strong-Tie STB2-75100-R Installation Overview
- Drill a hole in the base material using a carbide drill bit of the same diameter as the anchor.
- Blow the hole clean using compressed air.
- Assemble the anchor with nut and washer, ensuring the nut is flush with the top of the anchor.
- Insert the anchor into the hole and tighten to the required torque.
Simpson Strong-Tie STB2-75100-R Specifications
| Diameter | 3/4 in. |
| Length | 10 in. |
| Material | Carbon Steel |
| Finish | Zinc Plated |
| Drill Bit Size | 3/4 in. |
| Installation Torque | 150 ft. lbs |
NOTE: Do not use an impact wrench to set or tighten the Strong-Bolt 2 anchor. Oversized holes in the base material will make it difficult to set the anchor and will reduce the anchor's load capacity.
