Simpson Strong-Tie ATR1-1/4X24ZP Description
The Simpson Strong-Tie ATR All-Thread Rod is designed for high-strength anchoring and structural applications, featuring a zinc-plated finish for corrosion resistance.
Simpson Strong-Tie ATR1-1/4X24ZP Includes

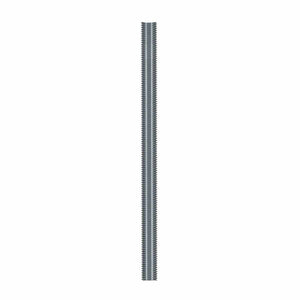

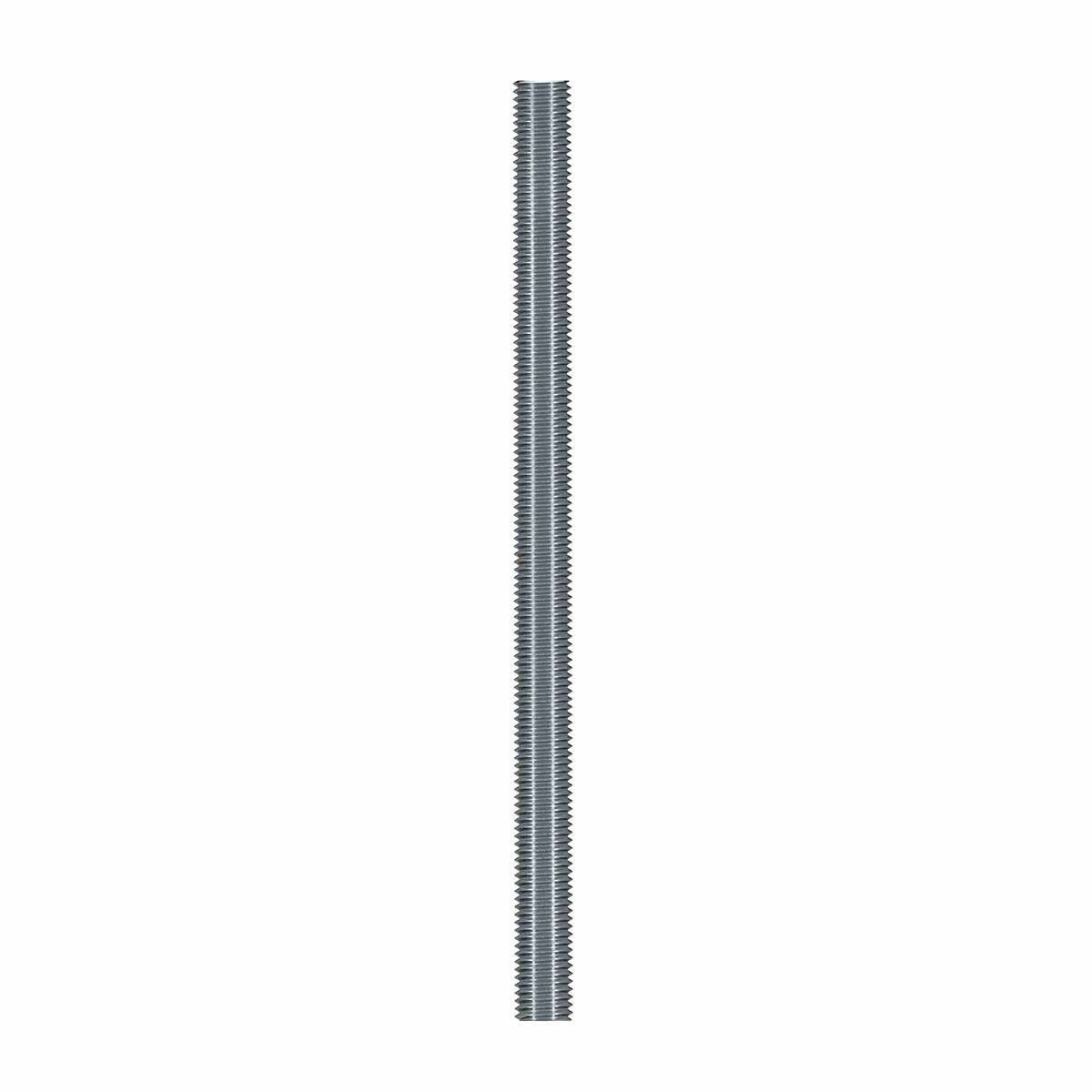

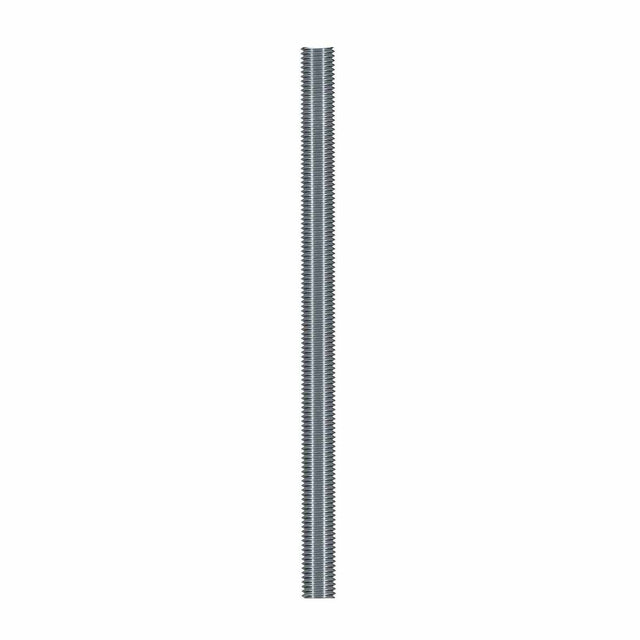

- (1) Zinc-Plated 1-1/4" x 24" All-Thread Rod
Simpson Strong-Tie ATR1-1/4X24ZP Features
- Precut for convenience
- Fully threaded
- UNC Class 2A or 1A thread specifications
- Zinc-plated finish for corrosion resistance
- Engineered for high-strength anchoring and structural applications
Simpson Strong-Tie ATR1-1/4X24ZP Applications
- Structural anchoring in construction projects

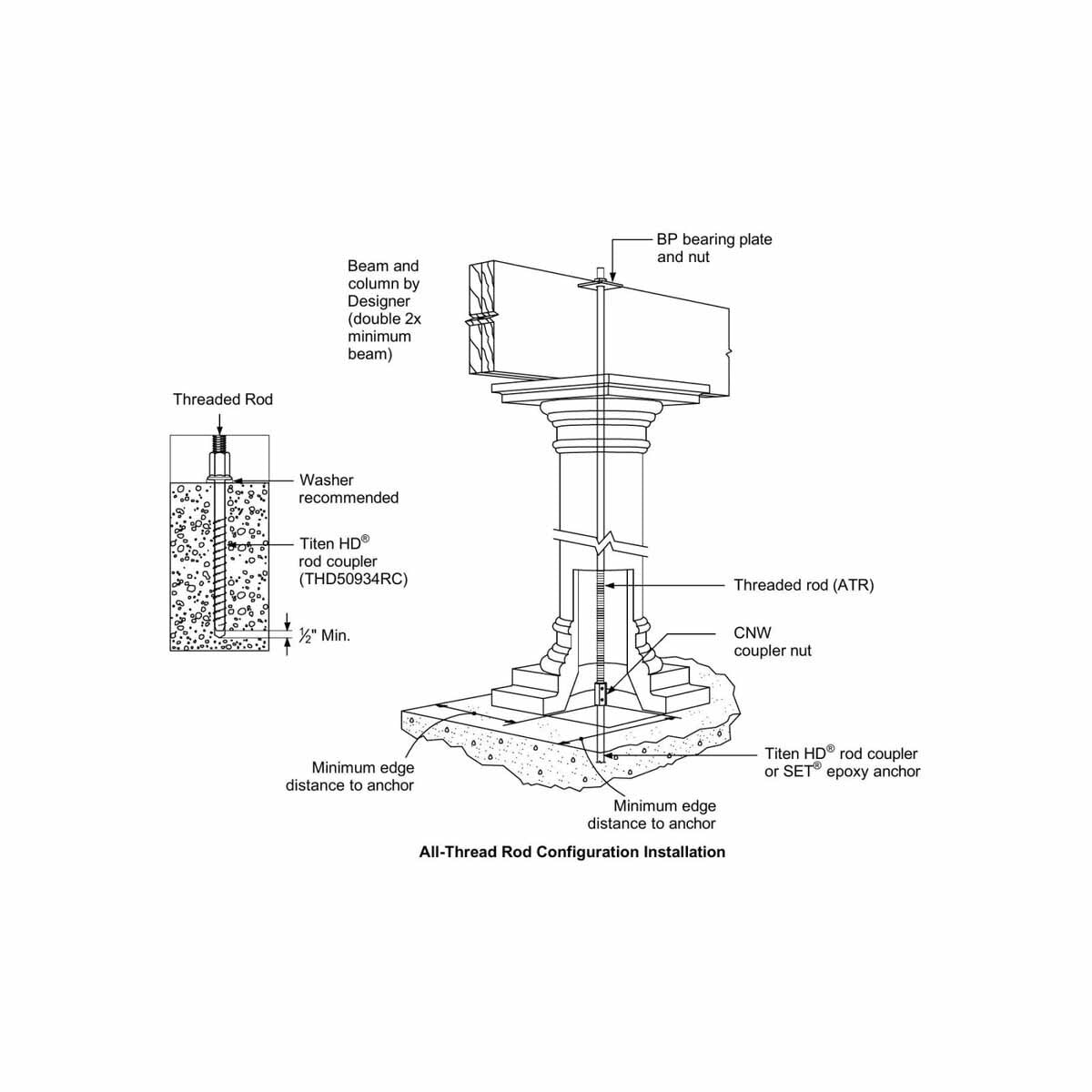

- Shearwall overturning restraint in Anchor Tiedown Systems (ATS)
- Wind Uplift Restraint System (URS)
- General anchoring and structural applications
Simpson Strong-Tie ATR1-1/4X24ZP Specifications
Material | ASTM F1554 Grade 36 or ASTM A307 Grade A |
Finish | Zinc-plated |
Diameter | 1-1/4" |
Length | 24" |
Thread Type | Coarse |
Tension Capacity | 26,690 lbs |
NOTE: Ensure that the nut material and finish match the threaded rod to avoid compatibility issues.
