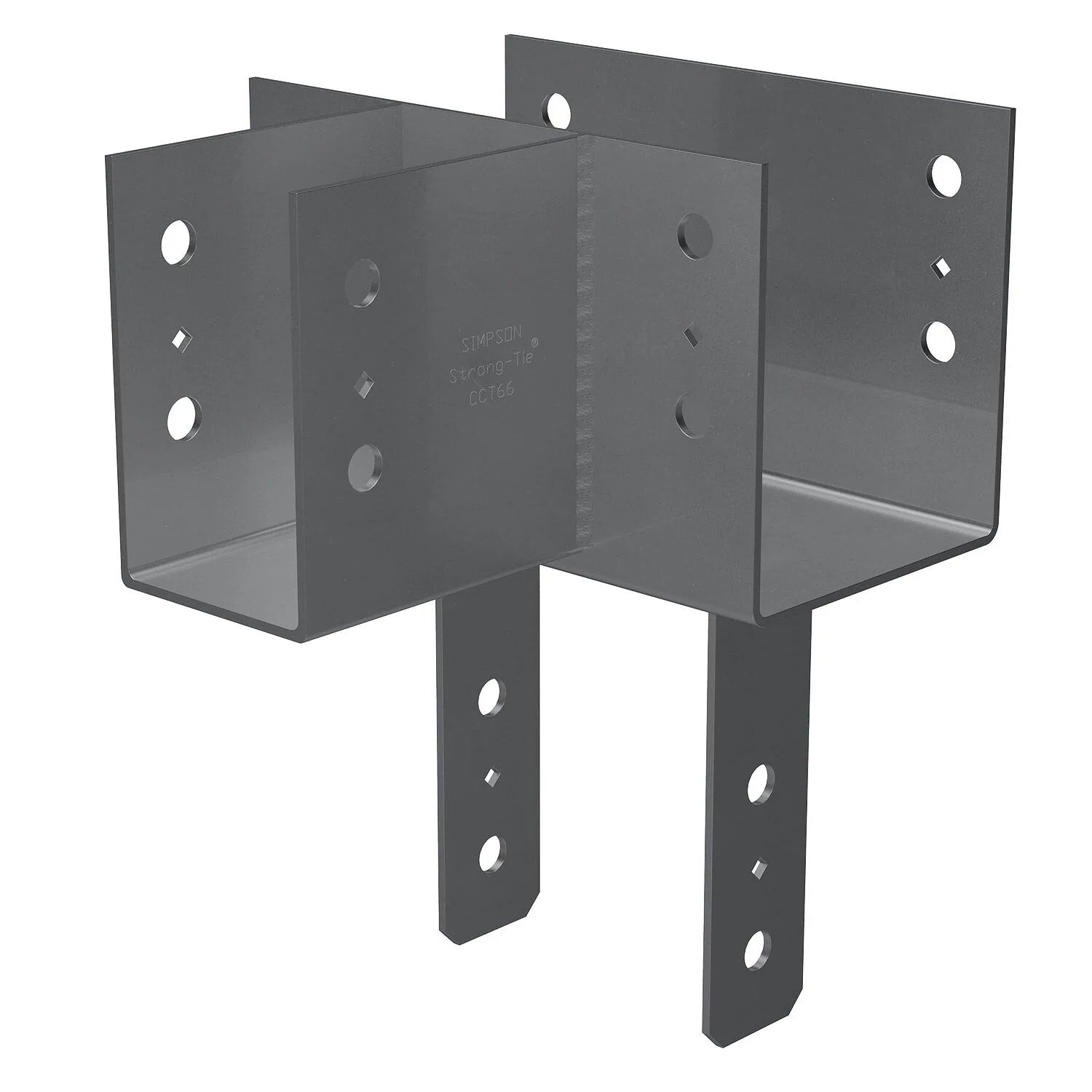

Simpson Strong-Tie CCT666 Heavy-Gauge Steel Column Cap T Configuration for 6x Beams and Posts
Bulk Pricing Available
Bulk Pricing Available
Need to place a large order? Request a quote
Simpson Strong-Tie CCT666 Heavy-Gauge Steel Column Cap T Configurat...
Key Specifications
Description
Description
Simpson Strong-Tie CCT666 Description

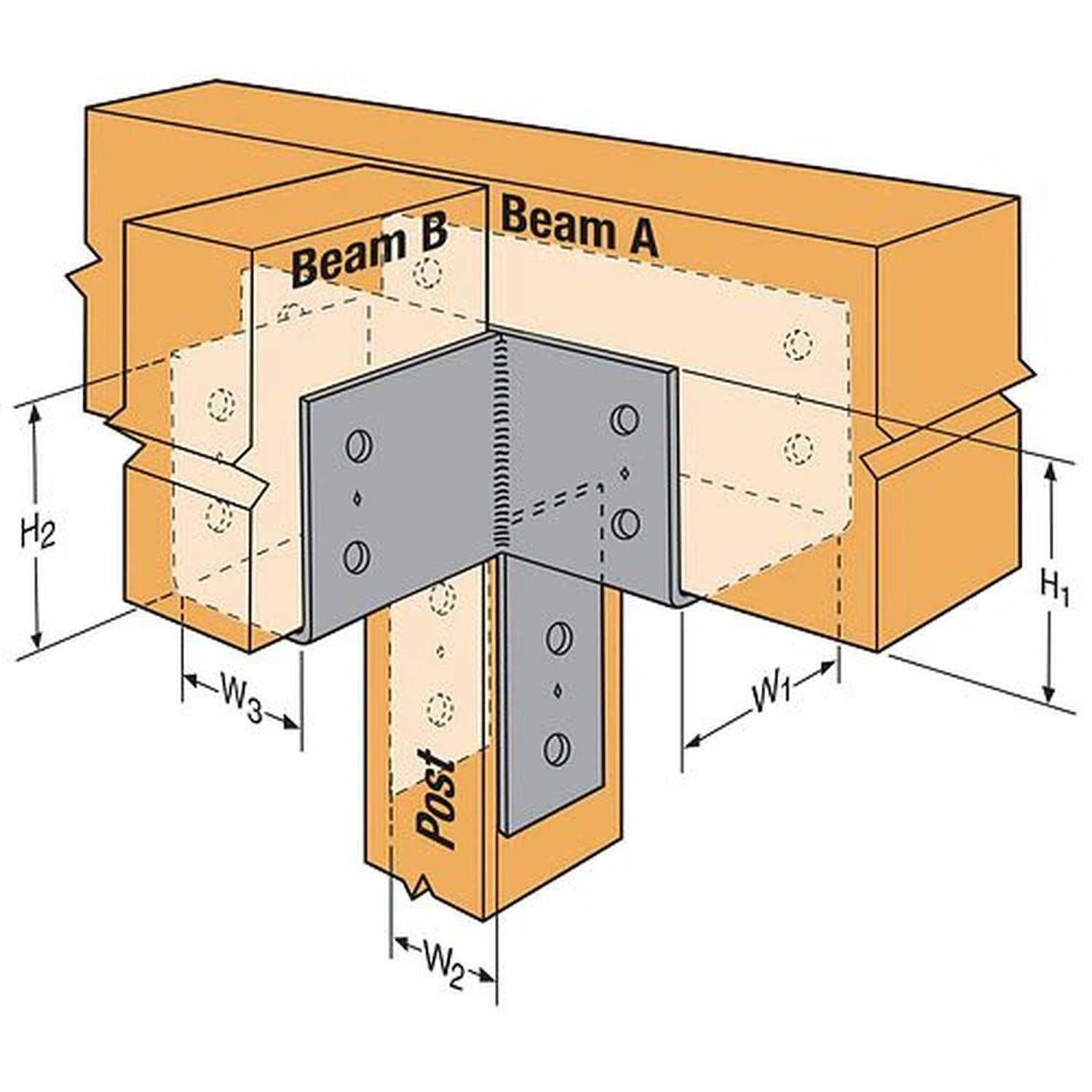

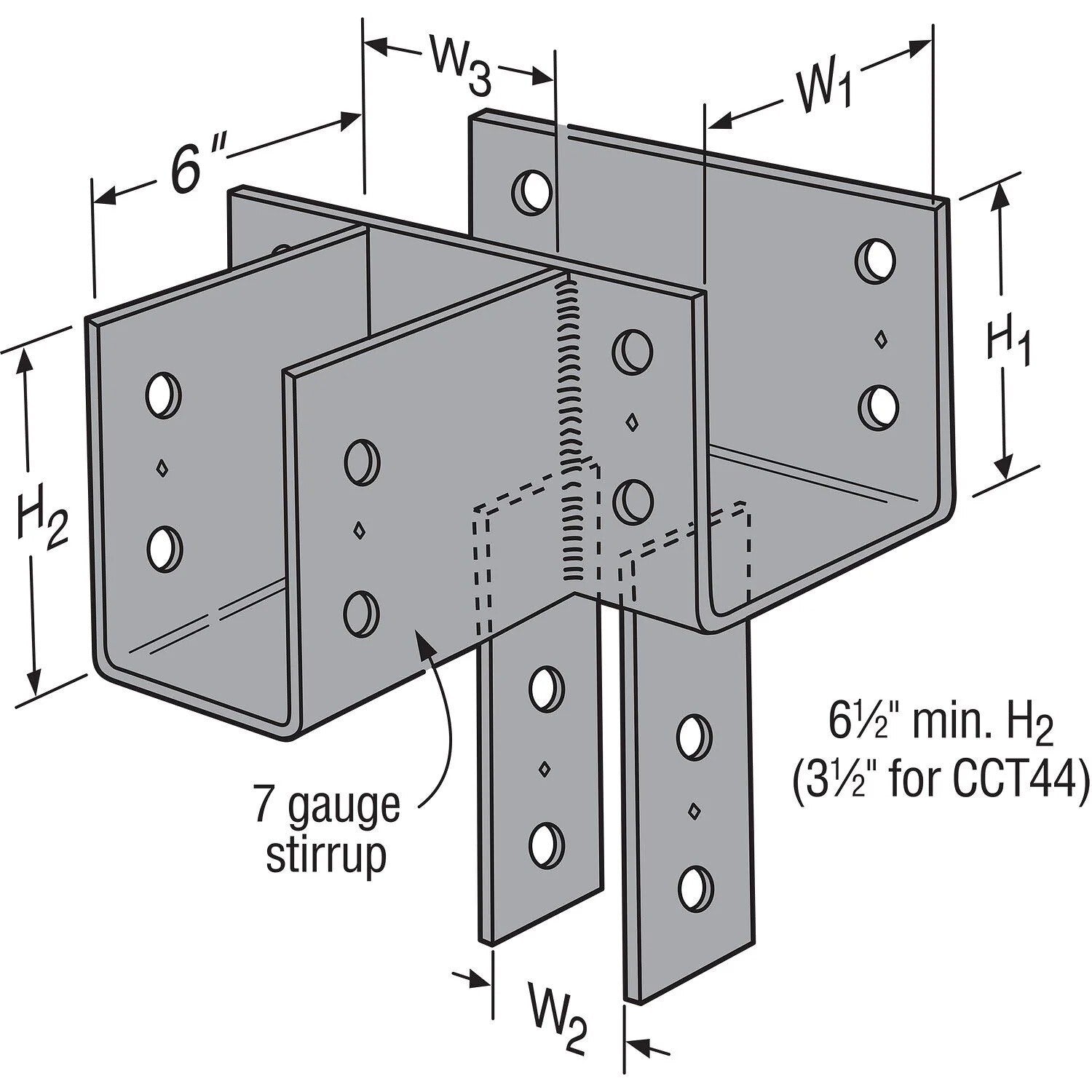

The Simpson CCT666 Column Cap T Configuration enhances the strength and stability of your construction projects. Crafted from durable heavy-gauge steel, this column cap is designed to provide column-to-beam connections where there are two beams in a "T" configuration.
Simpson Strong-Tie CCT666 Includes
- (1) Simpson Anchors CCT666
Simpson Strong-Tie CCT666 Features
- Provides strong column to beam connection with extended area for load distribution
- Intended for use with 6x beams and 6x posts/columns
- Made from durable steel with a gray paint finish
- Certified welds for strength and increased uplift loads
- Features diamond holes for temporary fastening and bolt spacing meeting NDS code requirements
Simpson Strong-Tie CCT666 Applications
- Column-to-beam connections in T configurations
- Construction projects requiring enhanced load distribution
- Use with 6x posts or columns
Simpson Strong-Tie CCT666 Installation Overview
- Position the column cap on the column and align with beams
- Secure temporarily using diamond holes
- Fasten permanently following NDS code requirements
Simpson Strong-Tie CCT666 Specifications
| Finish | Gray Paint |
| Material | Steel |
| Beam size | 6x |
| Fasteners required | Refer to Spec Sheet |
| Post size | 6x |
NOTE: This item is made to order and is non-returnable.
