Simpson Strong-Tie CS16-R (16-Gauge 25') Galvanized Coiled Strap
Couldn't load pickup availability
Bulk Pricing Available
Bulk Pricing Available
Need to place a large order? Request a quote
Simpson Strong-Tie CS16-R (16-Gauge 25') Galvanized Coiled Strap
Key Specifications
Description
Description
Simpson CS16-R Description

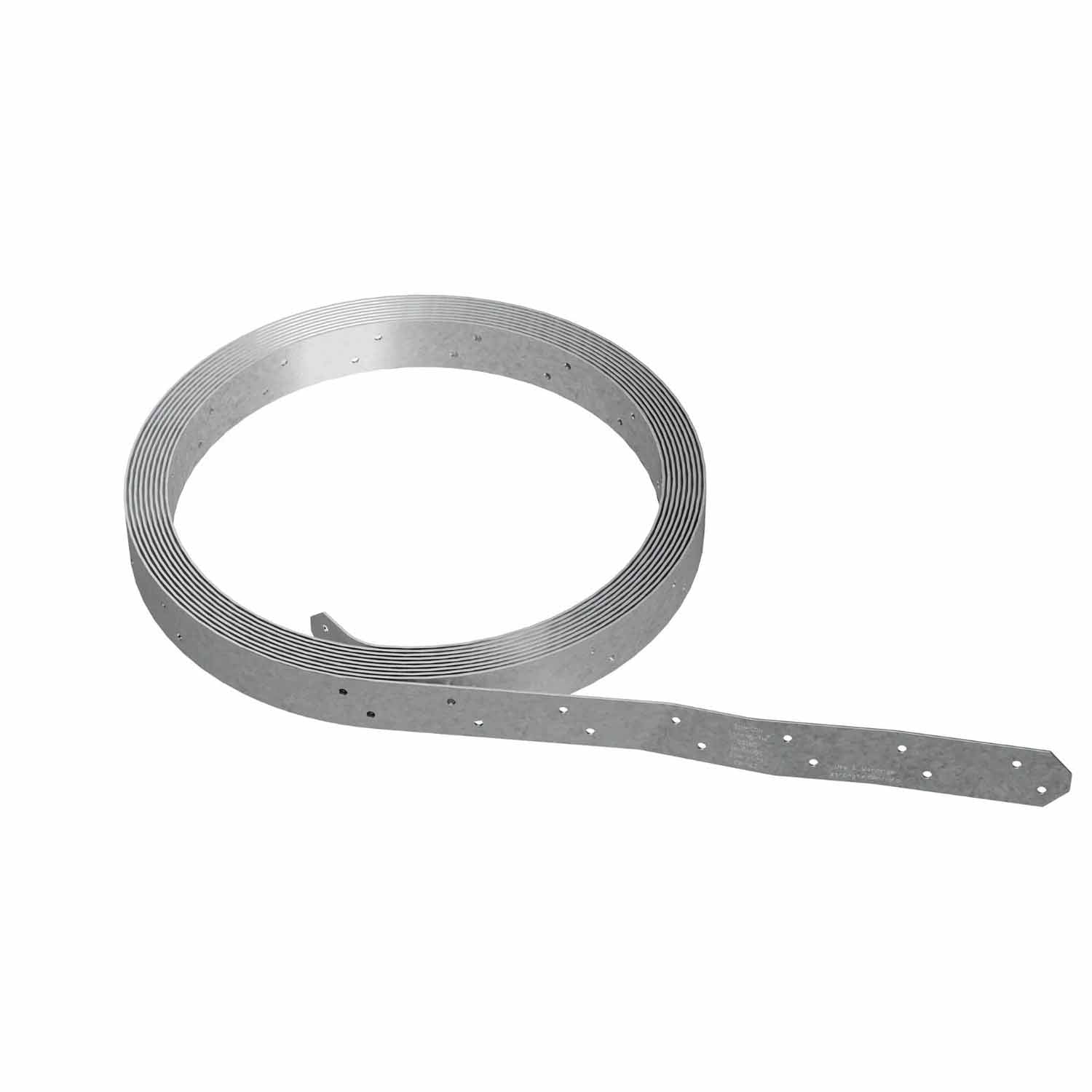

The Simpson CS16-R is a 16-gauge galvanized coiled strap, offering a 25 ft. length for versatile wood-to-wood fastening applications.
Simpson CS16-R Includes
- (1) 16-Gauge Galvanized Coiled Strap 25 ft. Length
Simpson CS16-R Features
- 16-gauge galvanized steel for durability
- 25 ft. length for versatile use
- Can be cut to length on-site

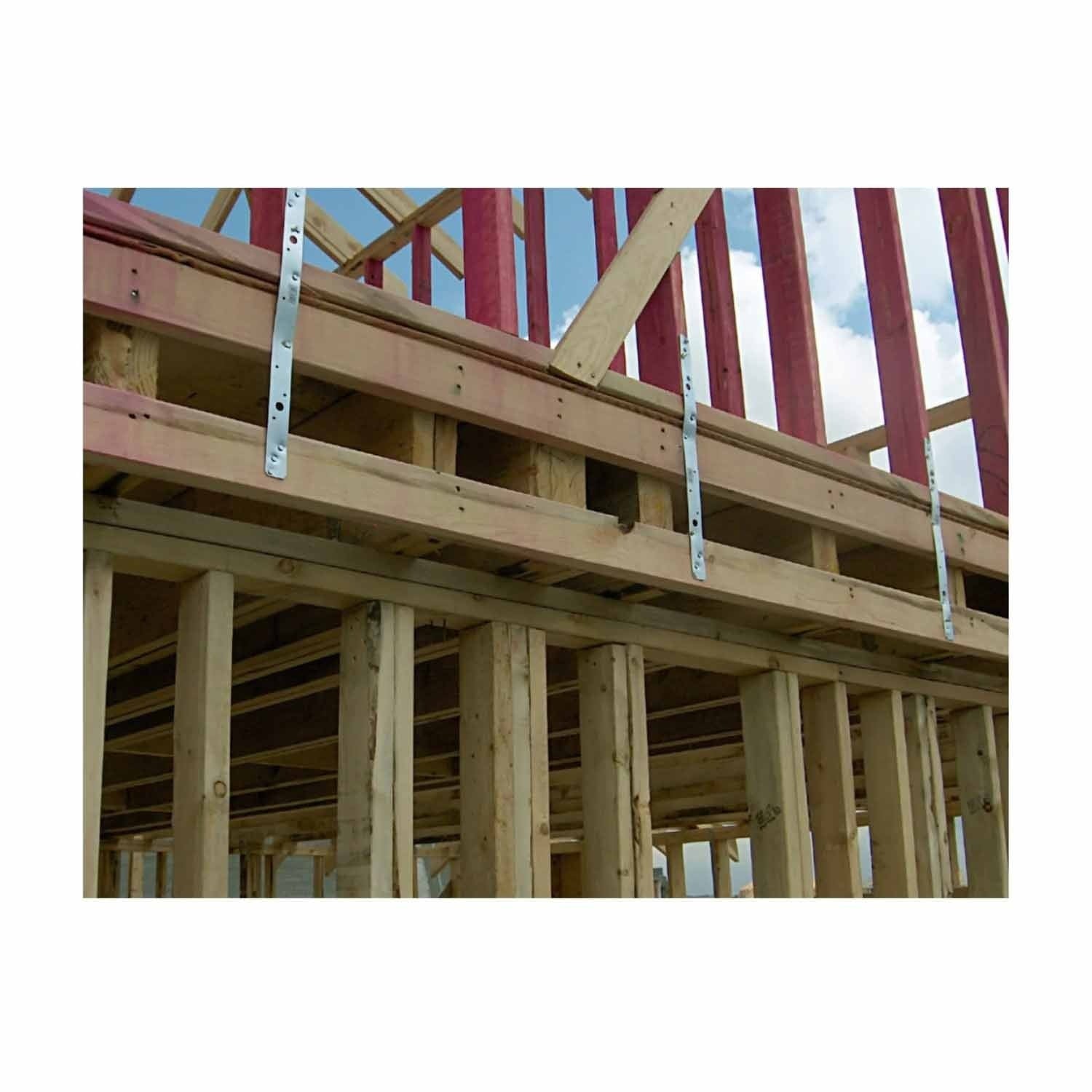

- Provides roof uplift and shear wall overturning resistance
- Cost-effective alternative to pre-cut straps
Simpson CS16-R Applications
- Roof uplift resistance
- Shear wall overturning resistance
- Wood-to-wood fastening
Simpson CS16-R Installation Overview
- Use all specified fasteners
- Ensure proper nail penetration and wood edge distances
- Cut strap length to twice the end length plus clear span dimension
- Account for wood shrinkage to prevent buckling

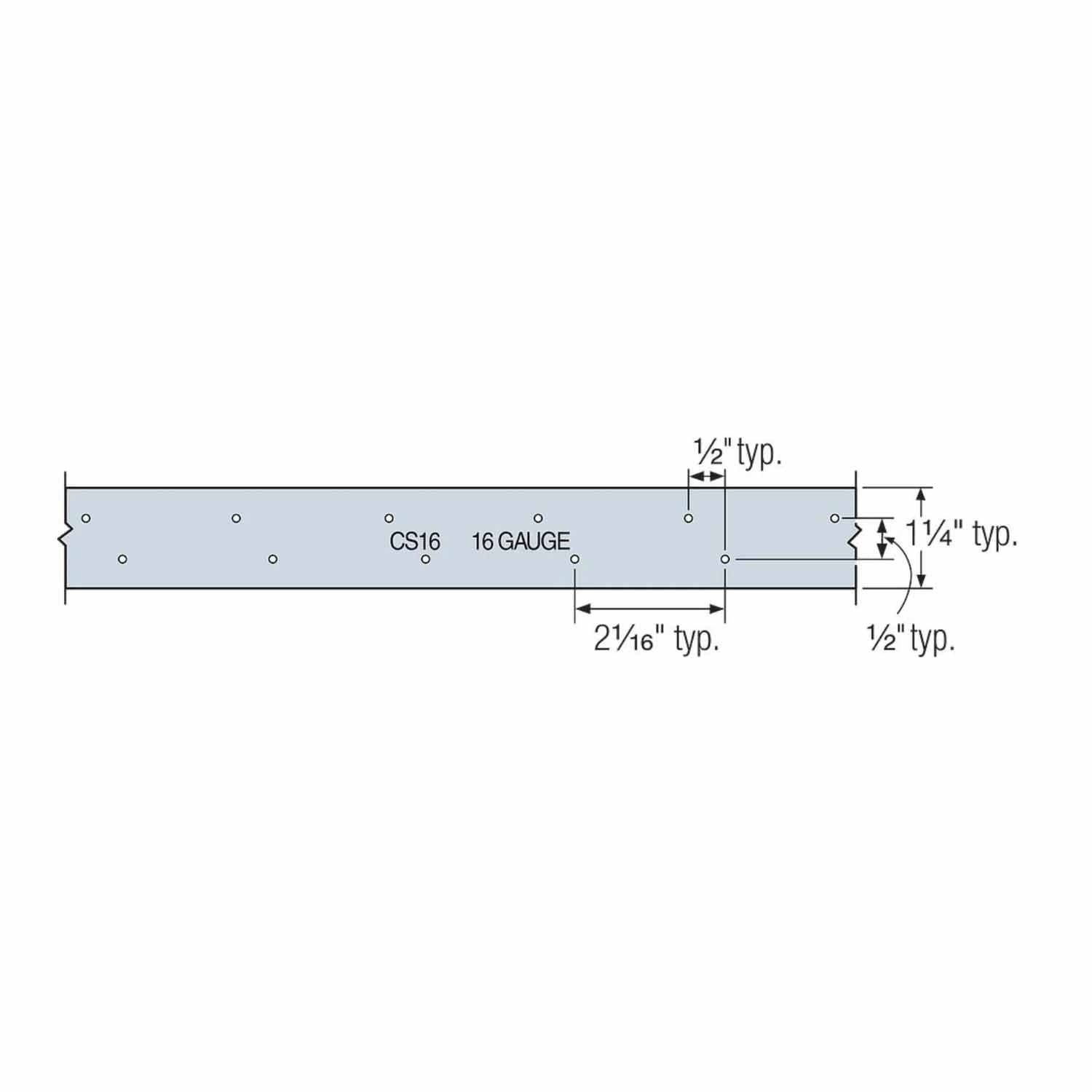

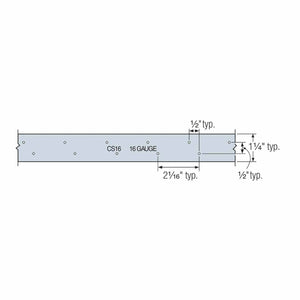

Simpson CS16-R Specifications
| Material | 16-Gauge Galvanized Steel |
| Length | 25 ft. |
| Width | 1-1/4 in. |
| Weight | 6.5 lb |
| For Treated Lumber | No |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
