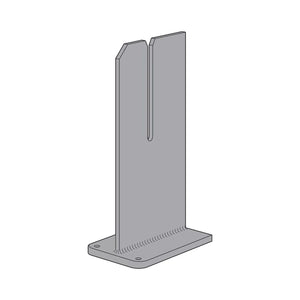

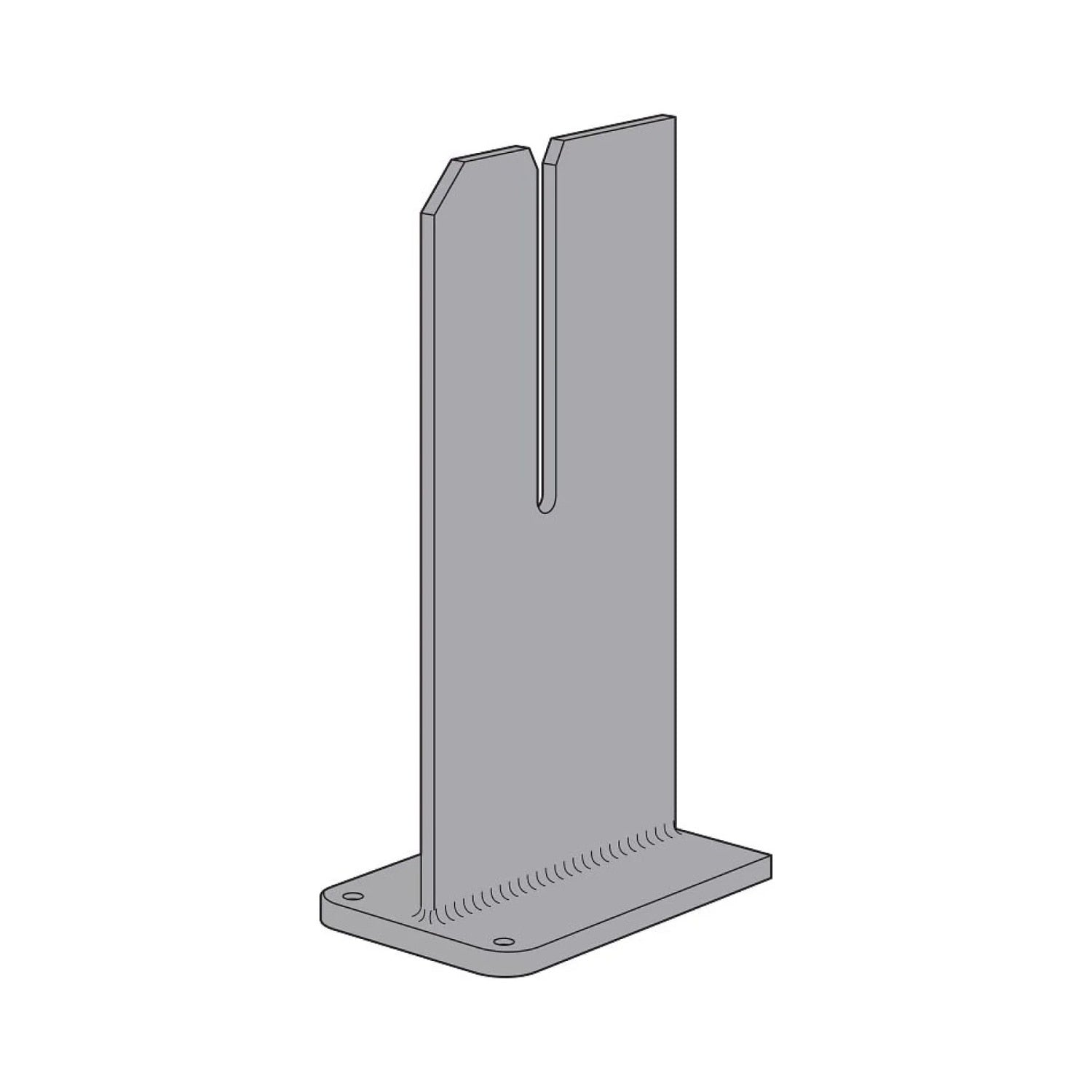

Simpson Strong-Tie HSKP5.75X17-W Description
The Simpson Strong-Tie HSKP5.75X17-W is a high-capacity, concealed beam hanger engineered for mass timber construction. Designed for wood-to-wood and wood-to-steel applications, this hanger delivers exceptional strength while preserving the natural beauty of exposed wood connections.

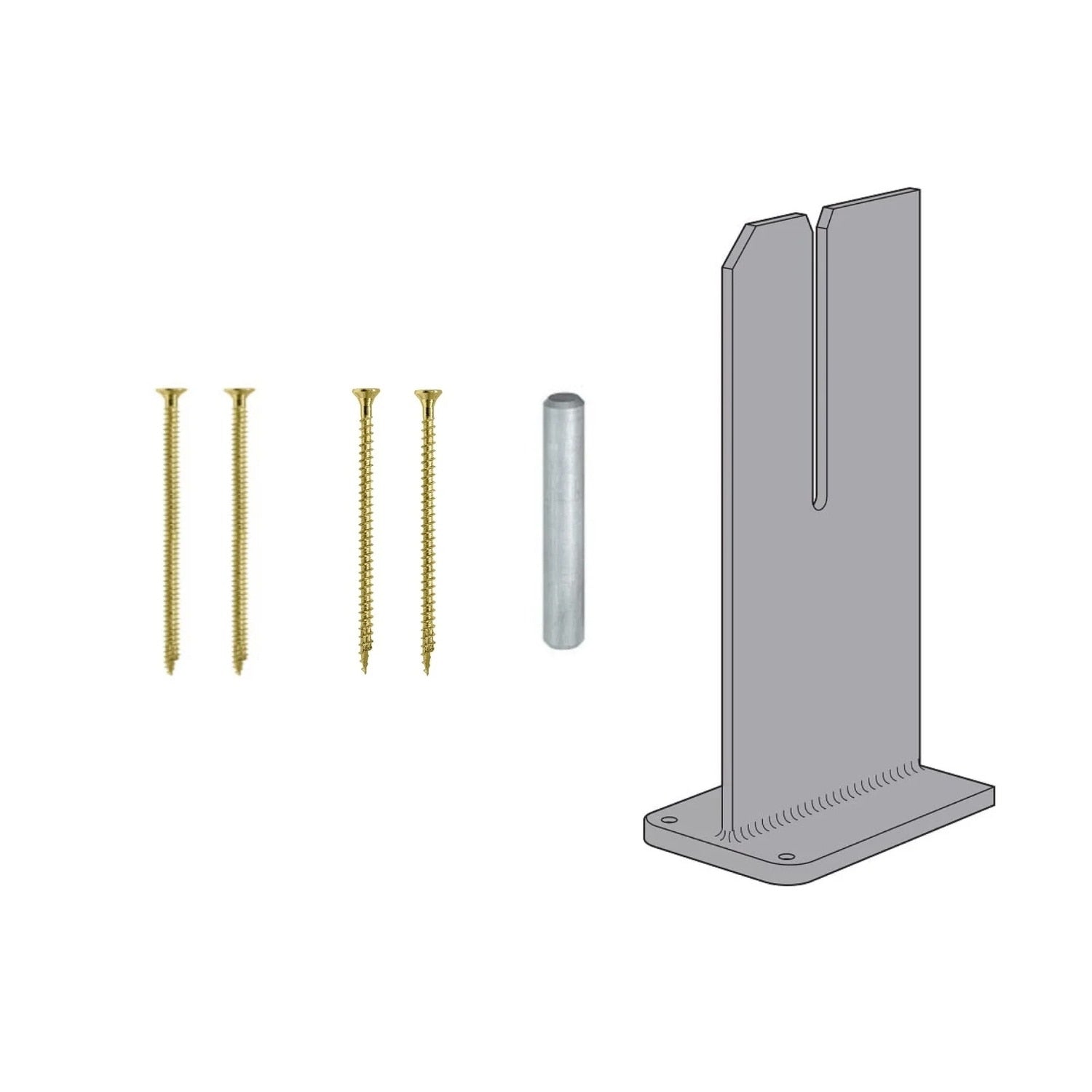

Simpson Strong-Tie HSKP5.75X17-W Includes
- (1) HSKP5.75X17-W Connector
- (1) CJTPL 1/2" Dia. Steel Dowel
- (2) SDCF27614 Screws
- (2) SDCF22858 Screws
Simpson Strong-Tie HSKP5.75X17-W Features
- High Load Capacity: Code-listed for loads from 22 to 32 kips, handling large structural demands.
- Concealed Design: Maintains a clean wood-only appearance with a hidden connector setup.
- Fire-Rated: Meets two-hour fire resistance standards for enhanced safety.
- Precision Fit: Generous fit-up tolerance simplifies beam installation on site.
- Factory Install Ready: Prepped for off-site fabrication to improve jobsite efficiency.
Simpson Strong-Tie HSKP5.75X17-W Applications
- Mass timber construction

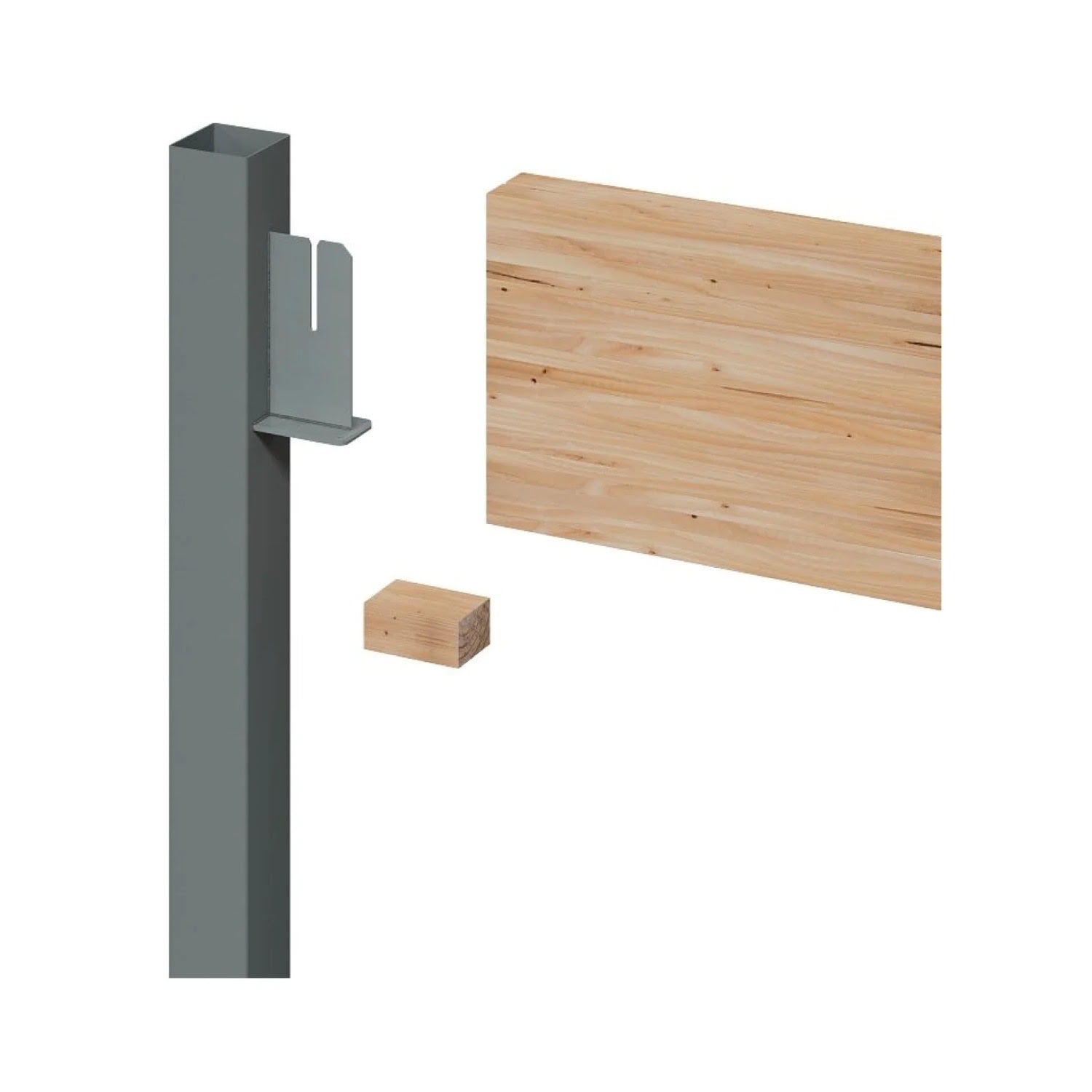

- Wood-to-wood or wood-to-steel beam connections
- Architectural builds requiring concealed connections
Simpson Strong-Tie HSKP5.75X17-W Installation Overview
- Verify kit contents and inspect for damage or defects.
- Align the hanger on the beam and mark screw hole locations.
- Drive the included SDCF screws at specified angles into the beam.
- Lower the beam into position so the hanger is properly seated.
Simpson Strong-Tie HSKP5.75X17-W Specifications
| Finish | Gray Paint |
| Material | Painted Steel |
| Weight | 16.7 lb |
| Manufacturer name | Simpson Strong-Tie |
NOTE: When installing SDCF screws for the HSKP connection, do not exceed recommended seating torque values.
