Simpson Strong-Tie HSKP5.75X19.5 (5-3/4" x 19-1/2") Heavy Seated Knife Plate Hanger - Steel
Couldn't load pickup availability
Bulk Pricing Available
Bulk Pricing Available
Need to place a large order? Request a quote
Simpson Strong-Tie HSKP5.75X19.5 (5-3/4" x 19-1/2") Heavy...
Key Specifications
Description
Description
Simpson Strong-Tie HSKP5.75X19.5 Description

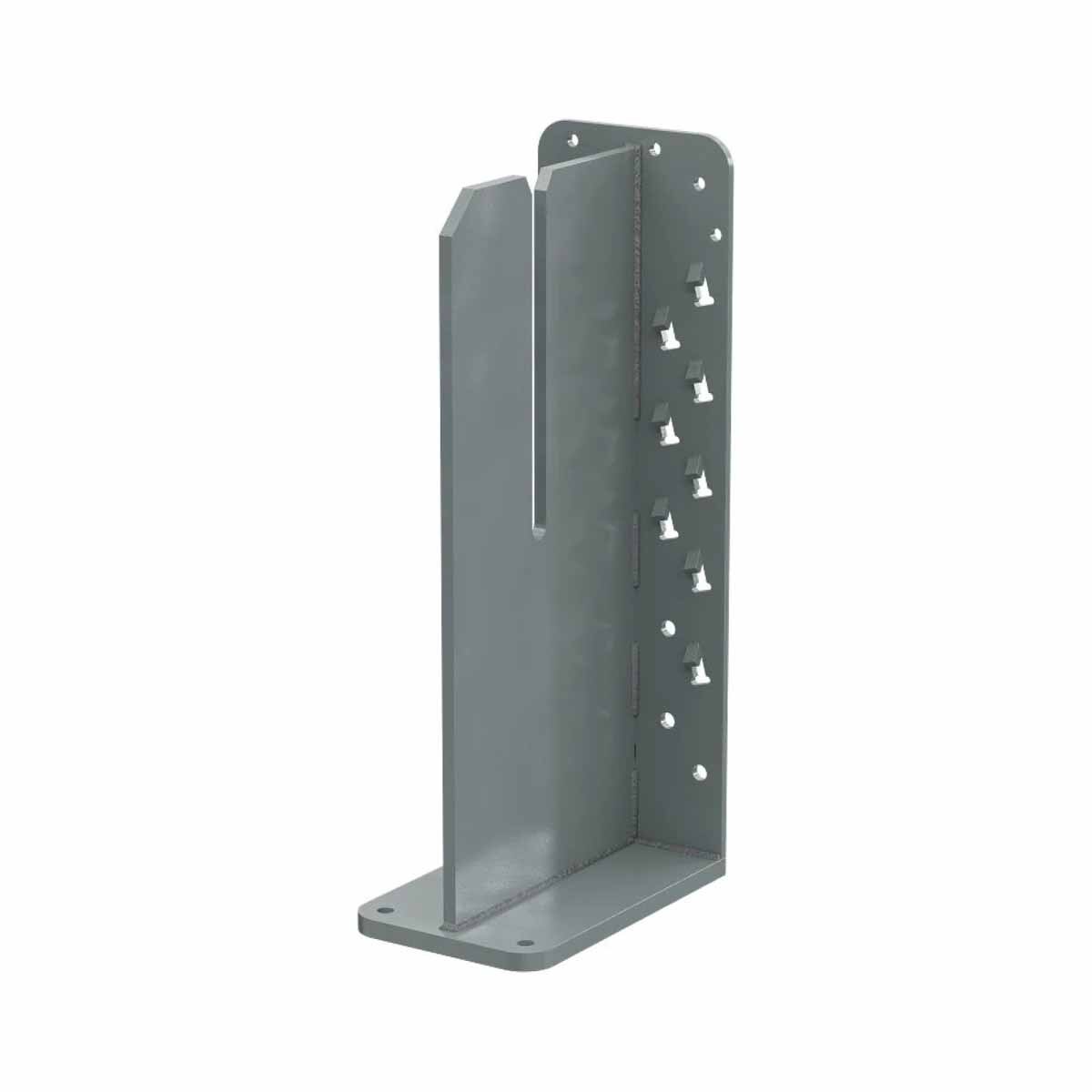

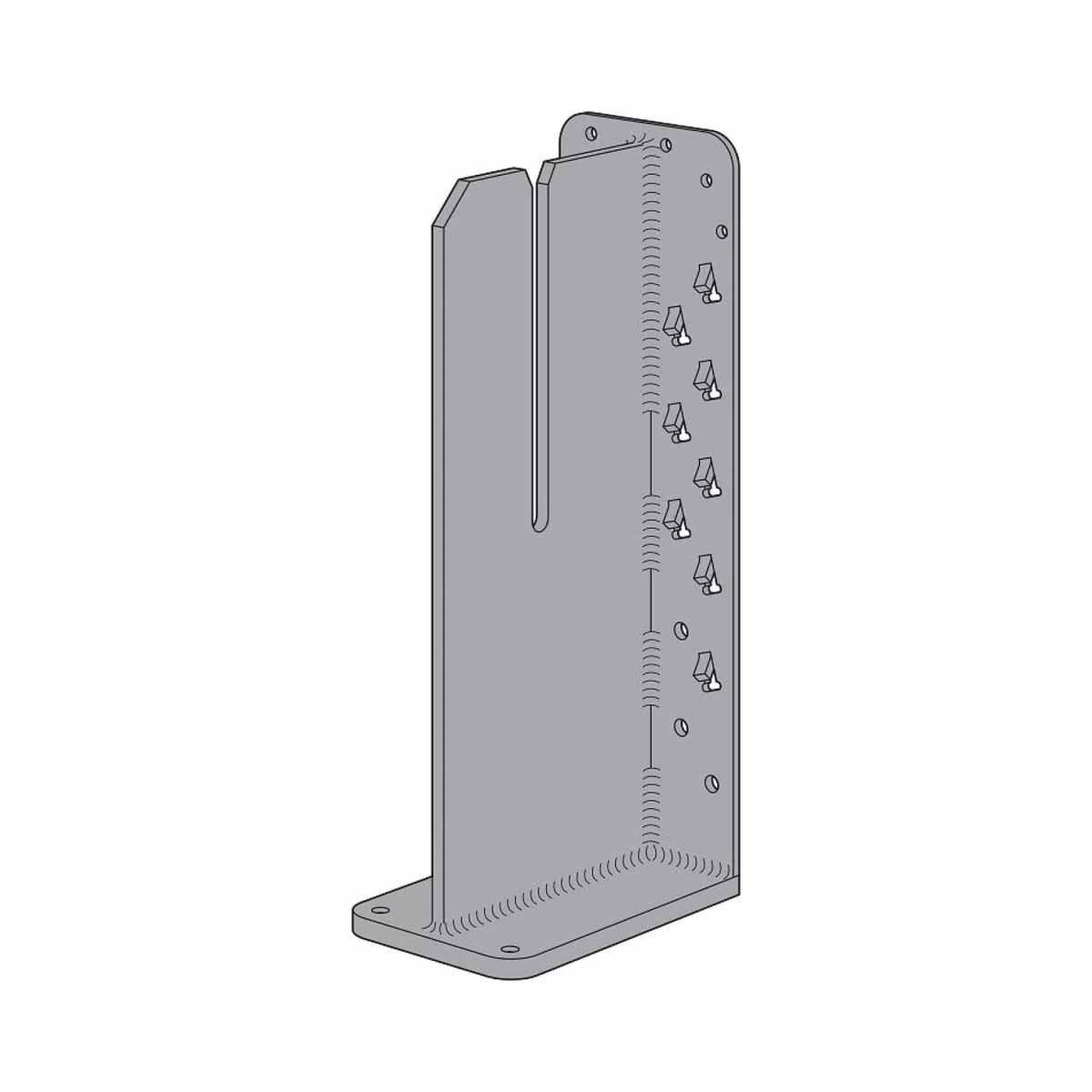

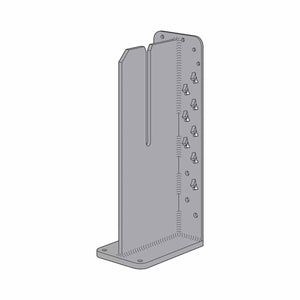

The Simpson Strong-Tie HSKP5.75X19.5 Heavy Seated Knife Plate Hanger delivers concealed, high-capacity connections for mass timber construction. Engineered to provide strength without sacrificing aesthetics, this hanger supports substantial loads while maintaining the clean look of exposed wood.
Simpson Strong-Tie HSKP5.75X19.5 Includes
- (1) HSKP5.75X19.5 Connector
Simpson Strong-Tie HSKP5.75X19.5 Features
- High capacity
- Code listed in ICC-ES ESR 2552
- ASTM E119 1- and 2-hour fire tests
- Factory installation of connector reduces on-site labor
- Quick field connection of beam to supporting member reduces crane cycle-time
- Inclined screw hole feature reduces the overall screw count compared to horizontal screws
- Options for wood-to-wood and wood-to-steel concealed connection
- Recommended for use at beam-to-beam or beam-to-column connections in any Seismic Design Category
Simpson Strong-Tie HSKP5.75X19.5 Applications
- Mass timber construction using glulam or CLT beams
- Commercial and residential wood-frame structures
- Architectural designs requiring concealed hardware for a cleaner aesthetic

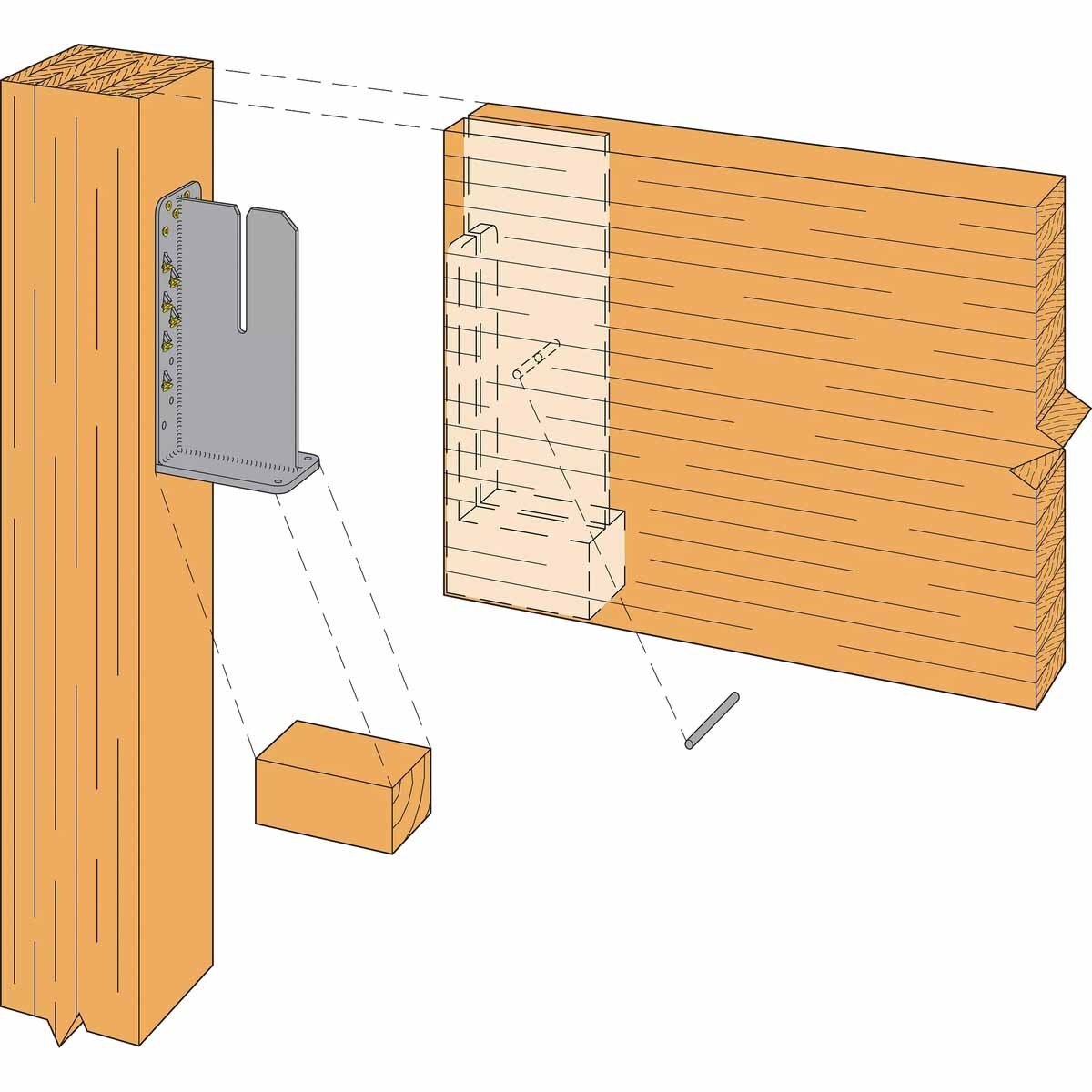

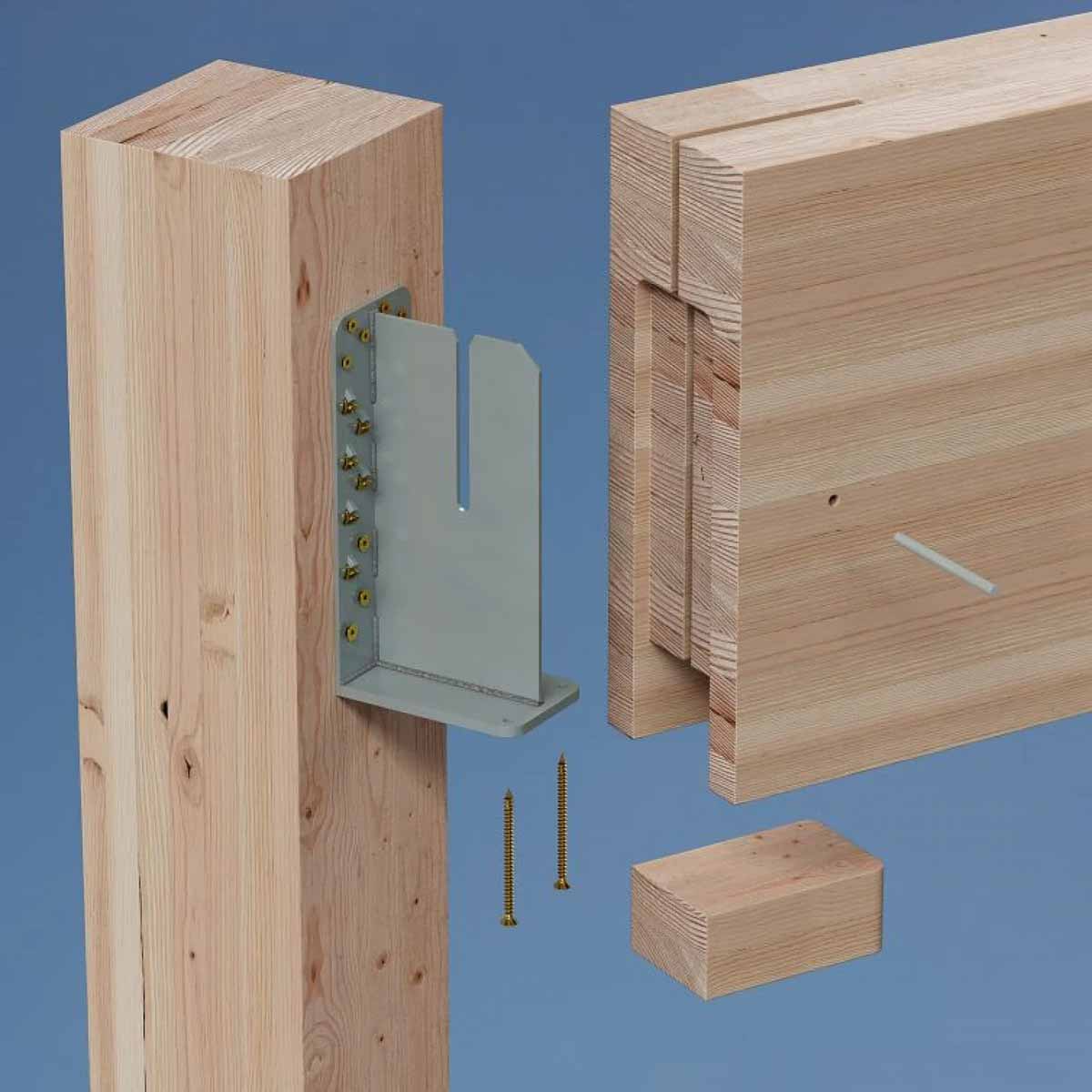

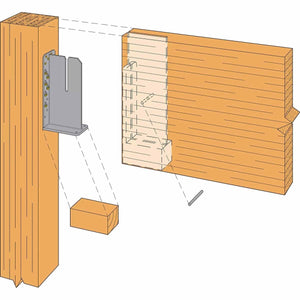

Simpson Strong-Tie HSKP5.75X19.5 Installation Overview
- Prepare: Clean and align beam and column surfaces.
- Dry Fit: Position the hanger in a controlled setting to verify fit.
- Fasten: Secure using specified SDCF Timber-CF screws at 45° through fastener tabs.
- Assemble: Transport and install the beam-to-column assembly on site.
Simpson Strong-Tie HSKP5.75X19.5 Specifications
| Finish | Gray Paint |
| Material | Painted Steel |
| Weight | 26.4 lb |
| Additional Info | Back and Knife Plate — 3/8" gauge; Bearing Plate — 1/2" |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
