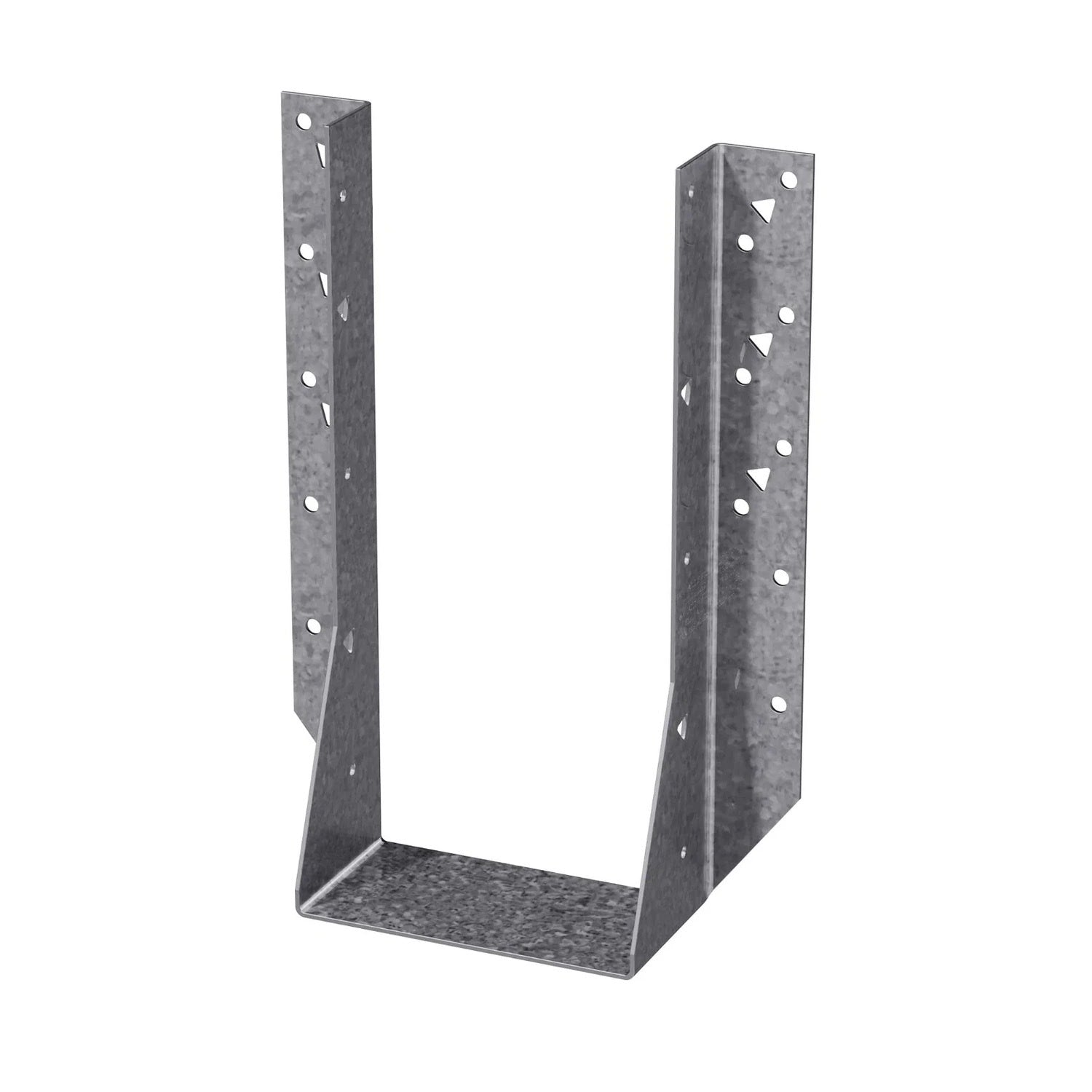

Simpson Strong-Tie HU212-3 (Triple 2" x 12") 14-Gauge Galvanized Heavy Face-Mount Joist Hanger
Couldn't load pickup availability
Bulk Pricing Available
Bulk Pricing Available
Need to place a large order? Request a quote
Simpson Strong-Tie HU212-3 (Triple 2" x 12") 14-Gauge Gal...
Key Specifications
Description
Description
Simpson Strong-Tie HU212-3 Description
The Simpson Strong-Tie HU212-3 is a heavy-duty face-mount joist hanger designed for triple 2x12 joists, offering robust support and durability for various construction applications.
Simpson Strong-Tie HU212-3 Includes
- (1) Triple 2x12 Face-Mount Joist Hanger
Simpson Strong-Tie HU212-3 Features
- G90 Galvanized Finish for corrosion resistance
- 14-gauge steel construction for durability
- Tested and load-rated for code compliance
- Versatile design for wood-to-wood and wood-to-masonry connections
Simpson Strong-Tie HU212-3 Applications
- Deck Framing: Securely fastens joists to beams for added structural support.
- Floor Systems: Provides strong joist support in both residential and commercial flooring structures.
- Roof Framing: Used in truss and rafter connections for enhanced stability.
- Bridges & Boardwalks: Essential for supporting heavy timber construction projects.
- Post and Beam Construction: Ensures reliable load transfer in timber-framed structures.
- Masonry and Concrete Applications: Can be installed into CMU walls or concrete slabs with appropriate fasteners.
Simpson Strong-Tie HU212-3 Installation Overview
- Use hot-dip galvanized nails for G90 galvanized hangers.
- Install into masonry and concrete using specified Titen HD screws.
Simpson Strong-Tie HU212-3 Specifications
| Finish | G90 Galvanized |
| Material | Carbon Steel |
| Fasteners required | Face - (22) 0.162" x 3-1/2" Nails, Joist - (10) 0.148" x 3" Nails |
| For Treated Lumber | No |
| Height | 10-5/16" |
| Joist size | Triple 2" X 12" |
| Manufacturer name | Simpson Strong-Tie |
| Quantity | 1 |
| Thickness | 14 Gauge |
| Width | 4-11/16" |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
