Simpson Strong-Tie HU612 (6" x 12") 14-Gauge Galvanized Heavy Face-Mount Joist Hanger
Couldn't load pickup availability
Bulk Pricing Available
Bulk Pricing Available
Need to place a large order? Request a quote
Simpson Strong-Tie HU612 (6" x 12") 14-Gauge Galvanized H...
Key Specifications
Description
Description

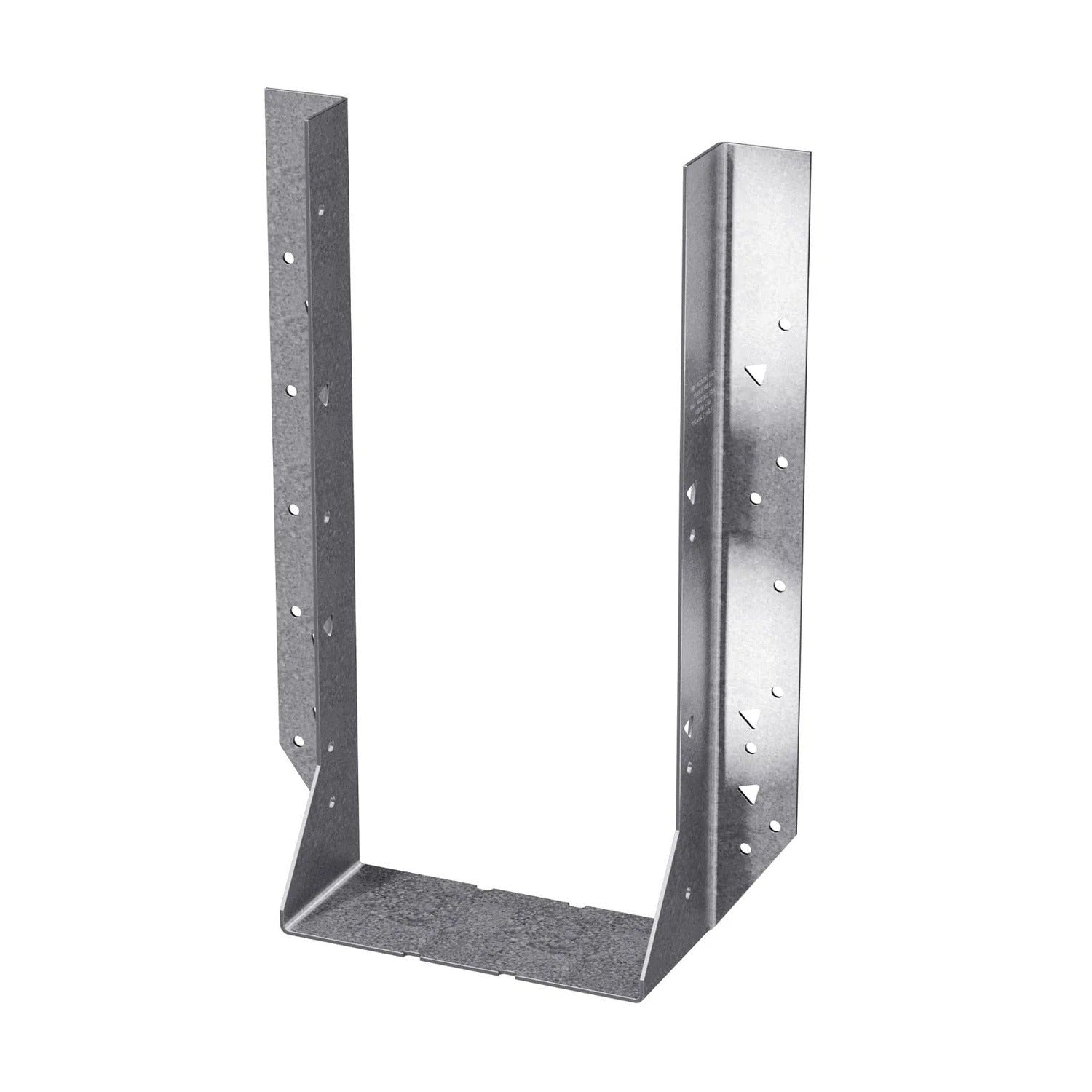

Simpson HU612 Description
The Simpson HU612 Heavy-Duty Face-Mount Joist Hanger is designed for robust support in various construction applications, crafted from 14-gauge steel with a G90 galvanized finish for durability and reliability.
Simpson HU612 Includes
- (1) Heavy-Duty Face-Mount Joist Hanger for 6x12
Simpson HU612 Features
- Added triangular holes for additional load capacity
- Tested, load-rated, and code compliant
- Crafted from 14-gauge steel for durability
- G90 Galvanized finish for corrosion resistance
- Versatile applications for solid sawn lumber, engineered wood, and cold-formed steel joists
Simpson HU612 Applications
- Deck Framing: Securely fastens joists to beams for added structural support.
- Floor Systems: Provides strong joist support in both residential and commercial flooring structures.
- Roof Framing: Used in truss and rafter connections for enhanced stability.
- Bridges & Boardwalks: Essential for supporting heavy timber construction projects.
- Post and Beam Construction: Ensures reliable load transfer in timber-framed structures.
- Masonry and Concrete Applications: Can be installed into CMU walls or concrete slabs with appropriate fasteners.
Simpson HU612 Installation Overview
- Use all specified fasteners as per guidelines.
- Can be installed filling round holes only, or filling round and triangle holes for maximum values.
- Joists sloped up to 1/4:12 achieve table loads.
- For installations to masonry or concrete, refer to specific guidelines.
- Can be welded to a steel member, with load values determined by weld capacity.
- When nailing into solid sawn carrying member's end grain, adjust allowable load by a factor of 0.67.
- Web stiffeners required for I-joist applications.
Simpson HU612 Specifications
| Material | Carbon Steel |
| Finish | G90 Galvanized |
| Thickness | 14 Gauge |
| Width | 5-1/2" |
| Height | 9-3/8" |
| Joist size | 6" X 12" |
| Fasteners required | Face - (22) 0.162" x 3-1/2" Nails, Joist - (8) 0.162" x 3-1/2" Nails |
| For Treated Lumber | No |
| Quantity | 1 |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
