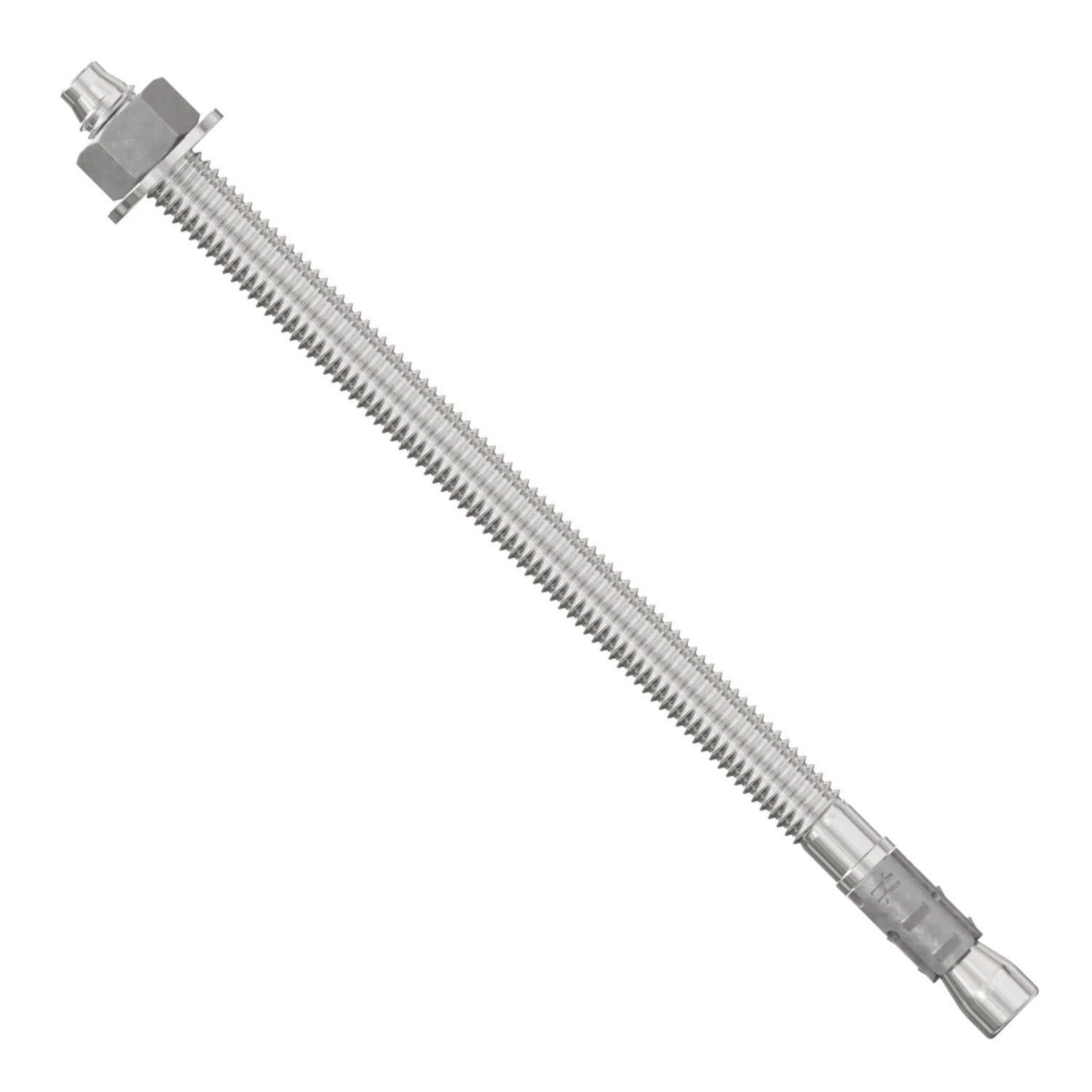

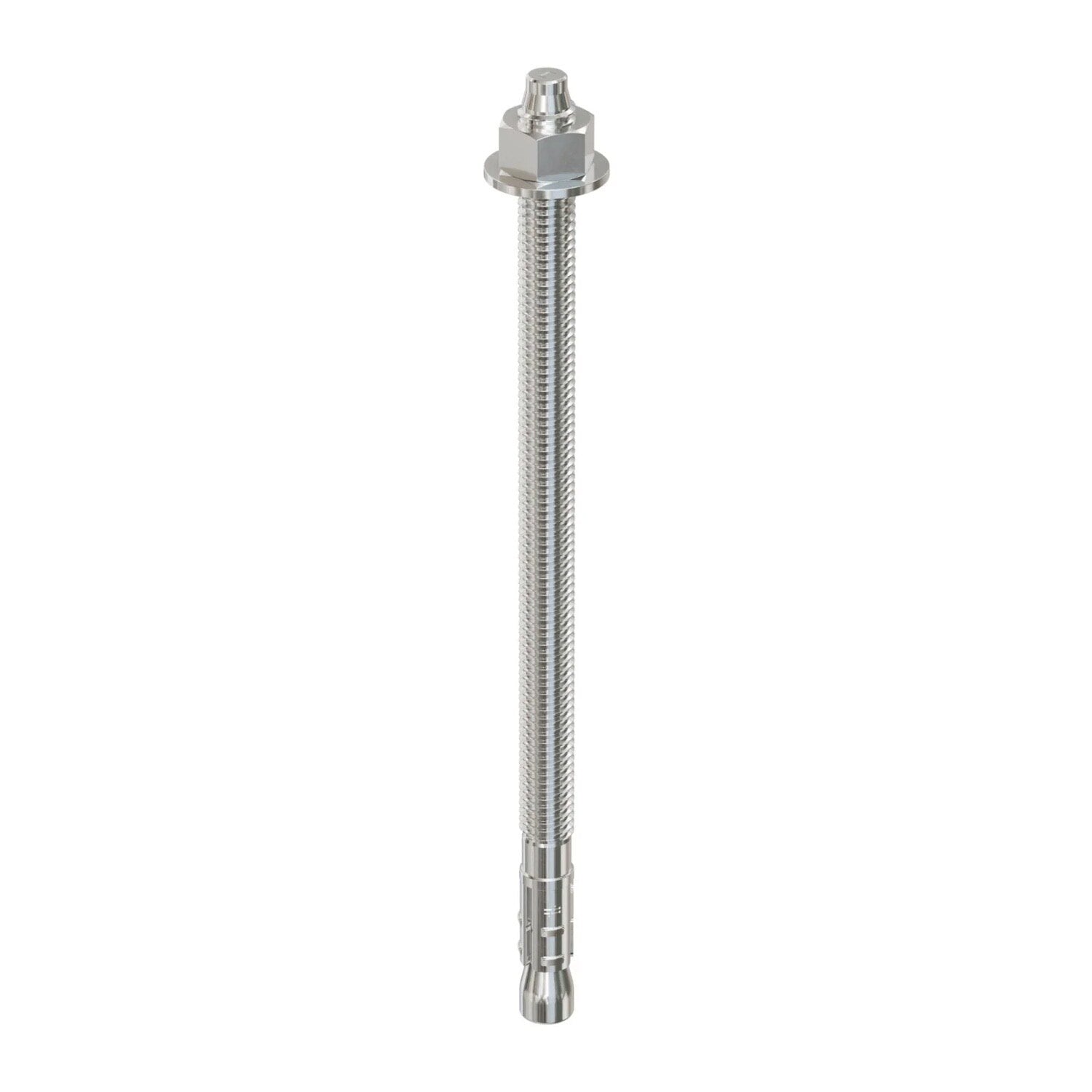

Simpson Strong-Tie STB2-37700S4F50 Strong Bolt (3/8" x 7") Fully Assembled 2 Wedge Anchor - Type 304 (50 Pack)
Bulk Pricing Available
Bulk Pricing Available
Need to place a large order? Request a quote
Simpson Strong-Tie STB2-37700S4F50 Strong Bolt (3/8" x 7"...
Key Specifications
Description
Description
Simpson Strong-Tie STB2-37700S4F50 Description
The Simpson Strong-Tie Strong-Bolt 2 Wedge Anchors in 304 stainless steel deliver powerful performance and dependable holding strength for concrete anchoring projects. Designed for versatility, this anchor system arrives fully assembled, streamlining installation and minimizing prep time.
Simpson Strong-Tie STB2-37700S4F50 Includes
- (50) 3/8 in. x 7 in. Type 304 Stainless-Steel Wedge Anchor
Simpson Strong-Tie STB2-37700S4F50 Features

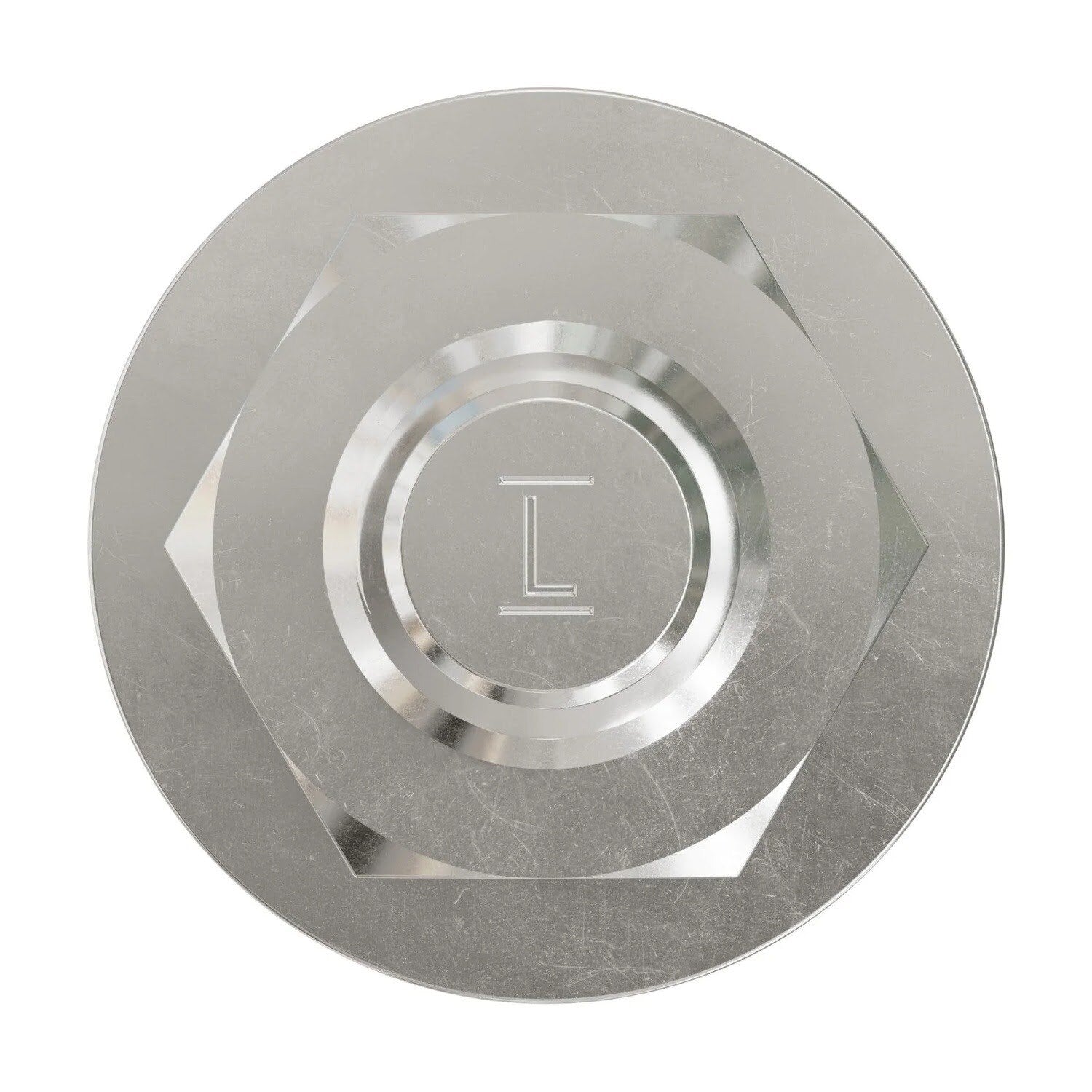

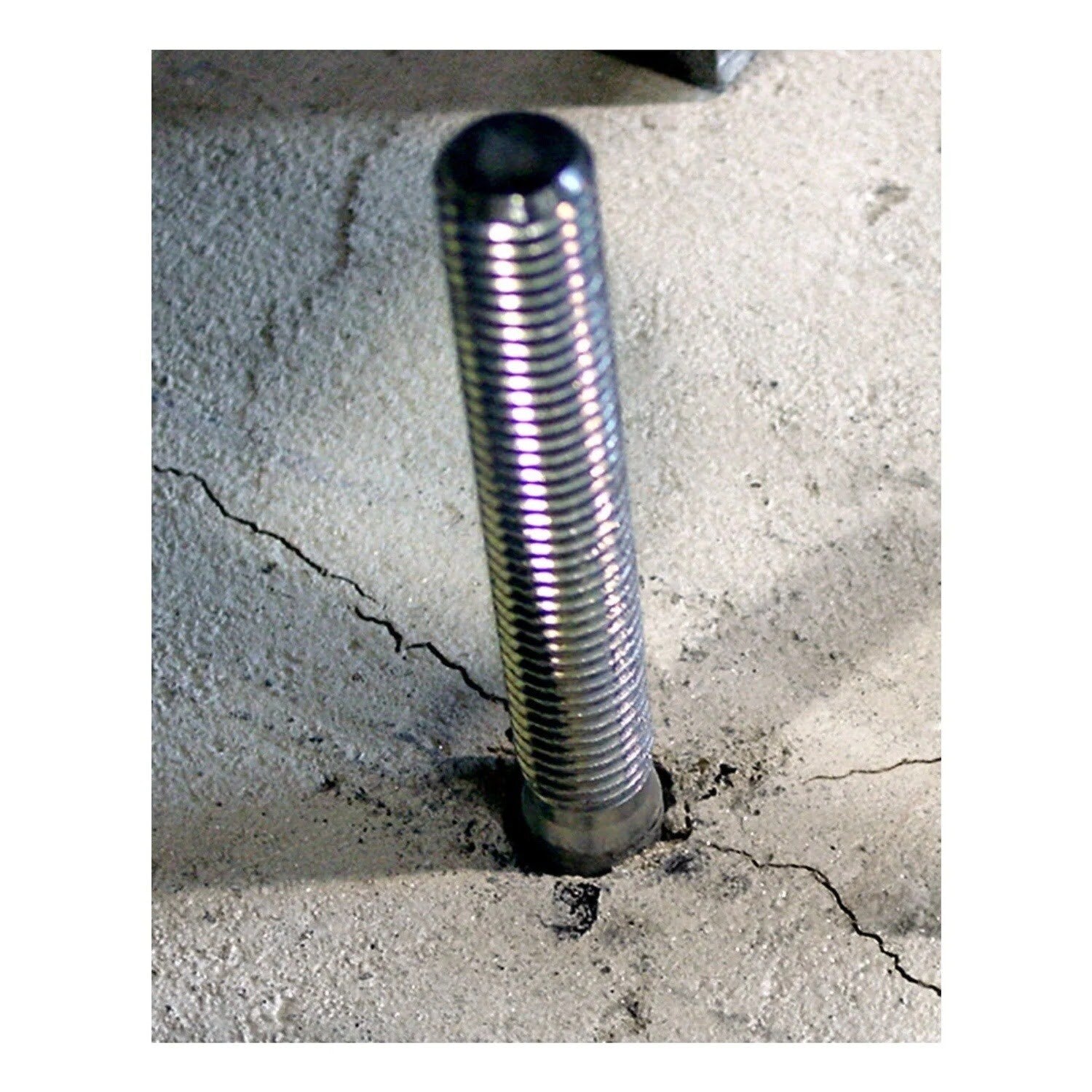

- Chamfered top designed to prevent mushrooming during installation
- Qualified for static and seismic loading conditions (seismic design categories A through F)
- Suitable for horizontal, vertical and overhead applications
- Qualified for minimum concrete thickness of 3 1/4", and lightweight concrete-over-steel deck
- Standard (ANSI) fractional sizes: fits standard fixtures and installs with common drill bit and tool sizes
- Tested per ACI355.2 and AC193
Simpson Strong-Tie STB2-37700S4F50 Applications
- Concrete anchoring for structural steel, machinery, and racking systems
- Ideal for both interior and exterior applications due to corrosion resistance
- Suitable for residential renovations and industrial installations
Simpson Strong-Tie STB2-37700S4F50 Installation Overview
- Drill a hole in the base material using a carbide drill bit the same diameter as the nominal diameter of the anchor to be installed.
- Assemble the anchor with nut and washer so the top of the nut is flush with the top of the anchor.

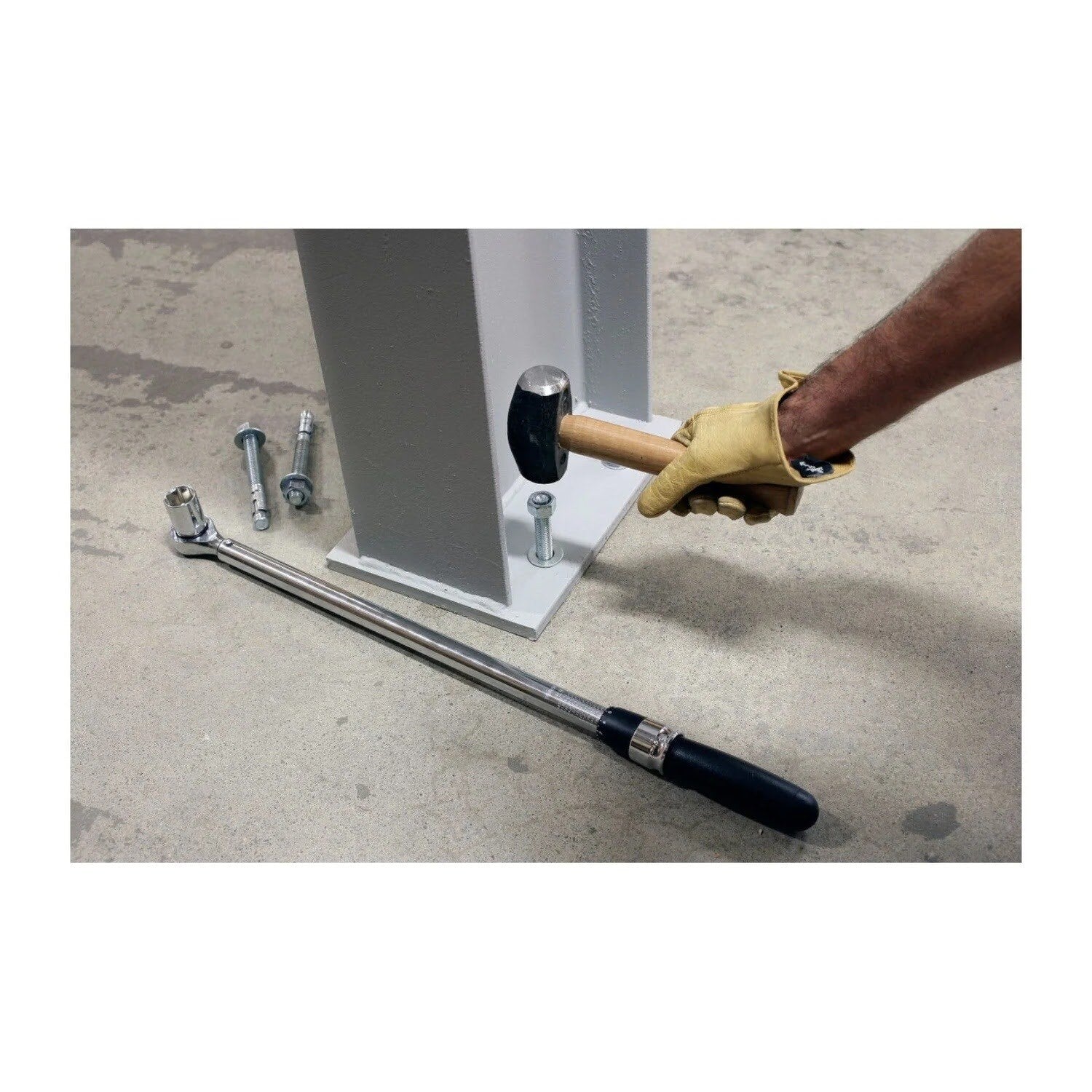

- Place the anchor in the fixture, and drive it into the hole until the washer and nut are tight against the fixture.

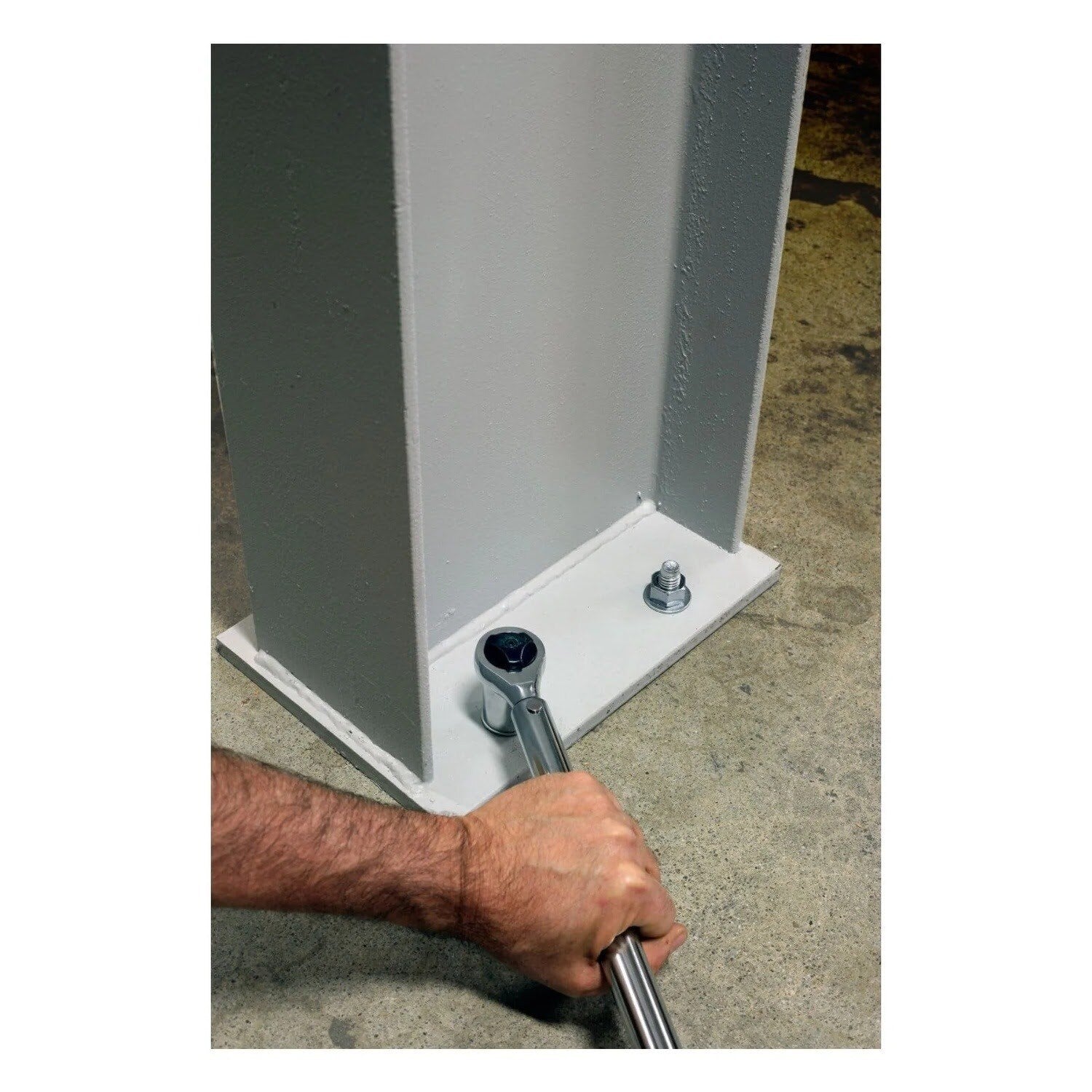

- Tighten to the required installation torque.
Simpson Strong-Tie STB2-37700S4F50 Specifications
| Diameter | 3/8 in. |
| Length | 7 in. |
| Material | 304 Stainless Steel |
| Drill bit size | 3/8 in. |
| Fixture hole size | 7/16 in. |
| Installation torque | 20 ft. lbf. |
| Thread length | 5-9/16 in. |
| Wrench size | 9/16 in. |
WARNING: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov
