Simpson Strong-Tie STB2-50434 Strong-Bolt (1/2 in. x 4-3/4 in.) Wedge Anchor - Zinc Plated (25 Pack)
Bulk Pricing Available
Bulk Pricing Available
Need to place a large order? Request a quote
Simpson Strong-Tie STB2-50434 Strong-Bolt (1/2 in. x 4-3/4 in.) Wed...
Key Specifications
Description
Description
Simpson STB2-50434 Description

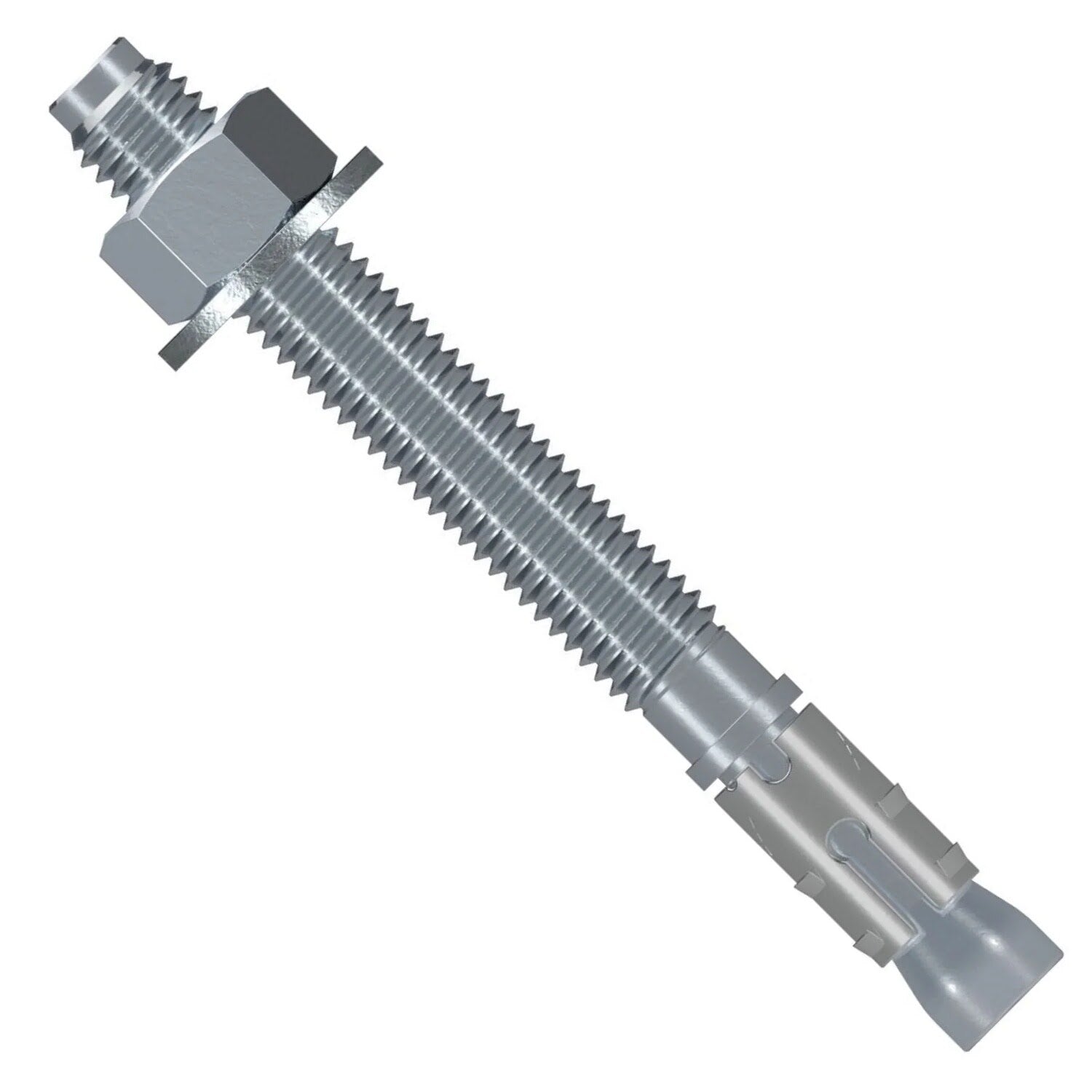

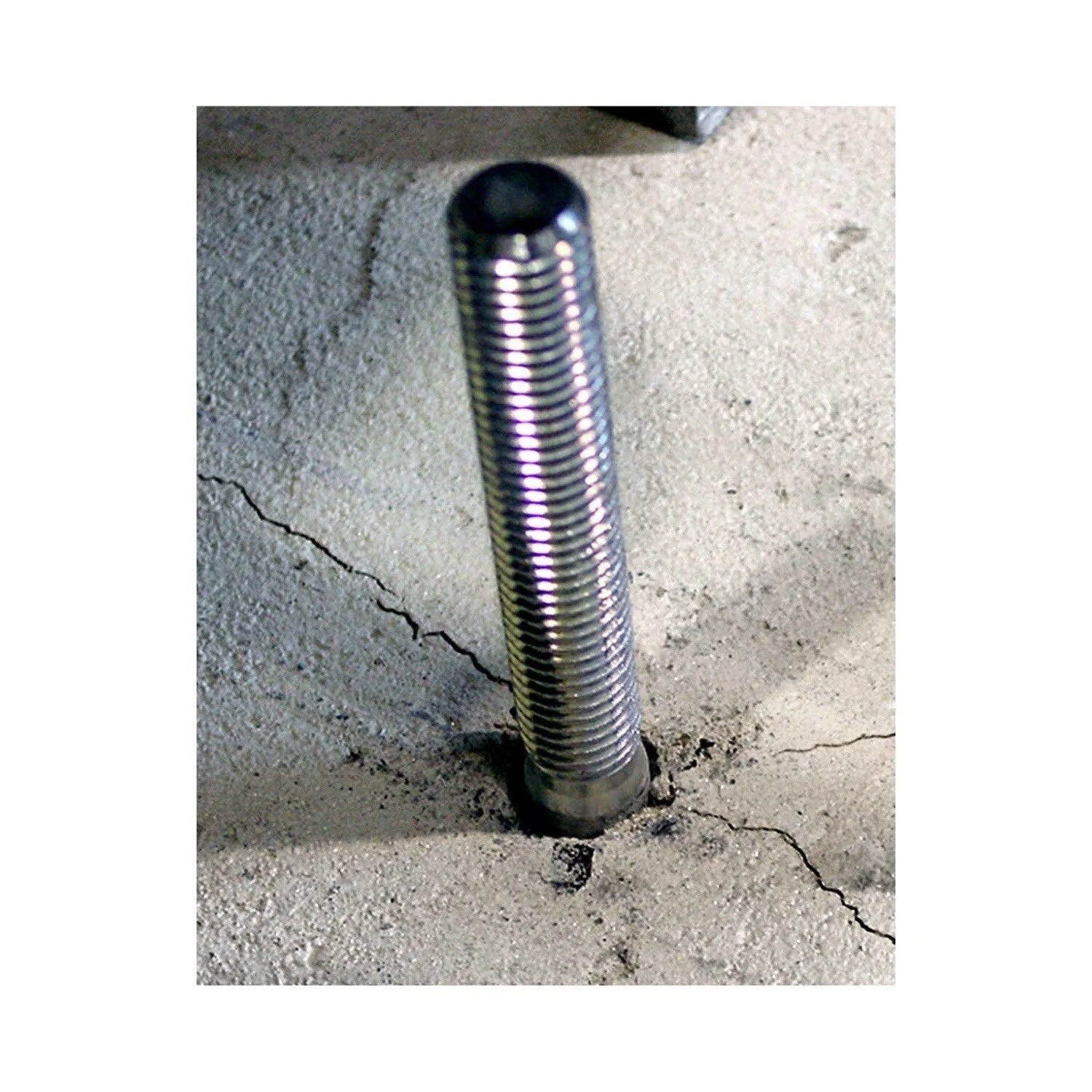

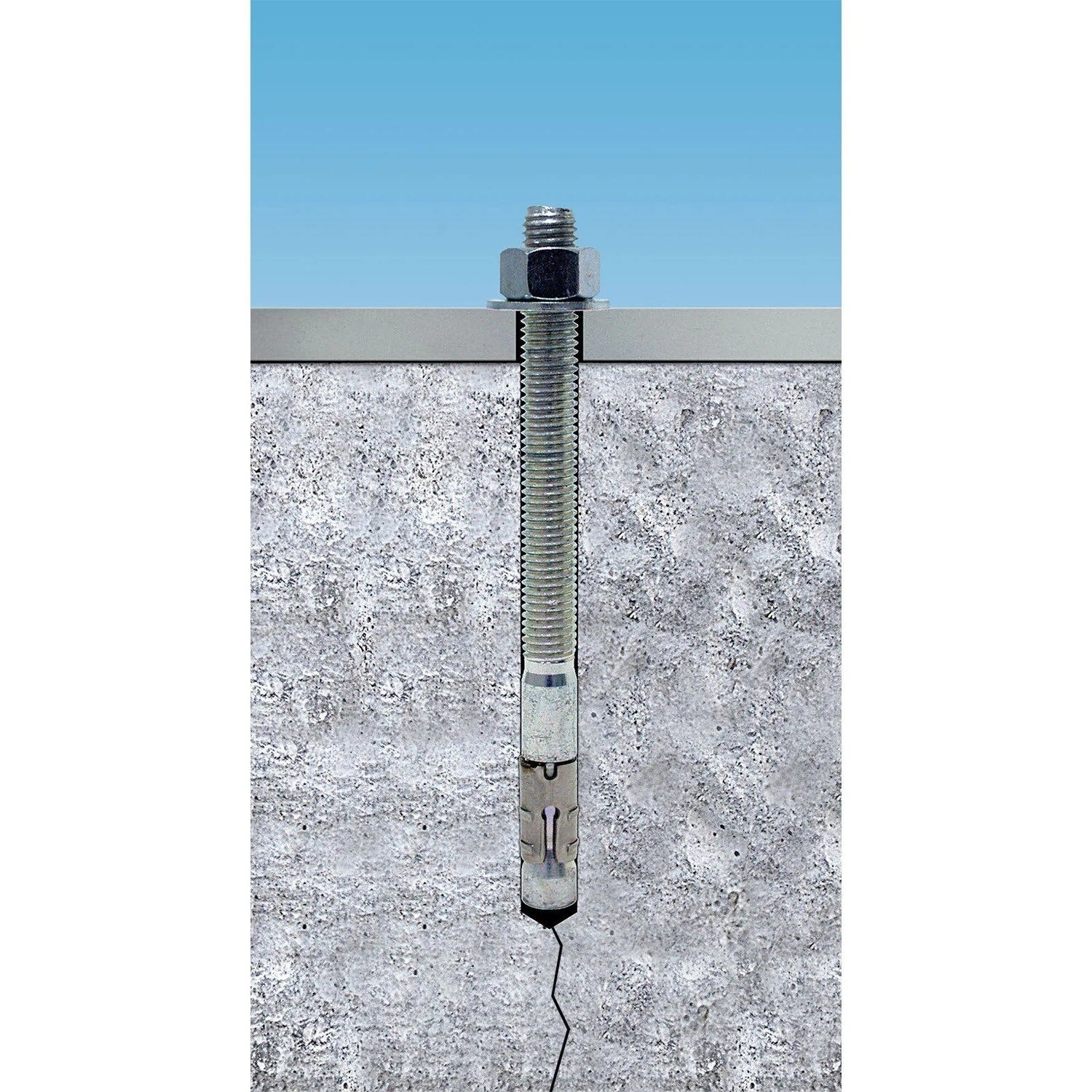

The Simpson Strong-Bolt 2 Wedge Anchors are designed for reliable performance in cracked and uncracked concrete and masonry applications, suitable for static and seismic loading conditions.
Simpson STB2-50434 Includes
- (25) Strong-Bolt 2 Wedge Anchor Zinc Plated
Simpson STB2-50434 Features

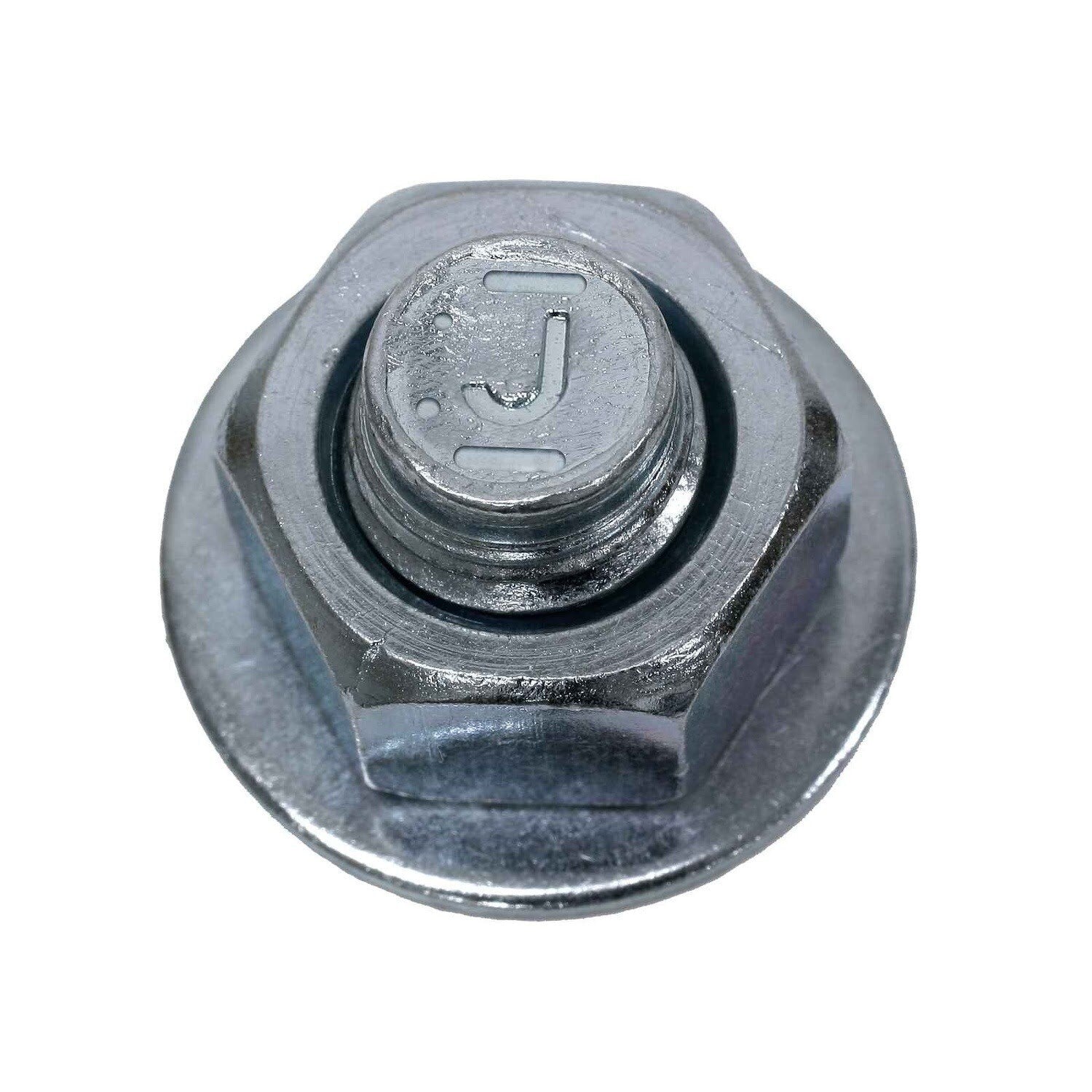

- Chamfered top prevents mushrooming during installation
- Qualified for static and seismic loading conditions
- Suitable for horizontal, vertical, and overhead applications
- Tested per ACI355.2 and AC193
- Zinc-plated carbon steel construction
Simpson STB2-50434 Applications
- Anchoring structural and non-structural elements in concrete and masonry

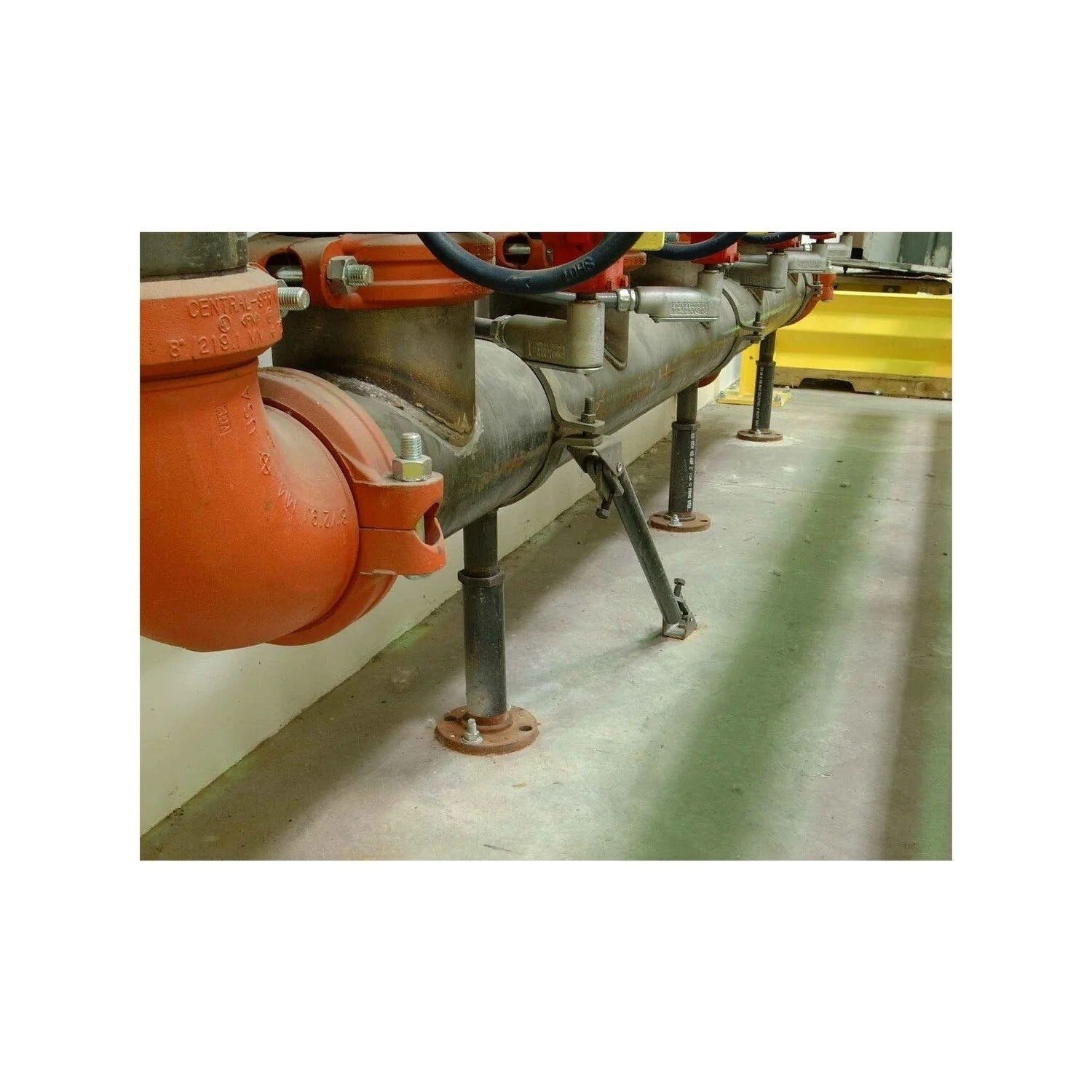

- Mounting pipes, struts, and fixtures

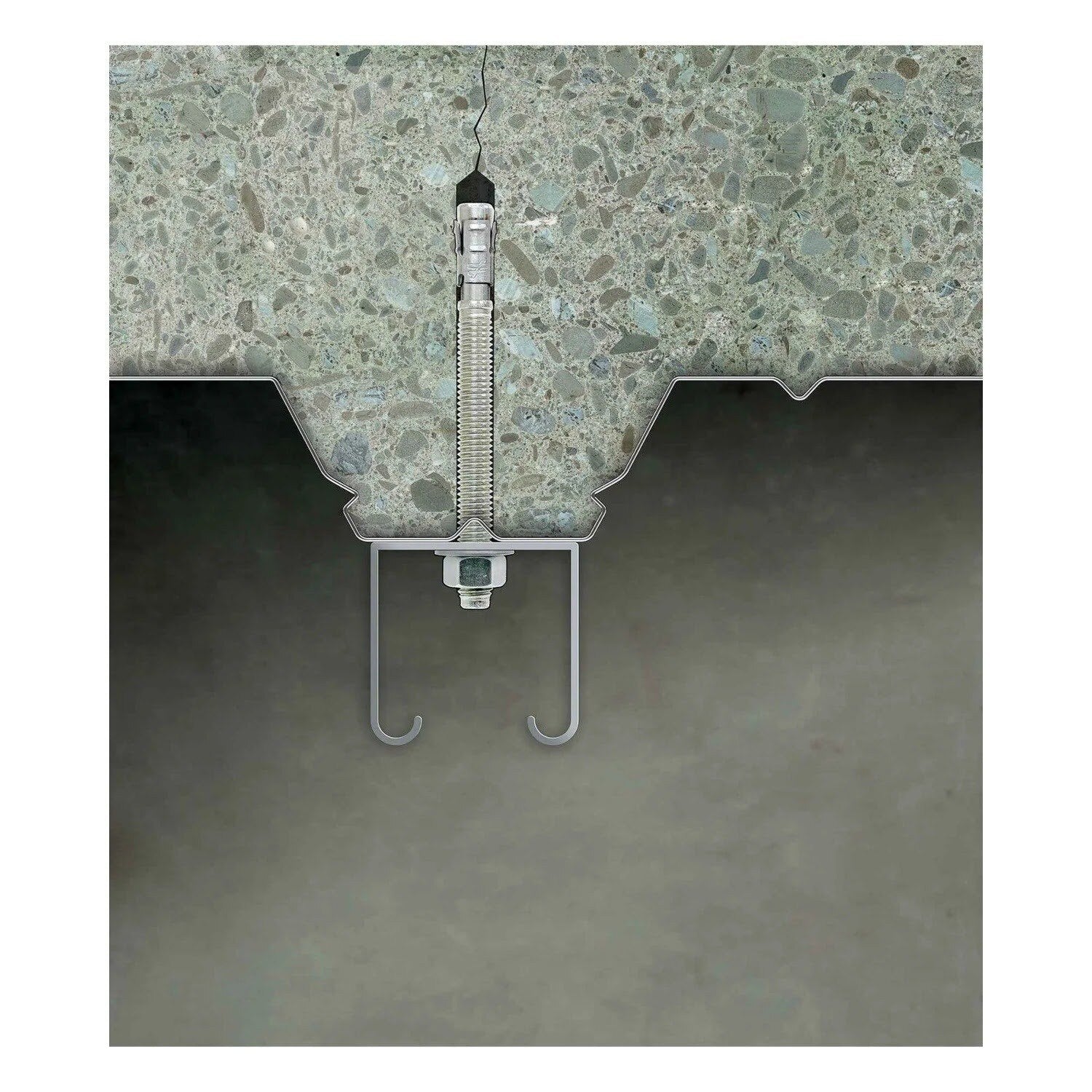

- Overhead indoor construction
- Securing warehouse racking
- Installing electrical equipment
Simpson STB2-50434 Installation Overview
- Drill a hole in the base material using a carbide drill bit of the same diameter as the anchor.
- Blow the hole clean using compressed air.
- Assemble the anchor with nut and washer, ensuring the nut is flush with the anchor top.

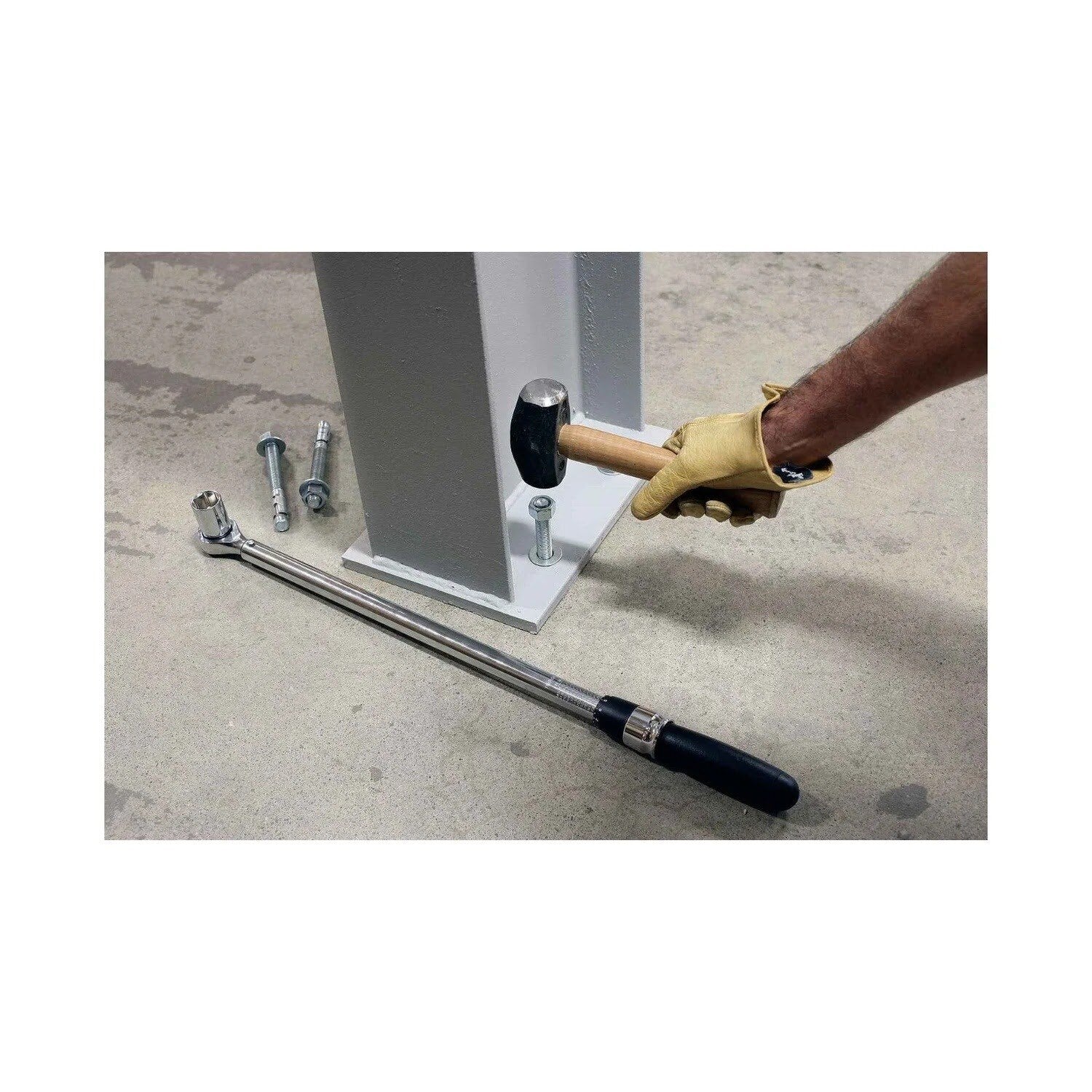

- Place the anchor in the fixture and drive it into the hole.

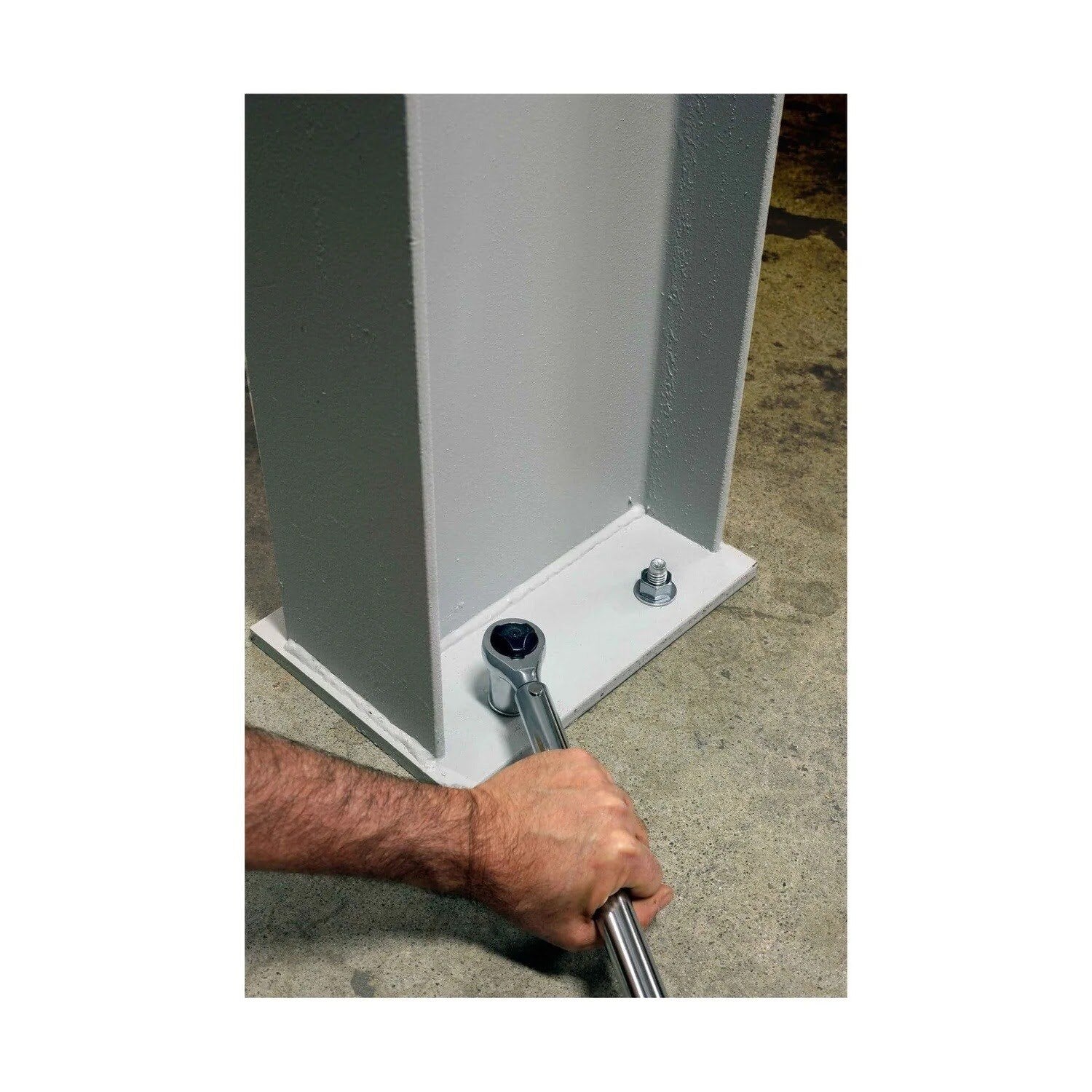

- Tighten to the required installation torque.
Simpson STB2-50434 Specifications
| Diameter | 1/2" |
| Finish | Zinc Plated |
| Length | 4-3/4" |
| Material | Carbon Steel |
| Drill Bit Size | 1/2" |
| Thread Length | 3-1/16" |
| Quantity | 25 |
NOTE: Ensure proper installation torque is applied to achieve optimal performance.
