Simpson STB2-50812 Description

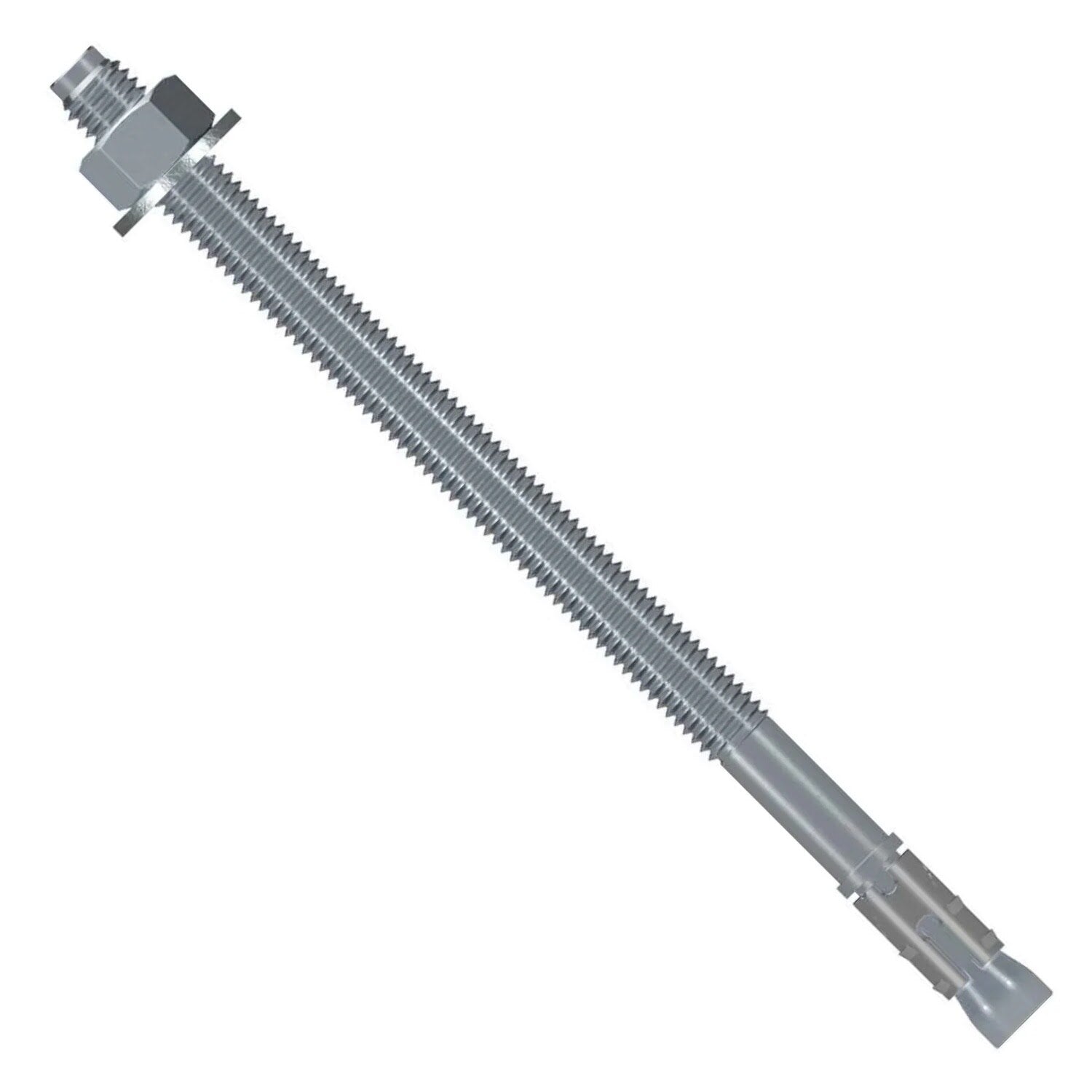

The Strong-Bolt 2 Wedge Anchor Zinc Plated is a reliable solution for anchoring in cracked or uncracked concrete, suitable for static and seismic loading conditions.
Simpson STB2-50812 Includes
- (25) Strong-Bolt 2 Wedge Anchor Zinc Plated
Simpson STB2-50812 Features
- Chamfered top prevents mushrooming during installation
- Qualified for static and seismic loading conditions
- Suitable for horizontal, vertical, and overhead applications
- Standard fractional sizes for compatibility with common tools
- Tested per ACI355.2 and AC193
Simpson STB2-50812 Applications
- Concrete anchoring in cracked or uncracked surfaces
- Seismic and static load applications
- Horizontal, vertical, and overhead installations

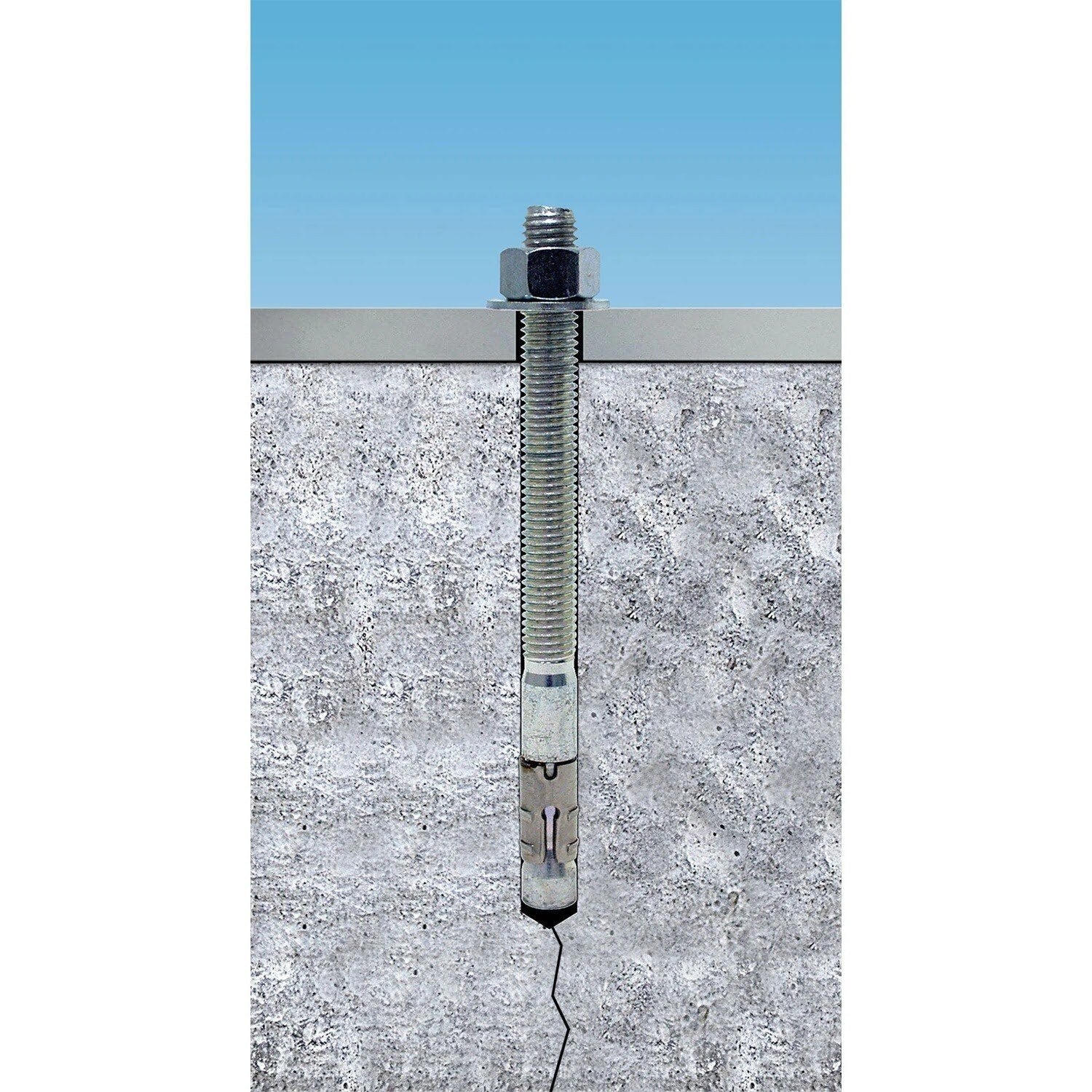

Simpson STB2-50812 Installation Overview
- Drill a hole using a carbide drill bit matching the anchor diameter
- Clean the hole with compressed air
- Assemble the anchor with nut and washer
- Drive the anchor into the hole until tight against the fixture
- Tighten to the specified torque
Simpson STB2-50812 Specifications
| Material | Zinc-plated carbon steel |
| Diameter | 1/2" |
| Length | 8-1/2" |
| Drill Bit Size | 1/2" |
| Thread Length | 6" |
| Installation Torque | 60 ft. lbs |
| Quantity | 25 |
NOTE: Ensure proper installation torque and avoid oversized holes to maintain load capacity
