Simpson Strong-Tie STB2-50812MGF20 Strong-Bolt (1/2" x 8-1/2") Mechanically Galvanized Wedge Anchor (20 Pack)
Bulk Pricing Available
Bulk Pricing Available
Need to place a large order? Request a quote
Simpson Strong-Tie STB2-50812MGF20 Strong-Bolt (1/2" x 8-1/2&q...
Key Specifications
Description
Description
Simpson Strong-Tie STB2-50812MGF20 Description

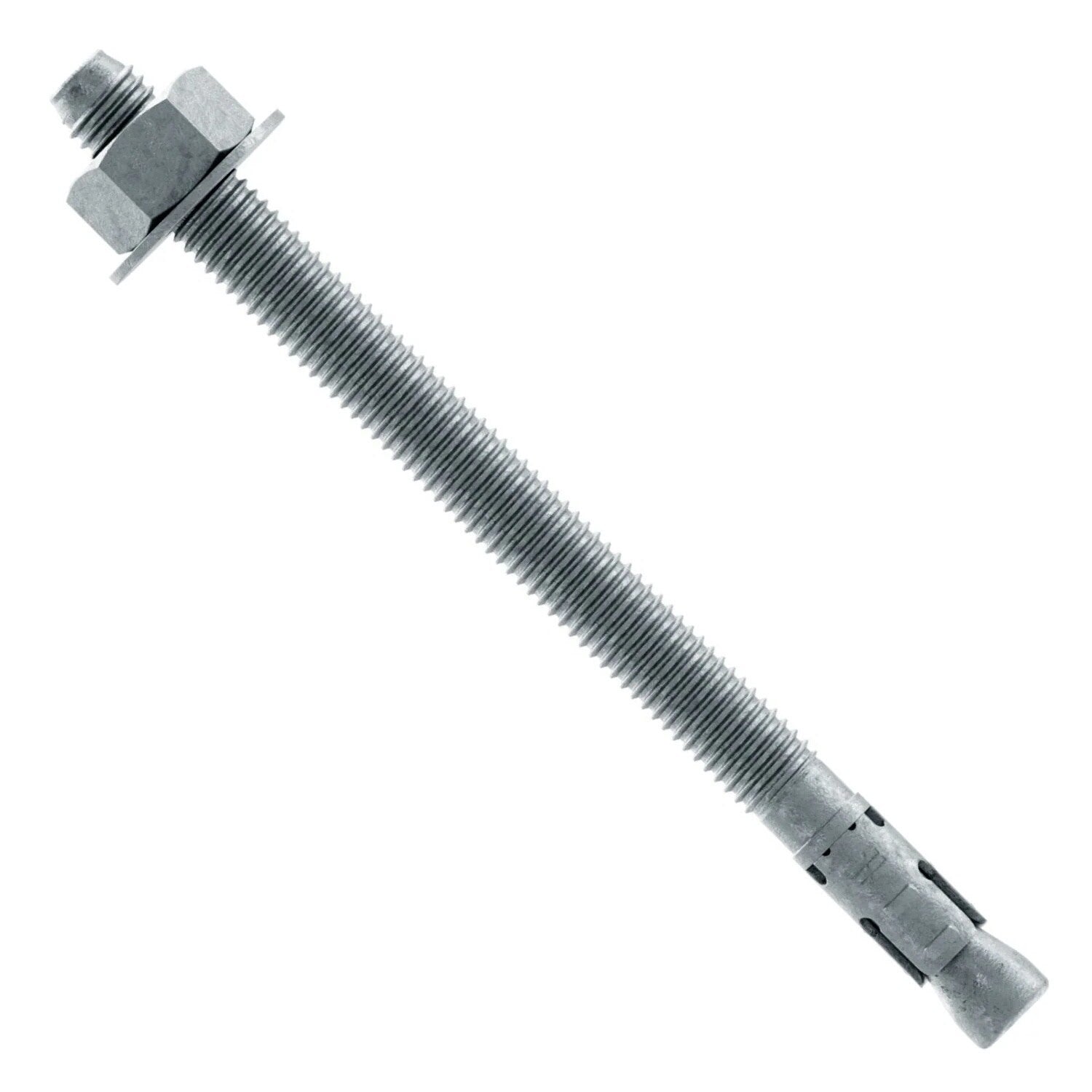

The Simpson Strong-Tie Fully Assembled Strong-Bolt 2 Wedge Anchors are designed for reliable tension and shear loads in cracked and uncracked concrete, featuring a mechanically galvanized finish for enhanced corrosion resistance.
Simpson Strong-Tie STB2-50812MGF20 Includes
- (20) 1/2 in. x 8-1/2 in. Fully Assembled Wedge Anchor
Simpson Strong-Tie STB2-50812MGF20 Features
- Chamfered top designed to prevent mushrooming during installation
- Suitable for horizontal, vertical, and overhead applications
- Tested for minimum concrete thickness of 3 1/4"
- Standard (ANSI) fractional sizes: fits standard fixtures and installs with common drill bit and tool sizes
- Tested in uncracked concrete per ACI355.2 and AC193
Simpson Strong-Tie STB2-50812MGF20 Applications
- Anchoring structural columns
- Securing racking systems
- Installing machinery
- Fastening heavy-duty fixtures
Simpson Strong-Tie STB2-50812MGF20 Installation Overview
- Drill a hole in the base material using a carbide drill bit of the same diameter as the anchor.
- Assemble the anchor with nut and washer, place it in the fixture, and drive it into the hole.
- Tighten to the required installation torque.
Simpson Strong-Tie STB2-50812MGF20 Specifications
| Material | Carbon Steel |
| Finish | Mechanically Galvanized |
| Diameter | 1/2 in. |
| Length | 8-1/2 in. |
| Thread Length | 6 in. |
| Drill Bit Size | 1/2 in. |
| Fixture Hole Size | 9/16 in. |
| Installation Torque | 45 ft. lbf. |
| Wrench Size | 3/4 in. |
WARNING: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov
