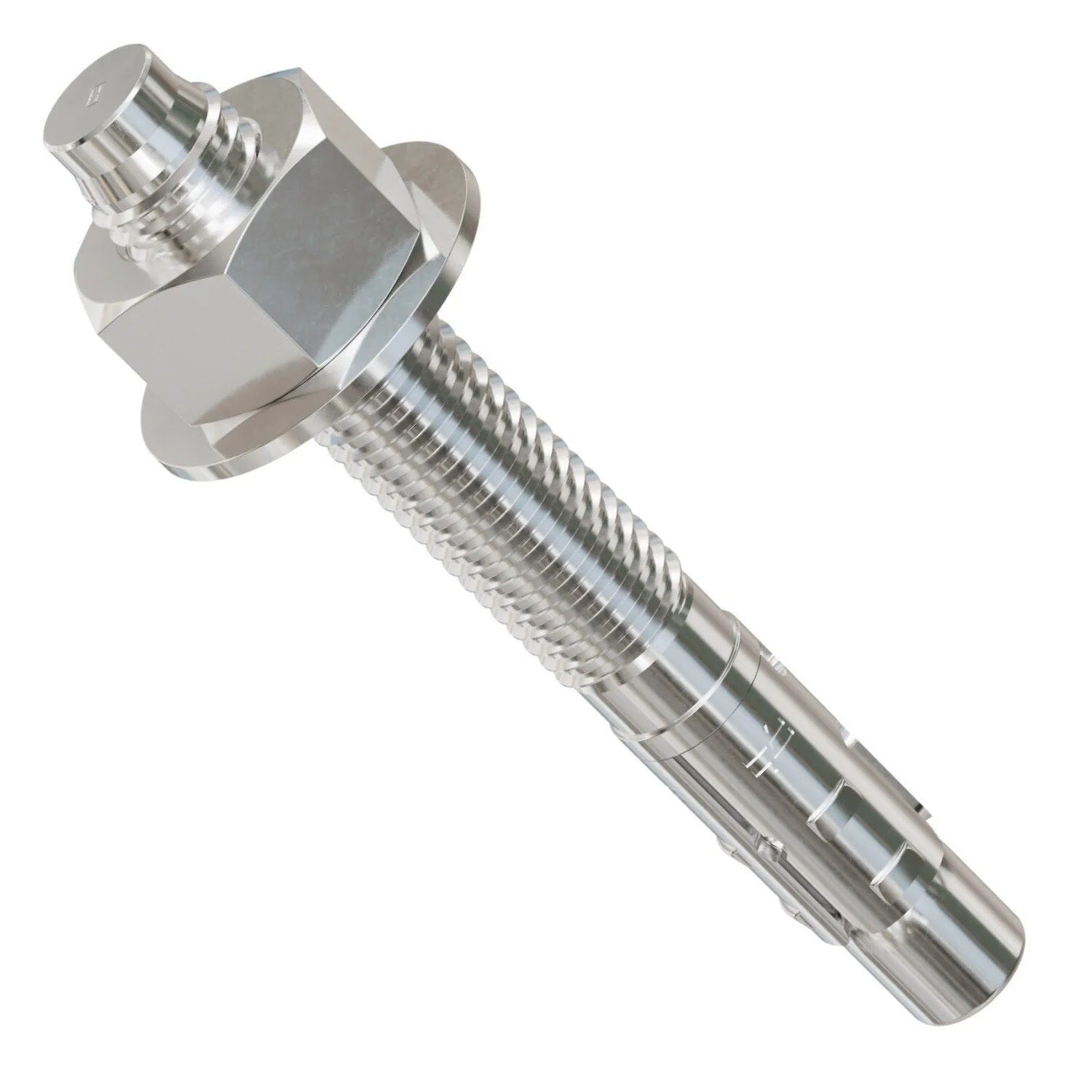

Simpson Strong-Tie STB2-625004SS Strong-Bolt (5/8" x 5") 2 Wedge Anchor - Unassemble - Type 304 (20 Pack)
Couldn't load pickup availability
Bulk Pricing Available
Bulk Pricing Available
Need to place a large order? Request a quote
Simpson Strong-Tie STB2-625004SS Strong-Bolt (5/8" x 5") ...
Key Specifications
Description
Description
Simpson STB2-625004SS Description
The Strong-Bolt 2 Wedge Anchor is a reliable solution for anchoring in cracked or uncracked concrete, made from durable 304 stainless steel.
Simpson STB2-625004SS Includes
- (20) Strong-Bolt 2 Wedge Anchor
Simpson STB2-625004SS Features
- Chamfered top designed to prevent mushrooming during installation
- Qualified for static and seismic loading conditions
- Suitable for horizontal, vertical and overhead applications
- Qualified for minimum concrete thickness of 3 1/4"
- Standard ANSI fractional sizes
- Tested per ACI355.2 and AC193
Simpson STB2-625004SS Applications
- Concrete anchoring in cracked or uncracked surfaces
- Seismic loading applications
- Horizontal, vertical, and overhead installations

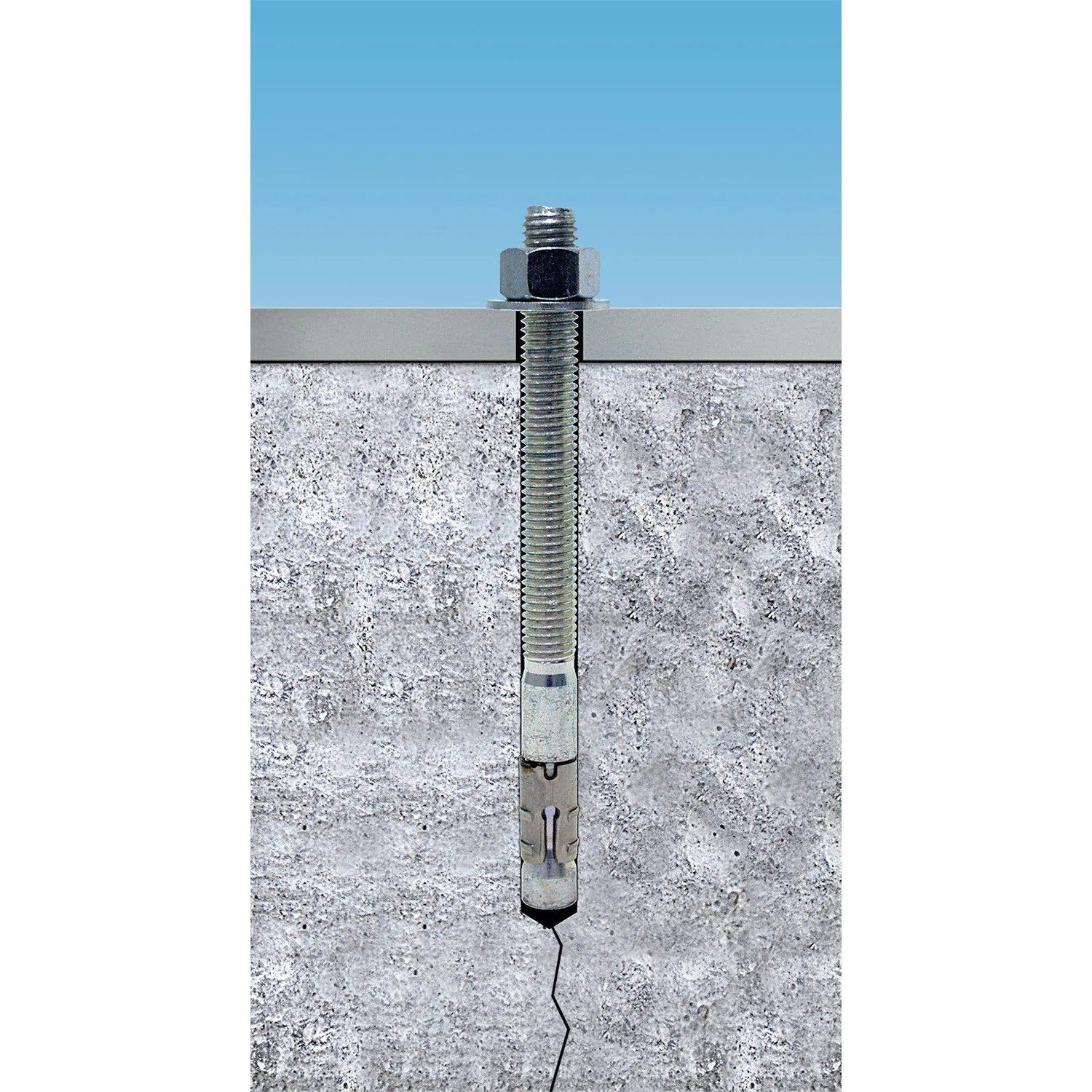

Simpson STB2-625004SS Installation Overview
- Drill a hole using a carbide drill bit matching the anchor diameter.
- Clean the hole using compressed air.
- Assemble the anchor with nut and washer.
- Insert the anchor into the fixture and drive it into the hole.
- Tighten to the specified torque.
Simpson STB2-625004SS Specifications
| Diameter | 5/8" |
| Length | 5" |
| Material | 304 Stainless Steel |
| Drill bit size | 5/8" |
| Installation torque | 80 ft. lbs |
| Thread length | 2-15/16" |
NOTE: Ensure proper installation torque is applied to achieve optimal performance.
