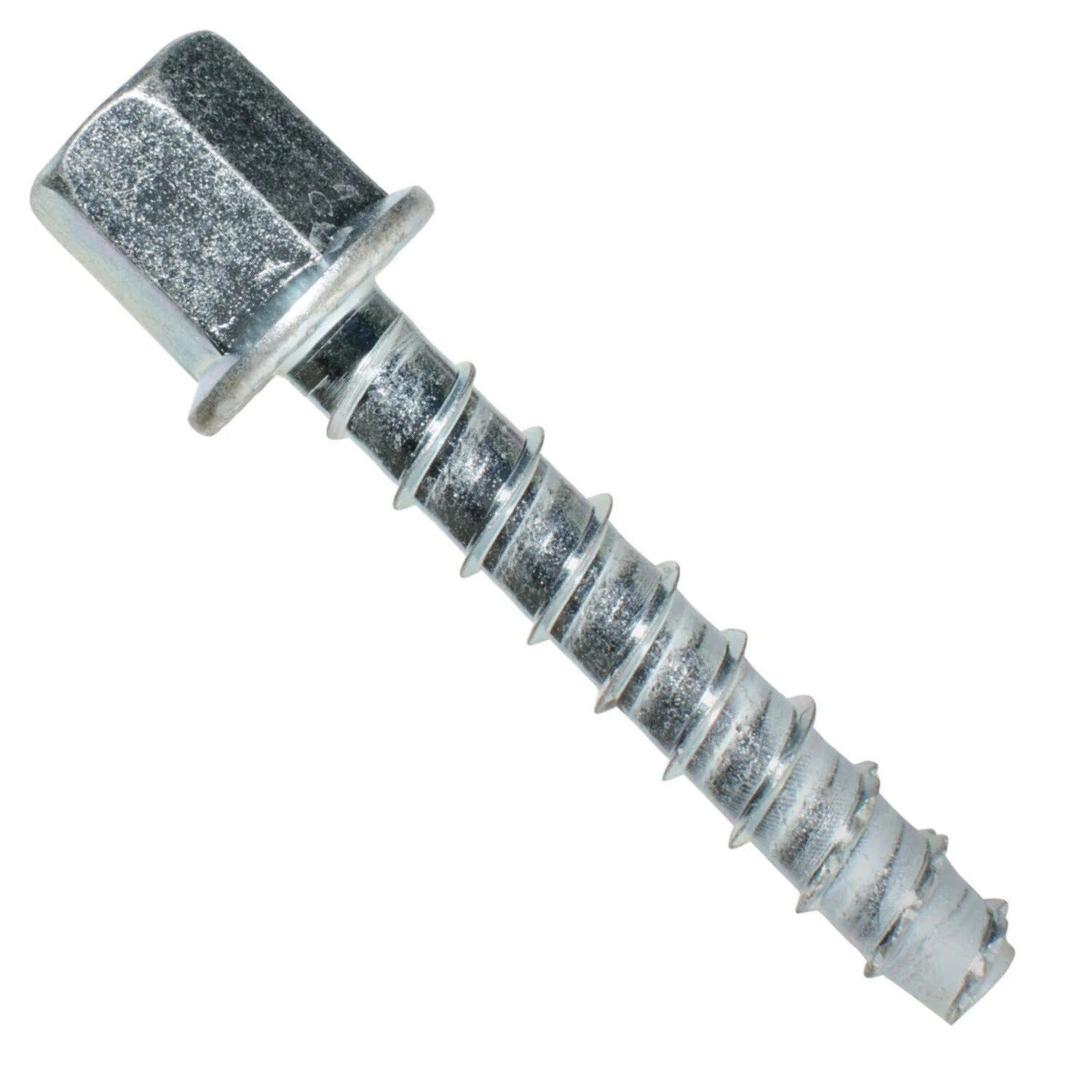

Simpson Strong-Tie THD50234RHC8 Titen HD (3/8" x 2-3/4") Threaded Rod Hanger for 1/2" Rod (8 Pack)
Bulk Pricing Available
Bulk Pricing Available
Need to place a large order? Request a quote
Simpson Strong-Tie THD50234RHC8 Titen HD (3/8" x 2-3/4") ...
Key Specifications
Description
Description
Simpson Strong-Tie THD50234RHC8 Description
Titen HD rod hanger screw anchors are designed to hang threaded rod from concrete ceilings to hang false ceilings, HVAC, Pipes and more.
Simpson Strong-Tie THD50234RHC8 Includes
- (8) Titen HD Threaded Rod Hanger for 1/2-in. Rod
Simpson Strong-Tie THD50234RHC8 Features
- Thread design undercuts to efficiently transfer the load to the base material
- Serrated cutting teeth and thread design enable quick and easy installation
- Specialized heat-treating process creates tip hardness to facilitate cutting while the anchor body remains ductile
- Designed to install using a rotary hammer or hammer drill with standard ANSI drill bits
- Installs with standard-sized sockets
- Use in dry interior environments only
- Code listed for cracked and uncracked concrete applications under the 2015, 2012 and 2009 IBC/IRC, per ICC-ES ESR-2713
- FM listed
Simpson Strong-Tie THD50234RHC8 Applications
- Hanging threaded rods from concrete ceilings
- Supporting false ceilings
- HVAC installations
- Pipe hanging

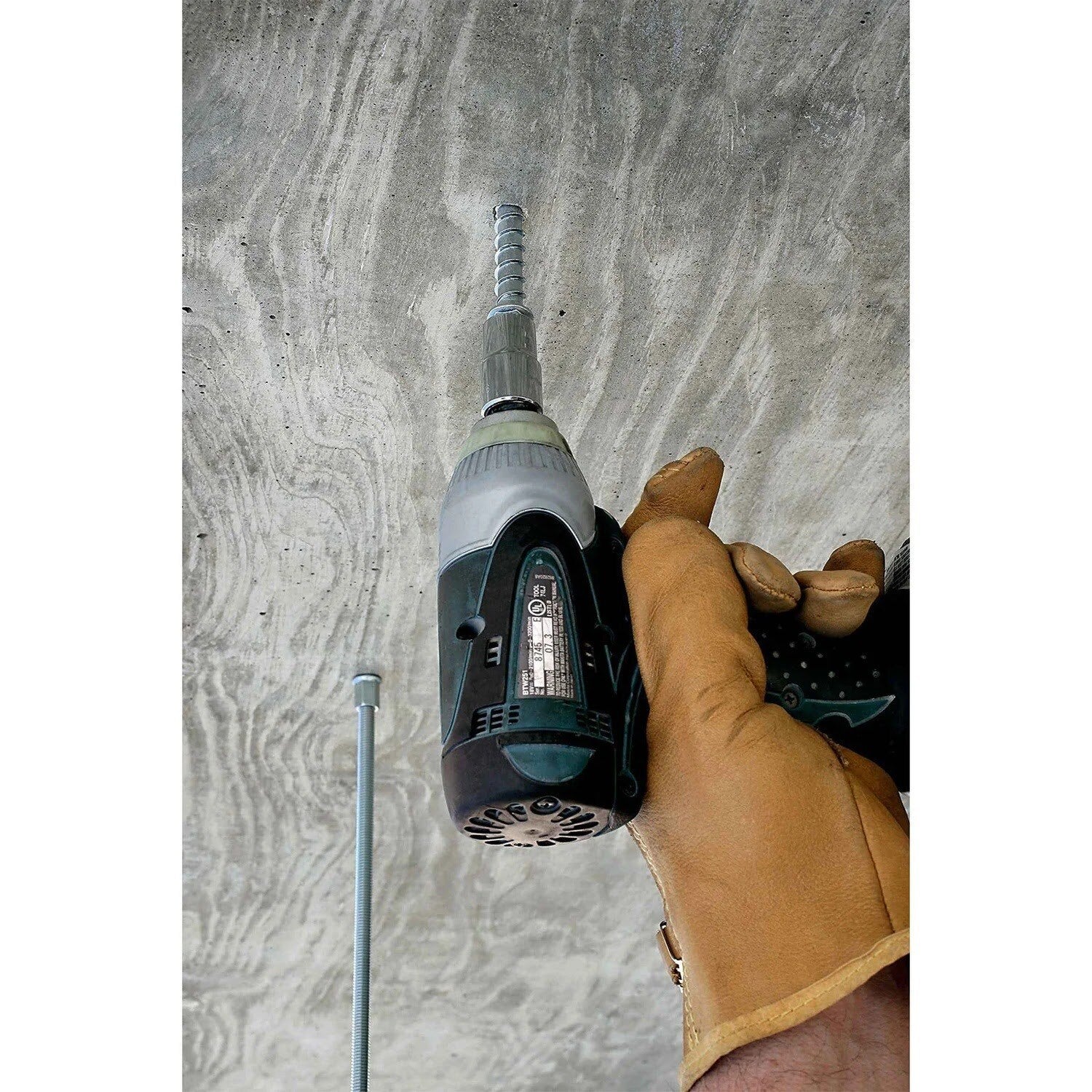

Simpson Strong-Tie THD50234RHC8 Installation Overview
- Drill a hole using the specified diameter carbide bit into the base material to the specified embedment depth plus minimum hole depth overdrill.
- Blow the hole clean of dust and debris using compressed air.
- Install with a torque wrench, driver drill, hammer drill or cordless impact wrench.
- Fully insert threaded rod.
Simpson Strong-Tie THD50234RHC8 Specifications
| Material | Carbon Steel |
| Finish | Zinc Plated |
| Accepts rod size | 1/2" |
| Drill bit size | 3/8" |
| Drive type | 11/16" Hex |
| Head type | Hex Head |
| Length | 2-3/4" |
| Quantity | 8 |
NOTE: This anchor is designed to accept 1/2" diameter threaded rod but has a 3/8" shank diameter.
WARNING: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov
