Simpson THDB62800HMG Description

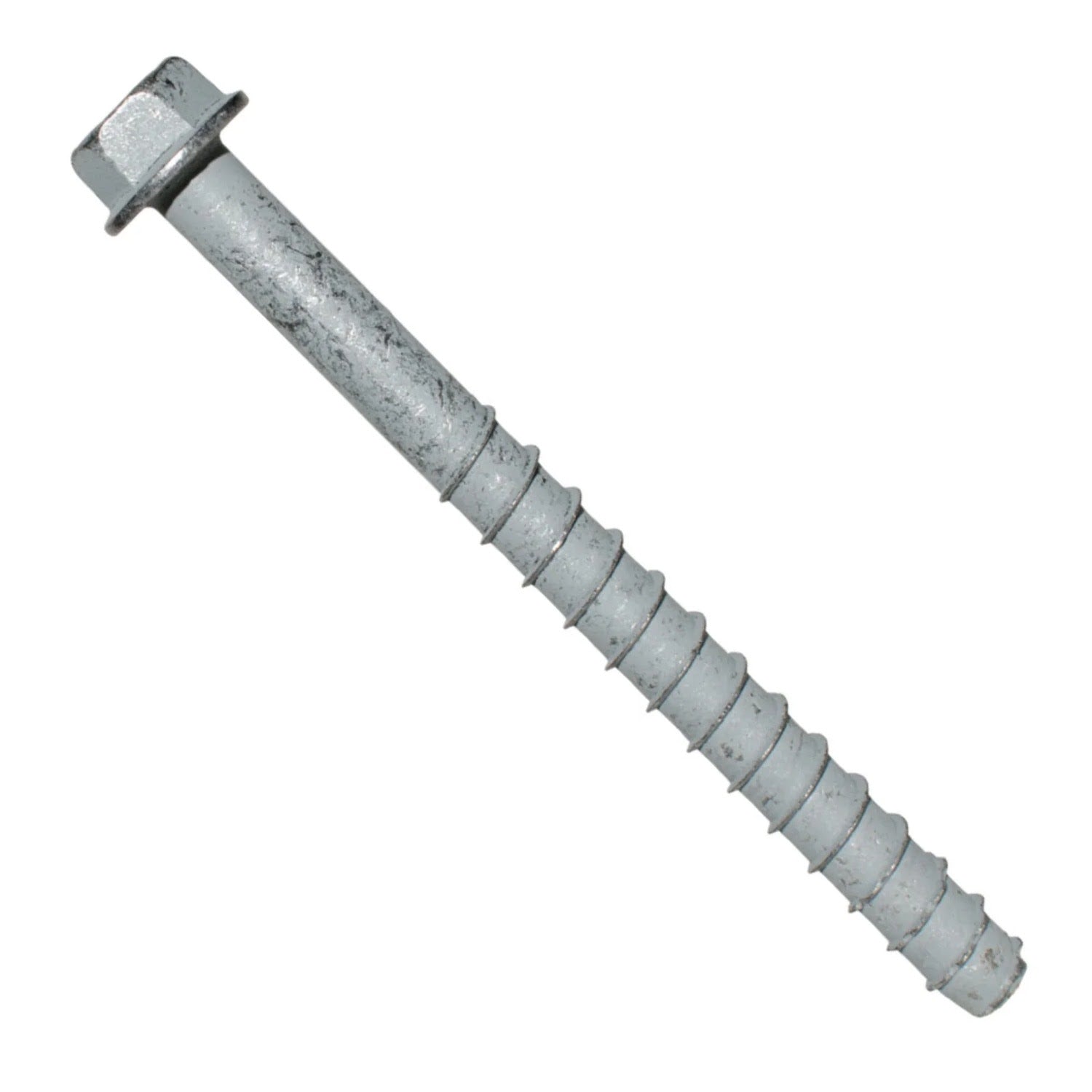

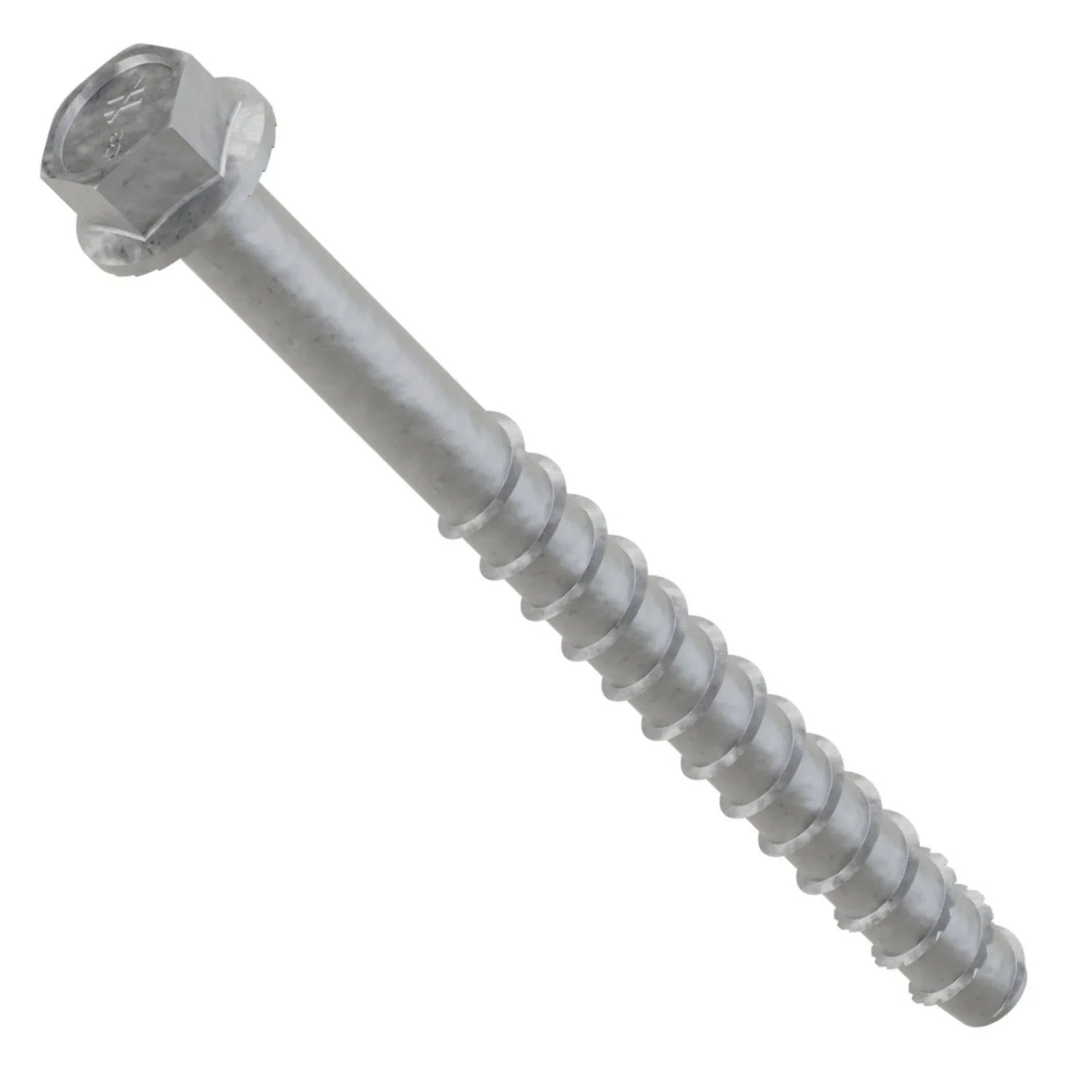

Titen HD Screw Anchors are high-strength, mechanically galvanized anchors designed for quick installation in concrete and masonry.
Simpson THDB62800HMG Includes
- (10) 5/8 in. x 8 in. Titen HD Screw Anchor
Simpson THDB62800HMG Features

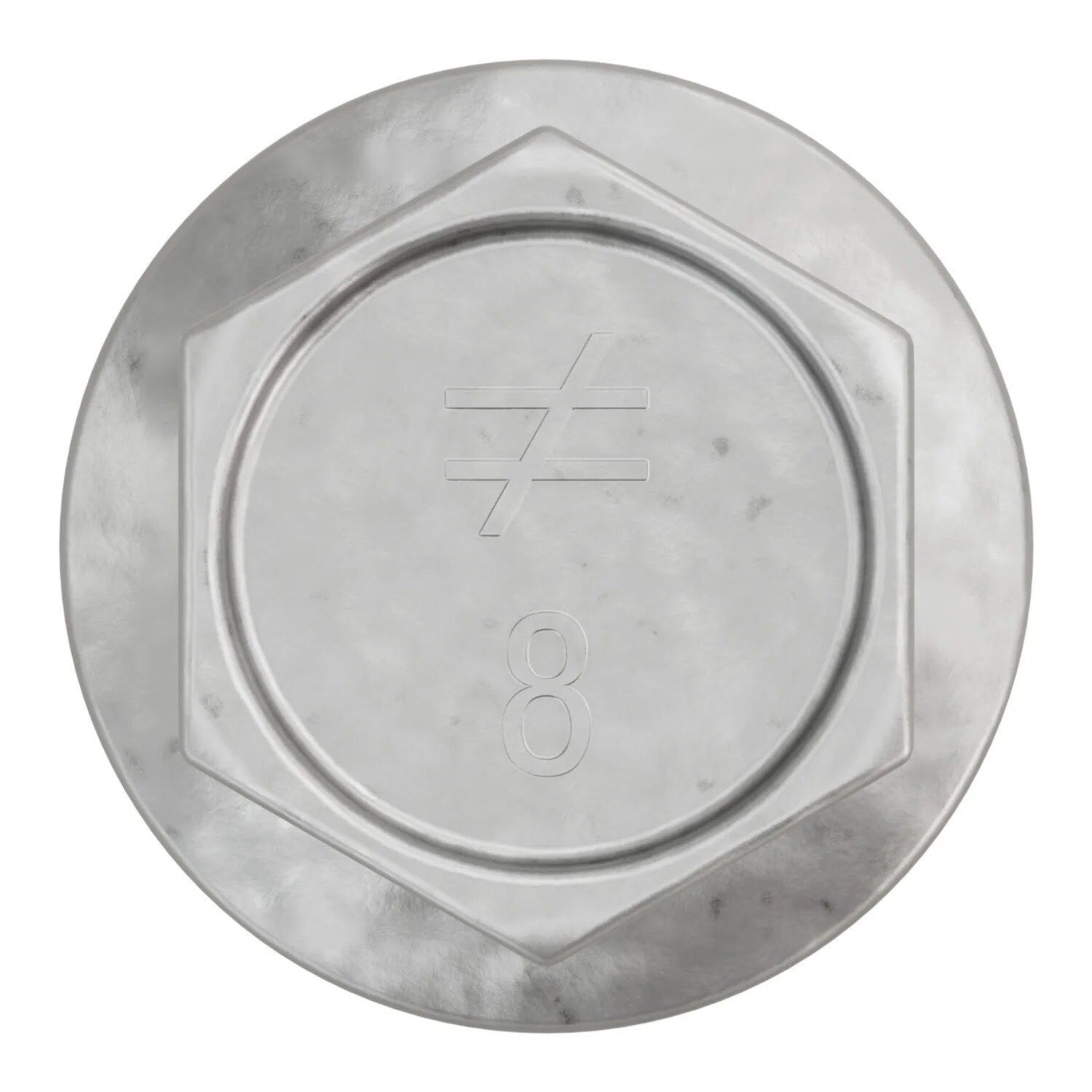

- Head-stamped for easy identification

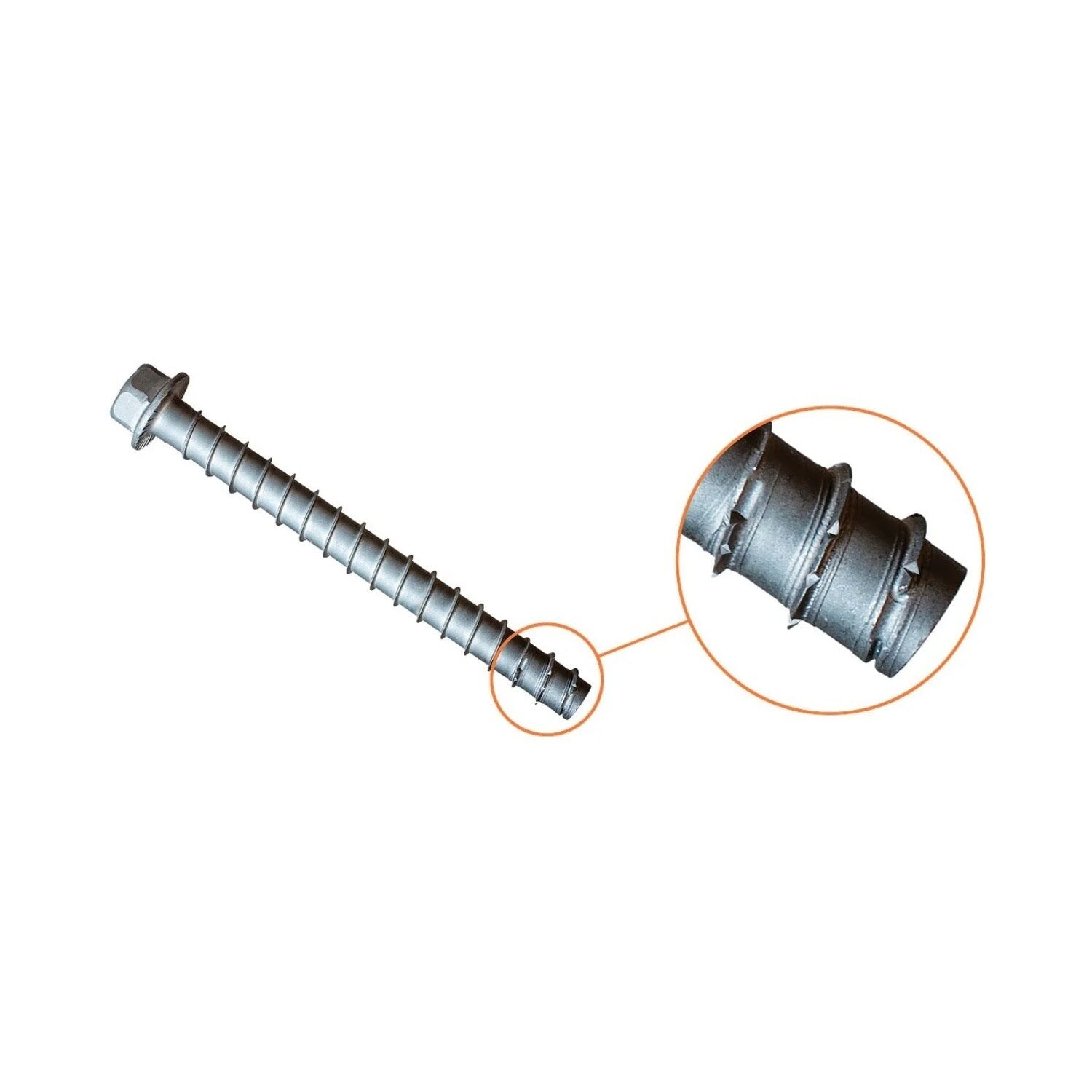

- Serrated teeth on the tip facilitates cutting and reduces installation torque
- Thread design undercuts to efficiently transfer the load to the base material
- Standard fractional sizes, hole size equals anchor size
- Specialized heat-treating process creates tip hardness for better cutting without compromising ductility
- Hex washer head requires no separate washer, unless required by code
- Fully and easily removable
- Code listed for exterior applications
Simpson THDB62800HMG Applications
- Sill plates: Securely fastens sill plates to concrete or masonry
- Ledgers: Provides reliable anchorage for ledger boards

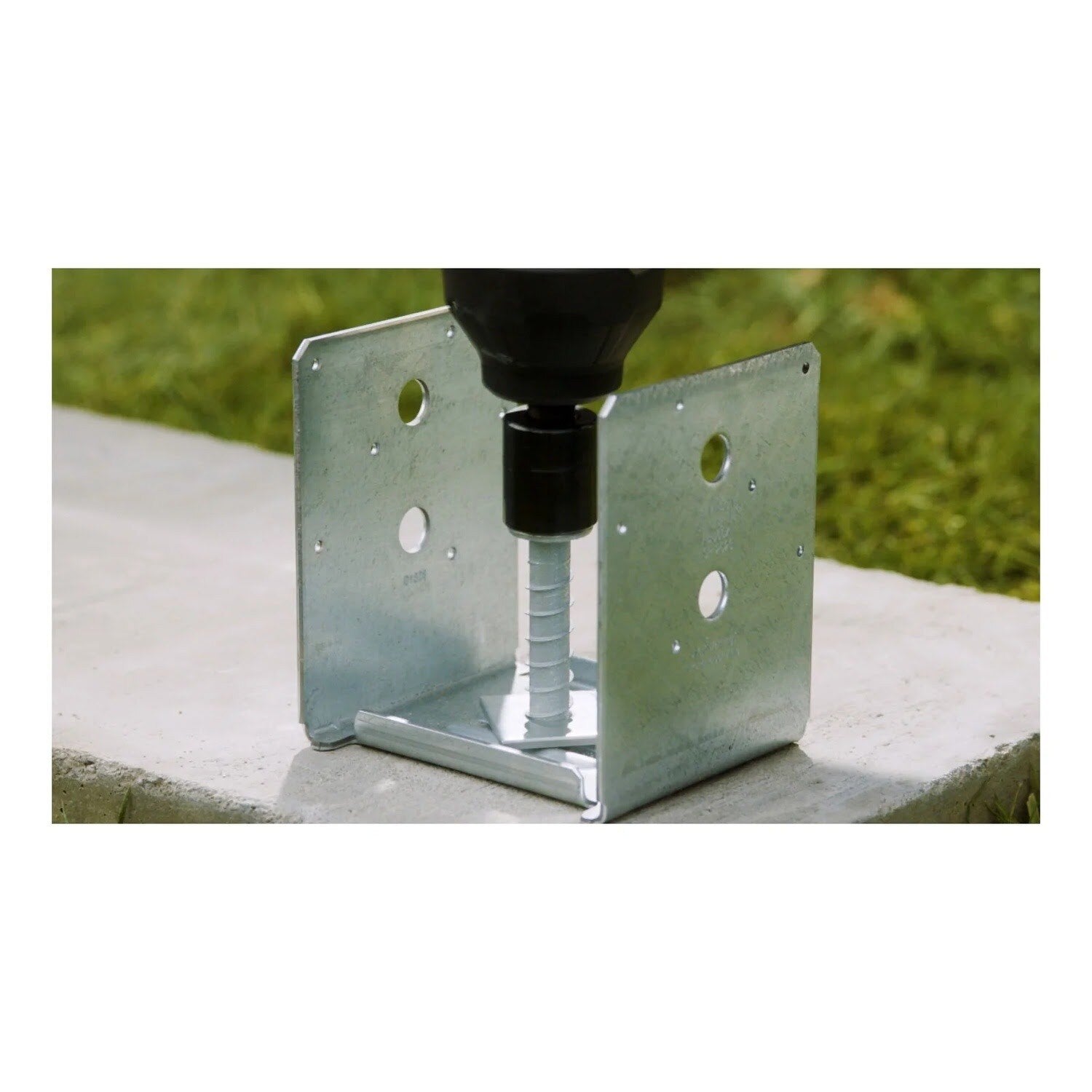

- Post bases: Ensures stable attachment of post bases
- Seating: Suitable for seating applications
- Holdown applications: Ideal for various holdown scenarios
Simpson THDB62800HMG Installation Overview
- Drill a hole in the base material using a carbide drill bit matching the anchor's nominal diameter.
- Insert the anchor through the fixture and into the hole.
- Tighten the anchor until the hex-washer head contacts the fixture.
Simpson THDB62800HMG Specifications
| Material | Carbon steel |
| Finish | Mechanically galvanized |
| Diameter | 5/8 in. |
| Length | 8 in. |
| Drill Bit Diameter | 5/8 in. |
| Drive Type | 15/16 in. Hex |
| Fixture Hole Size | 3/4 in. to 13/16 in. |
| Head Type | Hex Head |
| Quantity | 10 |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
