Simpson Strong-Tie CBH2.37X7.63-R10 (2-3/8" x 7-5/8") Concealed Joist to Beam/Column Hanger for Engineered Wood (10 Pack)
Couldn't load pickup availability
Bulk Pricing Available
Bulk Pricing Available
Need to place a large order? Request a quote
Simpson Strong-Tie CBH2.37X7.63-R10 (2-3/8" x 7-5/8") Con...
Key Specifications
Description
Description
Simpson Strong-Tie CBH2.37X7.63-R10 Description

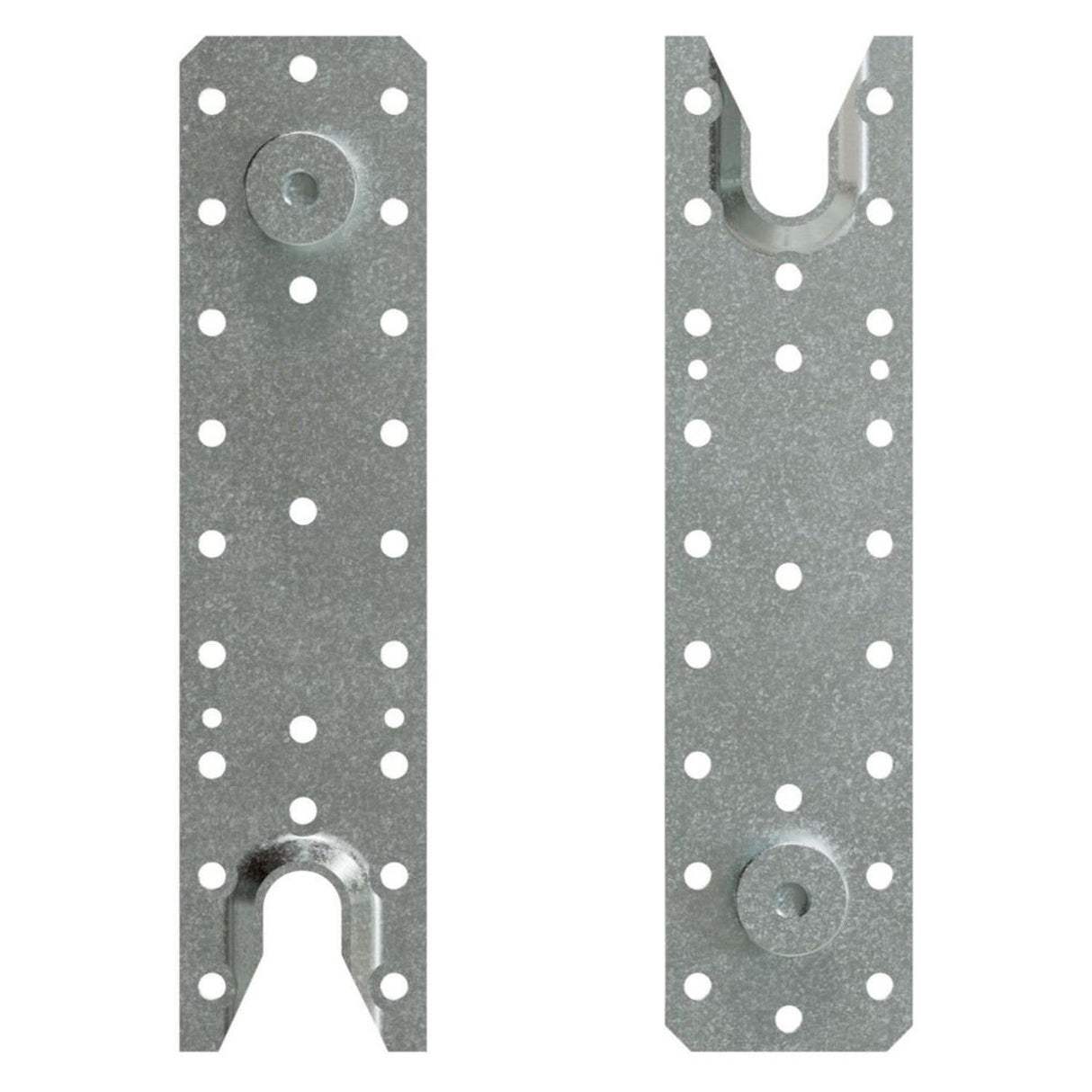

The Simpson Strong-Tie CBH2.37X7.63-R10 is a concealed joist hanger designed for engineered wood applications, offering architectural aesthetics and fire-rated performance.
Simpson Strong-Tie CBH2.37X7.63-R10 Includes
- (10) Strong-Tie Concealed Joist to Beam/Column Hanger 2-3/8" x 7-5/8" for Engineered Wood
Simpson Strong-Tie CBH2.37X7.63-R10 Features
- Code-listed per ICC-ESR-2552
- Concealed for architectural aesthetics and fire-rated performance
- Multiple router options to suit jobsite needs
- +/- 1/32" beam length tolerance on each end enables easier installation
- 1-hr and 2-hr fire resistance ratings per ASTM E119
- Seismic deformation compatibility
Simpson Strong-Tie CBH2.37X7.63-R10 Applications
- Engineered wood construction
- Joist to beam connections
- Joist to column connections
Simpson Strong-Tie CBH2.37X7.63-R10 Installation Overview
- Maintain a gap of 1/8" to 1/4" between carried and carrying members to prevent wood binding.
- Use fire sealant at the connection location for fire resistance.
- Predrill lead holes for SDS screws if necessary to prevent wood splitting.
- Rout carried and/or carrying members according to application needs.
- Install CBH plates using all specified SDS fasteners.
- Mate carried member to carrying member as per installation illustrations.
- Ensure glulam members are designed with appropriate tolerances for problem-free installation.
Simpson Strong-Tie CBH2.37X7.63-R10 Specifications
| Material | 3 ga. |
| Finish | Electro-galvanized |
| Application | Engineered Wood |
NOTE: Ensure proper installation of the hanger using the specified fasteners and following the recommended guidelines to achieve optimal performance.
