Simpson Hangers  |  SKU: HGUS410  |  Barcode: 044315501609

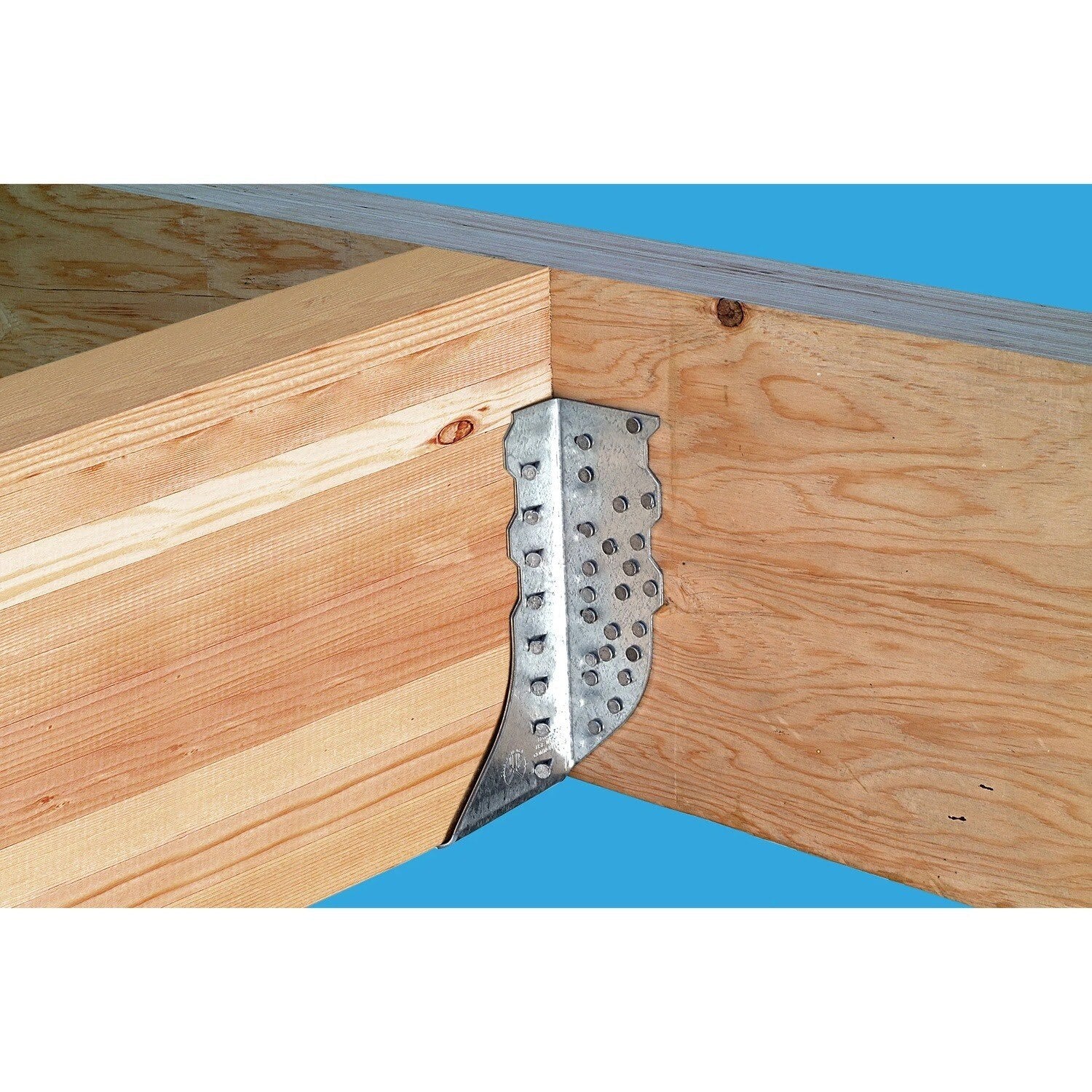

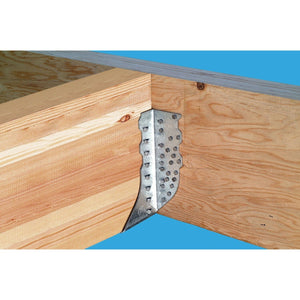

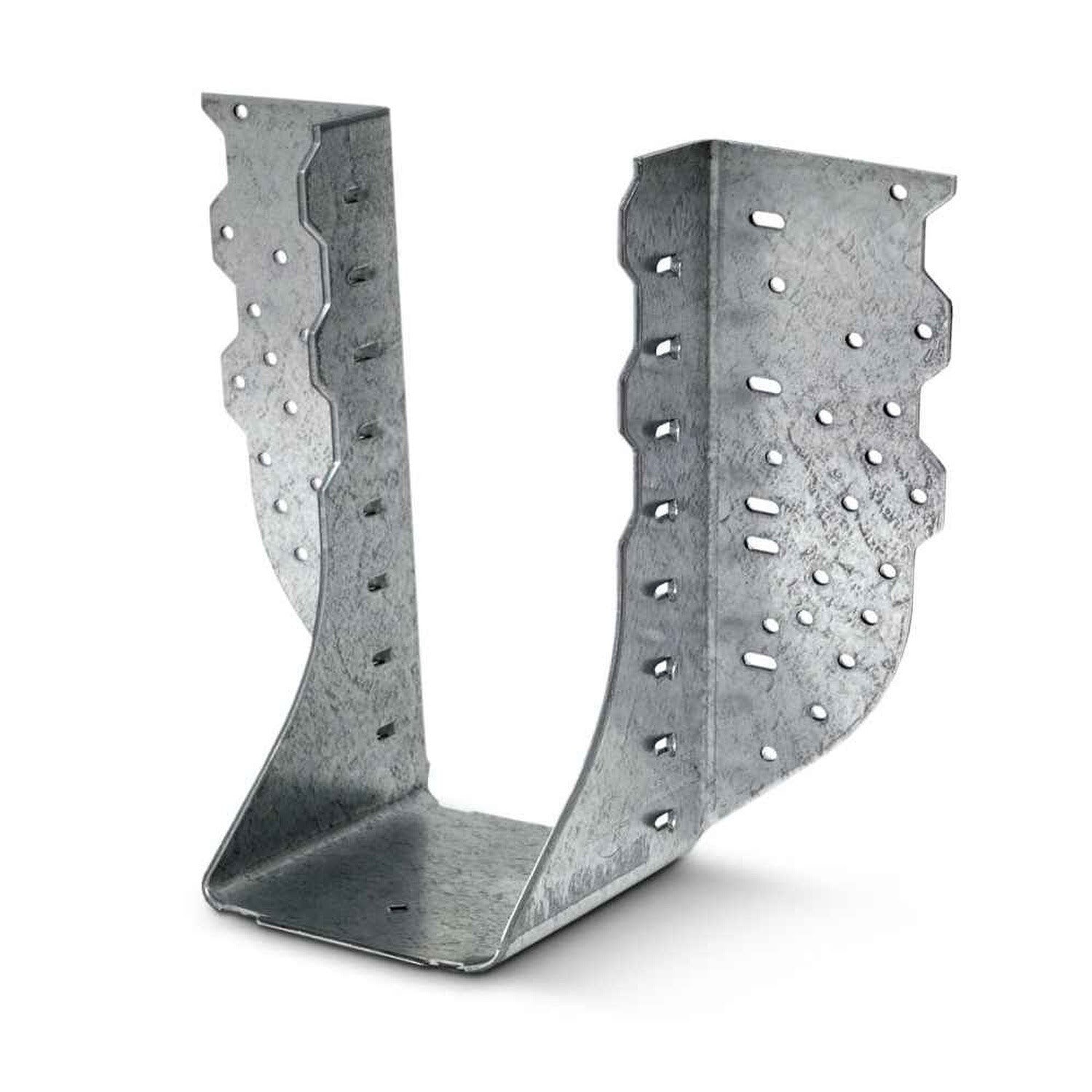

Simpson Strong-Tie HGUS410 (4x10) 12Ga Heavy Girder Hanger with Double-Shear Nailing - G90 Galvanized

$47.56
Shipping calculated at checkout.

Bulk Pricing Available

Need to place a large order? Request a quote

Key Specifications

Finish: G90 Galvanized
For treated lumber: No
Joist size: 4" X 10"
Type: Girder Hanger

Description

Simpson HGUS410 Description

The Simpson HGUS410 Heavy Girder Hanger is designed for robust support in structural applications, featuring double-shear nailing for enhanced strength and stability.

Simpson HGUS410 Includes

  • (1) Heavy Girder Hanger for 4x10 Nominal Lumber

Simpson HGUS410 Features

  • High Load Capacity: Supports substantial weights for heavy-duty projects.
  • Double-Shear Nailing: Distributes load through two points on each joist nail.
  • Versatile Installation: Can be installed after the beam is secured in place.
  • Durable Construction: Made from 12-gauge galvanized steel for corrosion resistance.

Simpson HGUS410 Applications

  • Residential Construction: Secure connections for beams and girders in homes.
  • Commercial Projects: Supports heavy loads in commercial buildings.
  • Deck Construction: Reliable support for deck beams in outdoor structures.
  • Timber Framing: Facilitates strong and stable joints in timber-framed structures.

Simpson HGUS410 Installation Overview

  1. Use all specified fasteners as per the manufacturer's guidelines.
  2. Drive joist nails at an angle through the joist or truss into the header.
  3. Avoid using double-shear hangers with I-joists.
  4. For 3x carrying members, use specified nails into the header and joist with no load reduction.

Simpson HGUS410 Specifications

Material 12 Gauge
Finish G90 Galvanized
Height 9-1/16"
Width 3-5/8"
Joist Size 4" X 10"
For Treated Lumber No

NOTE: Ensure the correct fasteners are installed in the correct position to achieve published load values
