Simpson Strong-Tie HGUS410 (4x10) 12Ga Heavy Girder Hanger with Double-Shear Nailing - G90 Galvanized
Couldn't load pickup availability
Bulk Pricing Available
Bulk Pricing Available
Need to place a large order? Request a quote
Simpson Strong-Tie HGUS410 (4x10) 12Ga Heavy Girder Hanger with Dou...
Key Specifications
Description
Description

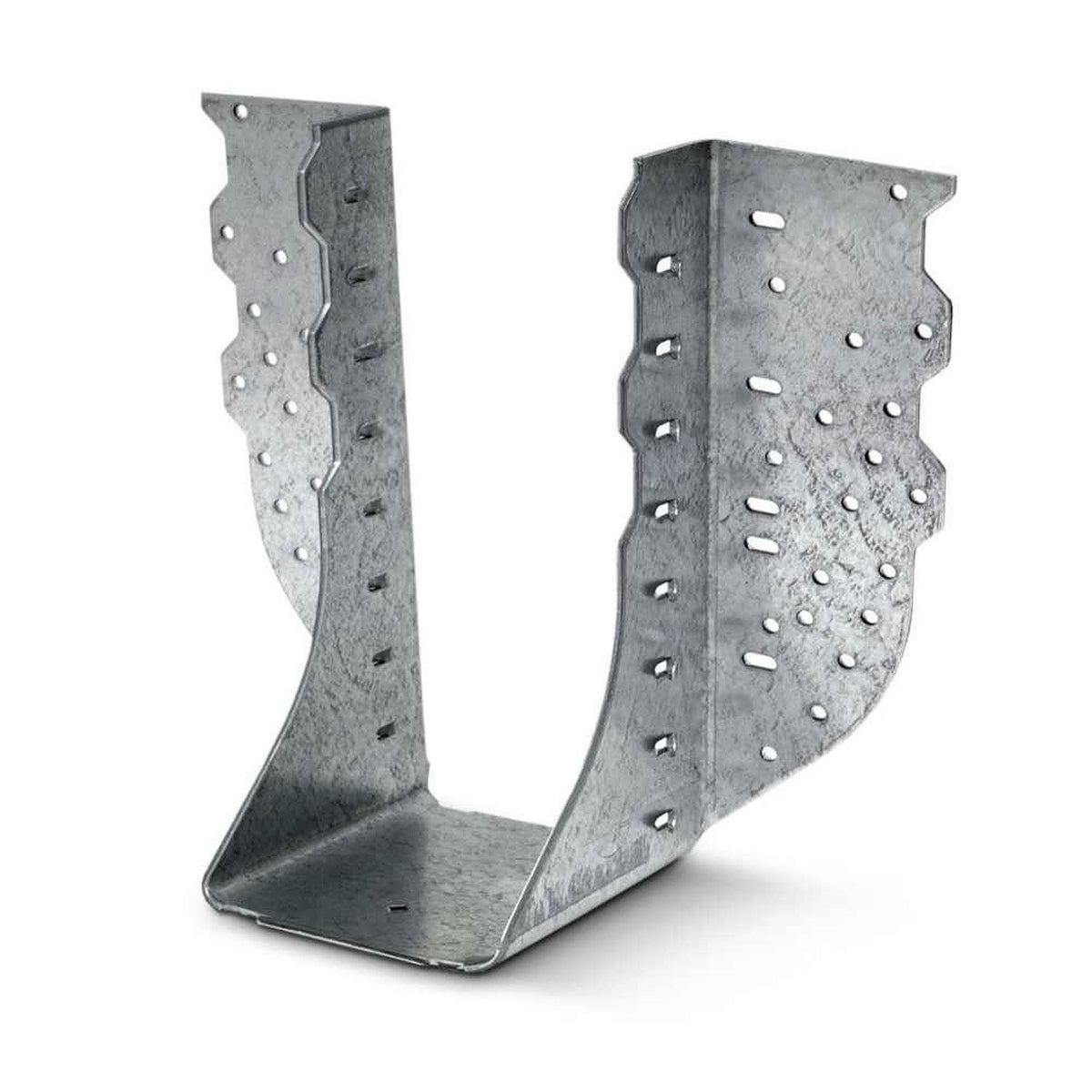

Simpson HGUS410 Description
The Simpson HGUS410 Heavy Girder Hanger is designed for robust support in structural applications, featuring double-shear nailing for enhanced strength and stability.
Simpson HGUS410 Includes
- (1) Heavy Girder Hanger for 4x10 Nominal Lumber
Simpson HGUS410 Features
- High Load Capacity: Supports substantial weights for heavy-duty projects.
- Double-Shear Nailing: Distributes load through two points on each joist nail.
- Versatile Installation: Can be installed after the beam is secured in place.
- Durable Construction: Made from 12-gauge galvanized steel for corrosion resistance.
Simpson HGUS410 Applications
- Residential Construction: Secure connections for beams and girders in homes.
- Commercial Projects: Supports heavy loads in commercial buildings.
- Deck Construction: Reliable support for deck beams in outdoor structures.
- Timber Framing: Facilitates strong and stable joints in timber-framed structures.

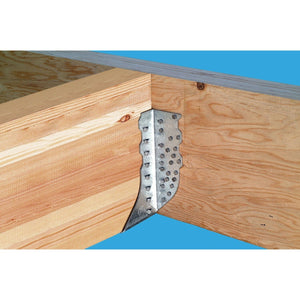

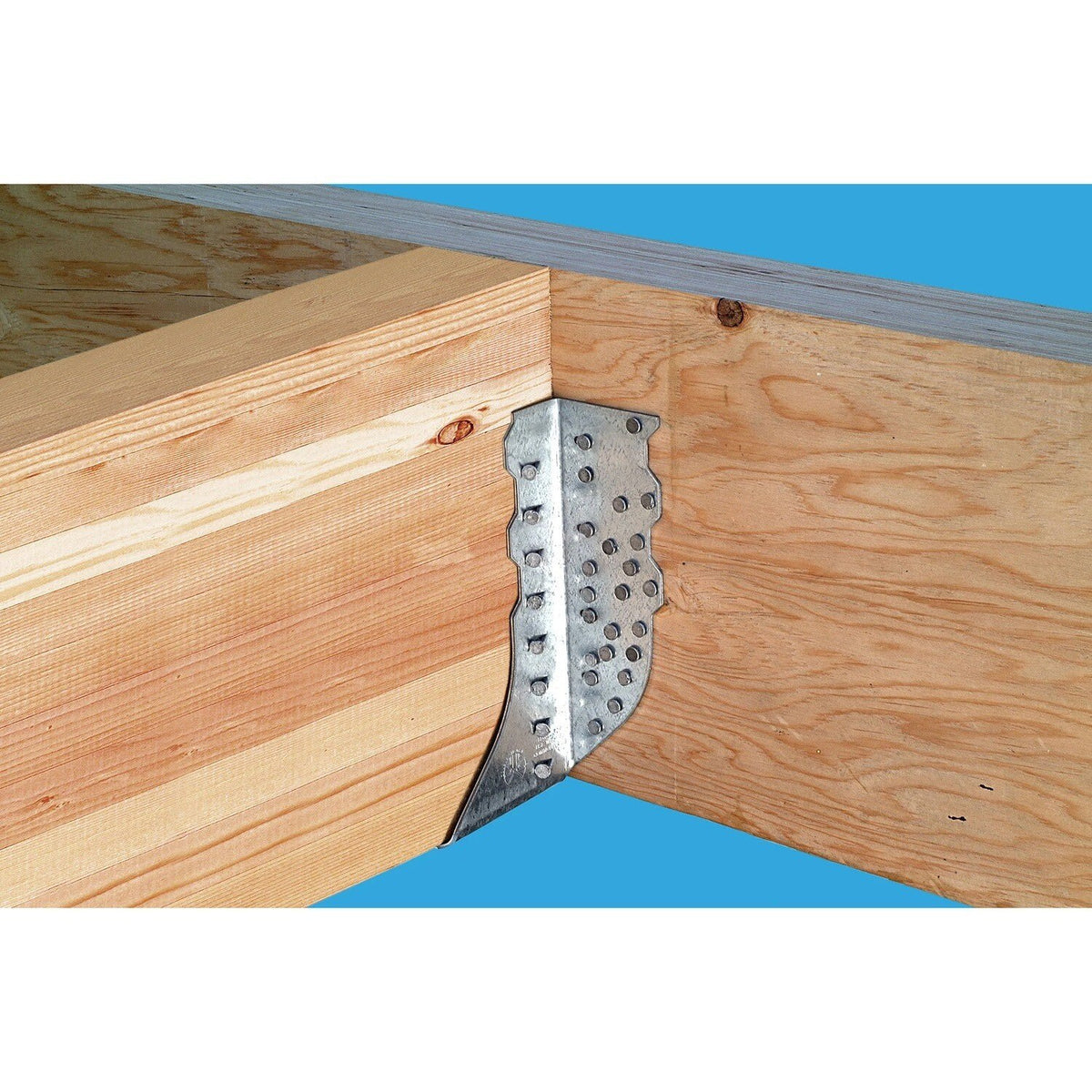

Simpson HGUS410 Installation Overview
- Use all specified fasteners as per the manufacturer's guidelines.
- Drive joist nails at an angle through the joist or truss into the header.
- Avoid using double-shear hangers with I-joists.
- For 3x carrying members, use specified nails into the header and joist with no load reduction.
Simpson HGUS410 Specifications
| Material | 12 Gauge |
| Finish | G90 Galvanized |
| Height | 9-1/16" |
| Width | 3-5/8" |
| Joist Size | 4" X 10" |
| For Treated Lumber | No |
NOTE: Ensure the correct fasteners are installed in the correct position to achieve published load values
