Simpson ACBH3X15.37-KT Description
The ACBH3X15.37-KT is a concealed beam hanger kit designed for high-performance connections in mass timber and engineered wood construction.
Simpson ACBH3X15.37-KT Includes

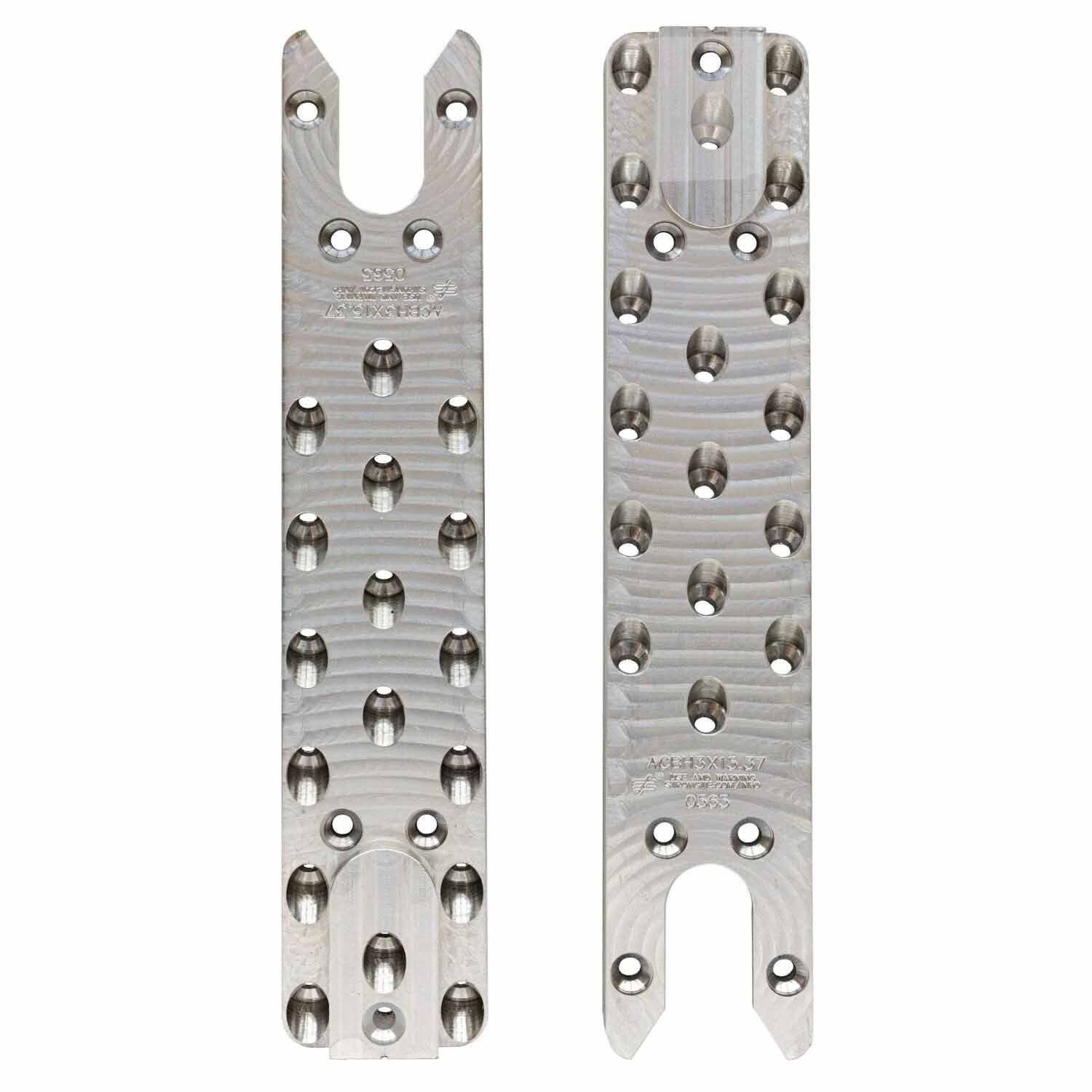

- (2) ACBH 3x15.37 Concealed Beam Hanger Backplates
- (48) SDCF22614 screws
Simpson ACBH3X15.37-KT Features
- High capacity
- Concealed for architectural aesthetics and fire-rated performance
- One- and two-hour fire resistance ratings per ASTM E119
- Recommended for use at beam-to-beam connections in any Seismic Design Category, and at beam-to-column connections in Seismic Design Category A or B
- Multiple router options to suit jobsite needs

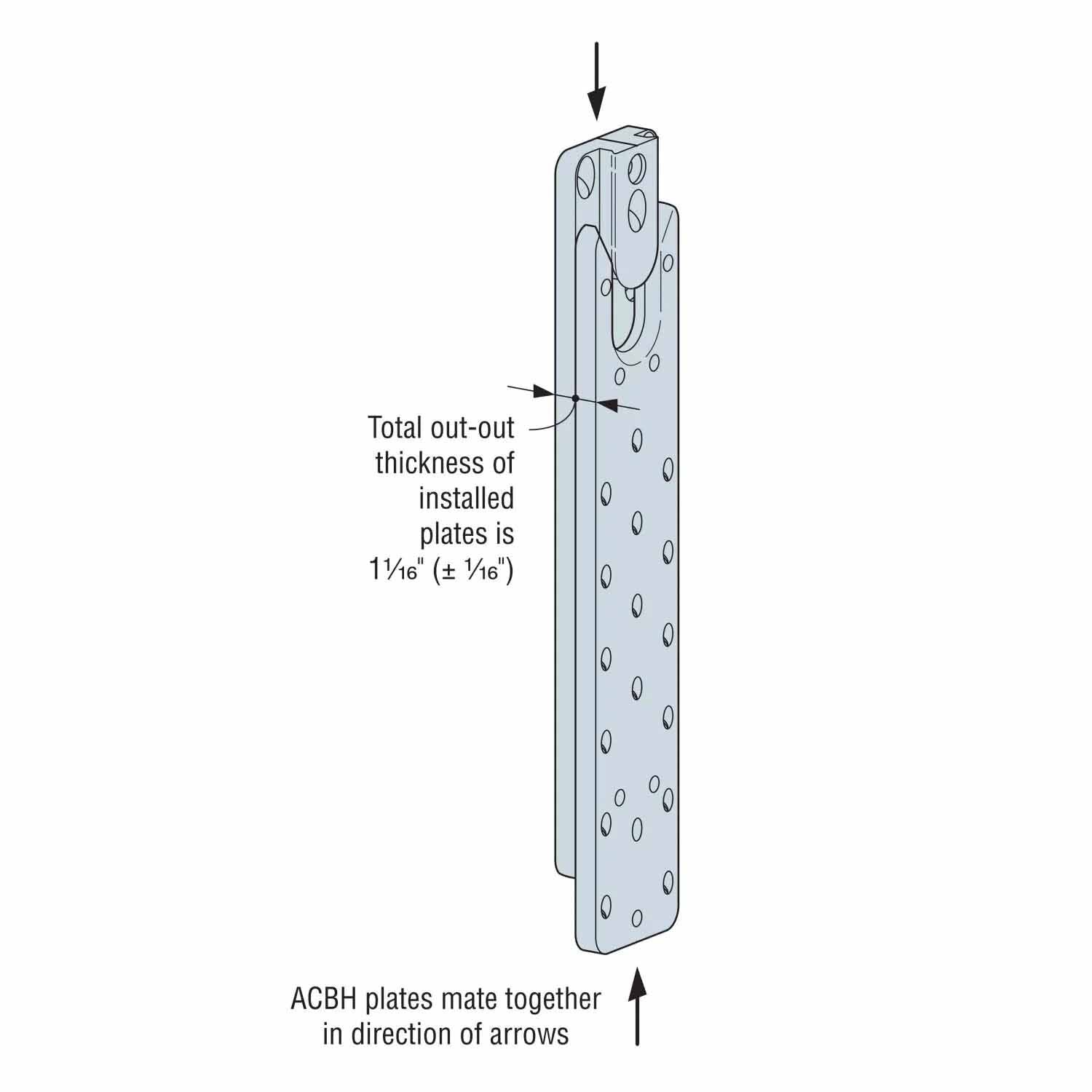

- +/- 1/16" beam length tolerance on each end enables easier installation
Simpson ACBH3X15.37-KT Applications
- Mass timber and engineered wood beam-to-column connections
- Architectural and exposed-framing projects where visible hardware is undesirable
- Residential, commercial, and institutional buildings using concealed timber joinery

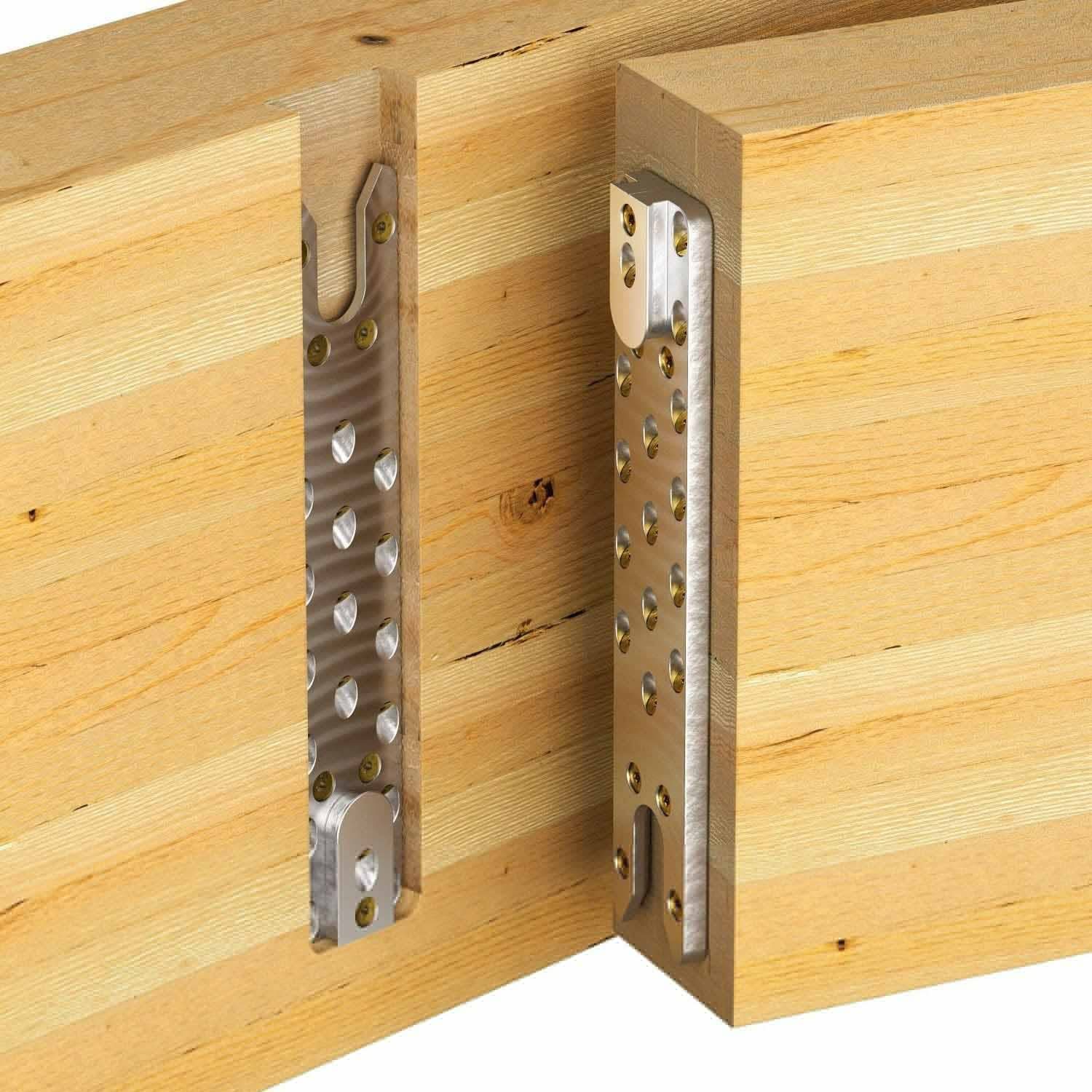

Simpson ACBH3X15.37-KT Installation Overview
- Ensure all components are clean, aligned, and free of defects.
- Align the ACBH hanger at the designated connection point according to plans.
- Install Strong-Drive SDCF Timber-CF screws at a 45° angle through the pre-aligned fastener tabs.
- Insert the beam into the hanger pocket, ensuring full seating and structural contact.
- Confirm all fasteners are secure and the connection complies with design requirements.

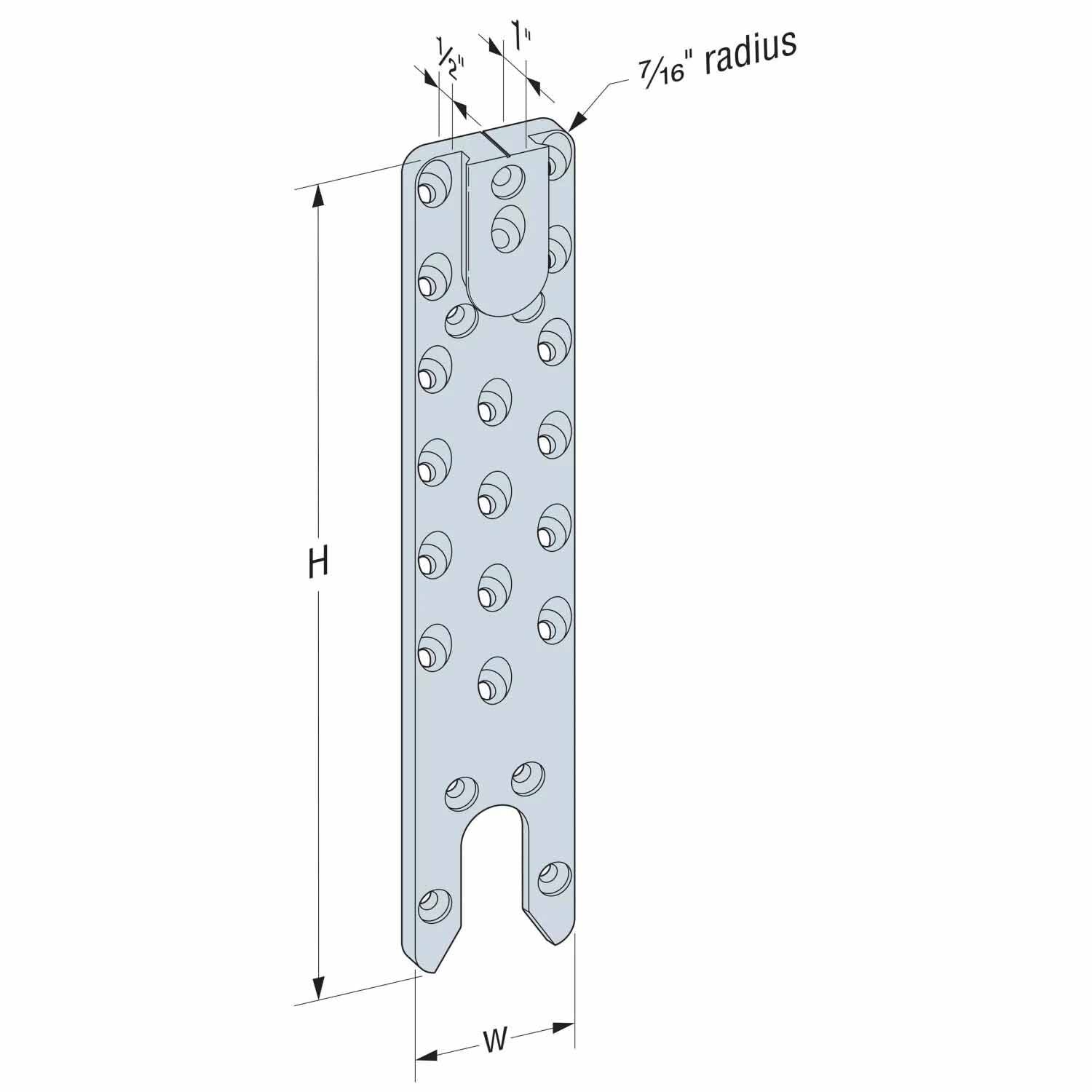

Simpson ACBH3X15.37-KT Specifications
| Material | Aluminum |
| Fasteners required | (48) SDCF22614 screws included in kit |
| Height | 15-3/8" |
| Width | 3" Each |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
