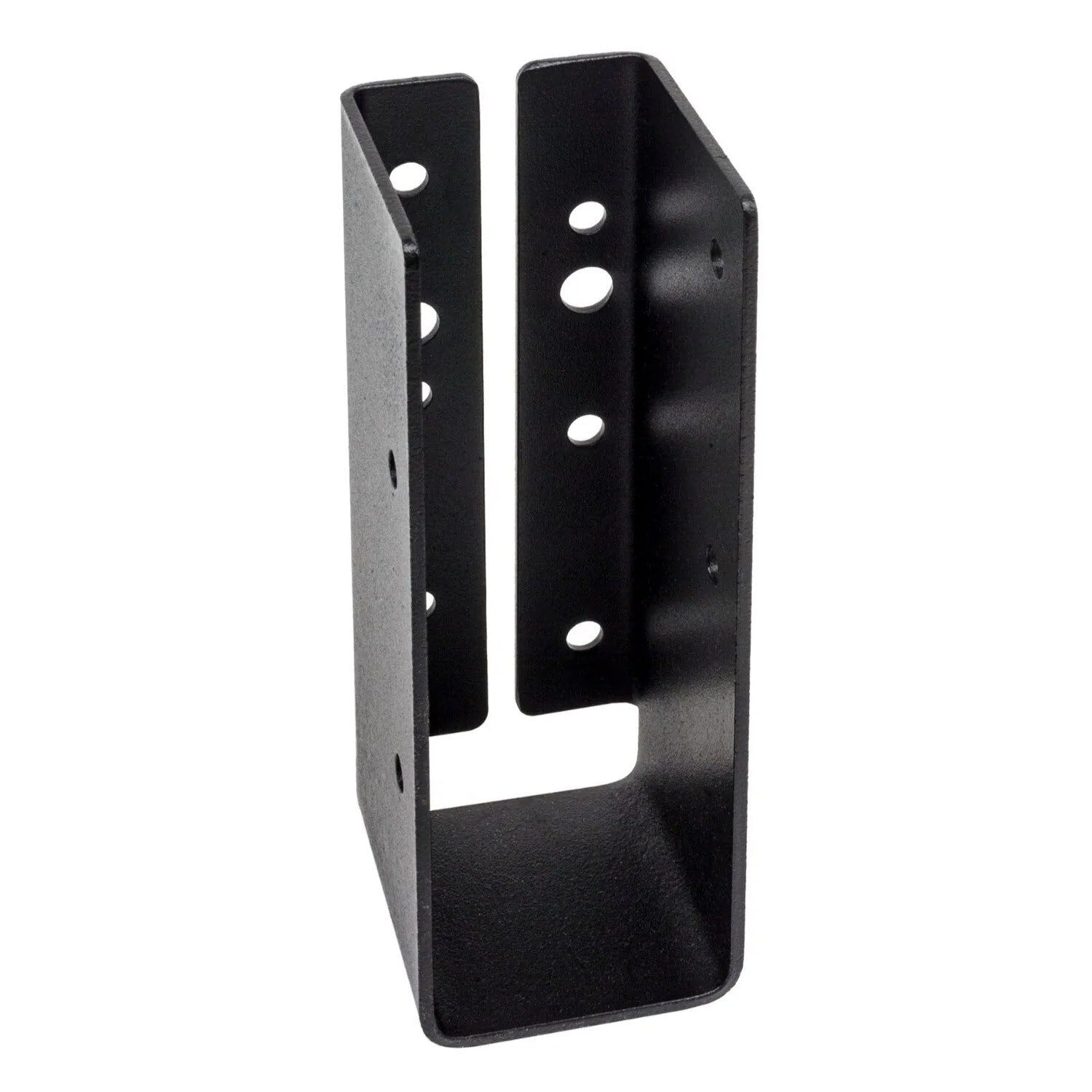

Simpson APLH26R Description
The Simpson APLH26R is a concealed flange light joist hanger designed specifically for rough cut 2x6 lumber, offering a clean, finished appearance ideal for outdoor projects.
Simpson APLH26R Includes
- (1) ZMAX Black Light Joist Hanger for 2x6 Rough Lumber
Simpson APLH26R Features
- Made from 14-gauge steel with ZMAX galvanization and a black powder coat for enhanced corrosion resistance.
- Concealed flange design provides a cleaner look for joist connections.
- Designed for use with Simpson Strong-Tie Outdoor Accents connector screws.
Simpson APLH26R Applications

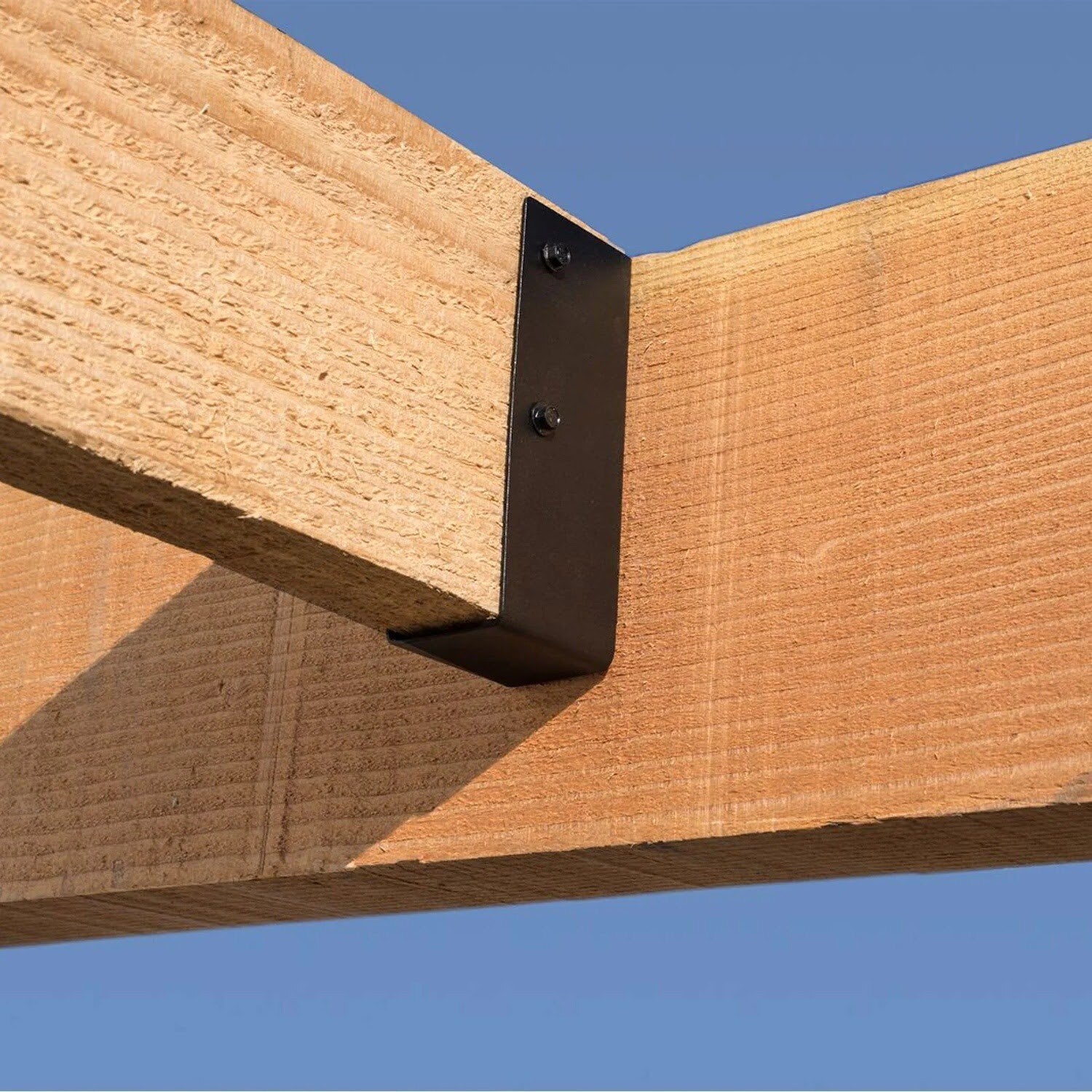

- Connecting 2x6 rough cut joists to beams in outdoor structures such as decks, pergolas, and pavilions.
Simpson APLH26R Installation Overview
- Install using Simpson's SD10112DBB Connector screws.
- Ensure the hanger is aligned properly with the joist and beam.
- Secure the hanger using the specified screws for optimal performance.

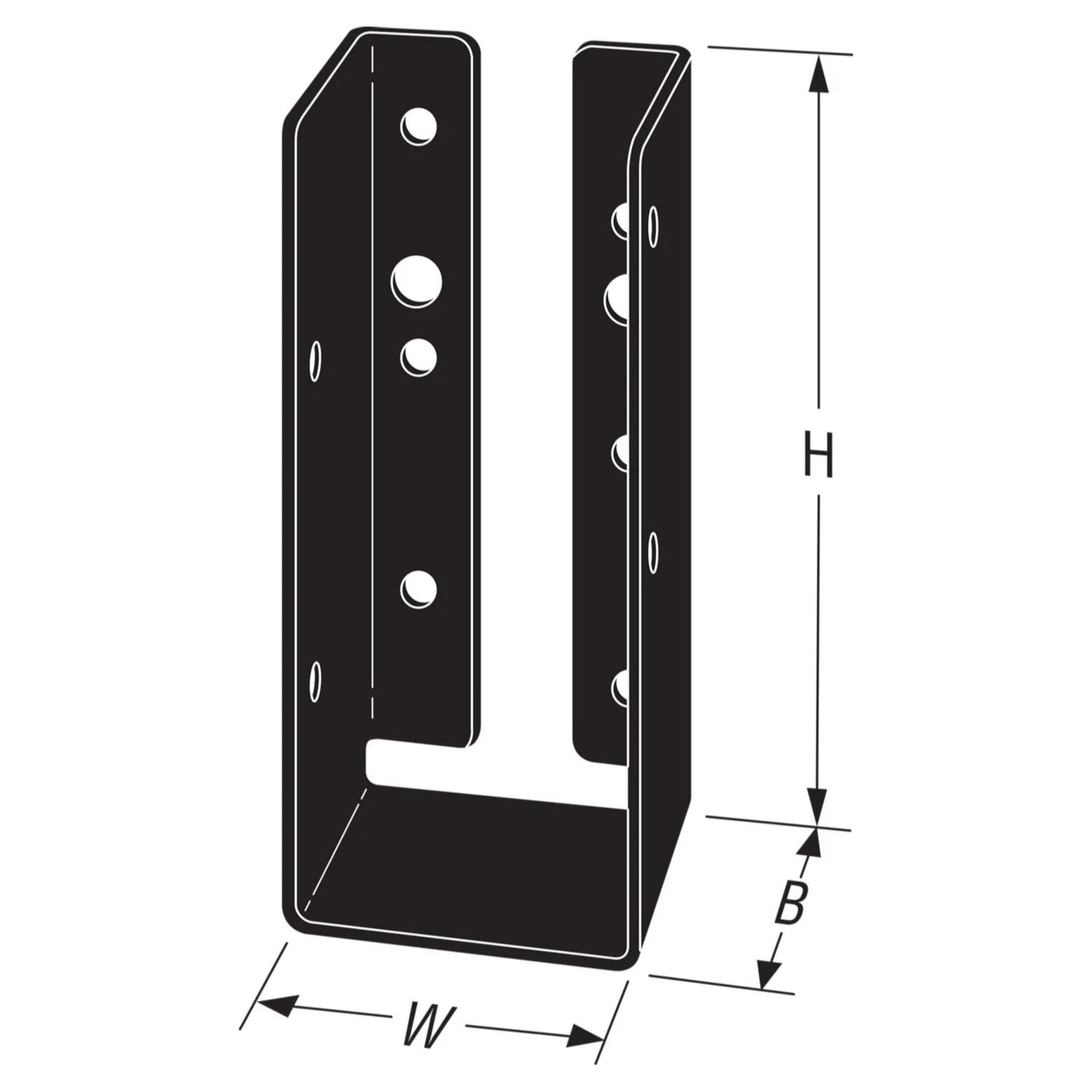

Simpson APLH26R Specifications
| Finish | ZMAX and Black Powder Coat |
| Material | Carbon Steel |
| Color | Black |
| Fasteners required | (10) #10 x 1-1/2" SD10112DBB Connector screws |
| For Treated Lumber | Yes |
| Height | 5" |
| Joist size | 2" X 6" Rough or 2" X 8" Rough |
| Thickness | 14 Gauge |
| Width | 2-1/16" |
NOTE: This connector is designed for Rough Cut lumber NOT nominal lumber (most common). This will only fit a joist that measures an actual 6x10".
