Simpson Strong-Tie APVB66DSP Avant Collection ZMAX Black Post Base Side Plate (2 Pack)
Couldn't load pickup availability
Bulk Pricing Available
Bulk Pricing Available
Need to place a large order? Request a quote
Simpson Strong-Tie APVB66DSP Avant Collection ZMAX Black Post Base ...
Description
Description
Simpson APVB66DSP Description
The ZMAX Black Post Base Side Plate for 6x nominal lumber offers enhanced structural support and aesthetic appeal for outdoor wood constructions.
Simpson APVB66DSP Includes

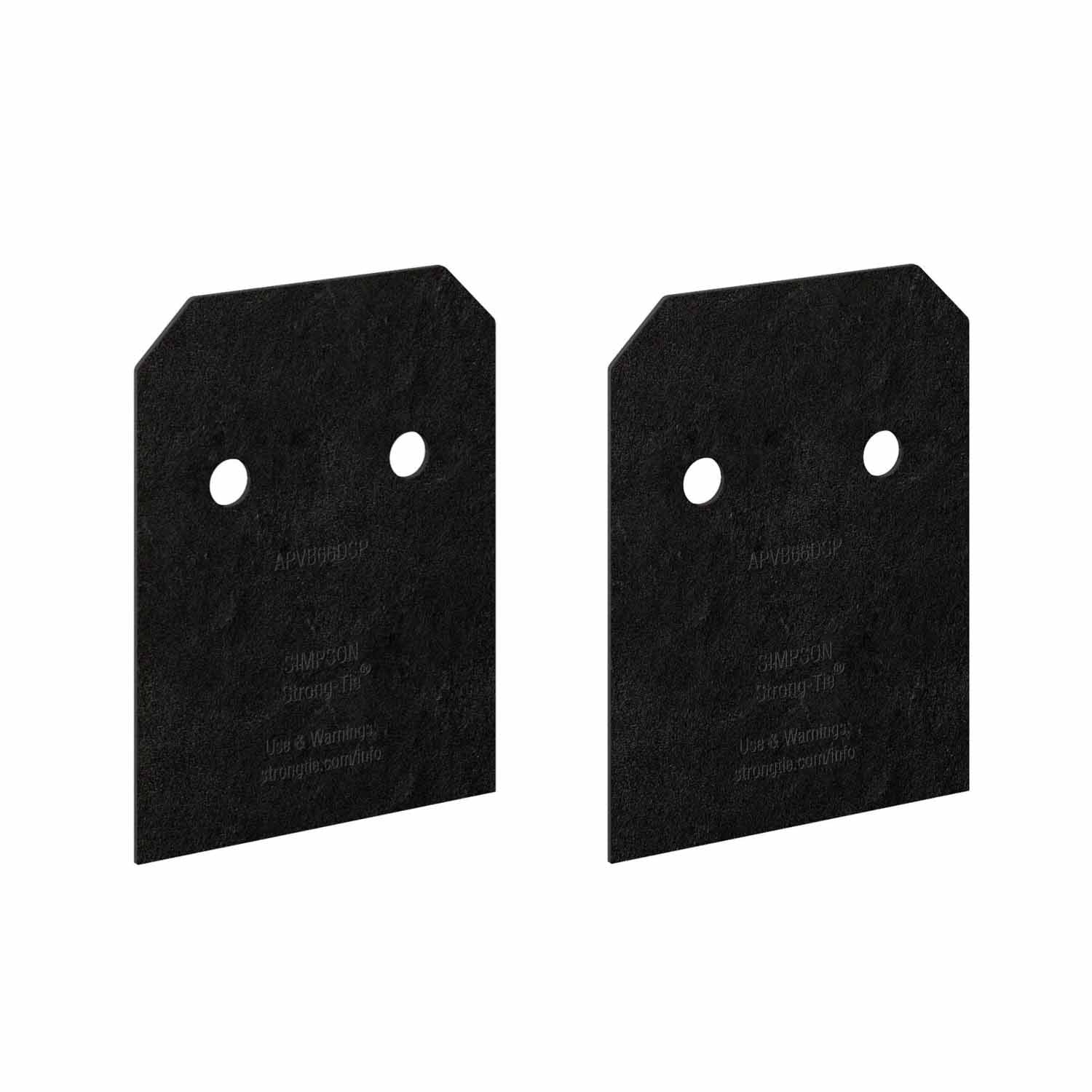

- (2) ZMAX Black Post Base Side Plate
Simpson APVB66DSP Features
- High-strength steel with ZMAX galvanization and black powder-coated finish
- Straight-line styling for a clean, modern look
- Built to perform in outdoor environments
- Works with Outdoor Accents adjustable post bases for wood-to-concrete connections
- Available for a range of standard post sizes
- Simple attachment enhances both aesthetics and structural integrity
Simpson APVB66DSP Applications
- Decks: Provides structural support and aesthetic enhancement for wood posts.
- Patios: Ideal for securing wood posts in outdoor environments.

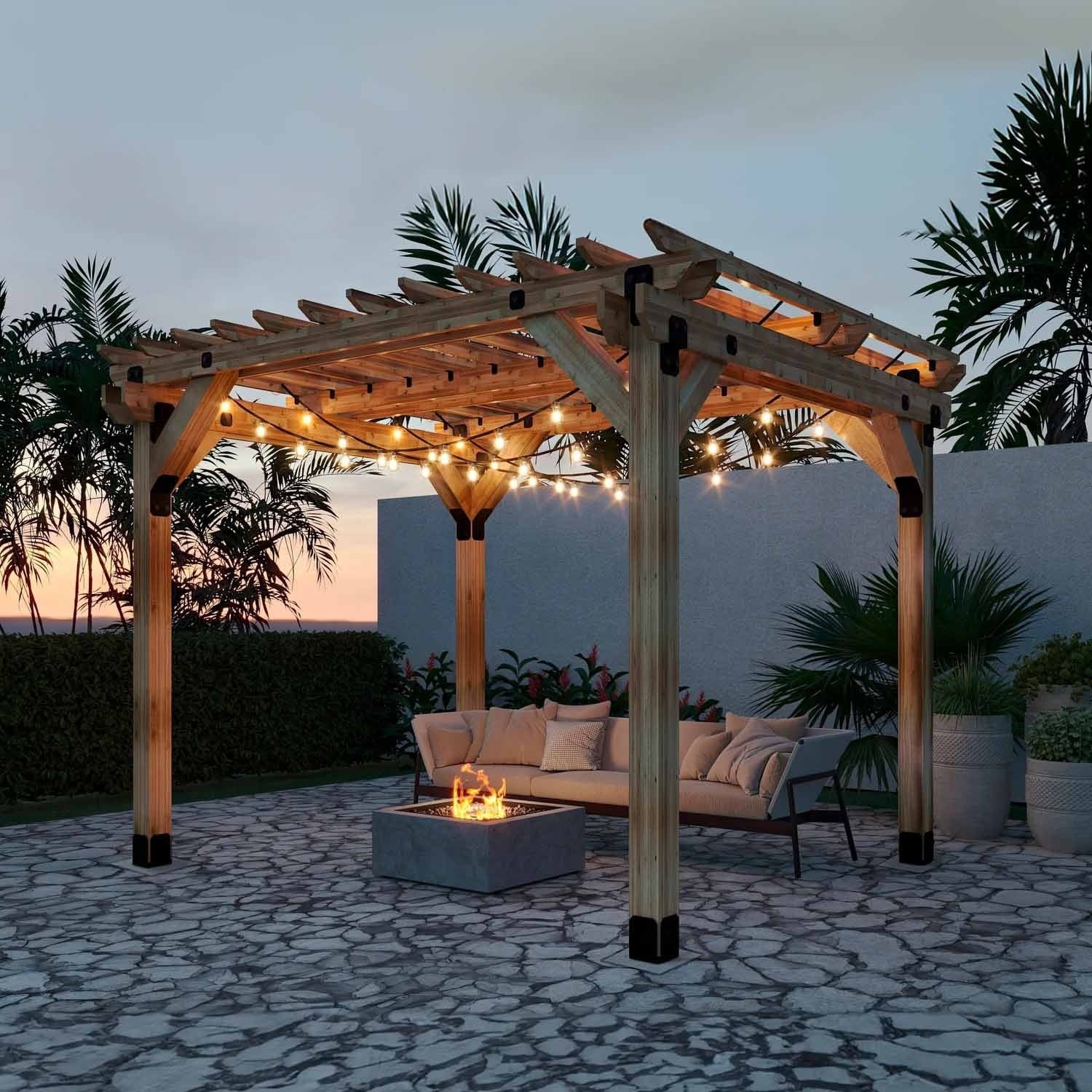

- Pergolas: Enhances the stability and appearance of wood posts.
- Pavilions: Suitable for reinforcing wood posts in outdoor structures.

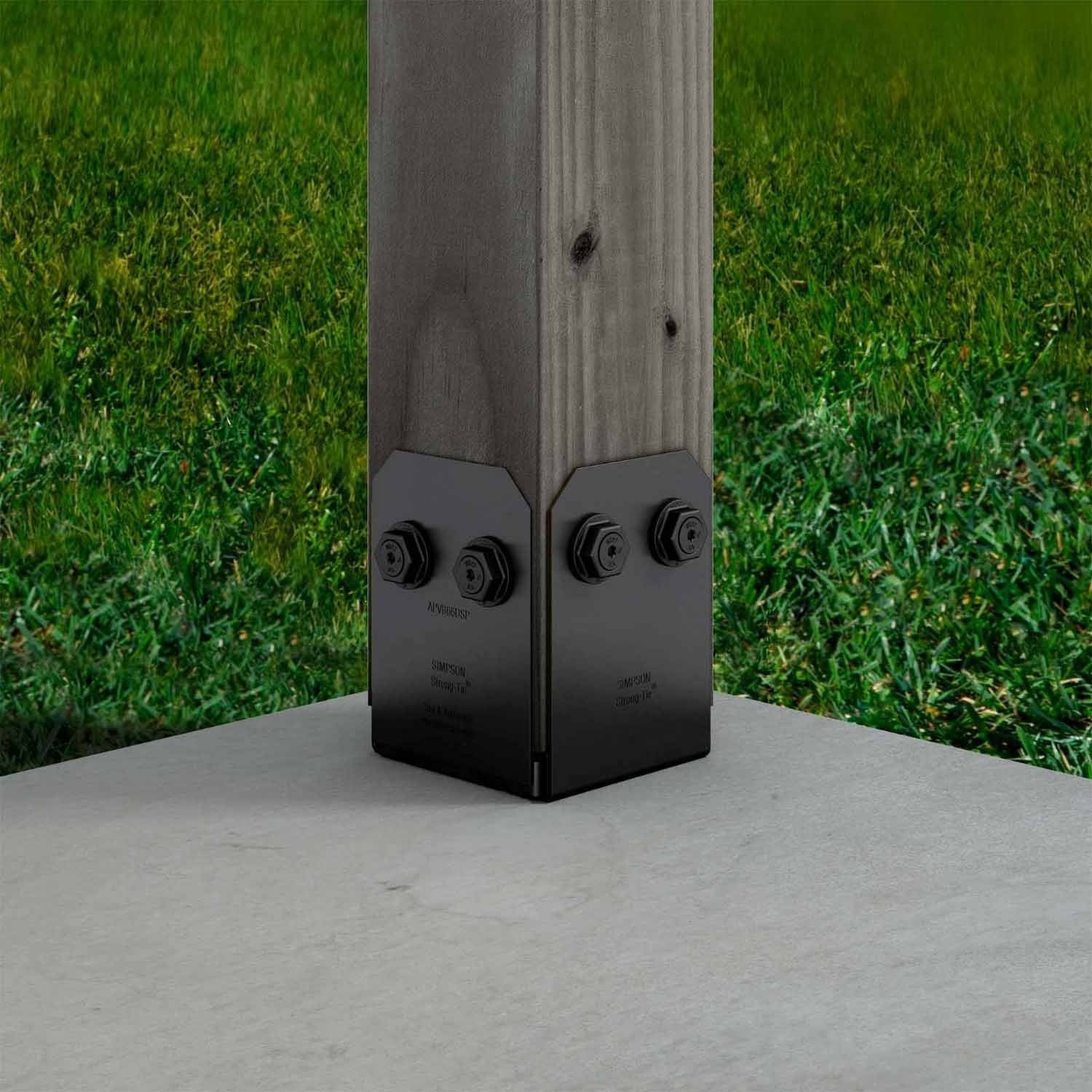

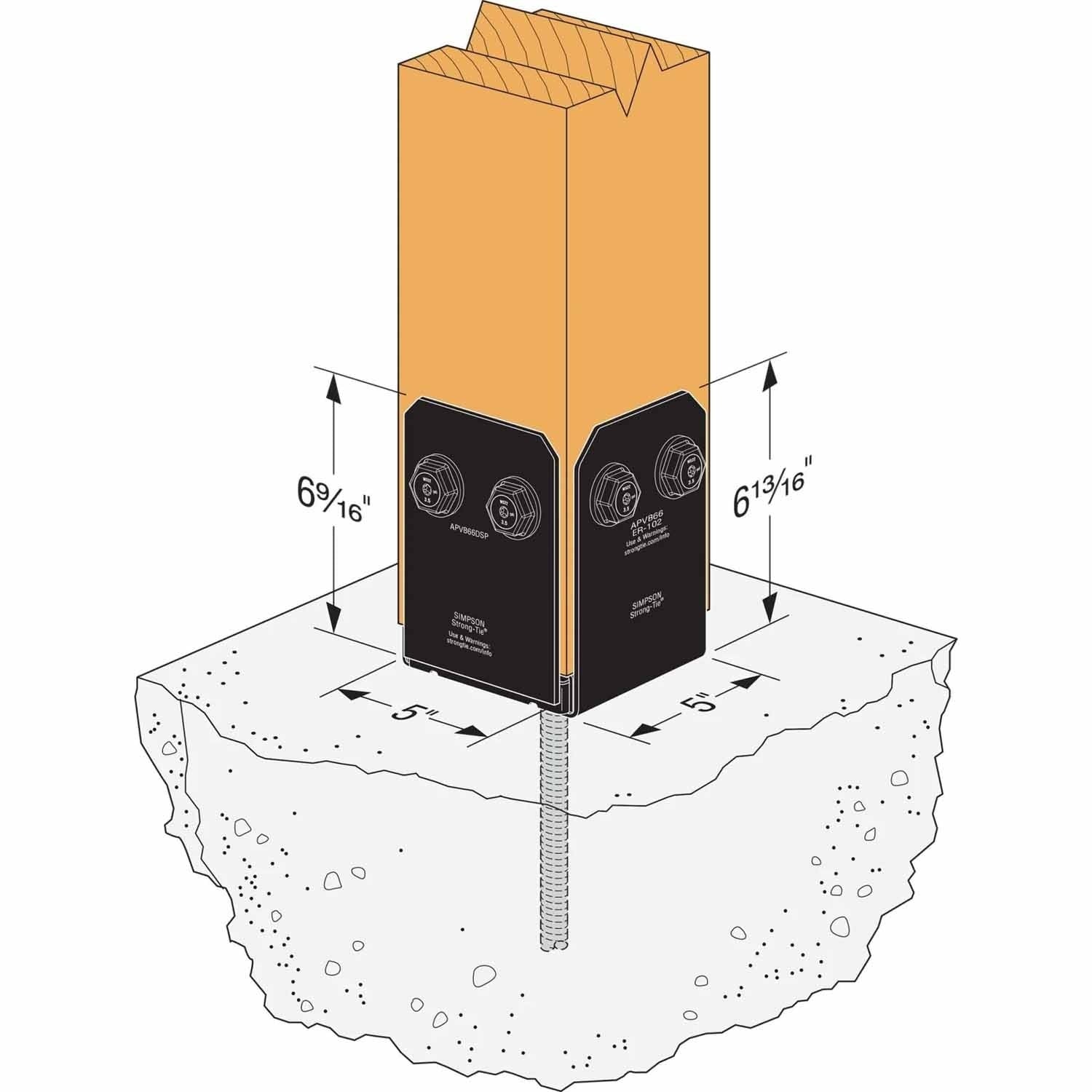

Simpson APVB66DSP Installation Overview
- Align the top of the decorative side plates flush with the top of the post base strap legs.
- Ensure the side plates are raised 1/4" from the bottom of the post base.
- Secure the plates using the specified fasteners (sold separately).

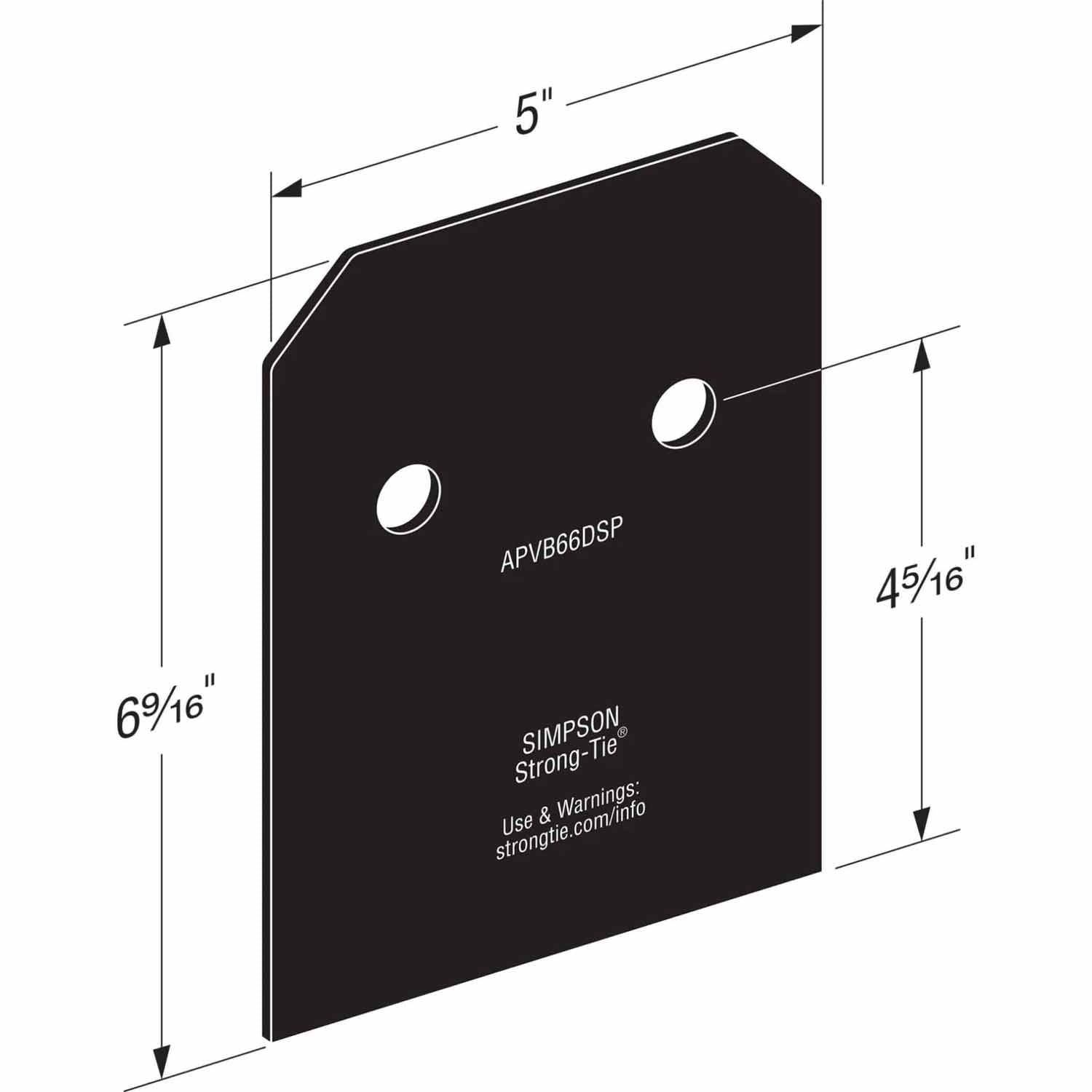

Simpson APVB66DSP Specifications
| Material | 12-gauge steel |
| Finish | ZMAX galvanization with black powder coat |
| Post Size | 6X or 6X Rough |
| Width | 5" |
| Height | 6-9/16" |
| Thickness | 12 Gauge |
| Fasteners Required | (4) SDWS22312DBB Structural wood screws, (4) STN22 Hex-head washers |
| For Treated Lumber | Yes |
| Quantity | 2 |
NOTE: Ensure the top of the decorative side plates is flush with the top of the post base strap legs during installation.
