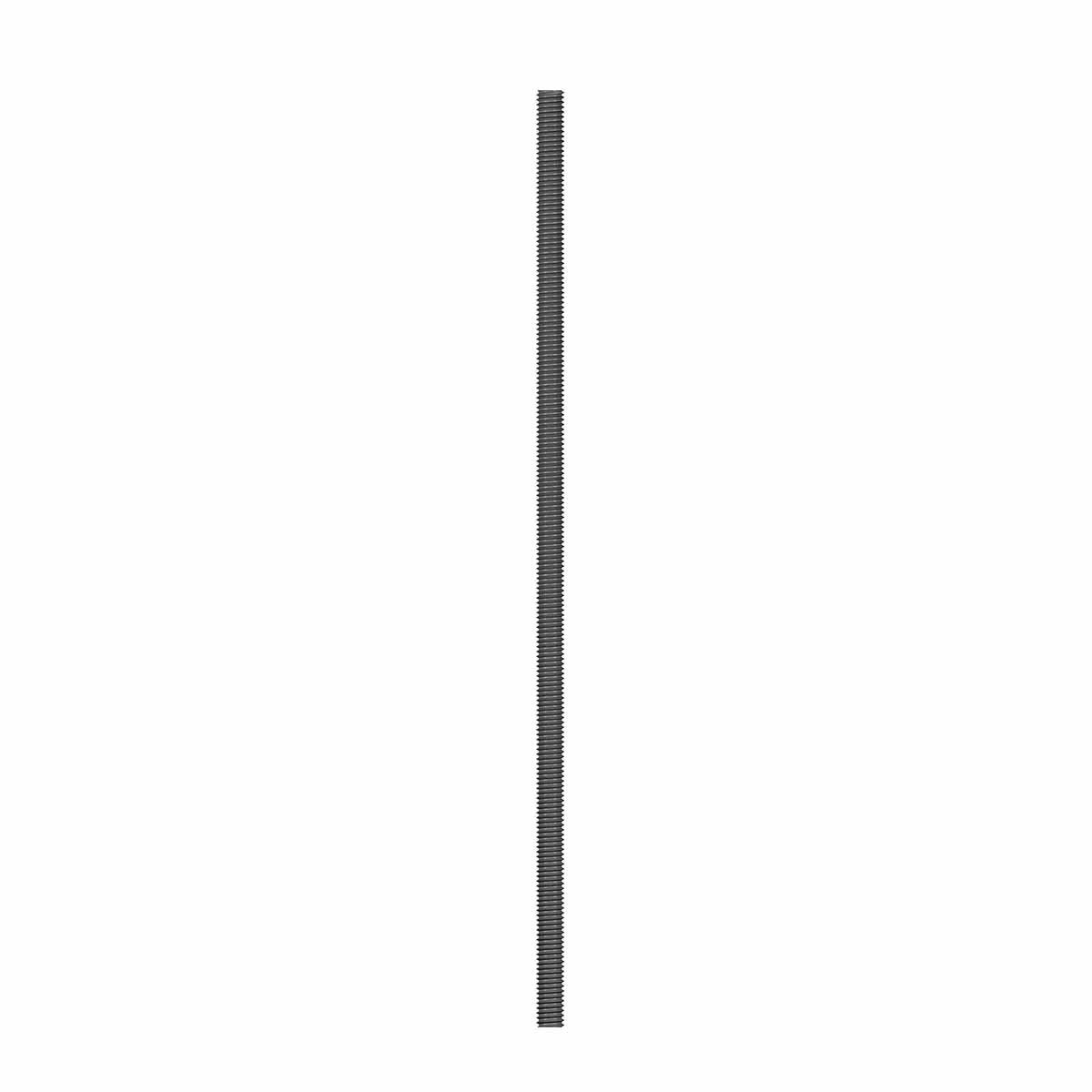

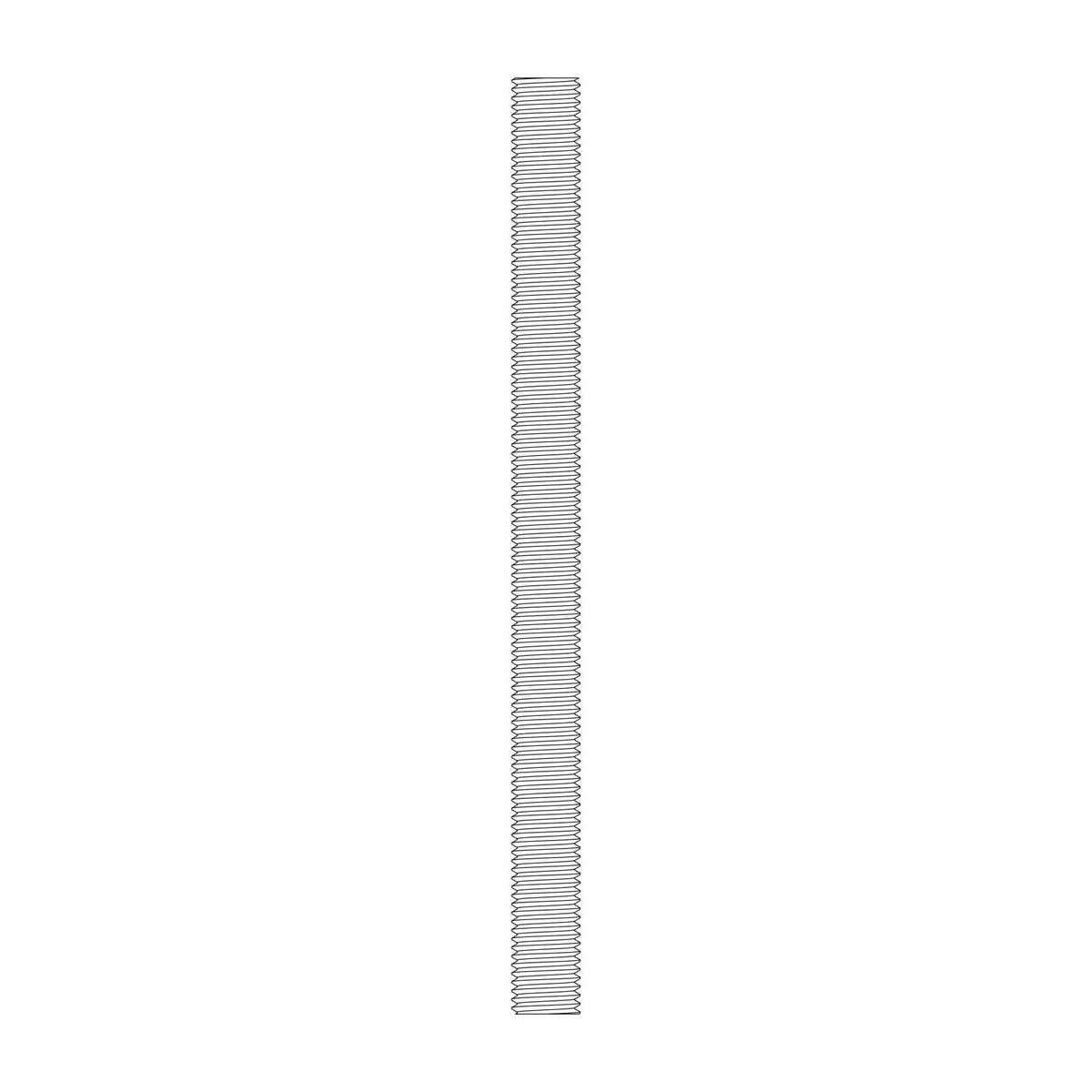

Simpson Strong-Tie ATR1-1/4X24 (1-1/4" x 24") Fully Threaded All-Thread Rod for Structural Tension Transfer
Bulk Pricing Available
Bulk Pricing Available
Need to place a large order? Request a quote
Simpson Strong-Tie ATR1-1/4X24 (1-1/4" x 24") Fully Threa...
Key Specifications
Description
Description
Simpson Strong-Tie ATR1-1/4X24 Description
The ATR1-1/4X24 Fully Threaded All-Thread Rod is designed for structural tension transfer, offering reliable performance in anchoring and bracing applications.
Simpson Strong-Tie ATR1-1/4X24 Includes
- (1) Fully Threaded All-Thread Rod
Simpson Strong-Tie ATR1-1/4X24 Features
- Fully threaded design for maximum adjustability
- Manufactured from low carbon steel meeting ASTM F1554 Grade 36 standards
- Plain finish for cost-effective applications
- Compatible with standard nuts and washers
Simpson Strong-Tie ATR1-1/4X24 Applications
- Structural tension transfer in anchoring systems
- Bracing and structural connections
- Use in Simpson Strong-Tie ATS and URS systems

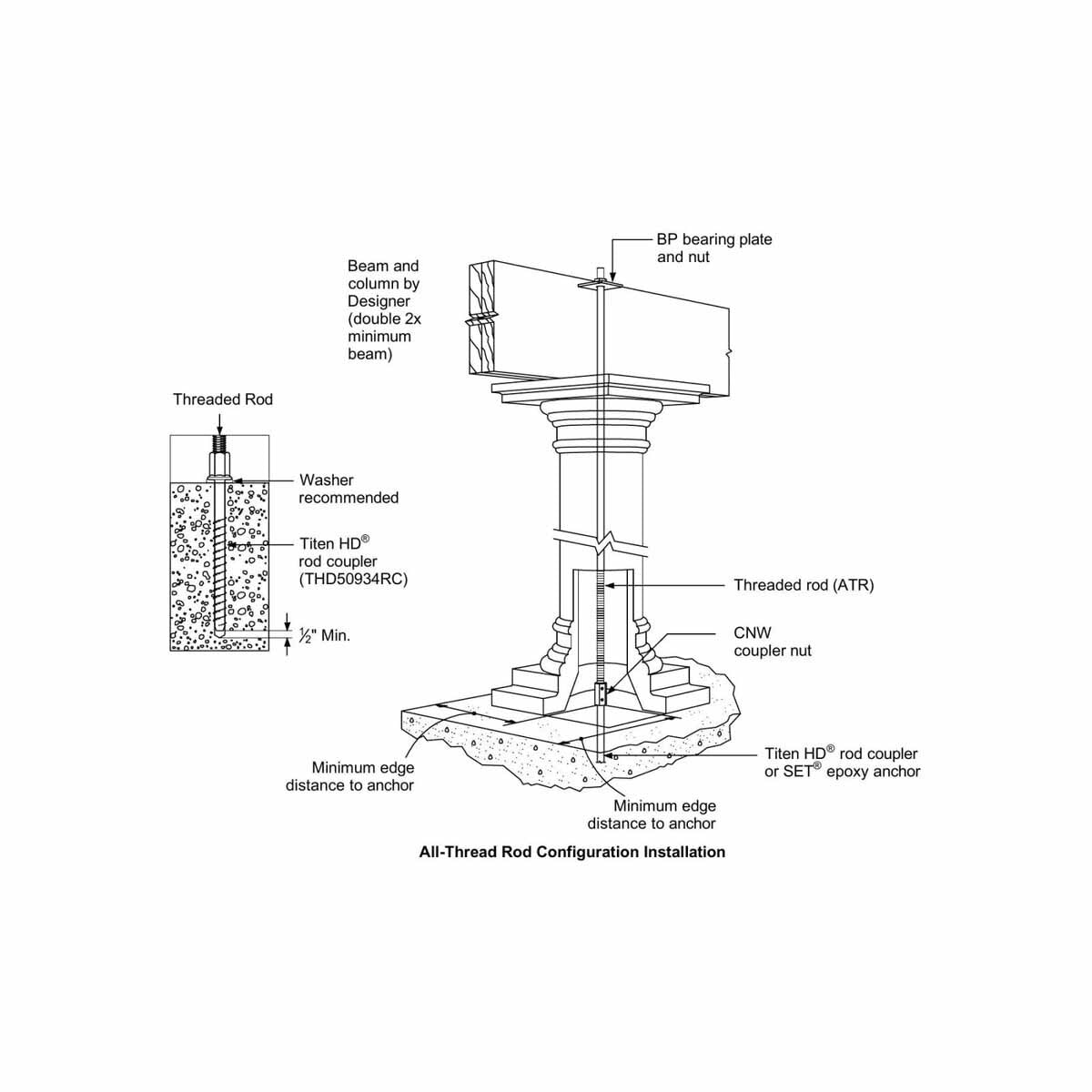

Simpson Strong-Tie ATR1-1/4X24 Installation Overview
- Drill holes 1/4" larger than the rod diameter
- Insert the rod through drilled holes in the flooring system
- Ensure continuous drilling action through the sole plate and flooring system
Simpson Strong-Tie ATR1-1/4X24 Specifications
| Diameter | 1-1/4" |
| Length | 24" |
| Material | Uncoated Black Steel |
| Finish | Plain |
| Thread Type | Coarse |
| Tension Capacity | 26,690 lbs |
NOTE: When pairing a nut with threaded rod, the material and finish must match. If these do not match, the nut will not fit the threaded rod.
