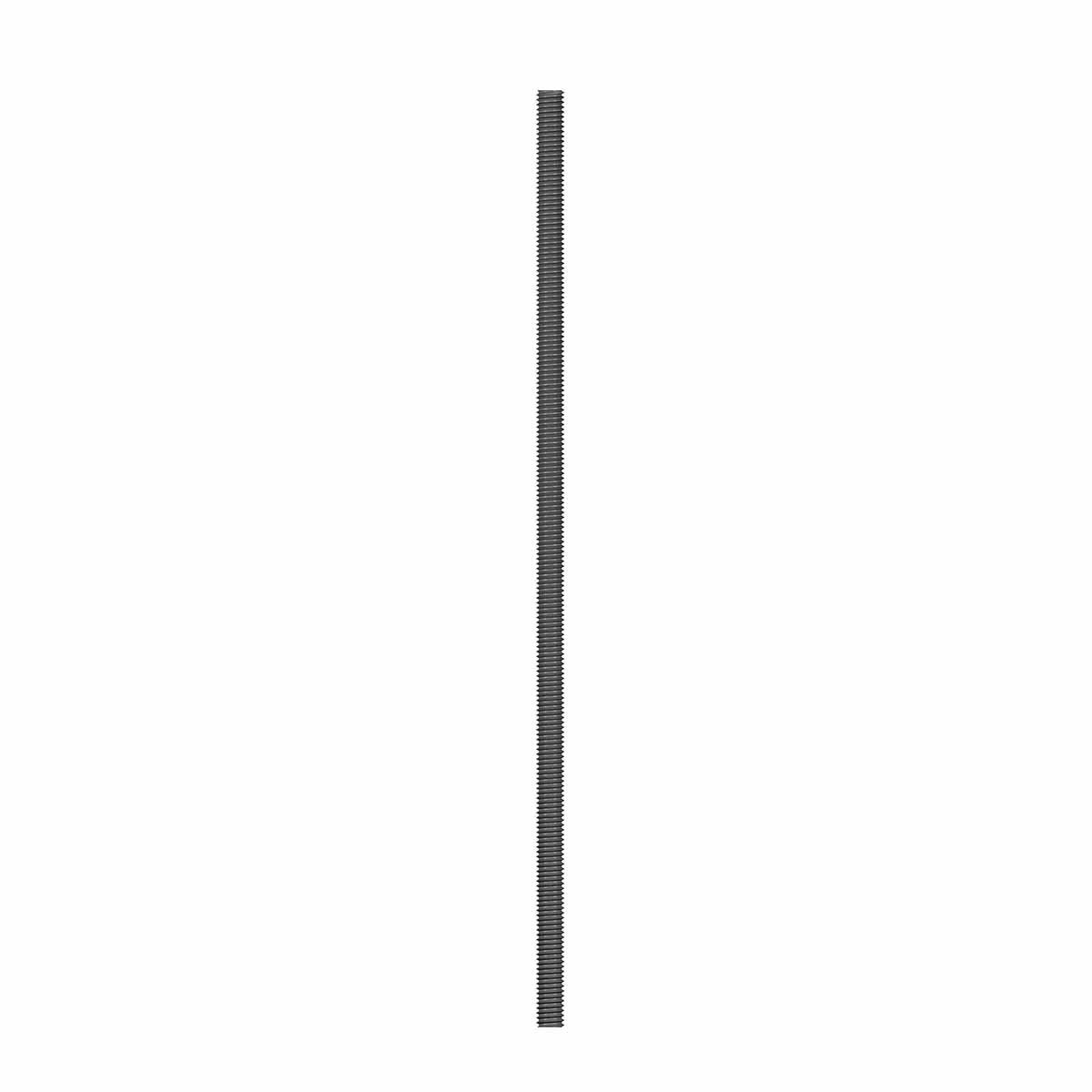

Simpson Strong-Tie ATR1X36 (1" x 36") Fully Threaded All-Thread Rod for Structural Anchoring
Bulk Pricing Available
Bulk Pricing Available
Need to place a large order? Request a quote
Simpson Strong-Tie ATR1X36 (1" x 36") Fully Threaded All-...
Key Specifications
Description
Description
Simpson Strong-Tie ATR1X36 Description
The ATR1X36 Fully Threaded All-Thread Rod is designed for structural anchoring applications, offering high strength and adjustability.
Simpson Strong-Tie ATR1X36 Includes
- (1) Fully Threaded All-Thread Rod 1 in. x 36 in.
Simpson Strong-Tie ATR1X36 Features
- Fully threaded design for maximum adjustability
- Manufactured from low carbon steel meeting ASTM F1554 Grade 36, A36, or A307 standards
- Plain finish for cost-effective applications
- Compatible with standard nuts and washers
Simpson Strong-Tie ATR1X36 Applications
- Structural anchoring in Simpson Strong-Tie systems
- Bracing and tension transfer in construction
- General structural connections

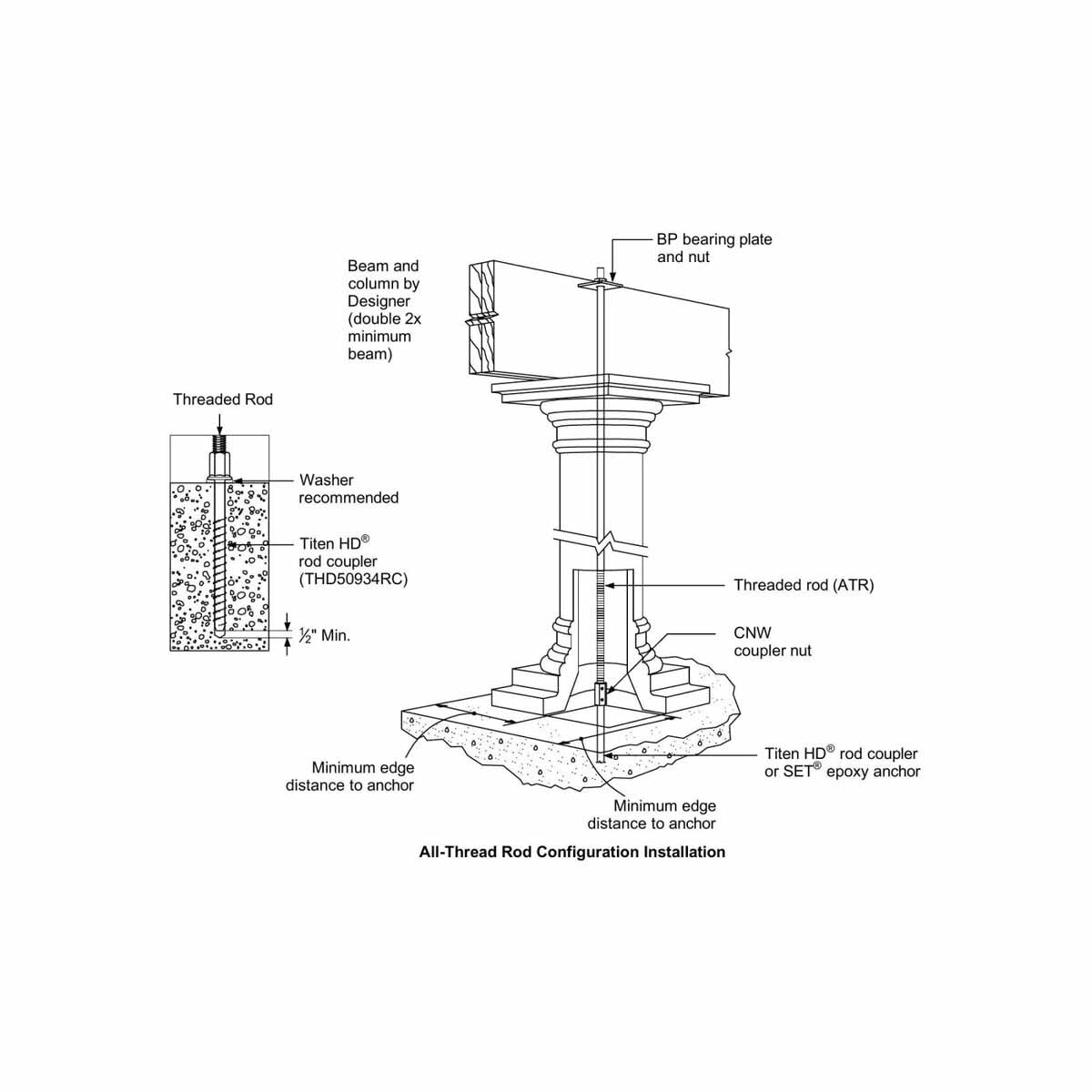

Simpson Strong-Tie ATR1X36 Installation Overview
- Drill holes 1/4" larger than the rod diameter
- Insert the rod through drilled holes in the flooring system
- Ensure continuous drilling action through the sole plate and flooring system
Simpson Strong-Tie ATR1X36 Specifications
| Diameter | 1 in. |
| Length | 36 in. |
| Material | Uncoated Black Steel |
| Finish | Plain |
| Thread Type | Coarse |
| Allowable Tension Capacity | 17,080 lbs |
NOTE: When pairing a nut with threaded rod, the material and finish must match. If these do not match, the nut will not fit the threaded rod.
WARNING: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov
