Simpson Strong-Tie ATR1X72 (1" x 72") Strong-Rod All-Thread Rod for Tension Transfer and Structural Applications
Bulk Pricing Available
Bulk Pricing Available
Need to place a large order? Request a quote
Simpson Strong-Tie ATR1X72 (1" x 72") Strong-Rod All-Thre...
Key Specifications
Description
Description
Simpson Strong-Tie ATR1X72 Description

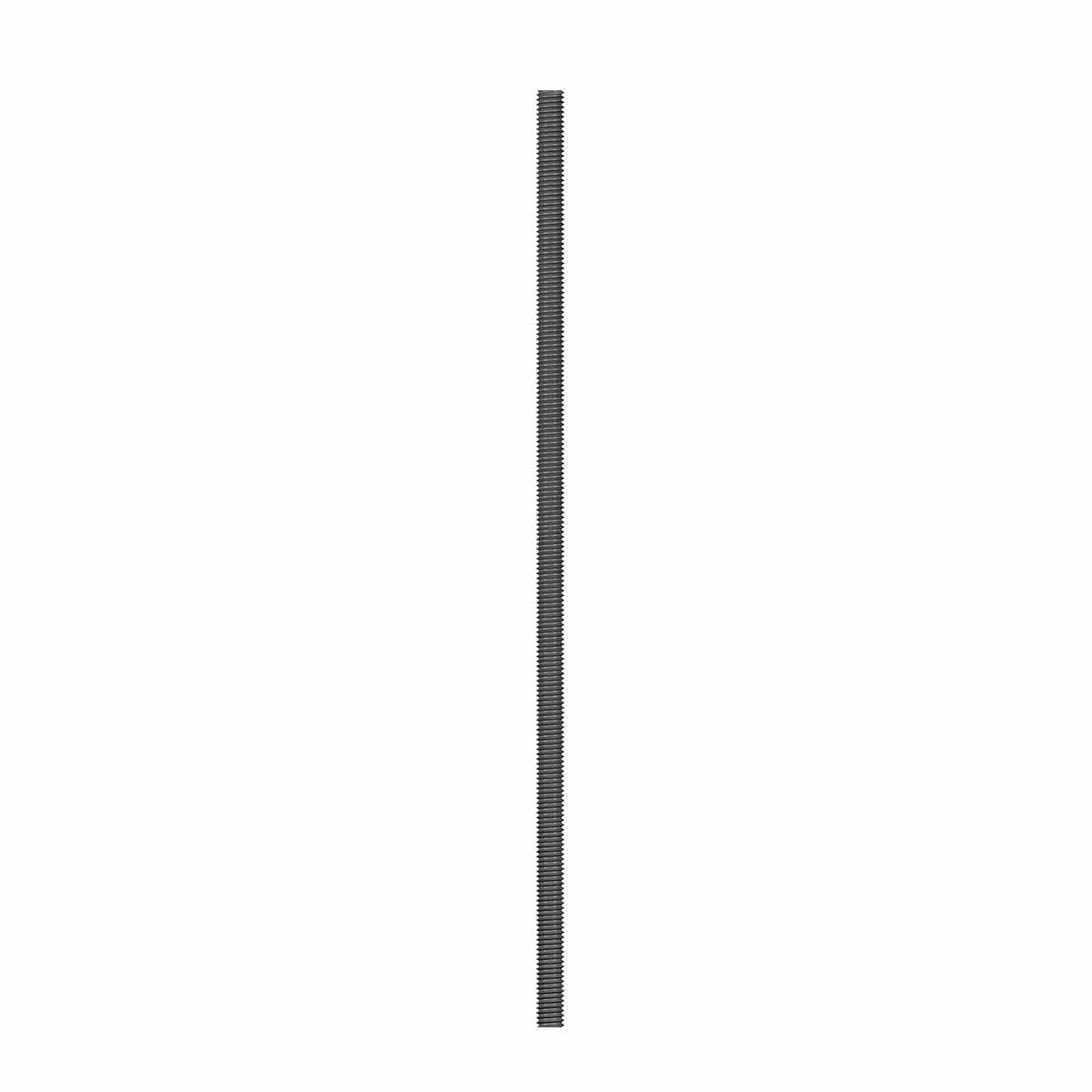

The Simpson Strong-Tie ATR1X72 is a 1 in. x 72 in. all-thread rod designed for tension transfer and structural applications, offering reliable performance in anchoring and bracing systems.
Simpson Strong-Tie ATR1X72 Includes
- (1) 1 in. x 72 in. All-Thread Rod
Simpson Strong-Tie ATR1X72 Features
- Fully threaded design for maximum adjustability
- Manufactured from low carbon steel meeting ASTM F1554 Grade 36, A36, or A307 standards
- Plain finish for cost-effective applications
- Compatible with standard nuts and washers
Simpson Strong-Tie ATR1X72 Applications
- Anchoring and bracing in structural systems
- Use in Simpson Strong-Tie anchoring systems like ATS and URS
- General structural connections requiring tension transfer

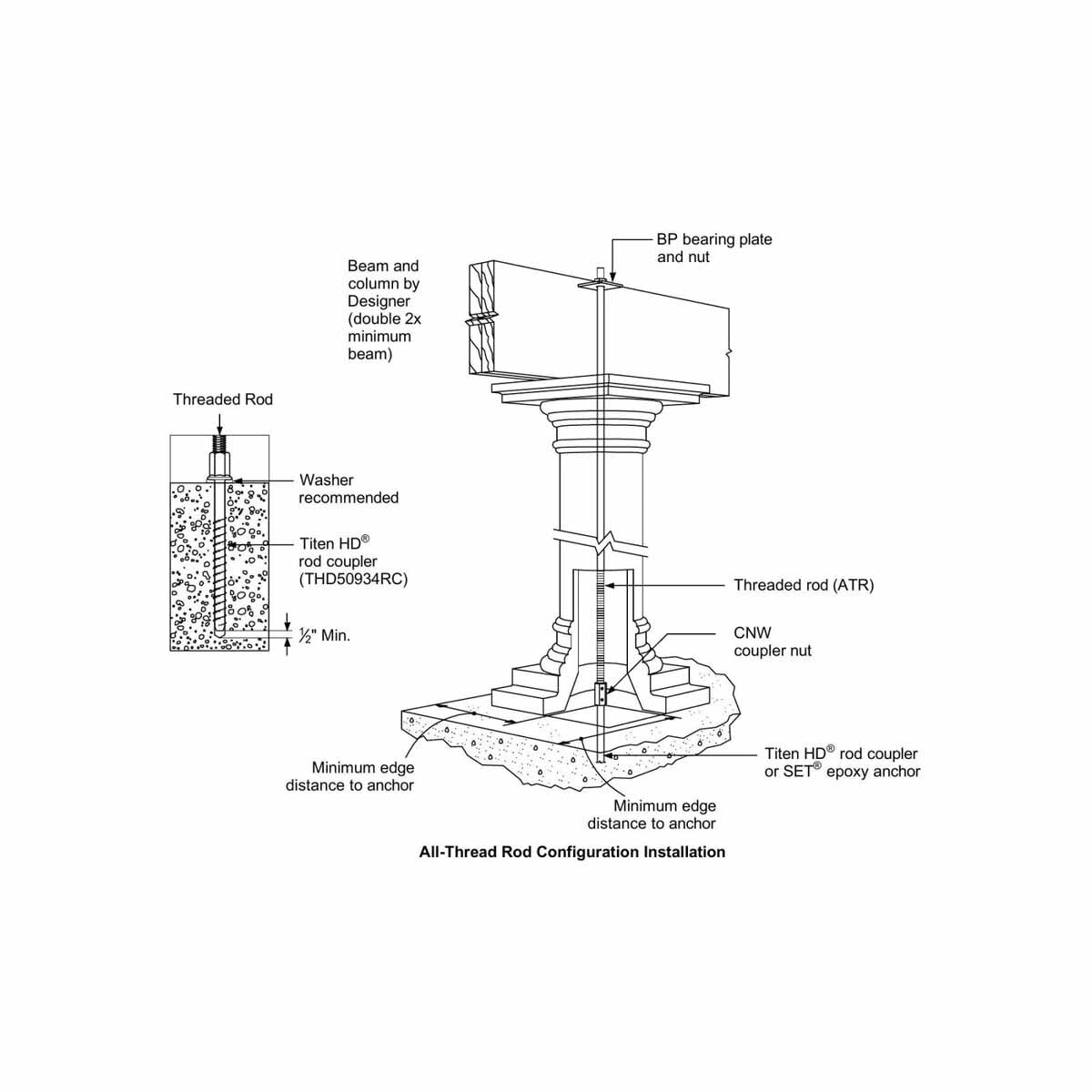

Simpson Strong-Tie ATR1X72 Installation Overview
- Drill holes 1/4 in. larger than the rod diameter
- Insert the rod through drilled holes in the flooring system
- Ensure continuous drilling action through the sole plate and flooring system
Simpson Strong-Tie ATR1X72 Specifications
| Diameter | 1 in. |
| Length | 72 in. |
| Material | Uncoated Black Steel |
| Finish | Plain |
| Thread Type | Coarse |
| Allowable Tension Capacity | 17,080 lbs |
NOTE: When pairing a nut with threaded rod, the material and finish must match. If these do not match, the nut will not fit the threaded rod.
WARNING: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov
