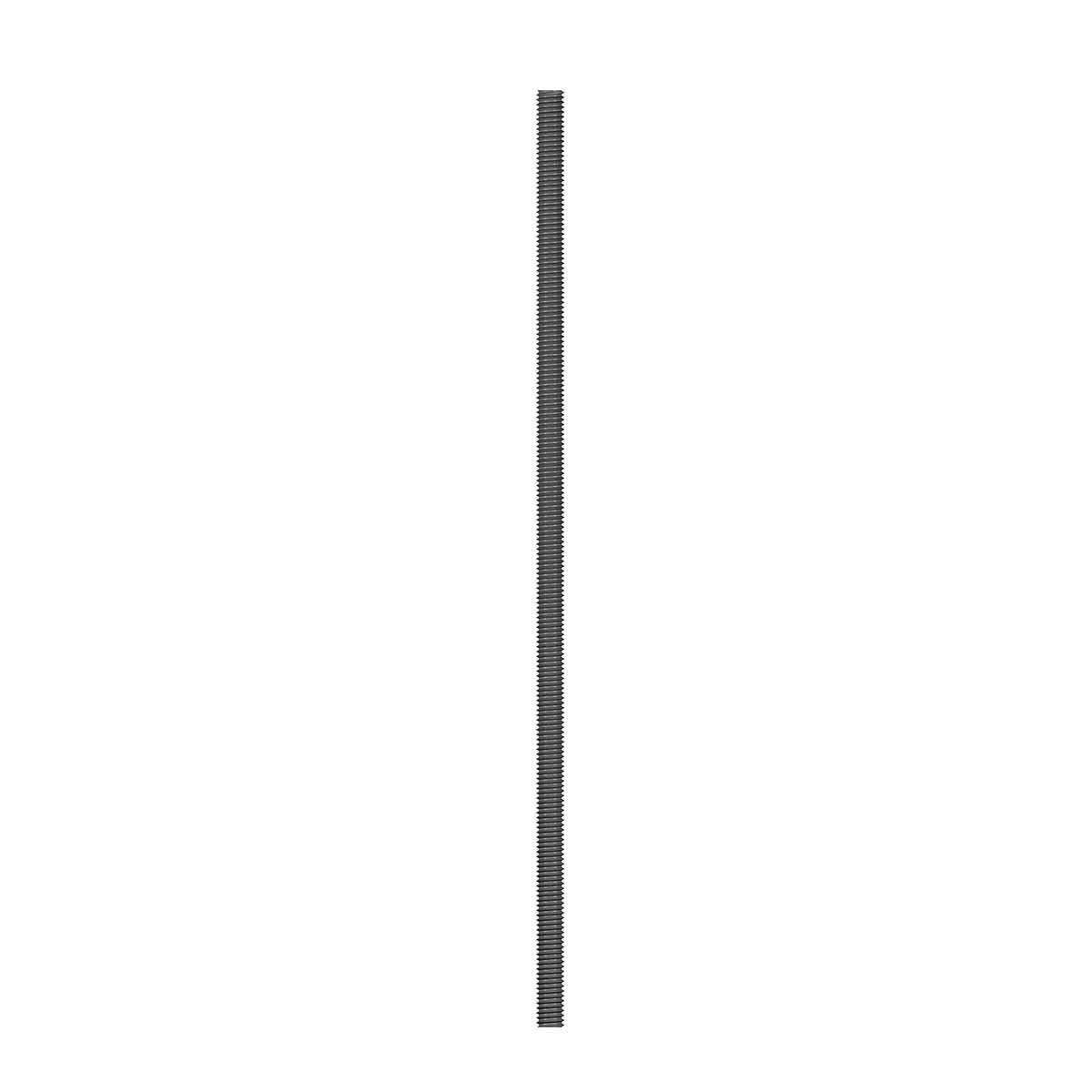

Simpson Strong-Tie ATR3/4X12 (3/4" x 12") All-Thread Rod for Tension Transfer and Structural Connections
Bulk Pricing Available
Bulk Pricing Available
Need to place a large order? Request a quote
Simpson Strong-Tie ATR3/4X12 (3/4" x 12") All-Thread Rod ...
Key Specifications
Description
Description
Simpson Strong-Tie ATR3/4X12 Description
The Simpson Strong-Tie ATR All-Thread Rod is designed for tension transfer and structural connections, offering reliable performance in anchoring systems.
Simpson Strong-Tie ATR3/4X12 Includes
- (1) 3/4" x 12" All-Thread Rod
Simpson Strong-Tie ATR3/4X12 Features
- Fully threaded design for maximum adjustability
- Manufactured from low carbon steel meeting ASTM F1554 Grade 36, A36, or A307 standards
- Plain finish for cost-effective applications
- Compatible with standard nuts and washers
- Suitable for ATS and URS systems
Simpson Strong-Tie ATR3/4X12 Applications
- Anchoring systems for shearwall overturning restraint
- Wind uplift restraint systems for roofs
- General structural connections requiring tension transfer

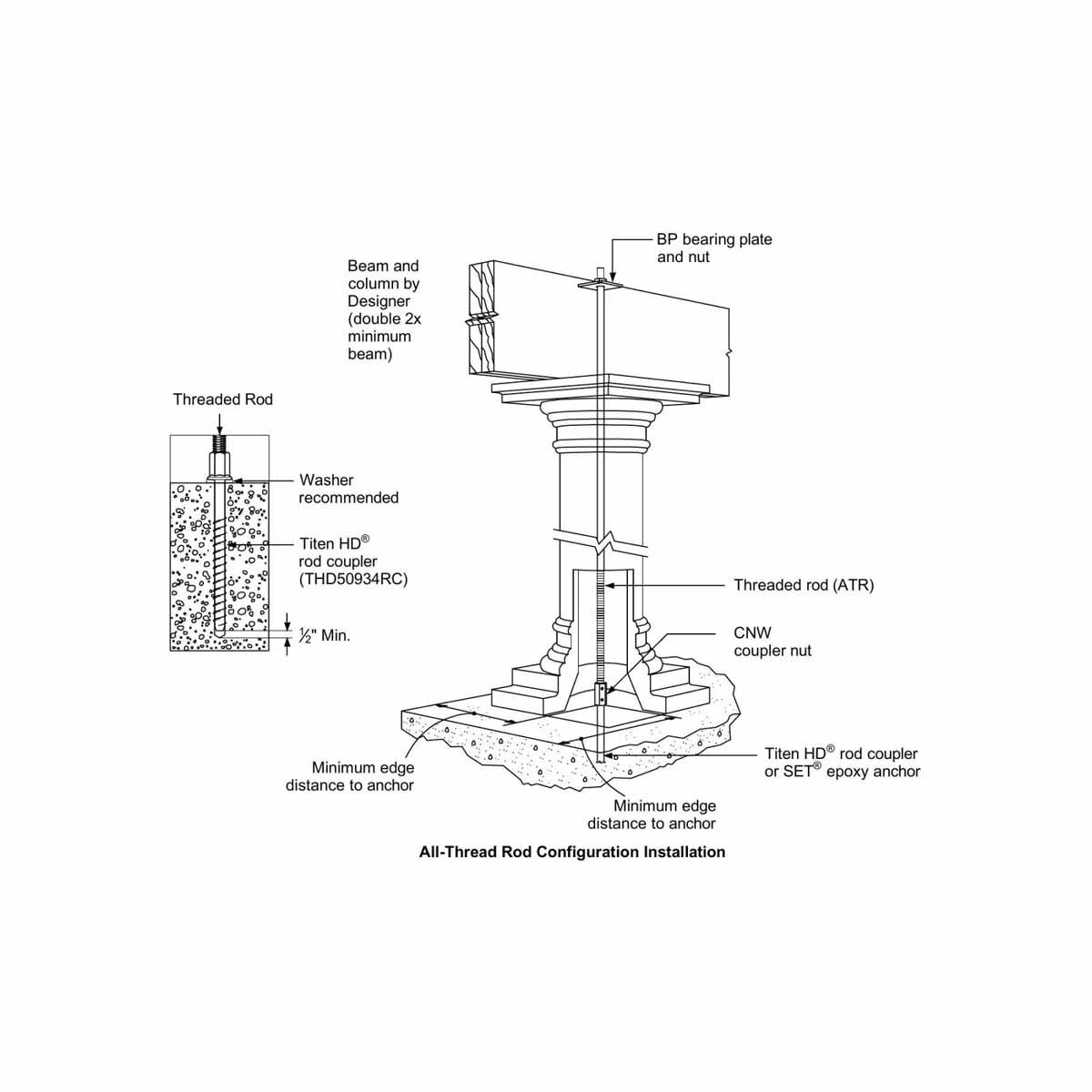

Simpson Strong-Tie ATR3/4X12 Installation Overview
- Verify compatibility of nut and rod material and finish
- Position the rod in the required anchoring system
- Secure the rod using appropriate nuts and washers
- Ensure proper tension transfer and structural alignment
Simpson Strong-Tie ATR3/4X12 Specifications
| Diameter | 3/4" |
| Finish | Plain |
| Length | 1' |
| Material | Uncoated Black Steel |
| Additional Info | Standard – ATSM F1554 Grade 36, A36 or A307 |
| Tension Capacity | 9,610 lbs. |
| Thread type | Coarse |
NOTE: Ensure that the nut material and finish match the threaded rod to avoid compatibility issues.
WARNING: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov
