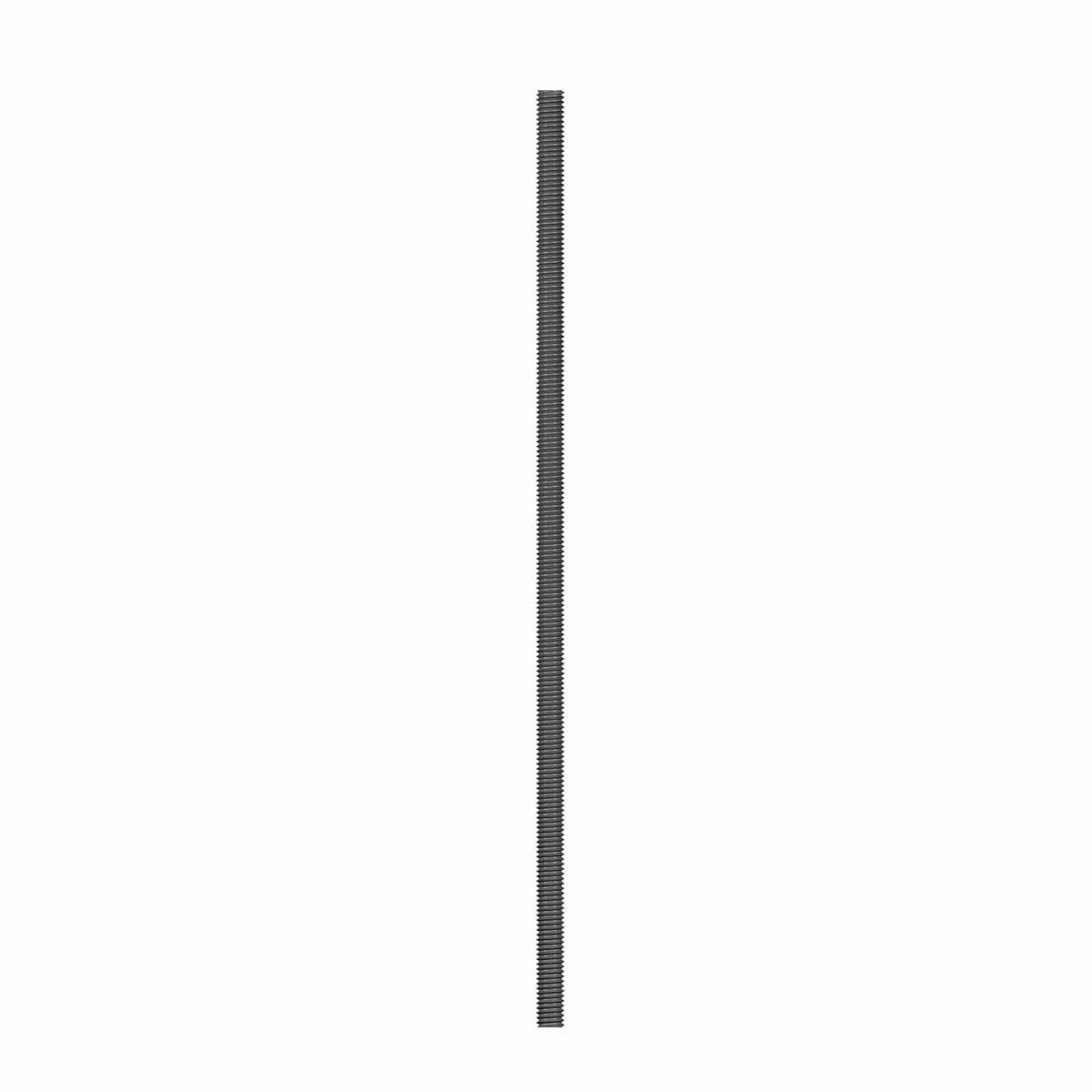

Simpson Strong-Tie ATR3/4X18 (3/4" x 18") Strong-Rod All-Thread Rod for Tension Transfer and Structural Anchoring
Bulk Pricing Available
Bulk Pricing Available
Need to place a large order? Request a quote
Simpson Strong-Tie ATR3/4X18 (3/4" x 18") Strong-Rod All-...
Key Specifications
Description
Description
Simpson Strong-Tie ATR3/4X18 Description
The Simpson Strong-Tie ATR All-Thread Rods are fully threaded tension rods designed for use in Simpson Strong-Tie anchoring systems, including the Anchor Tiedown System (ATS) for shearwall overturning restraint and the Wind Uplift Restraint System (URS) for roofs.
Simpson Strong-Tie ATR3/4X18 Includes
- (1) 3/4" x 18" All-Thread Rod
Simpson Strong-Tie ATR3/4X18 Features
- Fully threaded design for maximum adjustability
- Manufactured from low carbon steel meeting ASTM F1554 Grade 36, A36, or A307 standards
- Plain finish for cost-effective applications
- Compatible with standard nuts and washers
Simpson Strong-Tie ATR3/4X18 Applications
- Anchoring and bracing in structural connections
- Use in ATS and URS systems for tension transfer
- General structural applications requiring tension rods
Simpson Strong-Tie ATR3/4X18 Installation Overview
- Drop or push the rod through drilled holes in the flooring system after framing is completed
- Drill holes 1/4" larger than the rod diameter
- Ensure drilled holes through the sole plate and flooring system are continuous
Simpson Strong-Tie ATR3/4X18 Specifications
| Diameter | 3/4" |
| Length | 18" |
| Material | Uncoated Black Steel |
| Finish | Plain |
| Thread Type | UNC Class 2A or 1A |
| Tension Capacity | 9,610 lbs |
NOTE: When pairing a nut with threaded rod, the material and finish must match. If these do not match, the nut will not fit the threaded rod.
