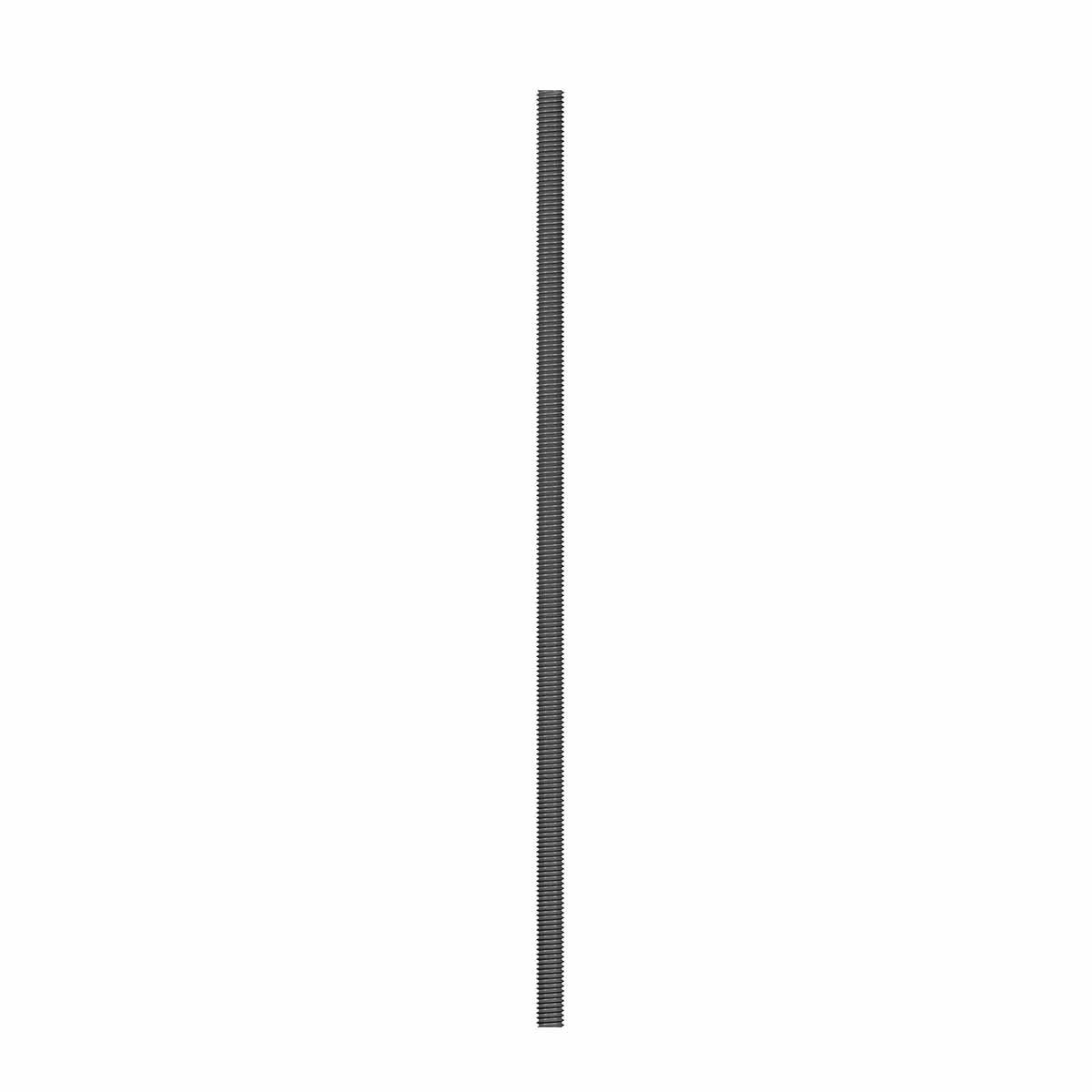

Simpson Strong-Tie ATR3/4X48 (3/4" x 48") All-Thread Rod for Structural Anchoring and Bracing
Bulk Pricing Available
Bulk Pricing Available
Need to place a large order? Request a quote
Simpson Strong-Tie ATR3/4X48 (3/4" x 48") All-Thread Rod ...
Key Specifications
Description
Description
Simpson Strong-Tie ATR3/4X48 Description
The Simpson Strong-Tie ATR All-Thread Rod is a fully threaded tension rod designed for structural anchoring and bracing applications.
Simpson Strong-Tie ATR3/4X48 Includes
- (1) 3/4" x 48" All-Thread Rod
Simpson Strong-Tie ATR3/4X48 Features
- Fully threaded design for maximum adjustability
- Manufactured from low carbon steel meeting ASTM F1554 Grade 36, A36, or A307 standards
- Plain finish for cost-effective applications
- Compatible with standard nuts and washers

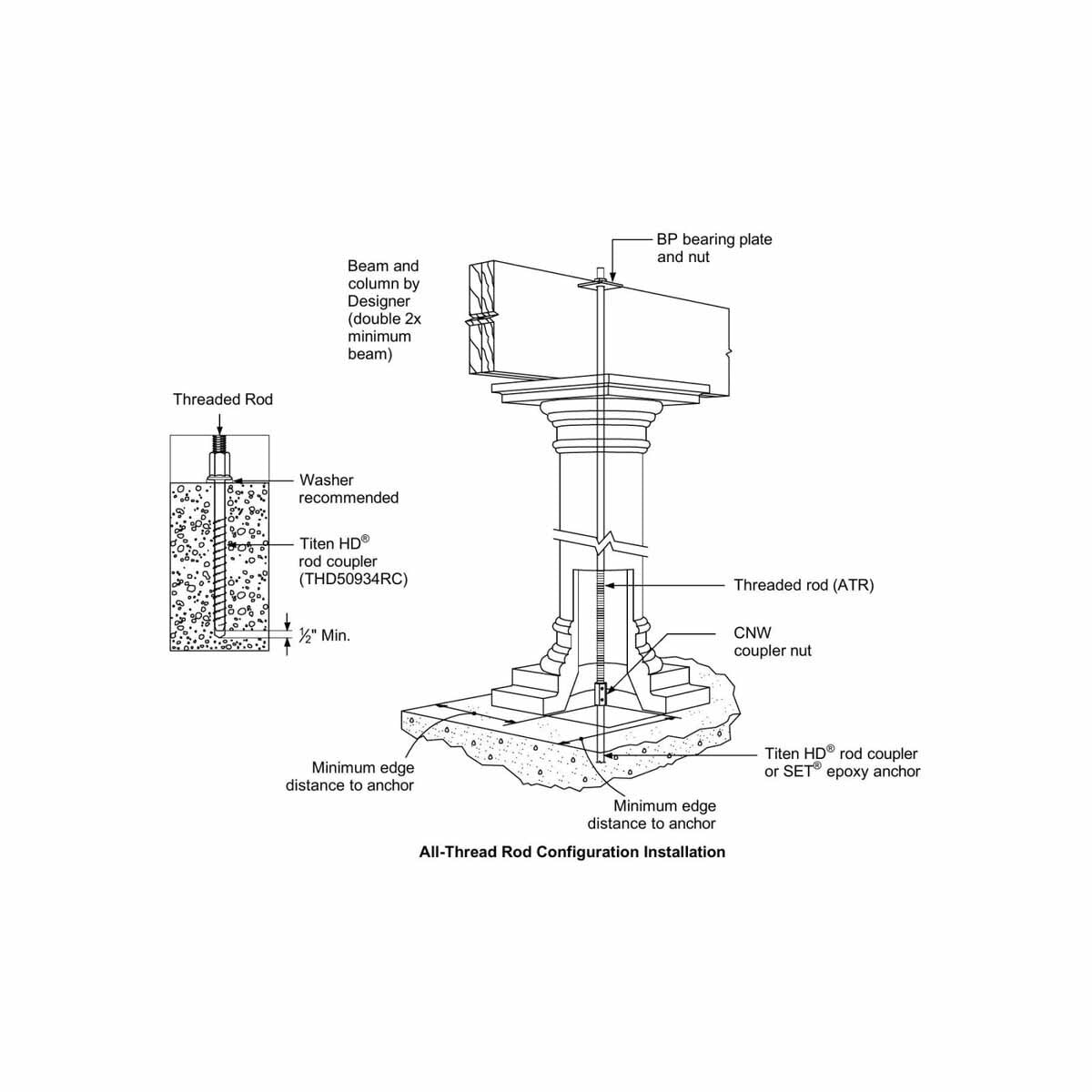

Simpson Strong-Tie ATR3/4X48 Applications
- Structural anchoring and bracing
- Shearwall overturning restraint
- Wind uplift restraint for roofs
- General structural connections
Simpson Strong-Tie ATR3/4X48 Installation Overview
- Ensure compatibility of nuts and washers with the rod
- Position the rod in the required configuration
- Secure the rod using appropriate tensioning methods
Simpson Strong-Tie ATR3/4X48 Specifications
| Diameter | 3/4" |
| Finish | Plain |
| Length | 4' |
| Material | Uncoated Black Steel |
| Tension Capacity | 9,610 lbs |
| Thread Type | Coarse |
NOTE: Ensure the nut material and finish match the threaded rod to avoid compatibility issues.
WARNING: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov
