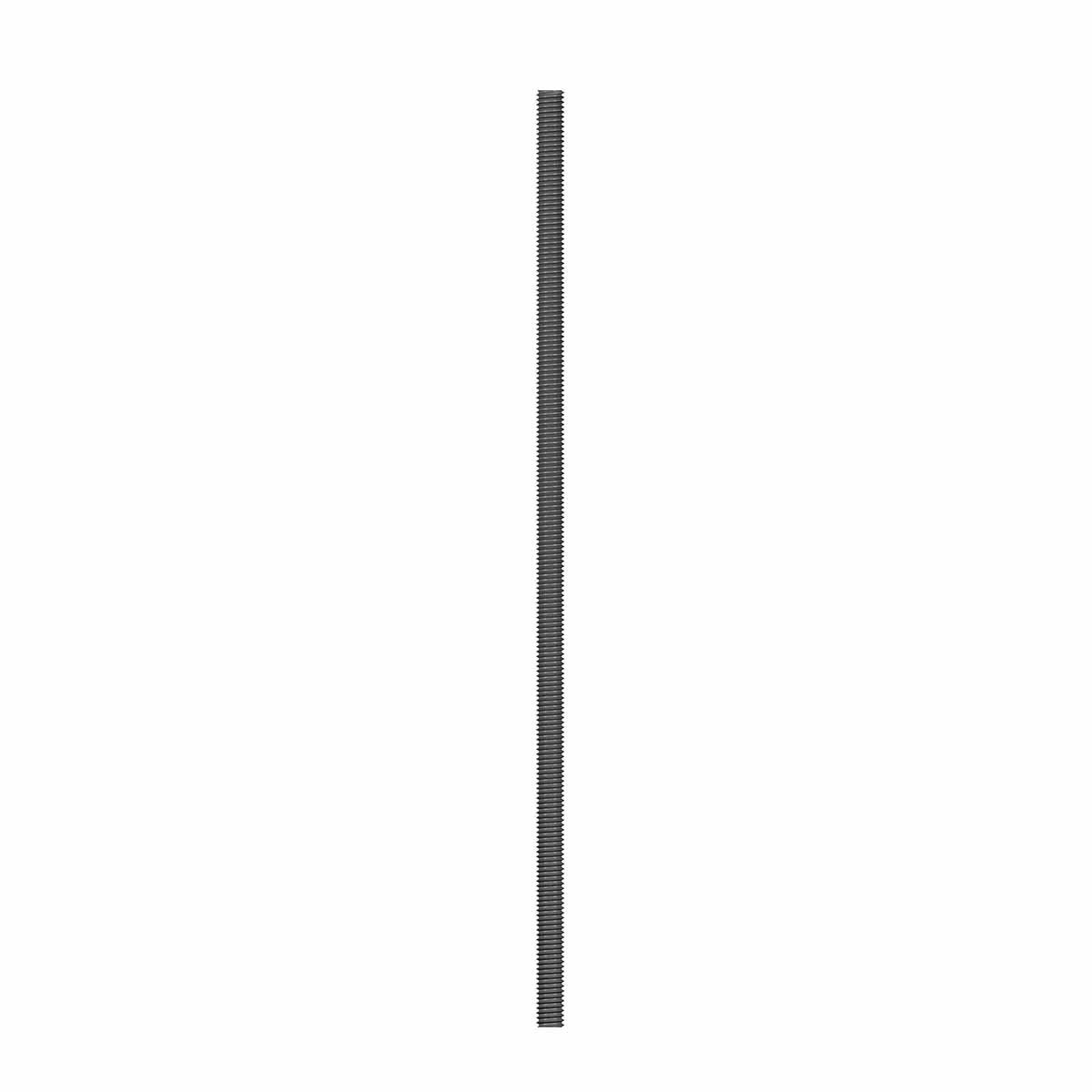

Simpson Strong-Tie ATR3/8X12 (3/8" x 12") All-Thread Rod for Anchoring and Structural Connections
Bulk Pricing Available
Bulk Pricing Available
Need to place a large order? Request a quote
Simpson Strong-Tie ATR3/8X12 (3/8" x 12") All-Thread Rod ...
Key Specifications
Description
Description
Simpson Strong-Tie ATR3/8X12 Description
The Simpson Strong-Tie ATR All-Thread Rod is designed for anchoring and structural connections, offering reliable performance with a minimum yield strength of 36 ksi.
Simpson Strong-Tie ATR3/8X12 Includes
- (1) 3/8" x 12" All-Thread Rod
Simpson Strong-Tie ATR3/8X12 Features
- Fully threaded design for maximum adjustability
- Manufactured from low carbon steel meeting ASTM F1554 Grade 36, A36, or A307 standards
- Plain finish for cost-effective applications
- Compatible with standard nuts and washers
Simpson Strong-Tie ATR3/8X12 Applications
- Anchoring systems for structural connections
- Bracing and tension transfer in construction
- Shearwall overturning restraint
- Wind uplift restraint for roofs

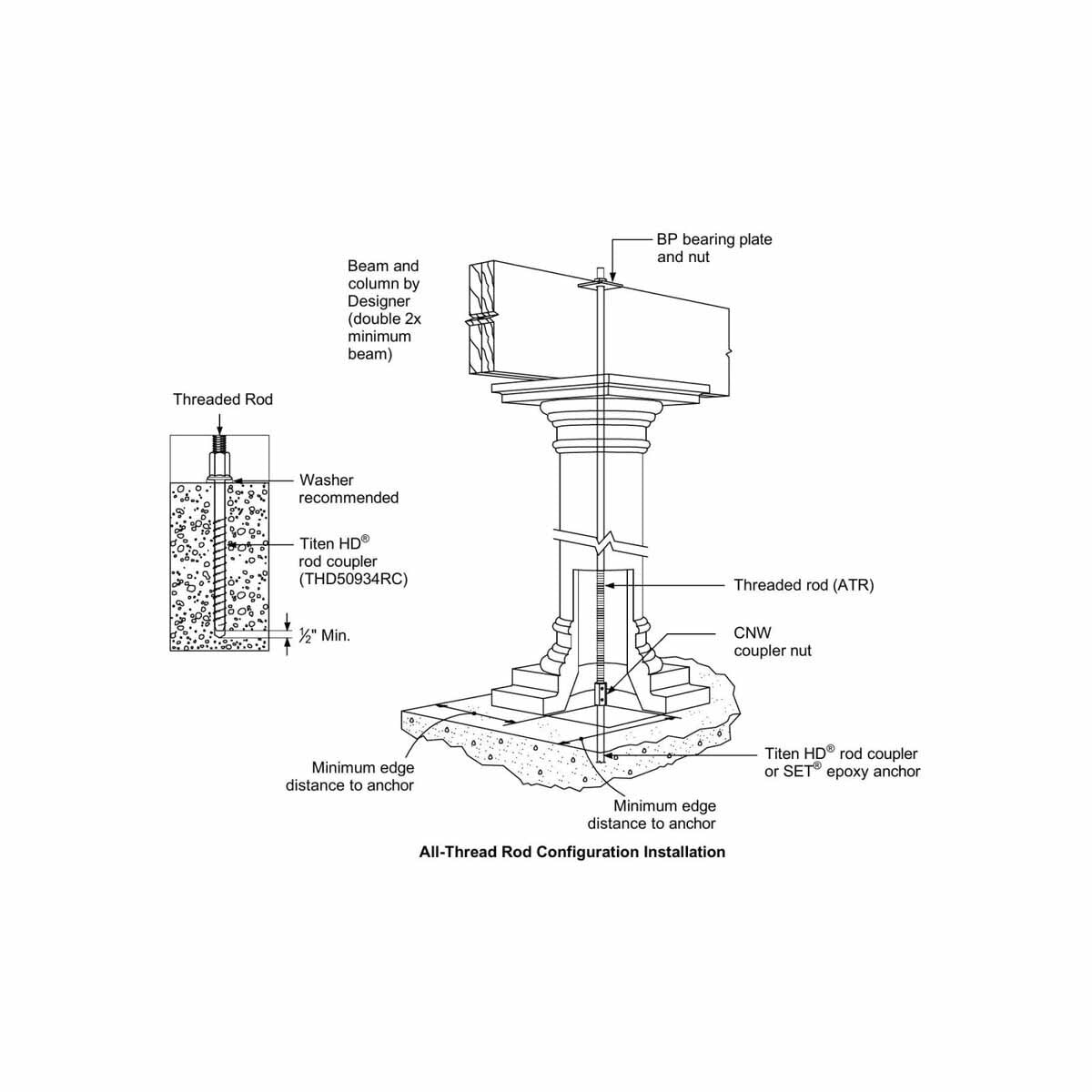

Simpson Strong-Tie ATR3/8X12 Installation Overview
- Ensure compatibility of nuts and washers with the rod
- Position the rod in the required anchoring system
- Secure the rod using appropriate tools and techniques
Simpson Strong-Tie ATR3/8X12 Specifications
| Diameter | 3/8" |
| Finish | Plain |
| Length | 1' |
| Material | Uncoated Black Steel |
| Additional Info | Standard – ATSM F1554 Grade 36, A36 or A307 |
| Tension Capacity | 2,400 lbs. |
| Thread type | Coarse |
NOTE: Ensure the nut material and finish match the threaded rod to avoid fitting issues.
