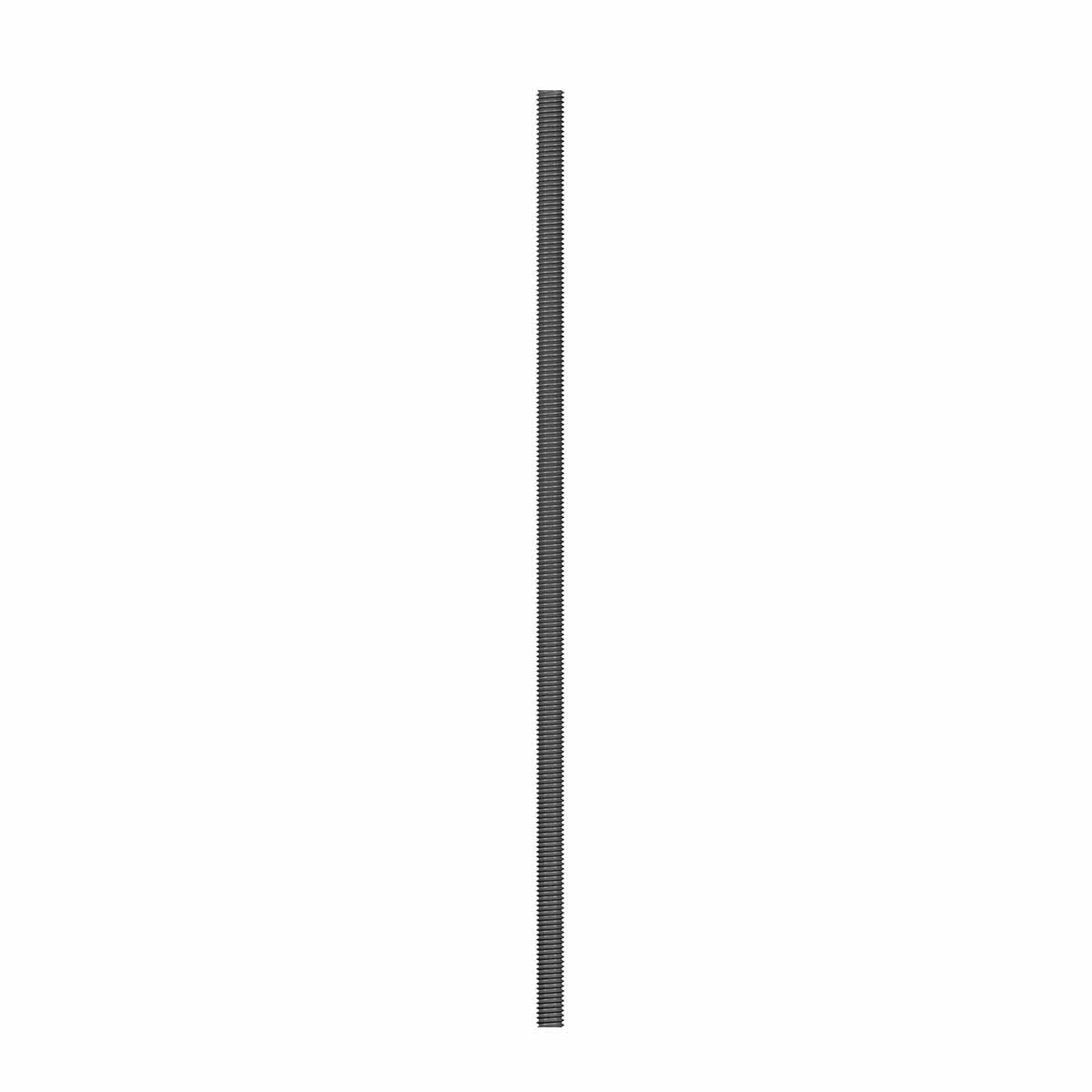

Simpson Strong-Tie ATR3/8X48 (3/8" x 48") All-Thread Rod for Structural Anchoring and Tension Transfer
Bulk Pricing Available
Bulk Pricing Available
Need to place a large order? Request a quote
Simpson Strong-Tie ATR3/8X48 (3/8" x 48") All-Thread Rod ...
Key Specifications
Description
Description
Simpson Strong-Tie ATR3/8X48 Description
The Simpson Strong-Tie ATR All-Thread Rods are fully threaded tension rods designed for use in Simpson Strong-Tie anchoring systems, including the Anchor Tiedown System (ATS) for shearwall overturning restraint and the Wind Uplift Restraint System (URS) for roofs.
Simpson Strong-Tie ATR3/8X48 Includes
- (1) 3/8" x 48" All-Thread Rod
Simpson Strong-Tie ATR3/8X48 Features
- Fully threaded design for maximum adjustability and ease of installation
- Manufactured from low carbon steel meeting ASTM F1554 Grade 36, A36, or A307 standards
- Plain finish for cost-effective applications
- Compatible with standard nuts and washers
Simpson Strong-Tie ATR3/8X48 Applications
- Anchoring and bracing in structural applications
- Use in Simpson Strong-Tie ATS and URS systems
- General structural connections requiring tension transfer

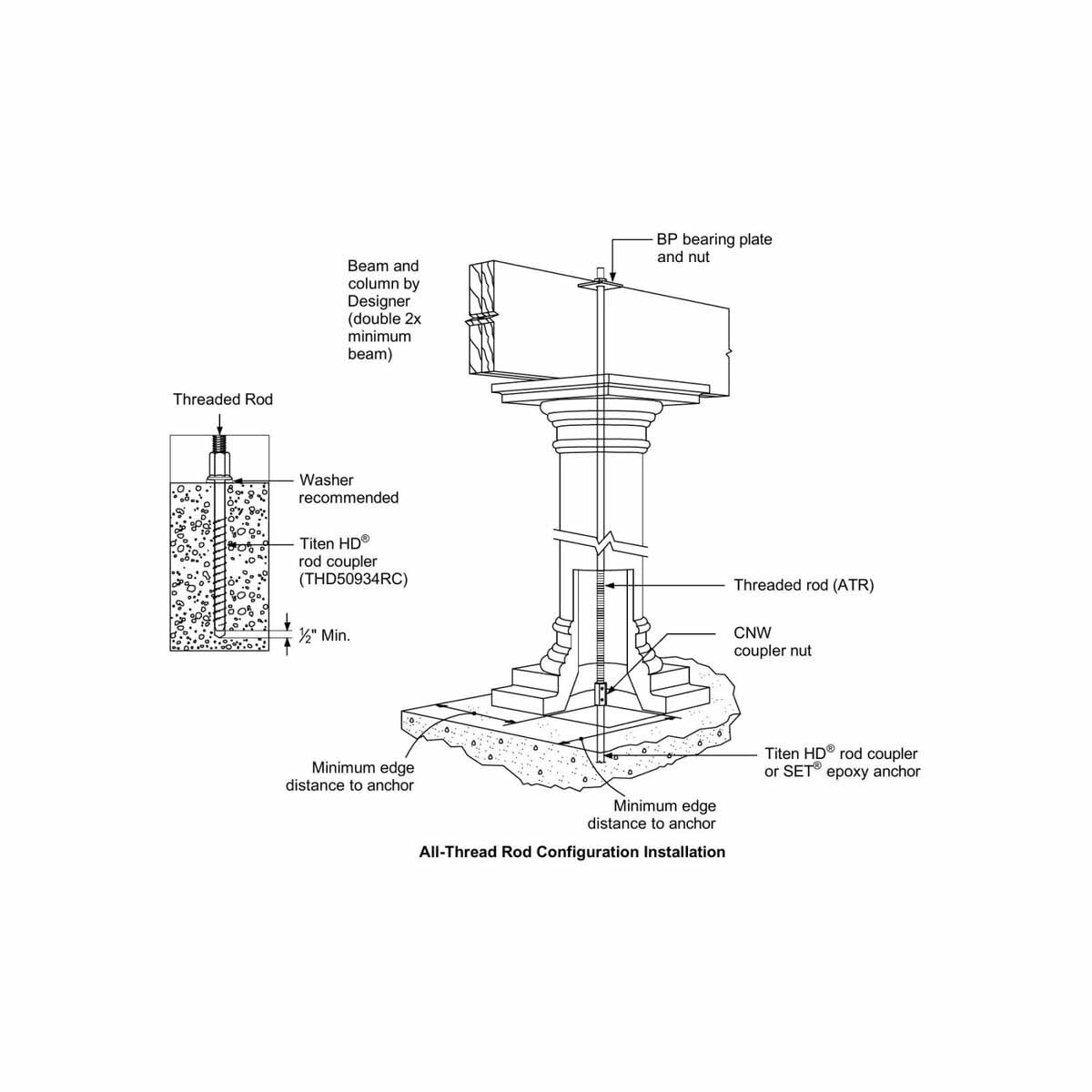

Simpson Strong-Tie ATR3/8X48 Installation Overview
- Ensure compatibility of nut and rod material and finish
- Install rod into the designated anchoring system
- Secure with appropriate nuts and washers
Simpson Strong-Tie ATR3/8X48 Specifications
| Diameter | 3/8" |
| Length | 48" |
| Material | Low Carbon Steel |
| Finish | Plain |
| Thread Type | Coarse |
| Tension Capacity | 2,400 lbs |
| Standards | ASTM F1554 Grade 36, A36, A307 |
NOTE: When pairing a nut with threaded rod, the material and finish must match. If these do not match, the nut will not fit the threaded rod.
