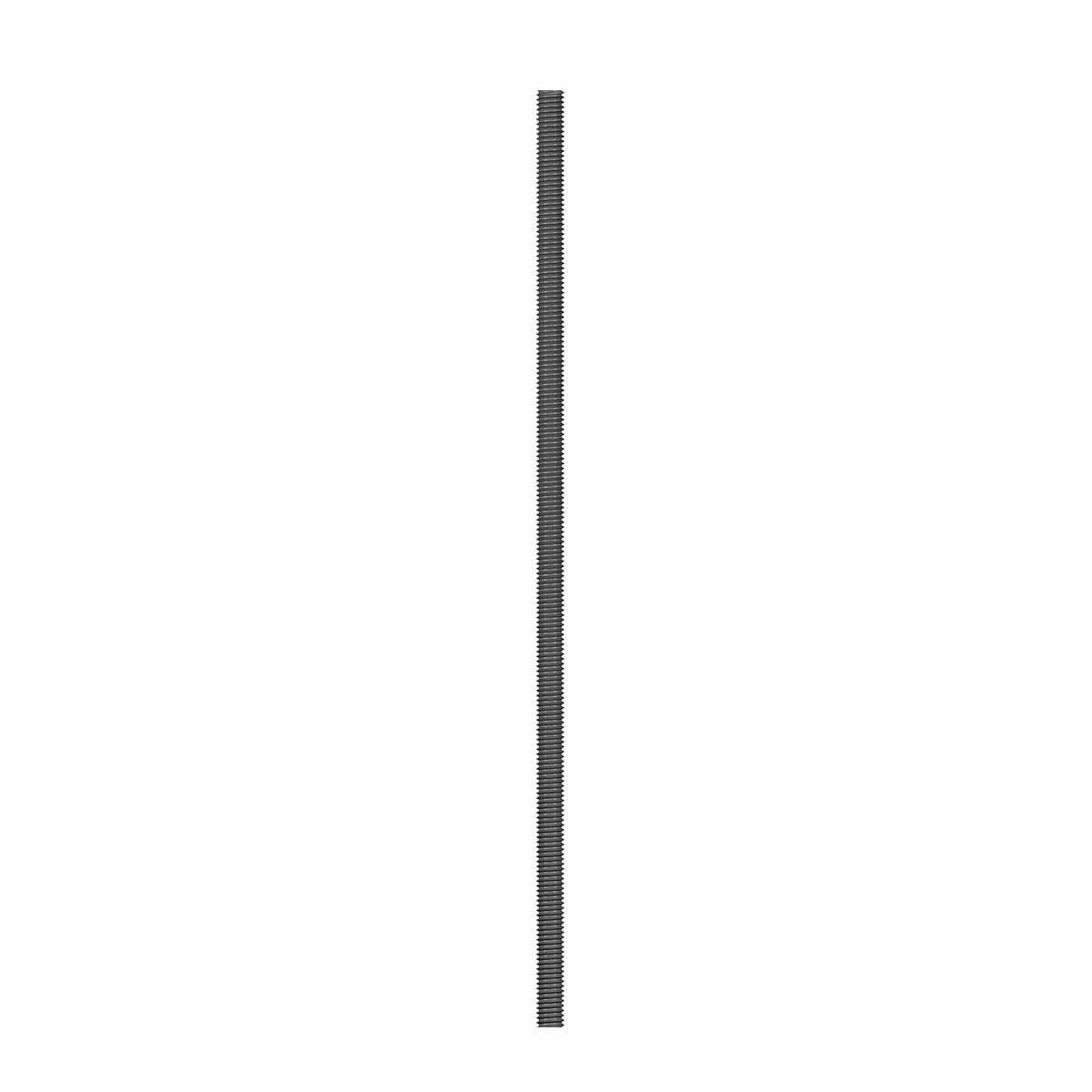

Simpson Strong-Tie ATR5/8X12 (5/8" x 12") Strong-Rod All-Thread Rod for Structural Anchoring and Bracing
Bulk Pricing Available
Bulk Pricing Available
Need to place a large order? Request a quote
Simpson Strong-Tie ATR5/8X12 (5/8" x 12") Strong-Rod All-...
Key Specifications
Description
Description
Simpson Strong-Tie ATR5/8X12 Description
The Simpson Strong-Tie ATR All-Thread Rod is a fully threaded tension rod designed for structural anchoring and bracing applications.
Simpson Strong-Tie ATR5/8X12 Includes
- (1) 5/8" x 12" All-Thread Rod
Simpson Strong-Tie ATR5/8X12 Features
- Fully Threaded Design: Provides maximum adjustability and ease of installation.
- Standard Strength Material: Manufactured from low carbon steel meeting ASTM F1554 Grade 36, A36, or A307 standards.
- Plain Finish: Cost-effective solution for applications where corrosion resistance is not critical.
- Versatile Applications: Suitable for use in ATS and URS systems, as well as general anchoring and bracing needs.
Simpson Strong-Tie ATR5/8X12 Applications
- Structural anchoring and bracing.
- Shearwall overturning restraint.
- Wind uplift restraint for roofs.
- General structural connections requiring tension transfer.

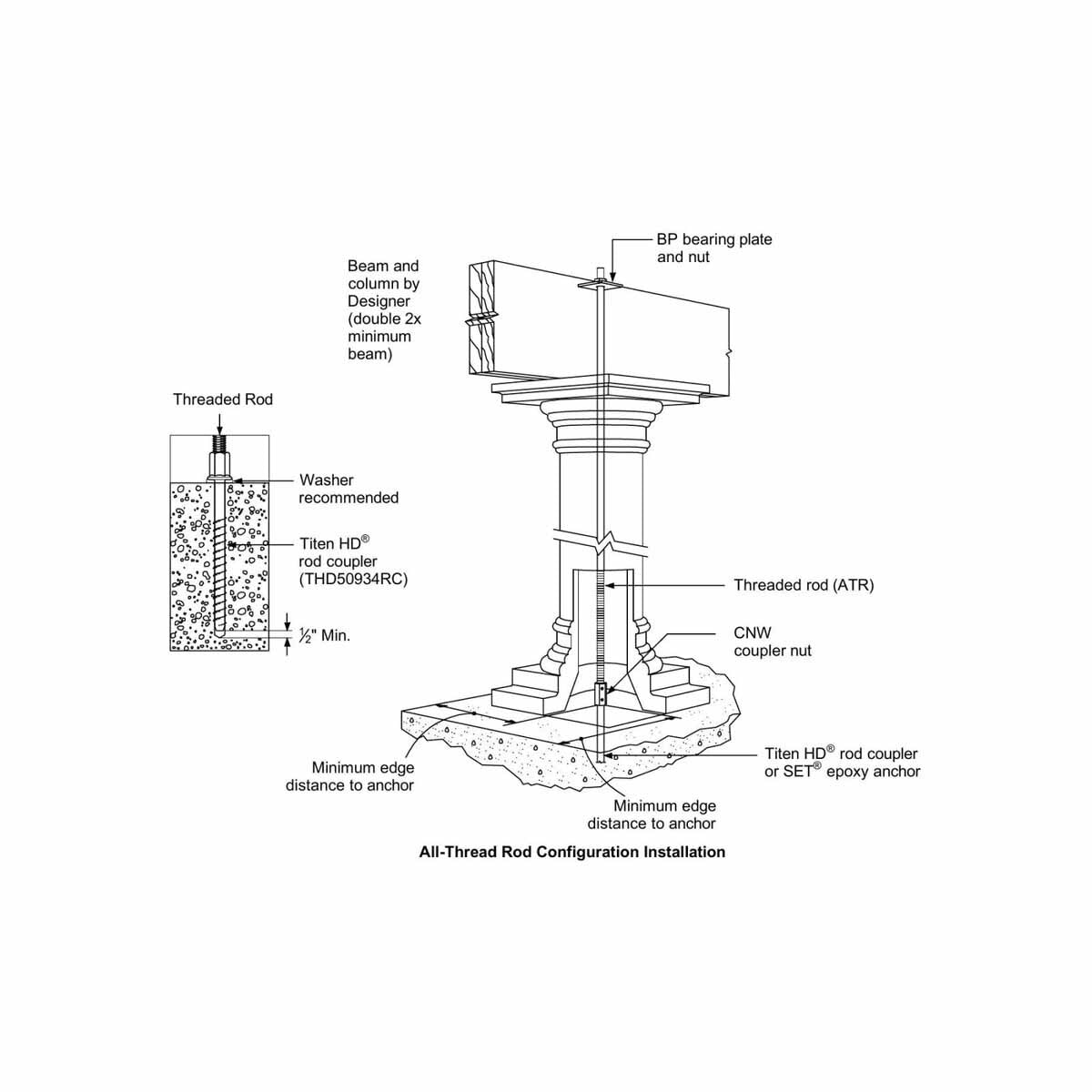

Simpson Strong-Tie ATR5/8X12 Installation Overview
- Verify the rod dimensions and compatibility with the anchoring system.
- Pair the rod with matching nuts and washers.
- Install the rod into the designated anchoring system configuration.
- Ensure proper tension and secure all connections.
Simpson Strong-Tie ATR5/8X12 Specifications
| Diameter | 5/8" |
| Finish | Plain |
| Length | 12" |
| Material | Uncoated Black Steel |
| Standards | ASTM F1554 Grade 36, A36 or A307 |
| Tension Capacity | 6,675 lbs. |
| Thread Type | Coarse |
NOTE: Ensure the nut material and finish match the threaded rod to avoid compatibility issues.
WARNING: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov
