Simpson Strong-Tie ATR5/8X18 (5/8" x 18") Fully Threaded All-Thread Rod for Structural Tension Transfer
Bulk Pricing Available
Bulk Pricing Available
Need to place a large order? Request a quote
Simpson Strong-Tie ATR5/8X18 (5/8" x 18") Fully Threaded ...
Key Specifications
Description
Description
Simpson Strong-Tie ATR5/8X18 Description
The Simpson Strong-Tie ATR All-Thread Rods are fully threaded tension rods designed for use in anchoring systems, providing reliable performance in structural applications.
Simpson Strong-Tie ATR5/8X18 Includes
- (1) Fully Threaded All-Thread Rod
Simpson Strong-Tie ATR5/8X18 Features
- Fully threaded design for maximum adjustability
- Manufactured from low carbon steel meeting ASTM F1554 Grade 36, A36, or A307 standards
- Plain finish for cost-effective applications
- Compatible with standard nuts and washers
Simpson Strong-Tie ATR5/8X18 Applications
- Anchoring and bracing in structural connections
- Use in Simpson Strong-Tie anchoring systems like ATS and URS
- Tension transfer in various structural applications

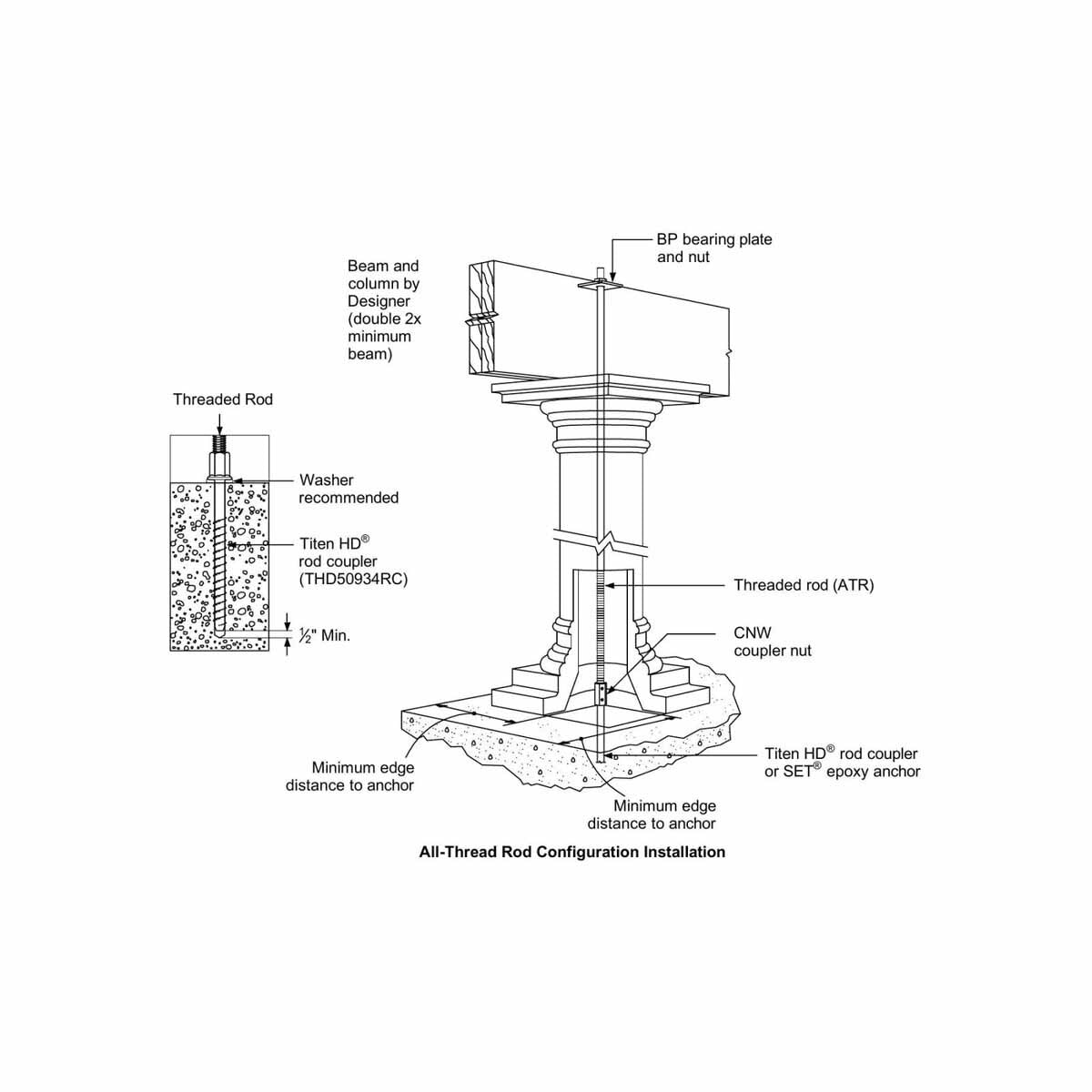

Simpson Strong-Tie ATR5/8X18 Installation Overview
- Drill holes 1/4" larger than the rod diameter
- Insert the rod through the drilled holes in the flooring system
- Ensure continuous drilling action through the sole plate and flooring system
Simpson Strong-Tie ATR5/8X18 Specifications
| Diameter | 5/8" |
| Length | 18" |
| Material | Uncoated Black Steel |
| Finish | Plain |
| Thread Type | Coarse |
| Tension Capacity | 6,675 lbs |
NOTE: When pairing a nut with threaded rod, the material and finish must match. If these do not match, the nut will not fit the threaded rod.
WARNING: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov
