Simpson Strong-Tie BA212-2 (1-9/16" x 11-1/8") 12Ga Galvanized Top Flange Beam Hanger for 2x12 Double Joist
Bulk Pricing Available
Bulk Pricing Available
Need to place a large order? Request a quote
Simpson Strong-Tie BA212-2 (1-9/16" x 11-1/8") 12Ga Galva...
Key Specifications
Description
Description
Simpson Strong-Tie BA212-2 Description

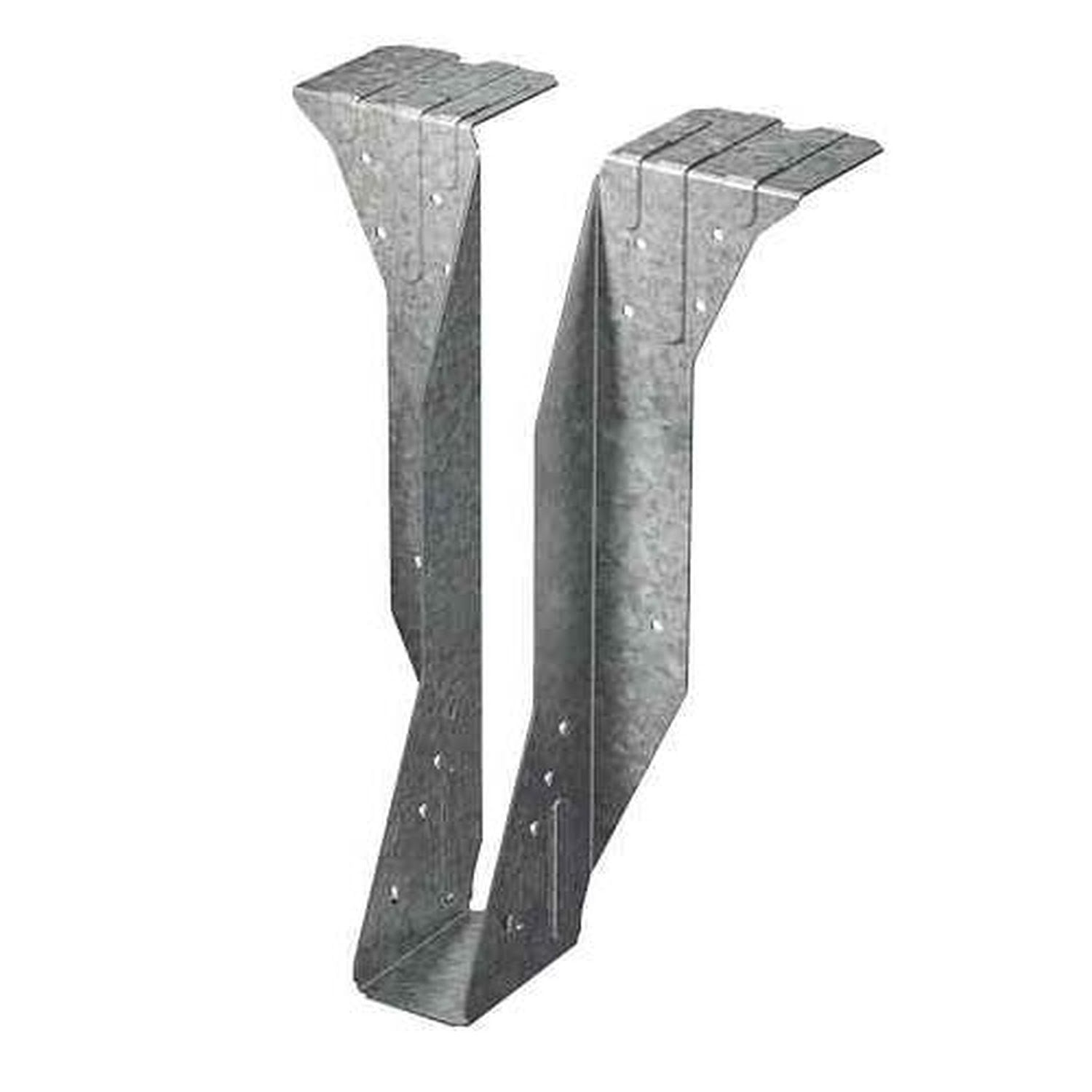

The Simpson BA212-2 Beam Hanger is a heavy-duty top-flange joist hanger designed for double 2x12 beam connections, offering exceptional load-bearing capacity and corrosion resistance.
Simpson Strong-Tie BA212-2 Includes
- (1) BA212-2 Beam Hanger
Simpson Strong-Tie BA212-2 Features
- Heavy-duty load capacity for beam-to-beam and girder connections
- Top-flange installation for strong, stable connections
- Wide-seat design for even load distribution
- Compatible with solid sawn and engineered wood
- Durable G90 galvanized steel construction for corrosion resistance
Simpson Strong-Tie BA212-2 Applications

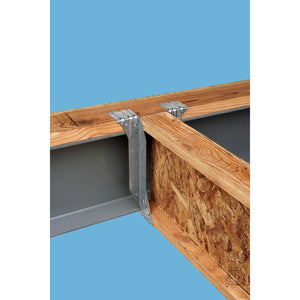

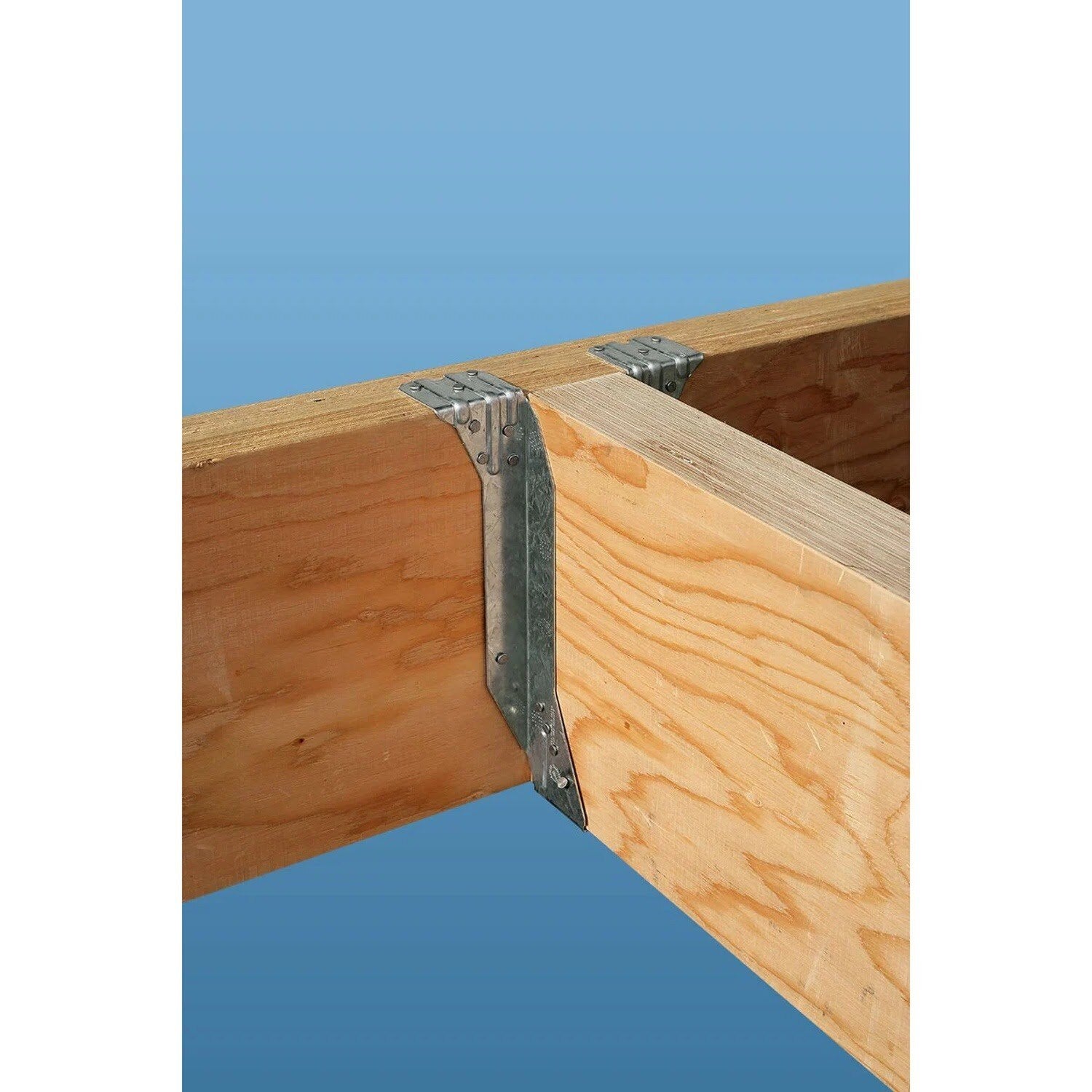

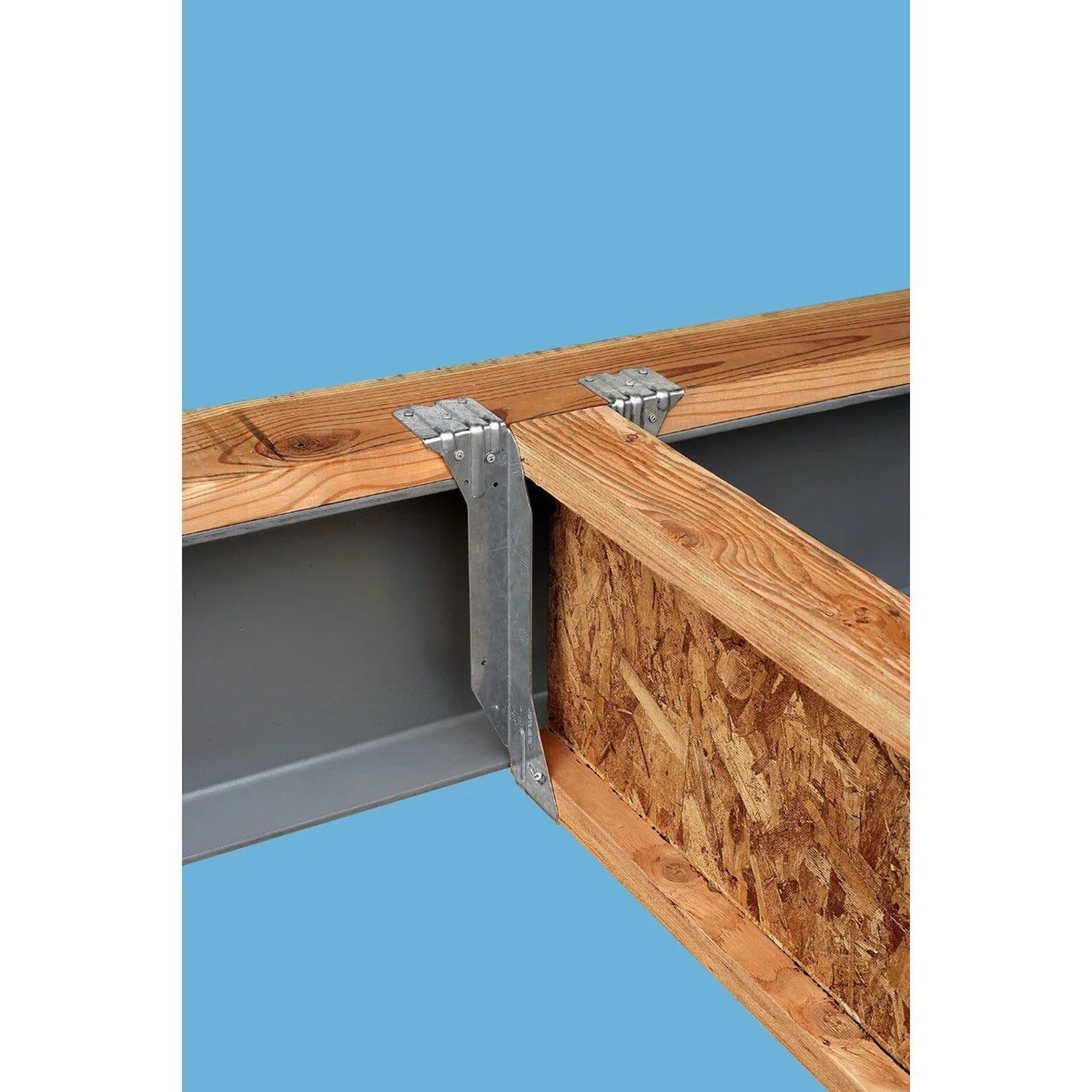

- Beam-to-beam connections for secure attachment
- Girder-to-girder connections for superior load transfer
- Floor and roof framing in residential and commercial buildings
- Deck construction for large outdoor structures
- Engineered wood framing for modern construction needs
Simpson Strong-Tie BA212-2 Installation Overview
- Secure the hanger to the support beam using appropriate nails or screws
- Ensure the supported beam is properly seated within the hanger
- Install using top-flange mounting for direct and stable connections
- Follow local building codes and manufacturer guidelines for fastener selection

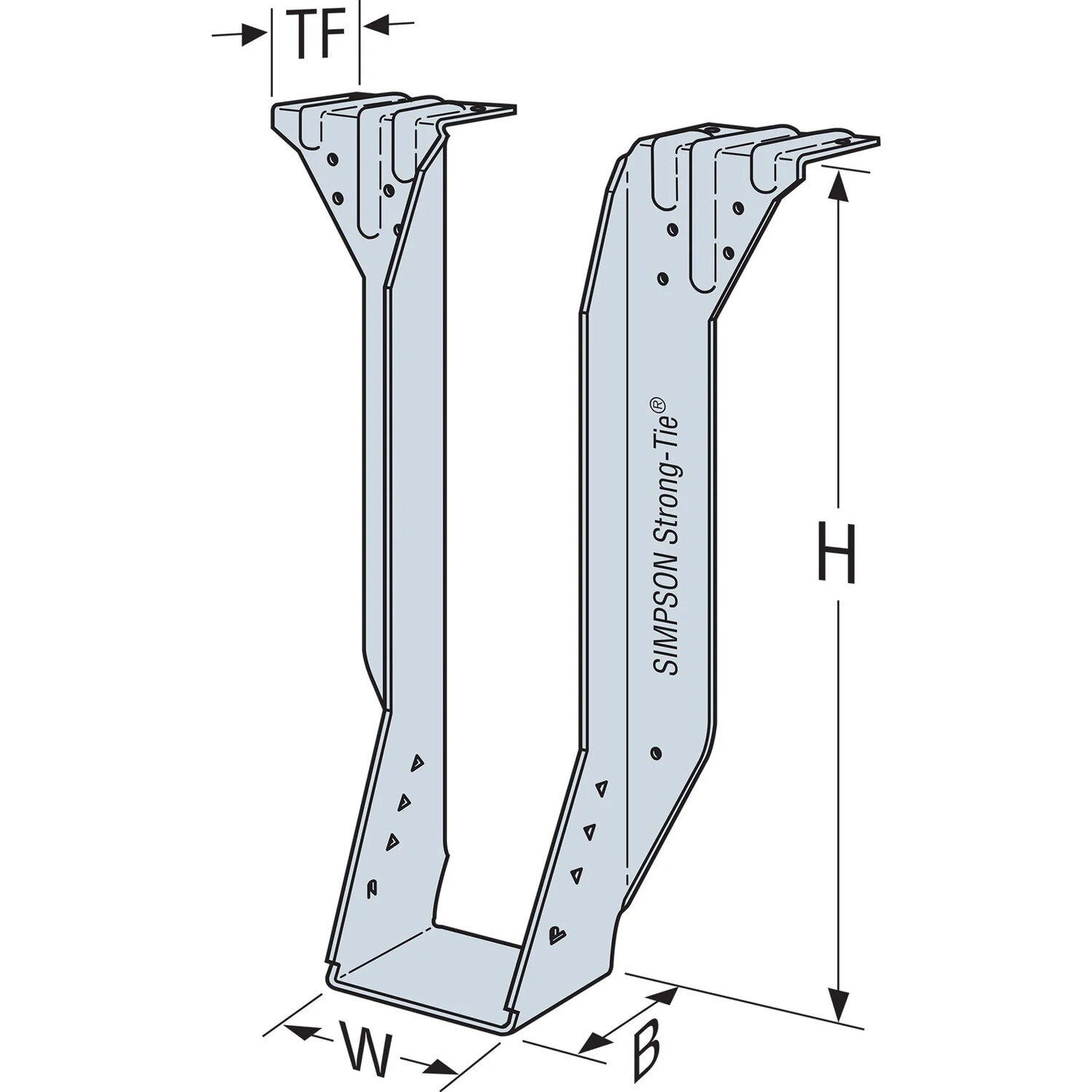

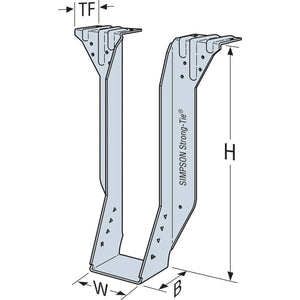

Simpson Strong-Tie BA212-2 Specifications
| Finish | G90 Galvanized |
| Material | Carbon Steel |
| Fasteners required | Header - (16) 0.162 x 3-1/2" Nails Joist - Min: (2) 0.148 x 1-1/2" Nails - Max: (8) 0.148 x 1-1/2" Nails |
| Height | 11-1/8" |
| Joist size | Double 2" X 12" |
| Thickness | 12 Gauge |
| Width | 3-1/8" |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
WARNING: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov
