Simpson Strong-Tie BA310 (2-9/16" x 9-1/8") 12Ga Galvanized Top Flange Joist Beam Hanger for (3x10)
Bulk Pricing Available
Bulk Pricing Available
Need to place a large order? Request a quote
Simpson Strong-Tie BA310 (2-9/16" x 9-1/8") 12Ga Galvaniz...
Key Specifications
Description
Description
Simpson Strong-Tie BA310 Description

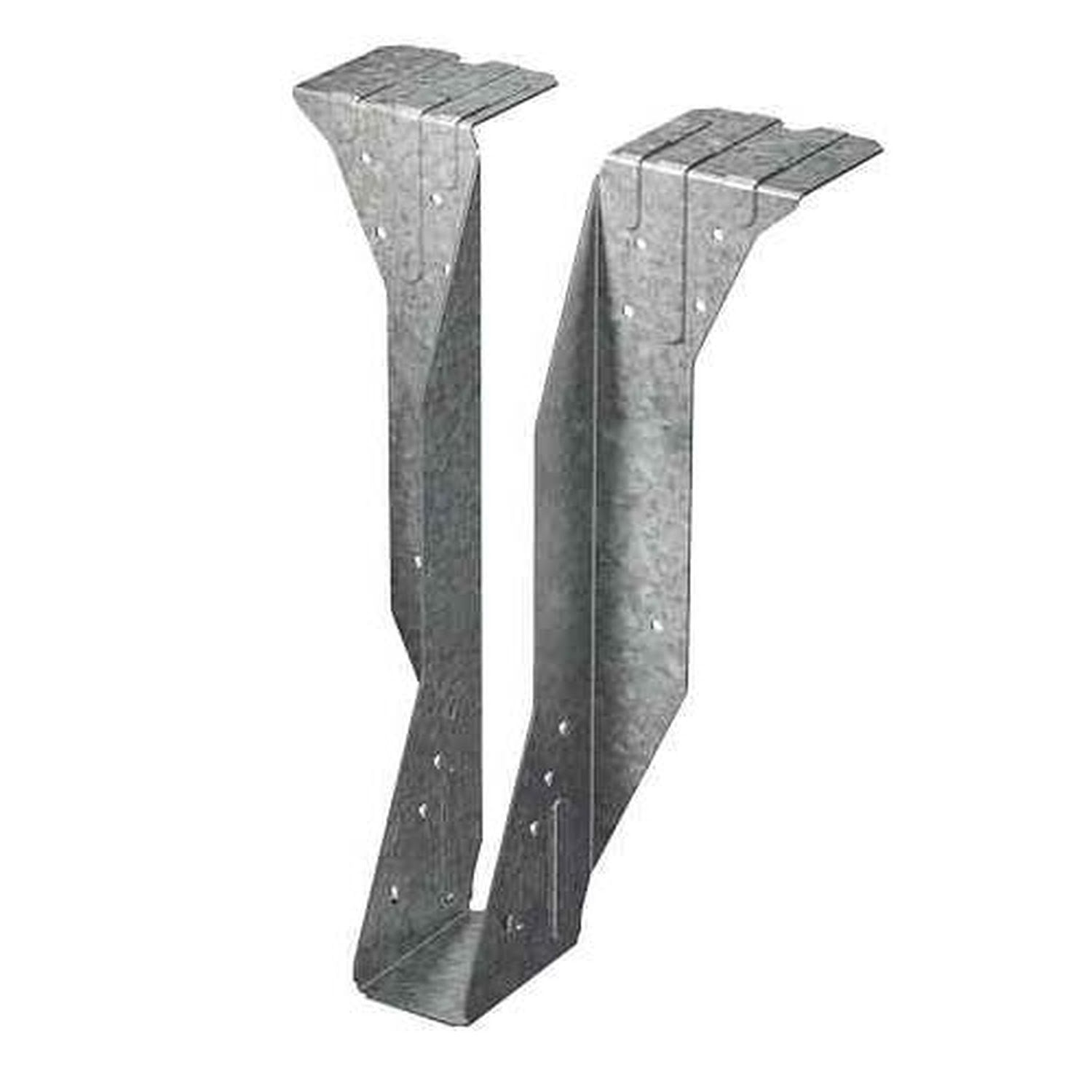

The Simpson BA310 Top-Flange Joist Hanger is designed for 3x10 joists, offering a 12-gauge G90 galvanized steel construction for durability and compatibility with engineered and solid sawn wood.
Simpson Strong-Tie BA310 Includes
- (1) BA310 Top-Flange Joist Hanger
Simpson Strong-Tie BA310 Features
- Cost-effective one-piece design compared to welded hangers
- Full-height joist flange prevents rotation and eliminates the need for web stiffeners
- Available for special order to accommodate sloped and/or skewed members
- Heavy-duty load capacity for beam-to-beam and girder connections
- Durable G90 galvanized steel construction for corrosion resistance
Simpson Strong-Tie BA310 Applications

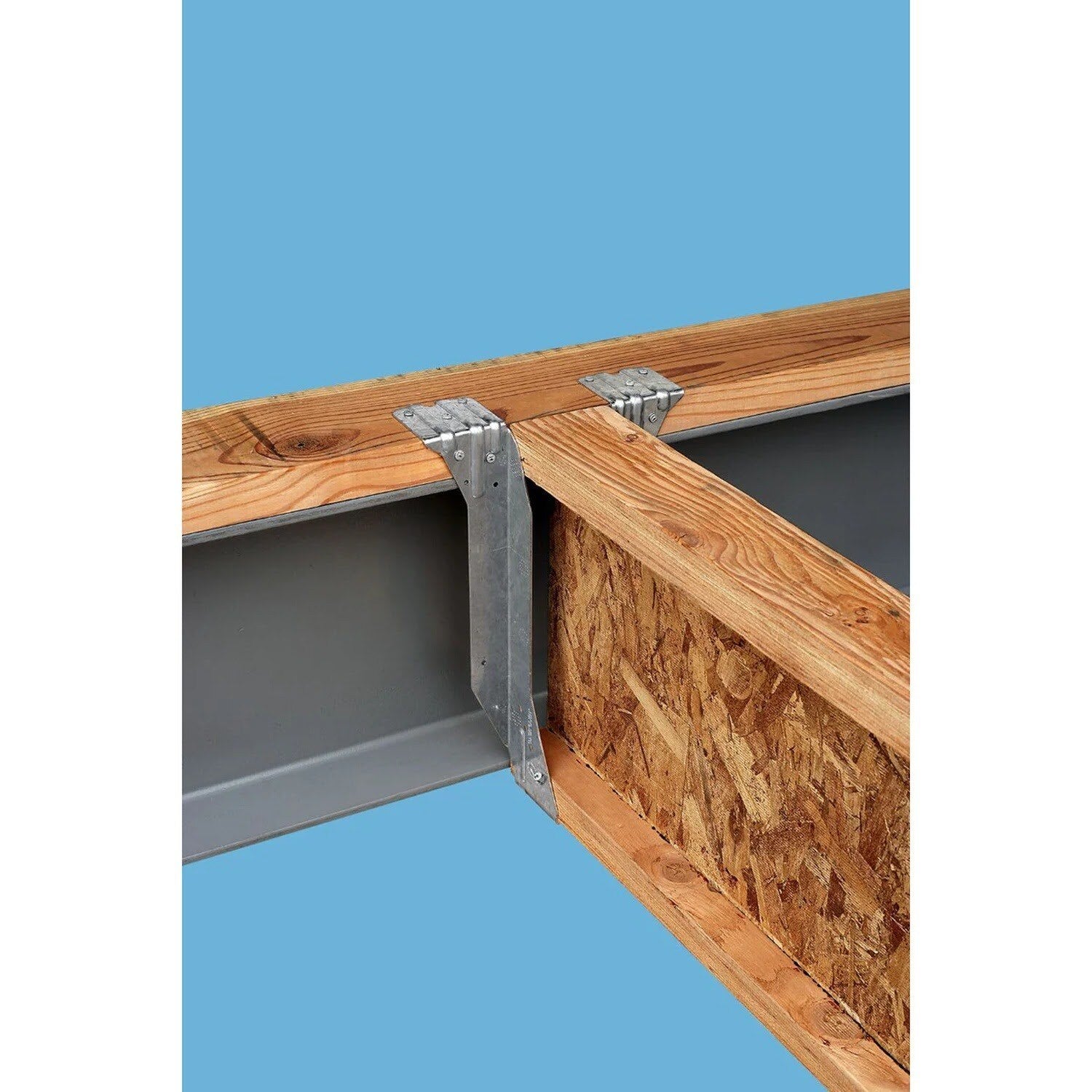

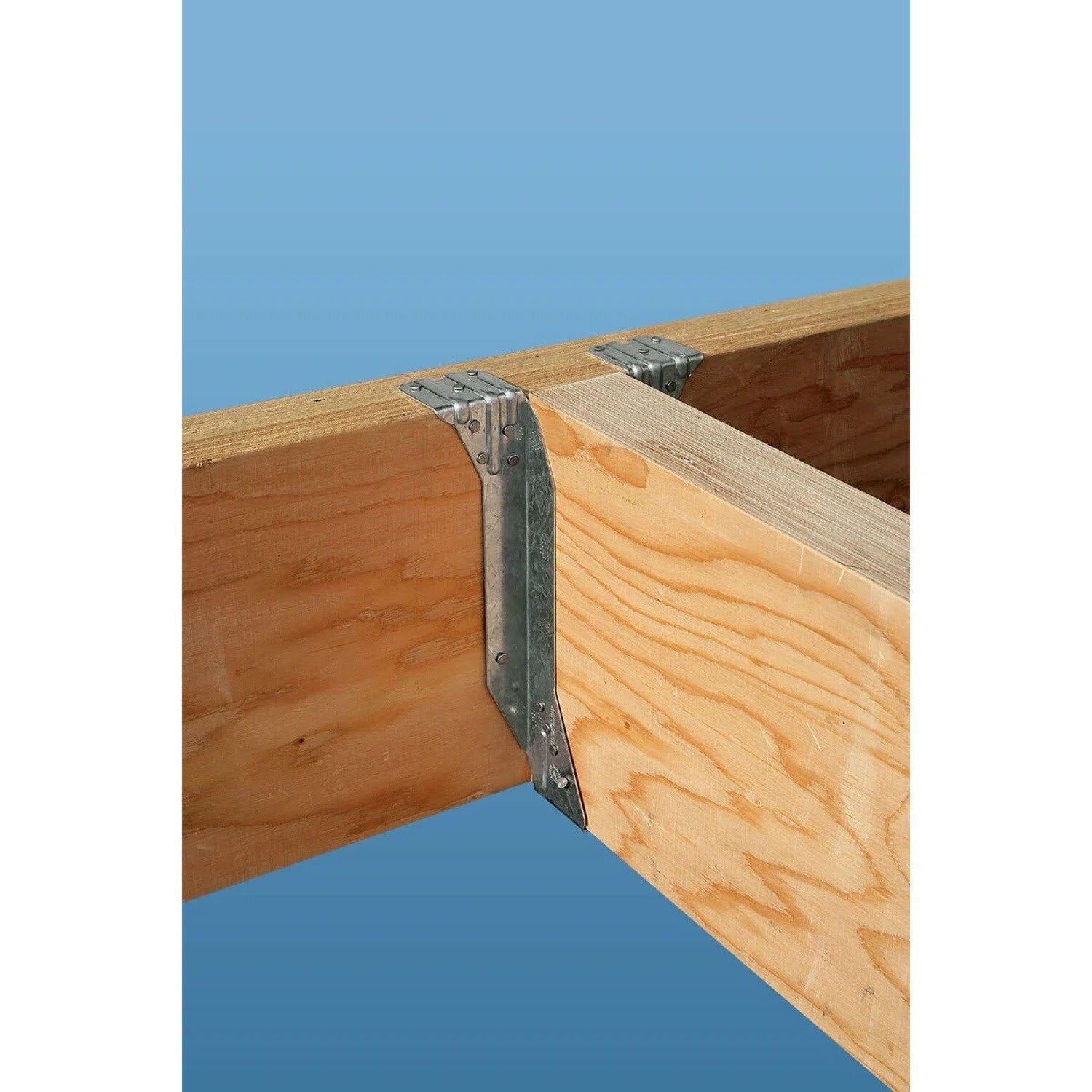

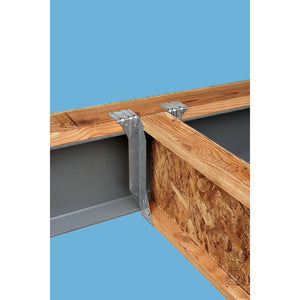

- Beam-to-beam connections for secure and stable attachment
- Girder-to-girder connections for superior load transfer
- Floor and roof framing in residential, commercial, and industrial buildings
- Deck construction supporting large deck beams and outdoor structures
- Engineered wood framing compatible with LVL, PSL, and glulam beams
Simpson Strong-Tie BA310 Installation Overview
- Secure the hanger to the support beam using appropriate nails or structural screws as per manufacturer recommendations.
- Ensure the supported beam is properly seated within the hanger to maximize load capacity.
- Install using top-flange mounting for a direct and stable connection to primary structural members.
- Follow local building codes and manufacturer guidelines for proper fastener selection and spacing.

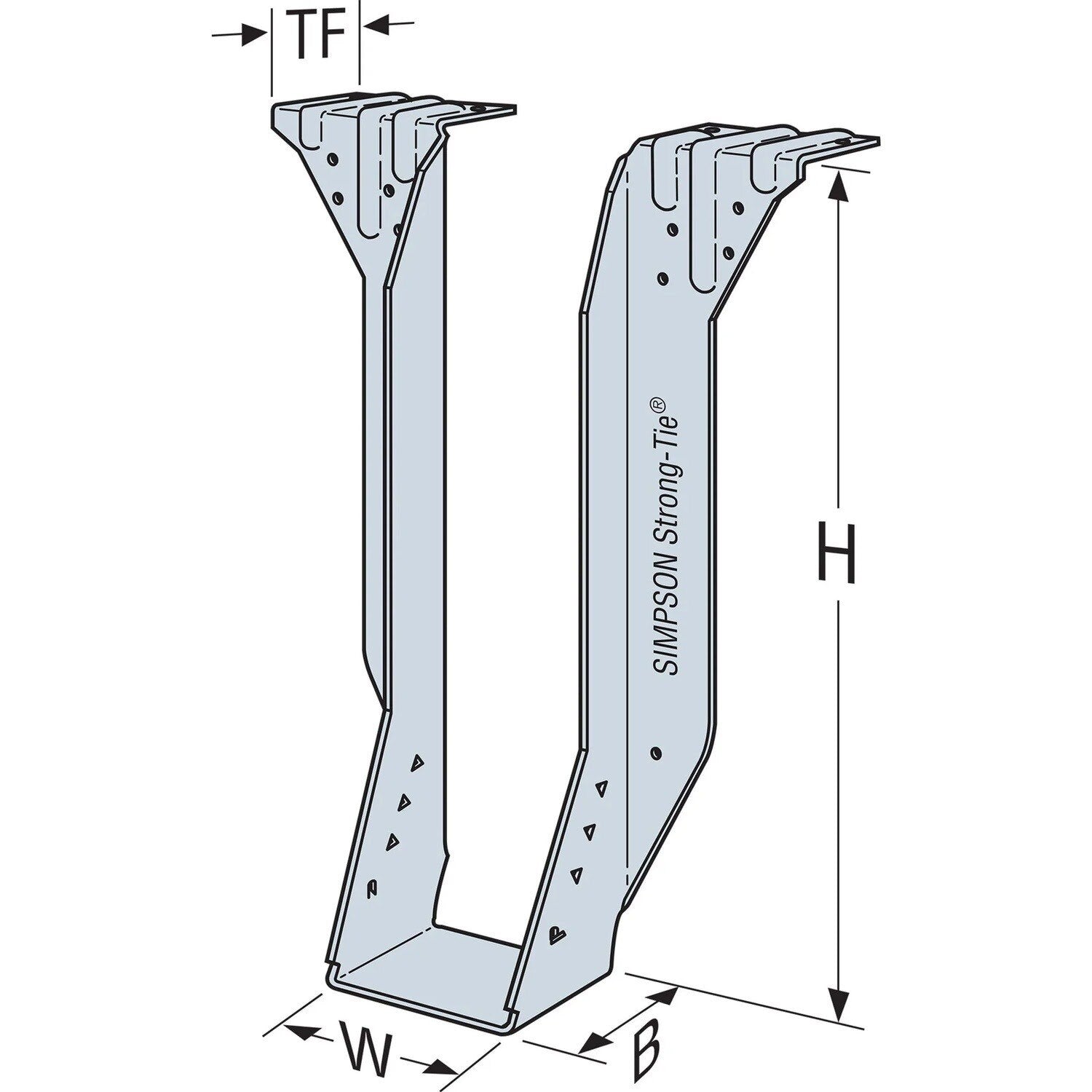

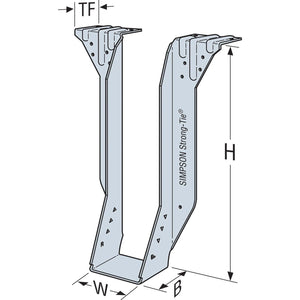

Simpson Strong-Tie BA310 Specifications
| Material | Carbon Steel |
| Finish | G90 Galvanized |
| Thickness | 12 Gauge |
| Joist Size | 3" X 10" |
| Width | 2-9/16" |
| Height | 9-1/8" |
| Fasteners Required | Header - (16) 0.162 x 3-1/2" Nails Joist - Min: (2) 0.148 x 1-1/2" Nails - Max: (8) 0.148 x 1-1/2" Nails |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
WARNING: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov
