Simpson Strong-Tie BC40R (4x) Rough 18 Gauge Galvanized Post Base
Key Specifications
Description
Description

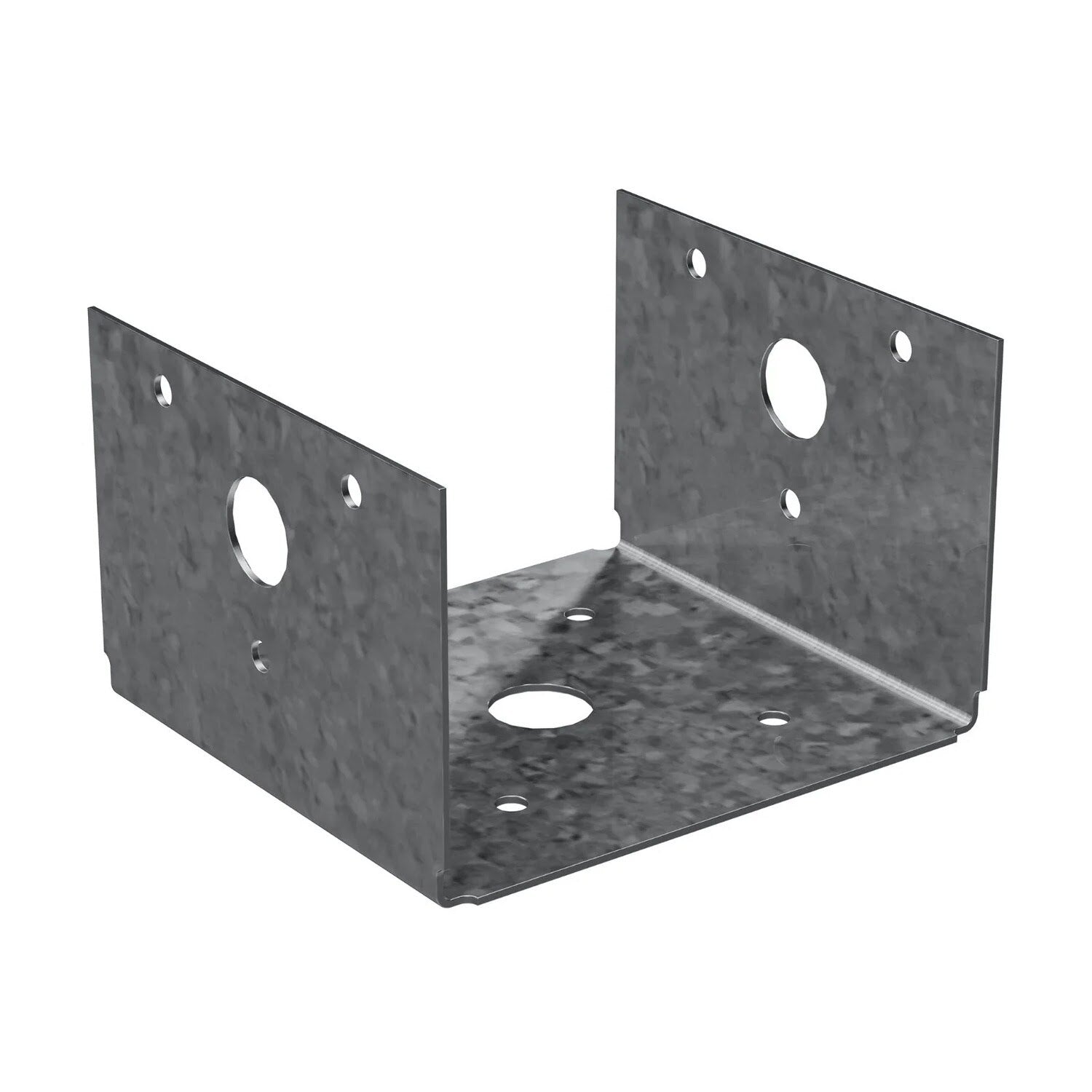

Simpson Strong-Tie BC40R Description
The Simpson BC40R Rough Cut 4x Post Half Base - G90 Galvanized enhances the strength and stability of your construction projects. These connectors are designed to facilitate the secure connection of beams to posts, ensuring robust and reliable support.
Simpson Strong-Tie BC40R Includes
- (1) Rough Cut 4x Post Half Base - G90 Galvanized
Simpson Strong-Tie BC40R Features
- Designed to connect a beam to a post and flanges provide both uplift and lateral resistance.
- Intended for use with a 4x post for light-duty connections.
- Made from 18-Gauge Steel for durability and finished with G90 Galvanized coating.
- Attains full allowable load using either common nail or pneumatic nail sizes.
Simpson Strong-Tie BC40R Applications
- Facilitates secure connection of beams to posts in construction projects.
- Provides uplift and lateral resistance for structural stability.
Simpson Strong-Tie BC40R Installation Overview
- Align the connector with the post and beam.
- Secure using the specified nails for the post flange and base bottom.
Simpson Strong-Tie BC40R Specifications
| Finish | G90 Galvanized |
| Length | 4" |
| Material | 18-Gauge Steel |
| Fasteners required | Post Flange - (6) 0.162 x 3-1/2" Nails, Base Bottom - (4) 0.162 x 3-1/2" Nails |
| For Treated Lumber | No |
| Height | 3" |
| Manufacturer name | Simpson Strong-Tie |
| Post size | 4x |
| Thickness | 18 Gauge |
| Width | 4" |
NOTE: This connector is designed for Rough Cut lumber NOT nominal lumber (most common).
WARNING: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov
