Simpson Strong-Tie BC4SS Description

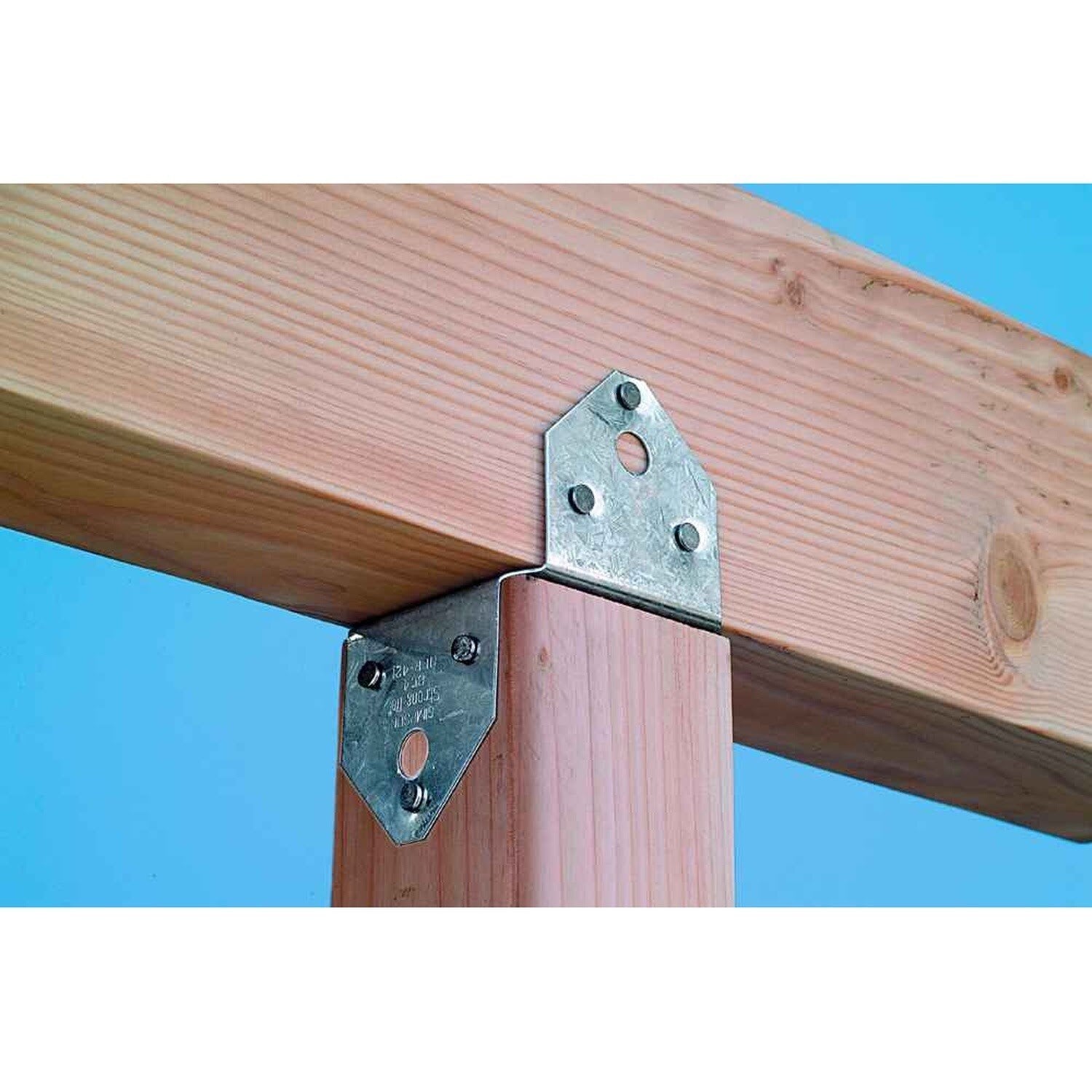

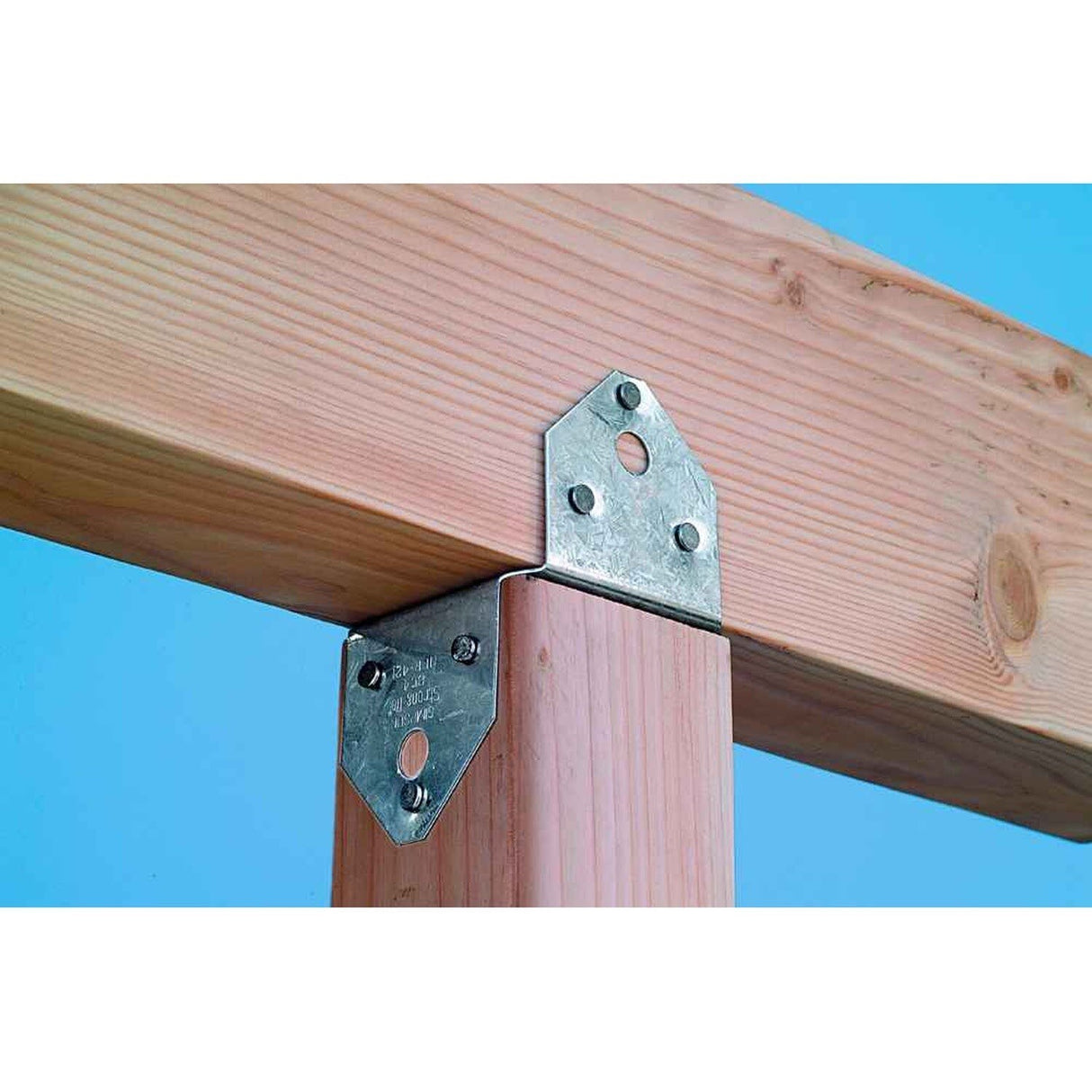

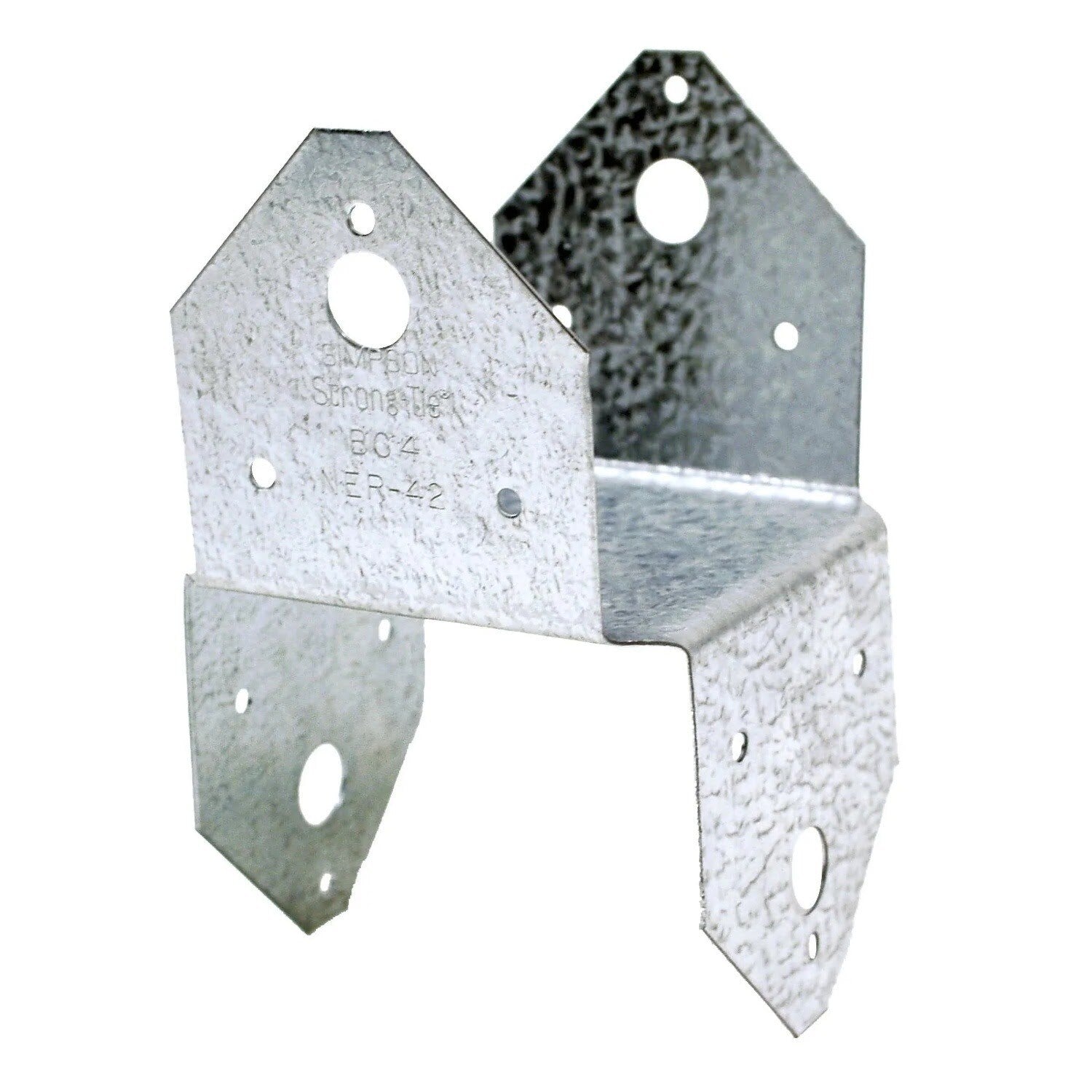

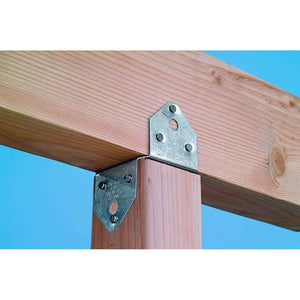

The Simpson BC4SS 4x Post Cap is a durable stainless steel connector designed to securely attach beams to posts, providing both uplift and lateral resistance.
Simpson Strong-Tie BC4SS Includes
- (1) BC4SS 4x Post Cap
Simpson Strong-Tie BC4SS Features
- Crafted from 316 Stainless Steel for enhanced durability
- Designed for 4x posts in light-duty connections
- Provides both uplift and lateral resistance
- Compatible with common and pneumatic nail sizes
- Attains full allowable load with specified fasteners
Simpson Strong-Tie BC4SS Applications
- Beam to post connections in construction projects
- Deck framing and post support
- Light-duty structural connections
Simpson Strong-Tie BC4SS Installation Overview
- Align the post cap with the 4x post and beam
- Secure the cap using the specified nails for the beam flange
- Attach the cap to the post flange using the recommended nails
- Ensure all fasteners are properly installed for maximum load capacity
Simpson Strong-Tie BC4SS Specifications
| Material | 316 Stainless Steel |
| Post size | 4x |
| Thickness | 18 Gauge |
| Height | 3" |
| Width | 3-9/16" |
| Length | 2-7/8" |
| Fasteners required | Beam Flange - (12) 0.162 x 3-1/2" Nails, Post Flange - (12) 0.162 x 3-1/2" Nails |
| For Treated Lumber | Yes |
