Simpson Strong-Tie BC80R Post Cap - Rough Cut - G90 Galvanized
Bulk Pricing Available
Bulk Pricing Available
Need to place a large order? Request a quote
Simpson Strong-Tie BC80R Post Cap - Rough Cut - G90 Galvanized
Key Specifications
Description
Description

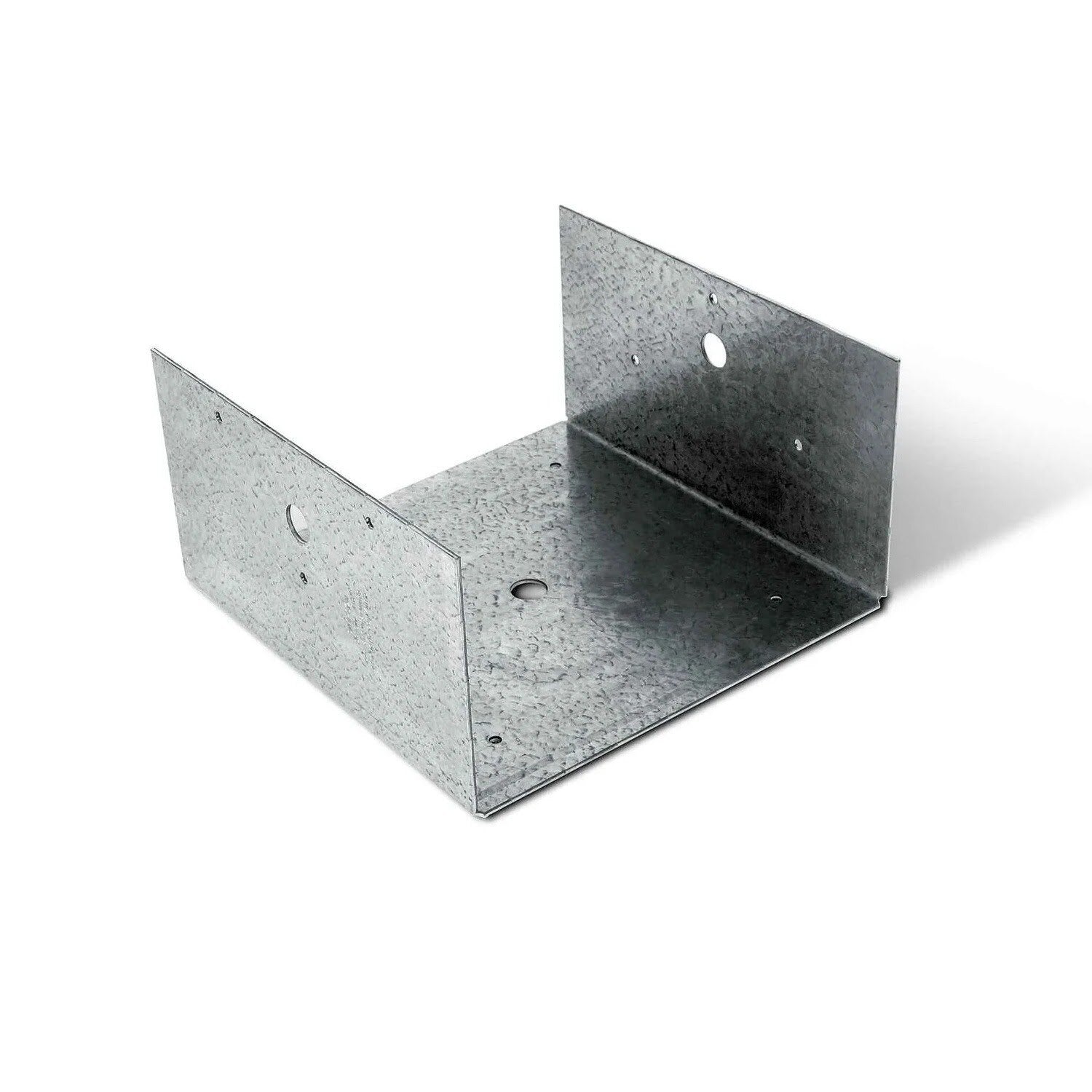

Simpson Strong-Tie BC80R Description
The Simpson BC80R Post Cap enhances the strength and stability of your construction projects, designed for secure beam-to-post connections with 8x rough cut posts.
Simpson Strong-Tie BC80R Includes
- (1) BC80R Post Cap
Simpson Strong-Tie BC80R Features
- Designed to connect a beam to a post with uplift and lateral resistance
- Made from durable 18-Gauge Steel
- Finished with G90 Galvanized coating for corrosion resistance
- Attains full allowable load using either common nail or pneumatic nail sizes
Simpson Strong-Tie BC80R Applications
- Beam-to-post connections in construction projects
- Providing uplift and lateral resistance in structural applications
Simpson Strong-Tie BC80R Installation Overview
- Align the post cap with the post and beam
- Secure using specified nails for the post flange and base bottom
Simpson Strong-Tie BC80R Specifications
| Finish | G90 Galvanized |
| Length | 8" |
| Material | 18-Gauge Steel |
| Fasteners required | Post Flange - (6) 0.162 x 3-1/2" nailed; Base Bottom - (4) 0.162 x 3-1/2" nails |
| Height | 4" |
| Post size | 8x |
| Thickness | 18 Gauge |
| Width | 8" |
NOTE: This connector is designed for Rough Cut lumber NOT nominal lumber (most common).
WARNING: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov
