Simpson Strong-Tie BCS2-2/4 Galvanized Post Cap for Double 2x Beam, 4x Post
Bulk Pricing Available
Bulk Pricing Available
Need to place a large order? Request a quote
Simpson Strong-Tie BCS2-2/4 Galvanized Post Cap for Double 2x Beam,...
Key Specifications
Description
Description
Simpson Strong-Tie BCS2-2/4 Description

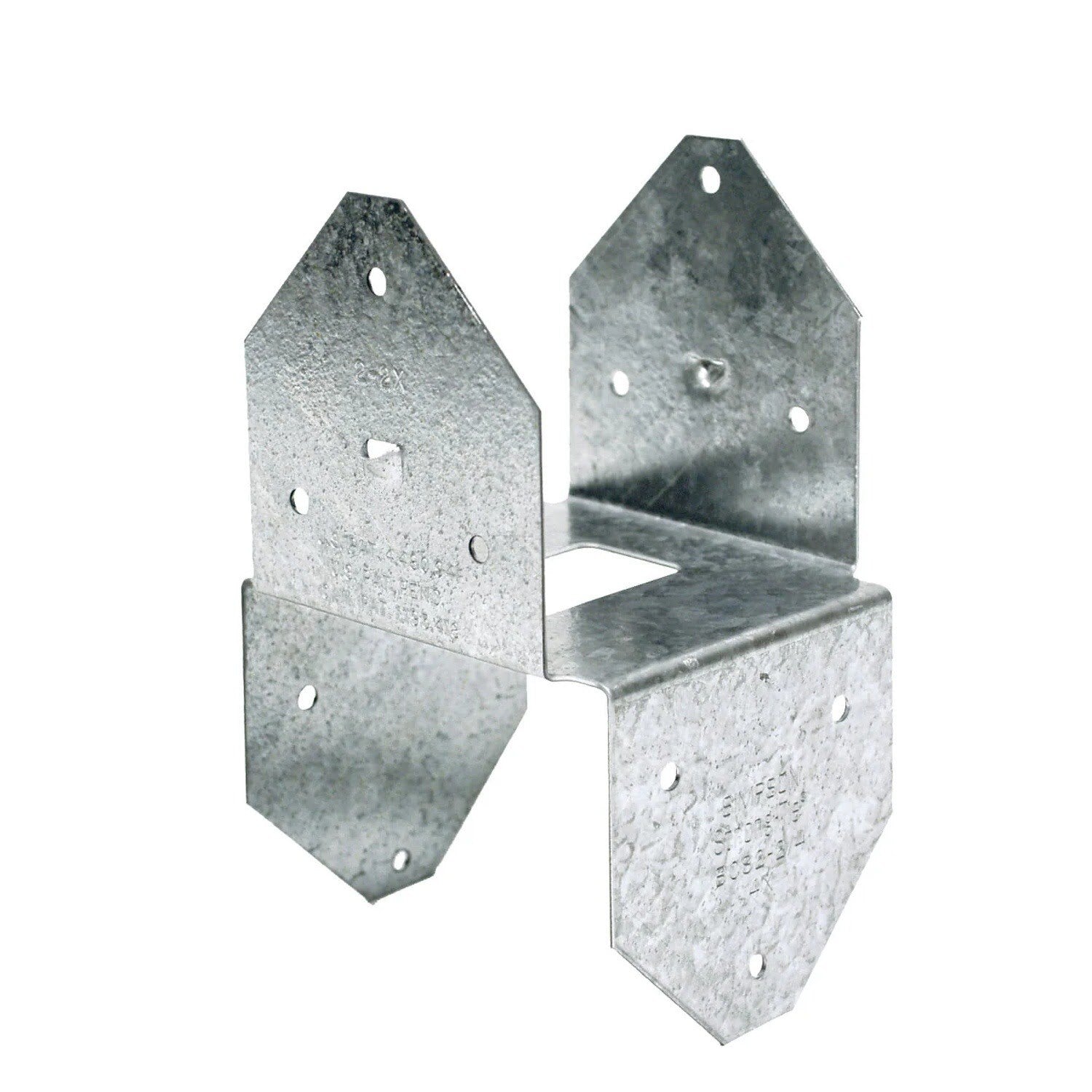

The Simpson BCS2-2/4 Post Cap enhances the strength and stability of construction projects, connecting multi-ply member beams to posts securely.
Simpson Strong-Tie BCS2-2/4 Includes
- (1) Galvanized Post Cap
Simpson Strong-Tie BCS2-2/4 Features
- Designed to connect multi-ply member beam to a post

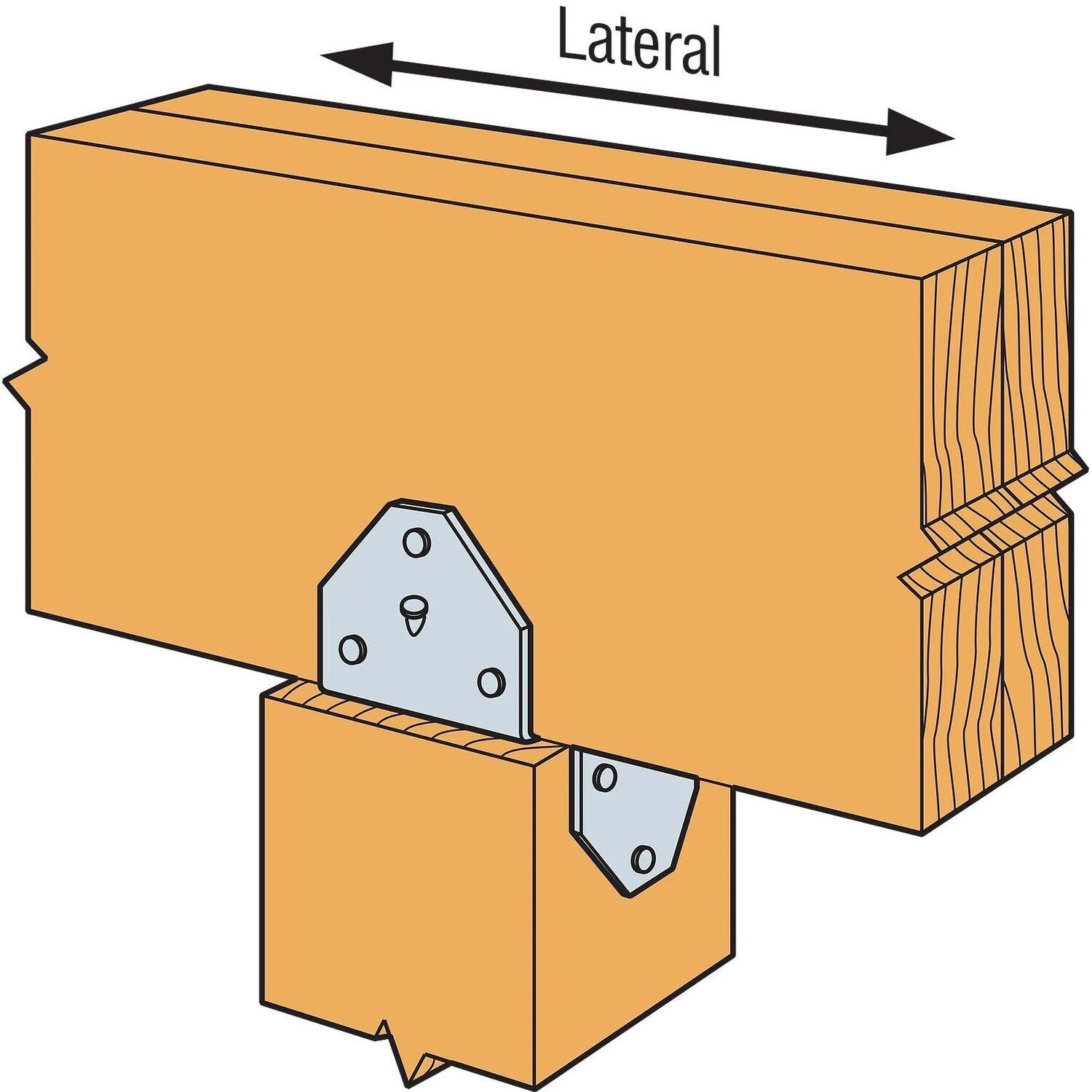

- Provides both uplift and lateral resistance
- Made from durable 18-Gauge Steel
- Finished with G90 Galvanized coating
- Attains full allowable load using common or pneumatic nail sizes
Simpson Strong-Tie BCS2-2/4 Applications

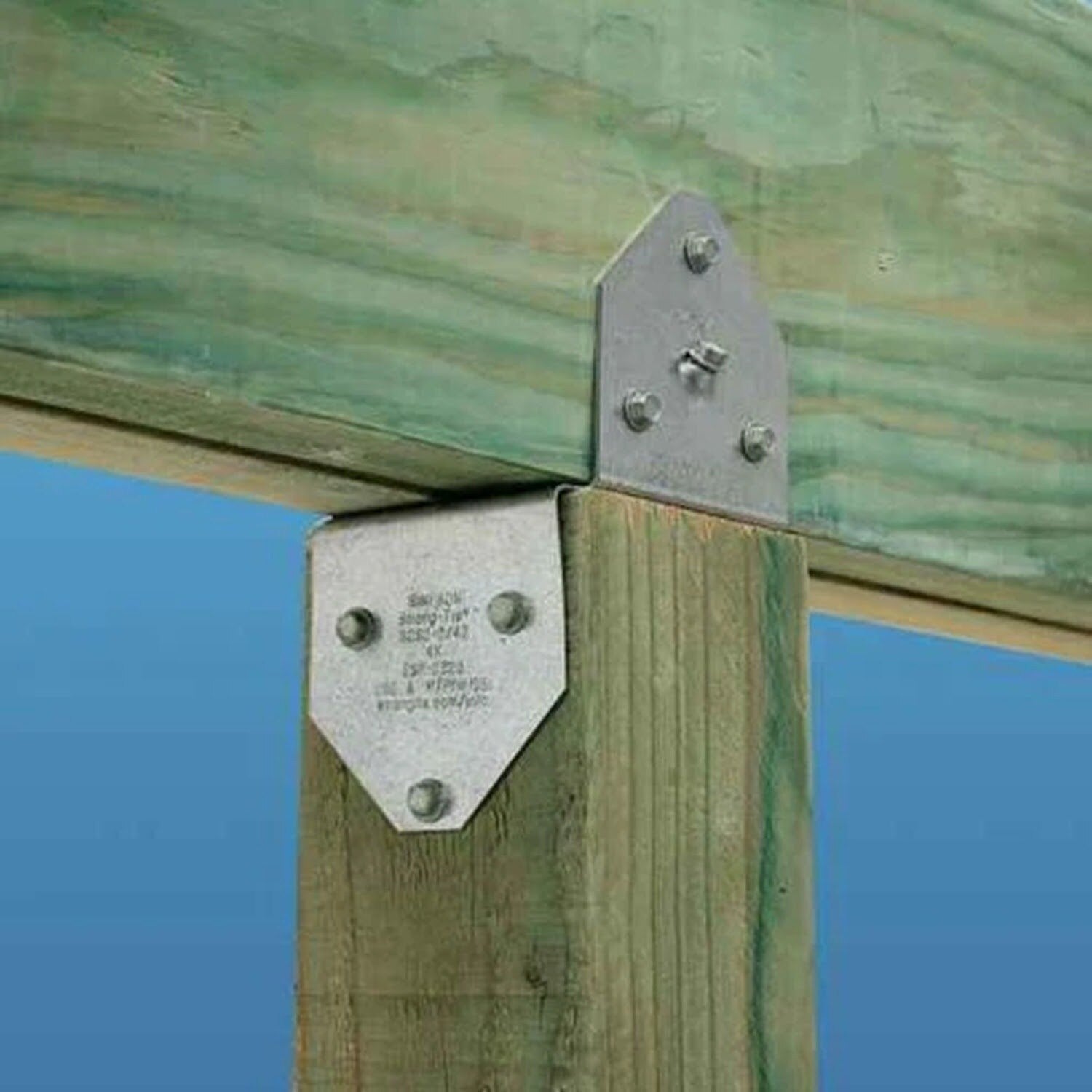

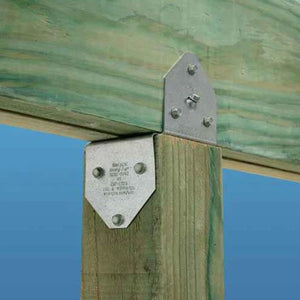

- Securing multi-ply member beams to posts in construction projects
- Providing structural support in residential and commercial framing
Simpson Strong-Tie BCS2-2/4 Installation Overview
- Align the post cap with the beam and post
- Secure using specified nails for beam and post flanges
- Ensure all fasteners are properly installed
Simpson Strong-Tie BCS2-2/4 Specifications
| Finish | G90 Galvanized |
| Material | 18-Gauge Steel |
| Beam size | (2) 2x's |
| Post size | 4x |
| Thickness | 18 Gauge |
| Fasteners required | Beam Flange - (8) 0.162 x 3-1/2" Nails, Post Flange - (6) 0.162 x 3-1/2" Nails |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
WARNING: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov
