Simpson BP 7/8HDG Strong-Tie Bearing Plate for Anchor Bolts
Key Specifications
Description
Description
Simpson Strong-Tie BP 7/8HDG Description
The BP 7/8HDG Bearing Plate from Simpson Strong-Tie provides a greater bearing surface for anchor bolts, replacing standard cut-washers. It is hot-dip galvanized for enhanced corrosion resistance.
Simpson Strong-Tie BP 7/8HDG Includes
- (1) BP 7/8HDG Bearing Plate
Simpson Strong-Tie BP 7/8HDG Features
- Replaces standard cut-washers while providing a greater bearing surface
- Sized for most common anchor bolt sizes: 3/8", 1/2", 5/8", 3/4", 7/8" and 1"
- May be ordered HDG for higher corrosion resistance
Simpson Strong-Tie BP 7/8HDG Applications

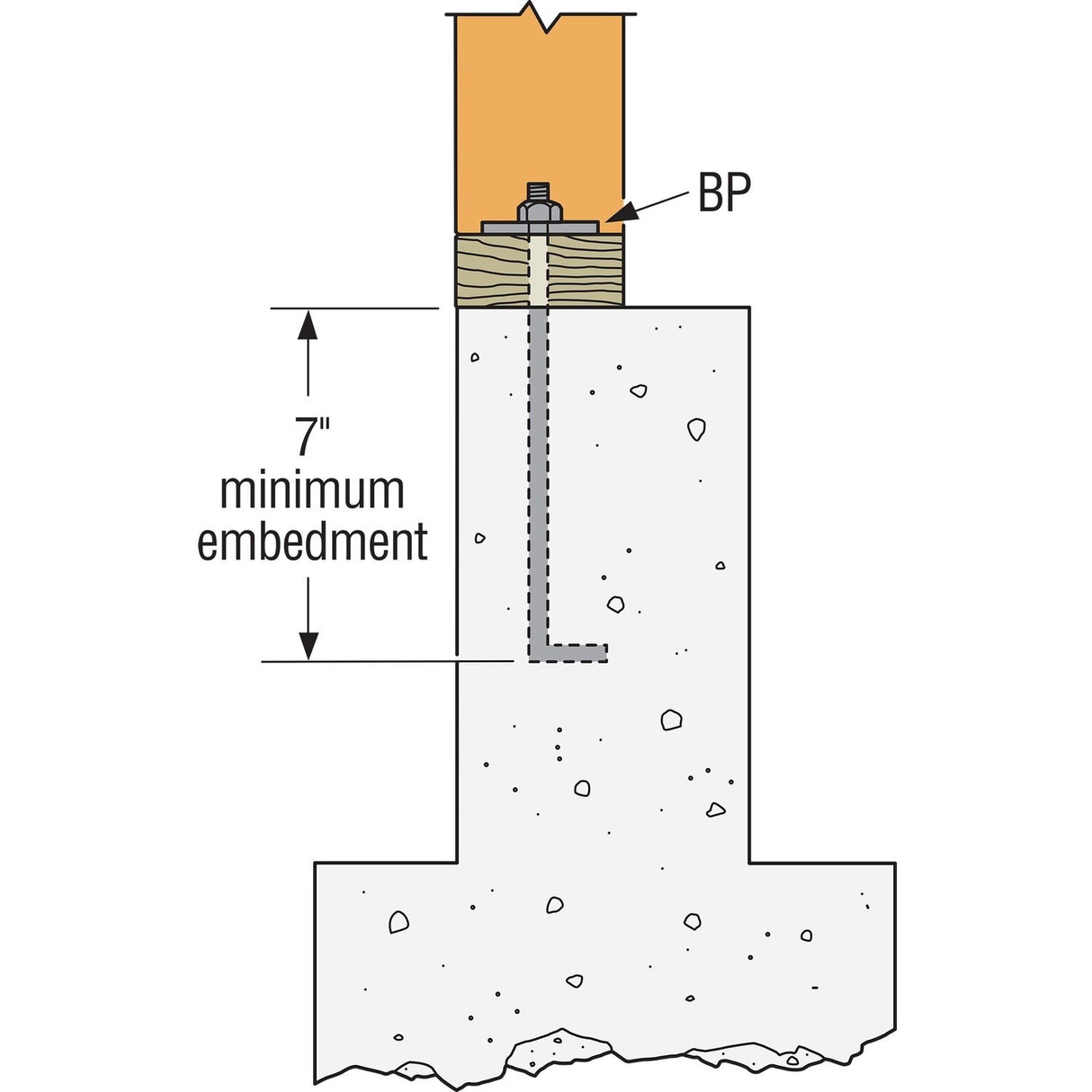

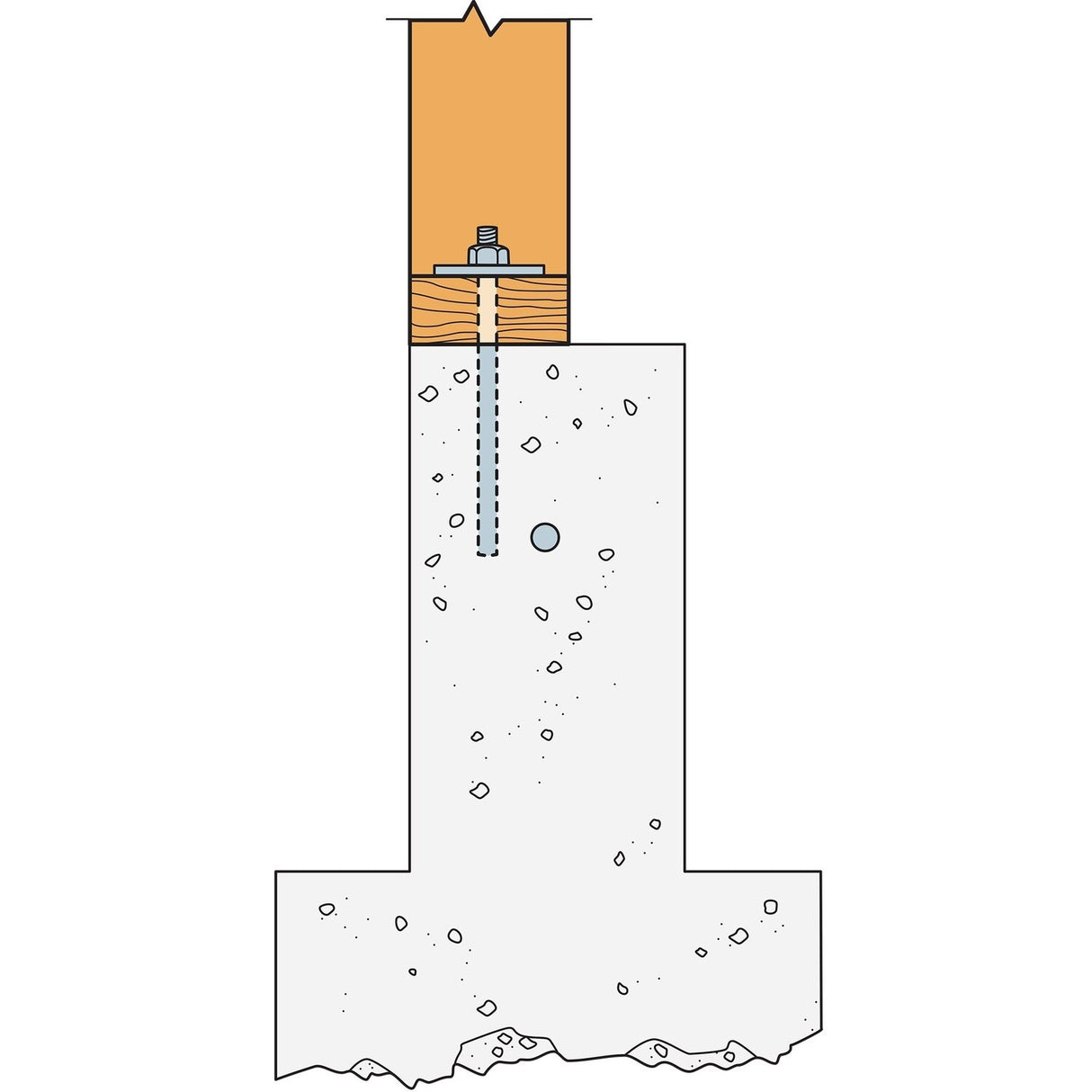

- Fastening wood to concrete or masonry

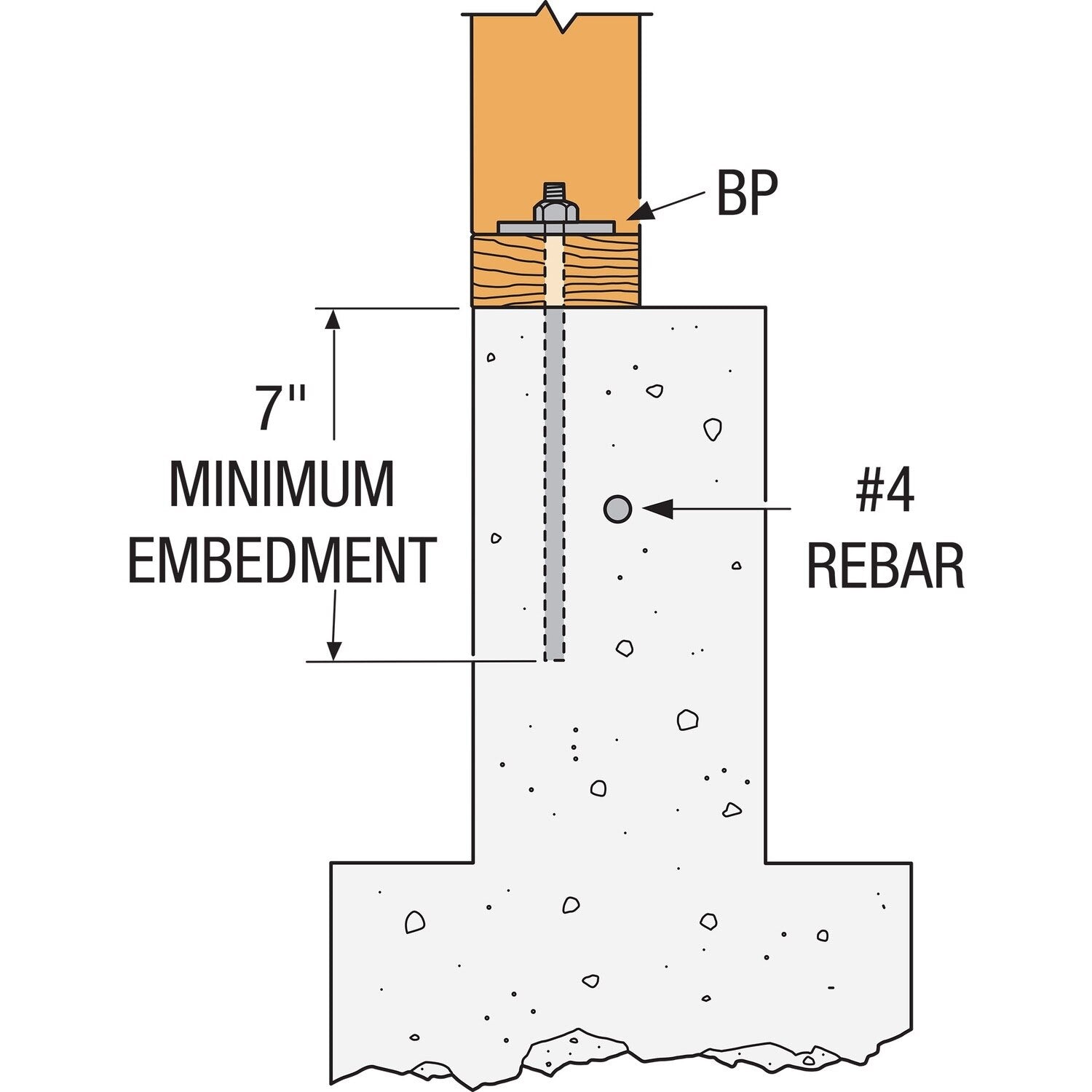

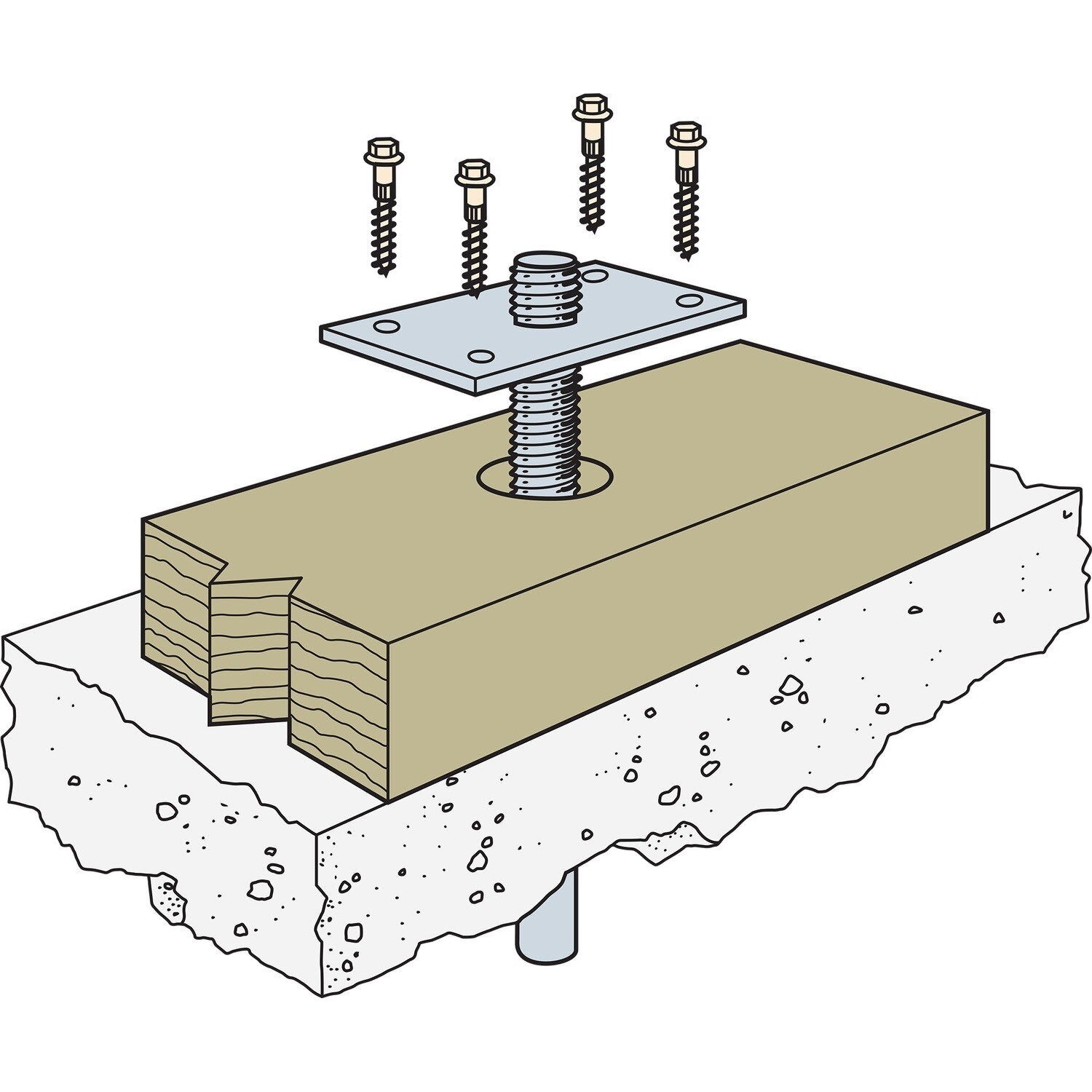

Simpson Strong-Tie BP 7/8HDG Installation Overview
- Position edge of plate washer within 1/2" of sheathed edge of sill plate for shearwall applications
- Tighten each anchor bolt with a nut and BP

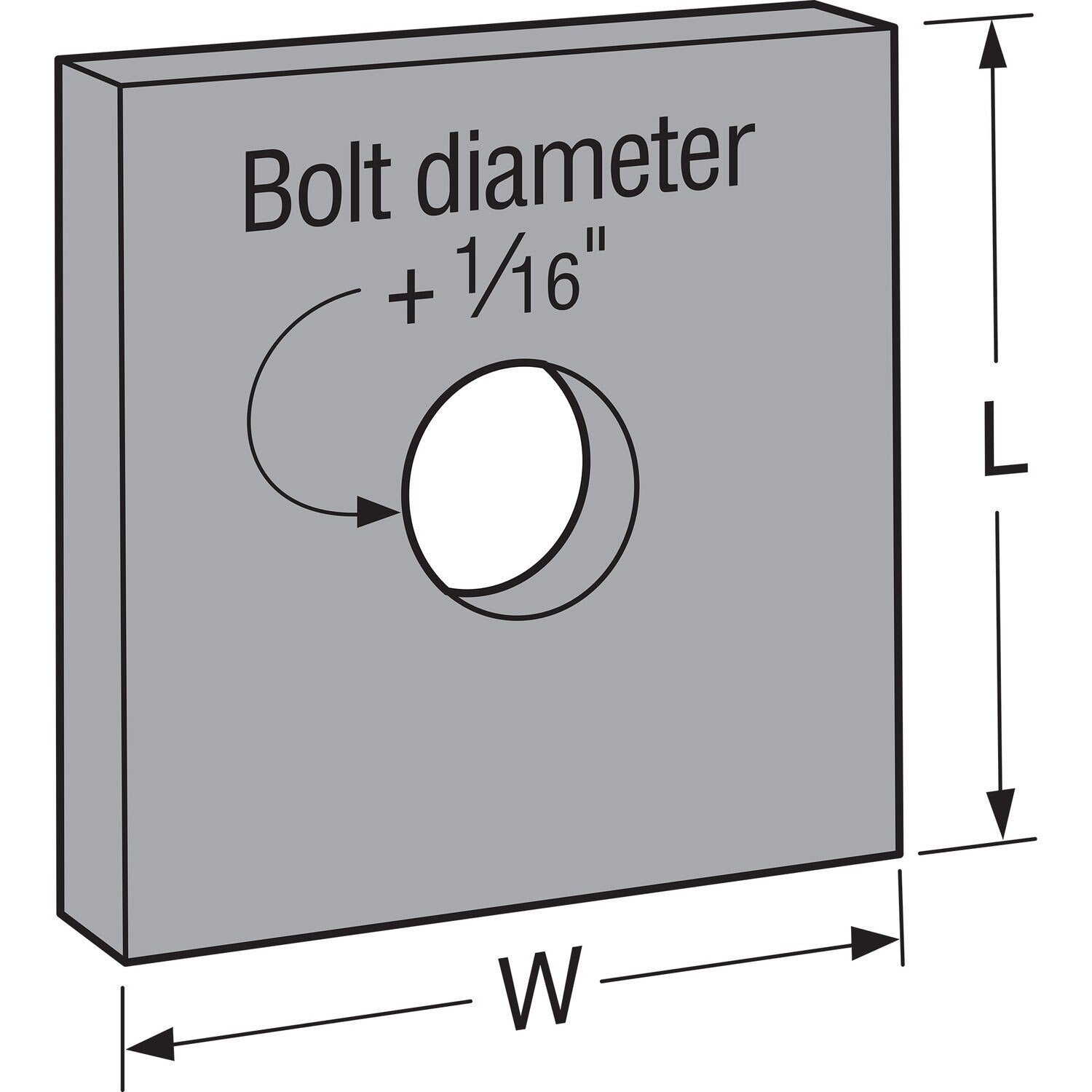

Simpson Strong-Tie BP 7/8HDG Specifications
| Bolt Diameter | 7/8 in. |
| Thickness | 5/16 in. |
| Width | 3 in. |
| Length | 3 in. |
| Coating/Material | Hot-Dip Galvanized |
| Packaging Quantity | 1 |
