Simpson Strong-Tie CCQ46SDS2.5 (4x Beam, 6x Post) Quick-Install Column Cap with SDS Screws
Bulk Pricing Available
Bulk Pricing Available
Need to place a large order? Request a quote
Simpson Strong-Tie CCQ46SDS2.5 (4x Beam, 6x Post) Quick-Install Col...
Key Specifications
Description
Description
Simpson CCQ46SDS2.5 Description

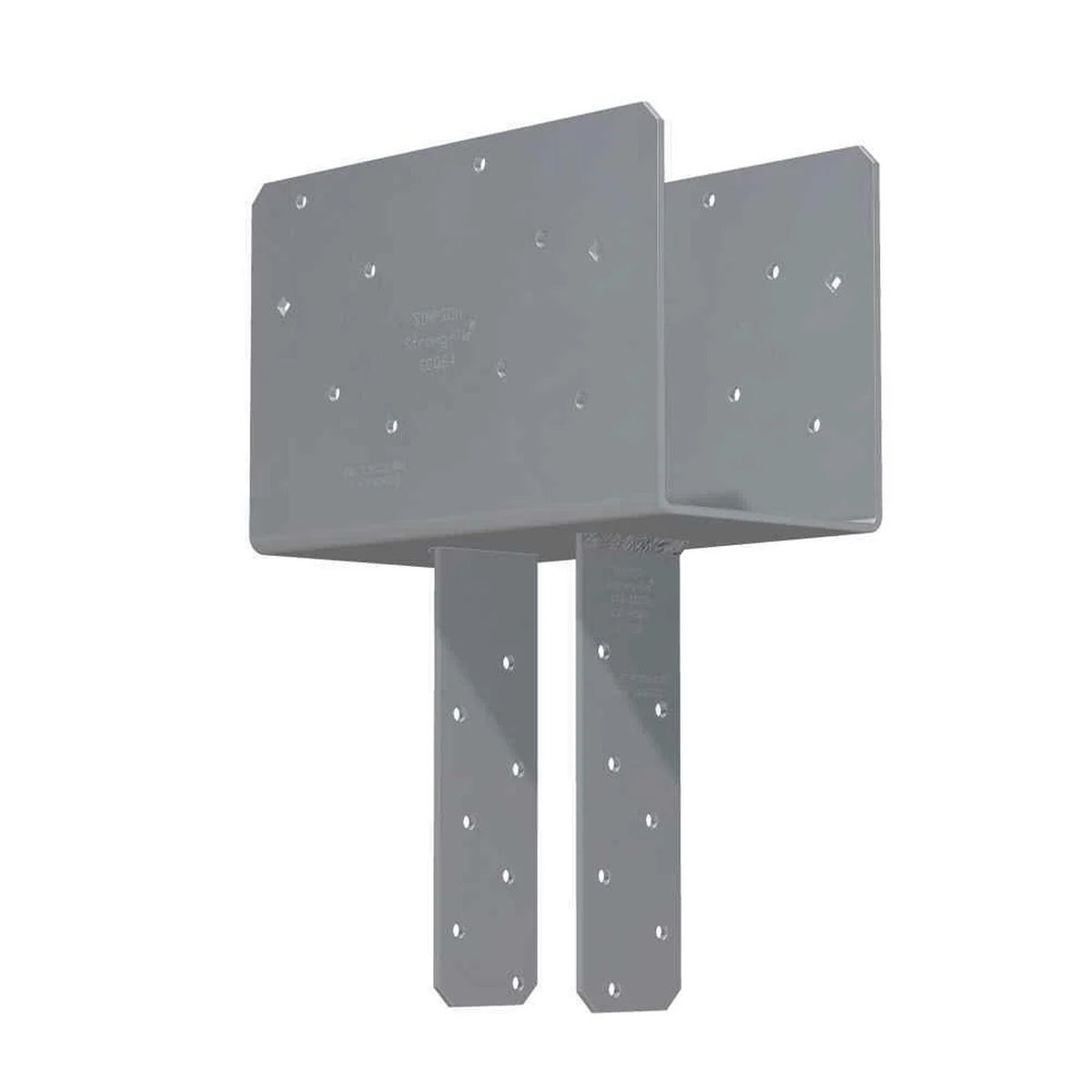

The Simpson CCQ46SDS2.5 Column Cap provides strong column-to-beam connections for wood construction, featuring durable steel construction and gray paint finish.
Simpson CCQ46SDS2.5 Includes
- (1) Column Cap
- (1) Set of SDS Screws
Simpson CCQ46SDS2.5 Features
- Provides strong column-to-beam connection
- Extended column seat for additional bearing surface
- Made from heavy-gauge steel
- Finished with gray paint for durability
- Includes SDS screws for quick installation
- Certified welds for strength and loading
- Increased uplift loads for earthquake or wind loading
- Diamond holes for temporary fastening during installation
- Bolt spacing meets NDS code requirements
Simpson CCQ46SDS2.5 Applications
- Wood construction requiring column-to-beam connections
- Structural support for 4x beams and 6x posts
- Projects needing increased uplift load capacity for earthquake or wind resistance

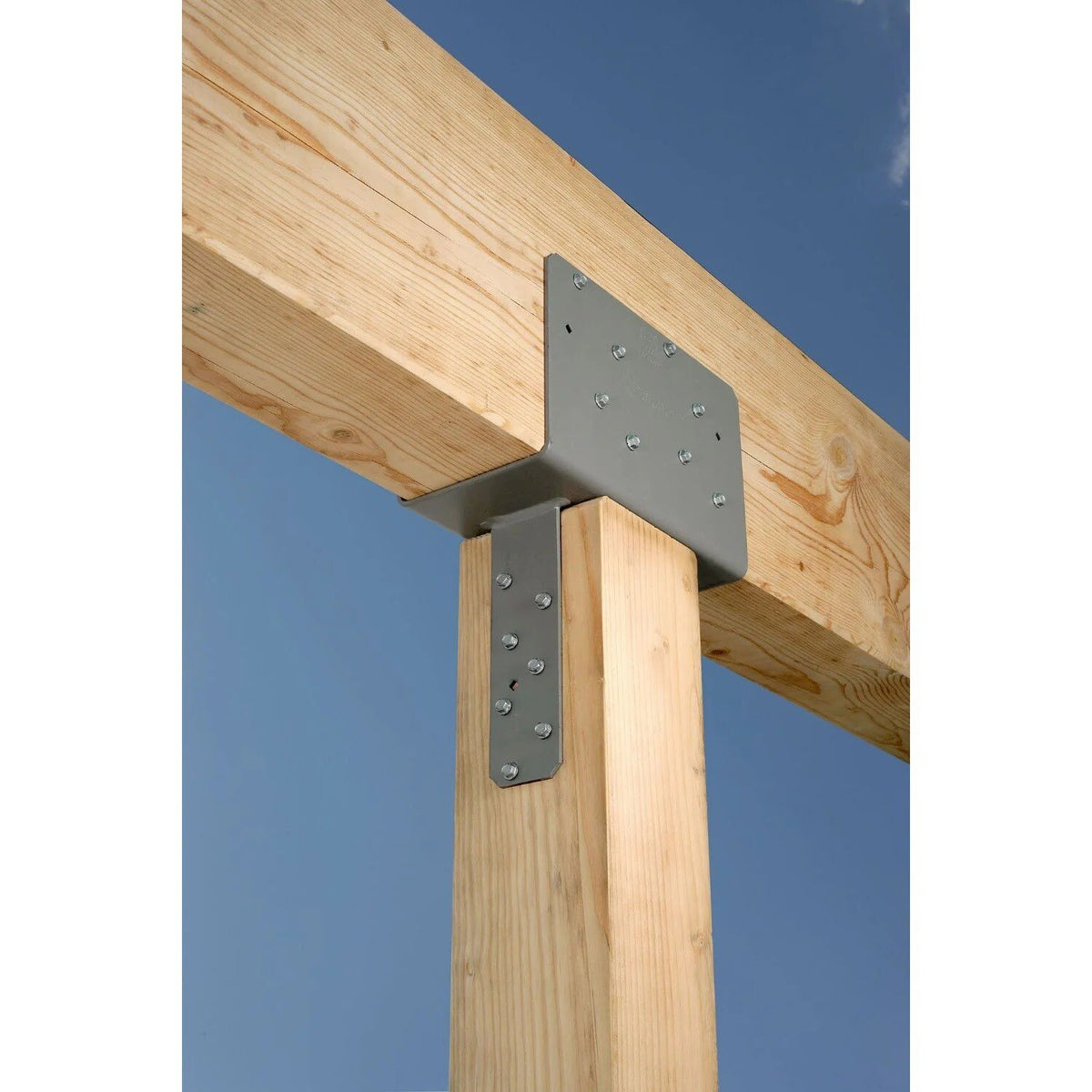

Simpson CCQ46SDS2.5 Installation Overview
- Verify dimensions and alignment of beams and posts.
- Position the column cap on the post and beam.
- Secure using the included SDS screws.
- Ensure all fasteners are properly installed and tightened.
- Check alignment and stability of the connection.
Simpson CCQ46SDS2.5 Specifications
| Finish | Gray Paint |
| Length | 11" |
| Material | Steel |
| Beam size | 4x |
| For Treated Lumber | No |
| Post size | 6x |
| Thickness | 7 Gauge |
NOTE: Ensure the correct fasteners are installed in the correct position to achieve published load values
WARNING: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov
