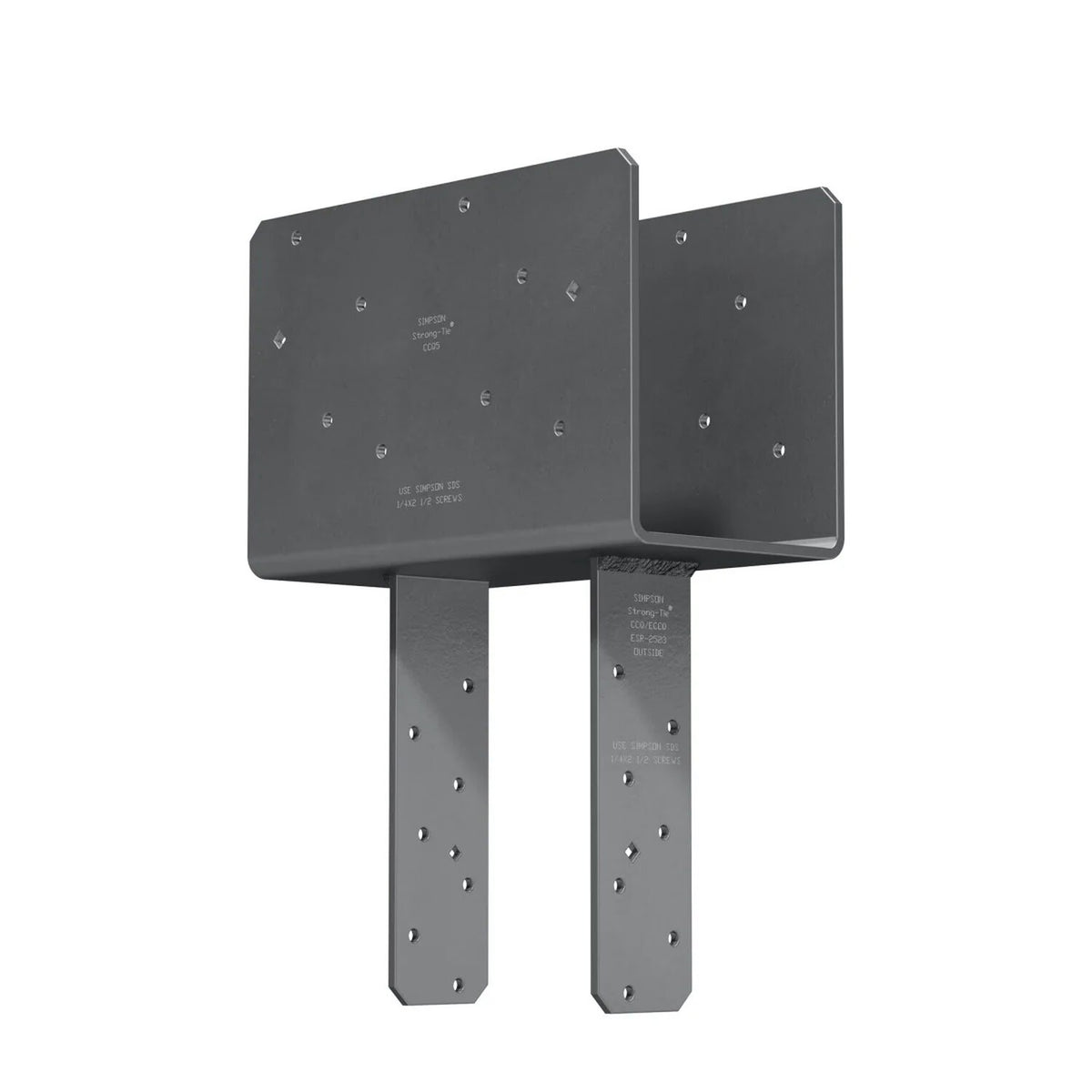

Simpson Strong-Tie CCQ5-6SDS2.5 (5-1/8" Beam x 6x Post) Column Cap with SDS Screws
Bulk Pricing Available
Bulk Pricing Available
Need to place a large order? Request a quote
Simpson Strong-Tie CCQ5-6SDS2.5 (5-1/8" Beam x 6x Post) Column...
Key Specifications
Description
Description
Simpson Strong-Tie CCQ5-6SDS2.5 Description
The Simpson CCQ5-6SDS2.5 Column Cap enhances the strength and stability of construction projects, providing a durable column-to-beam connection for wood construction.

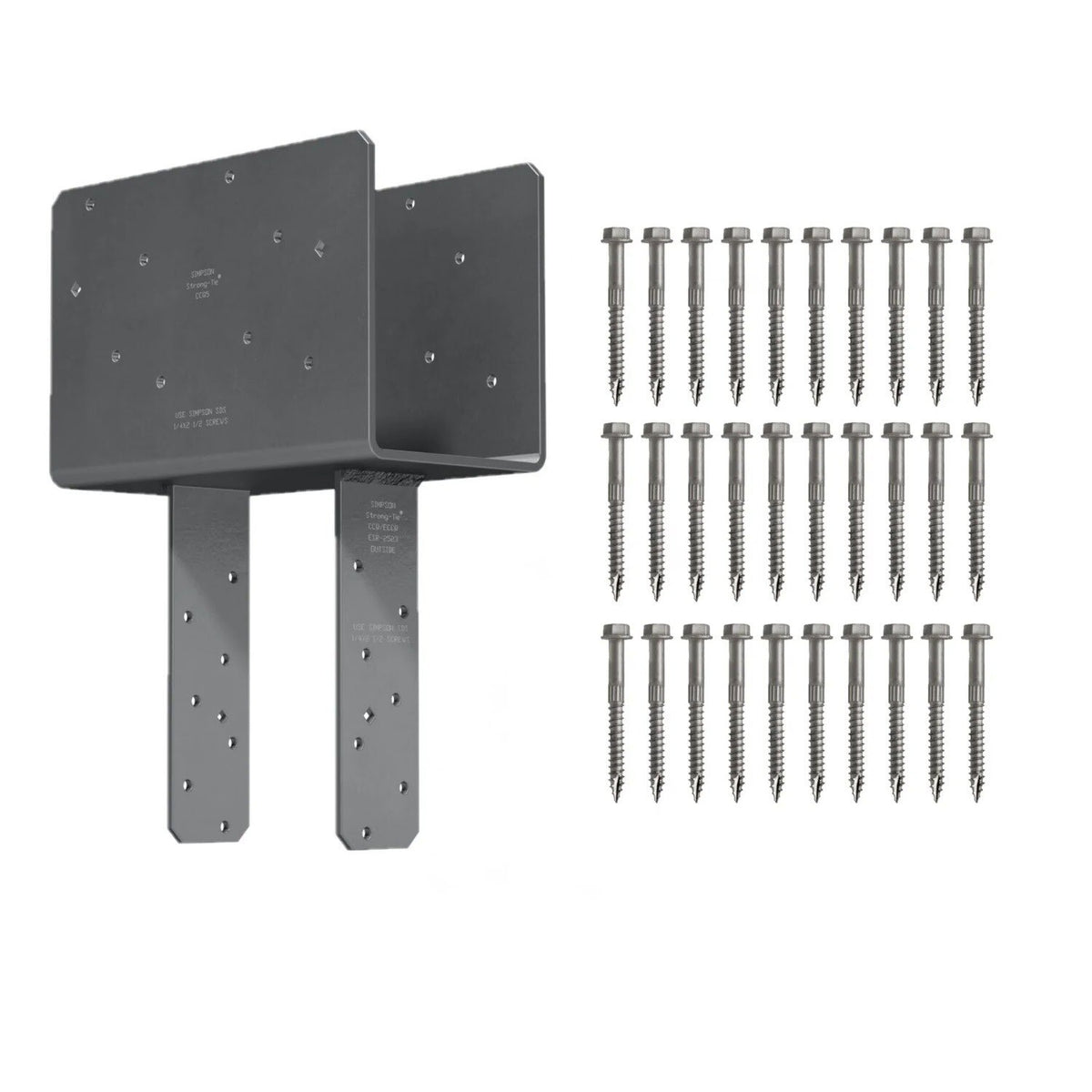

Simpson Strong-Tie CCQ5-6SDS2.5 Includes
- (1) Column Cap
- (1) Set of SDS Screws
Simpson Strong-Tie CCQ5-6SDS2.5 Features
- Provides strong column-to-beam connection
- Extended column seat area for better load distribution
- Made from heavy-gauge steel with a gray paint finish
- Certified welds for increased strength and loading
- Includes SDS screws for quick installation
Simpson Strong-Tie CCQ5-6SDS2.5 Applications

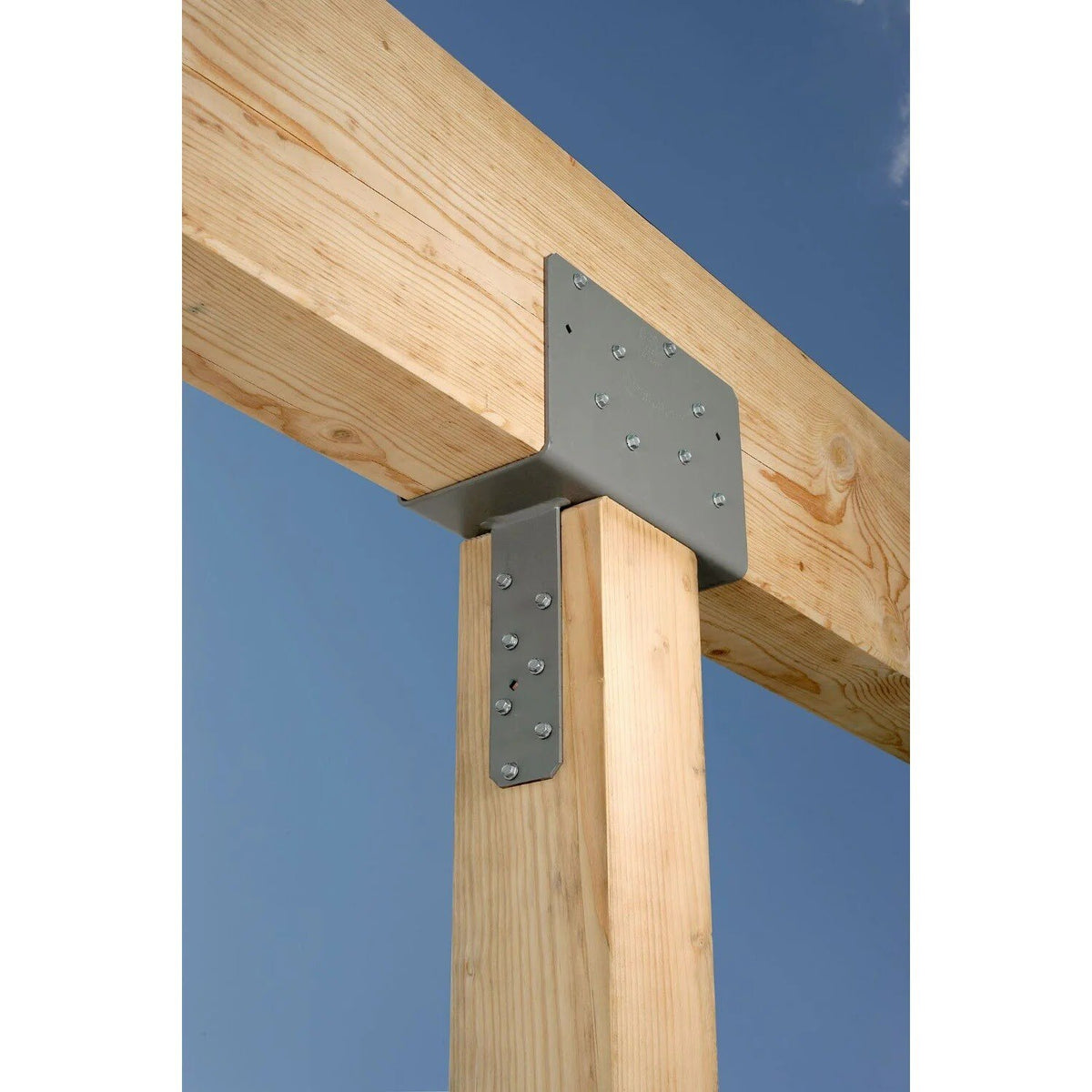

- Wood construction requiring column-to-beam connections
- Projects needing enhanced load distribution and stability
- Use with 5x beams and 6x posts or columns

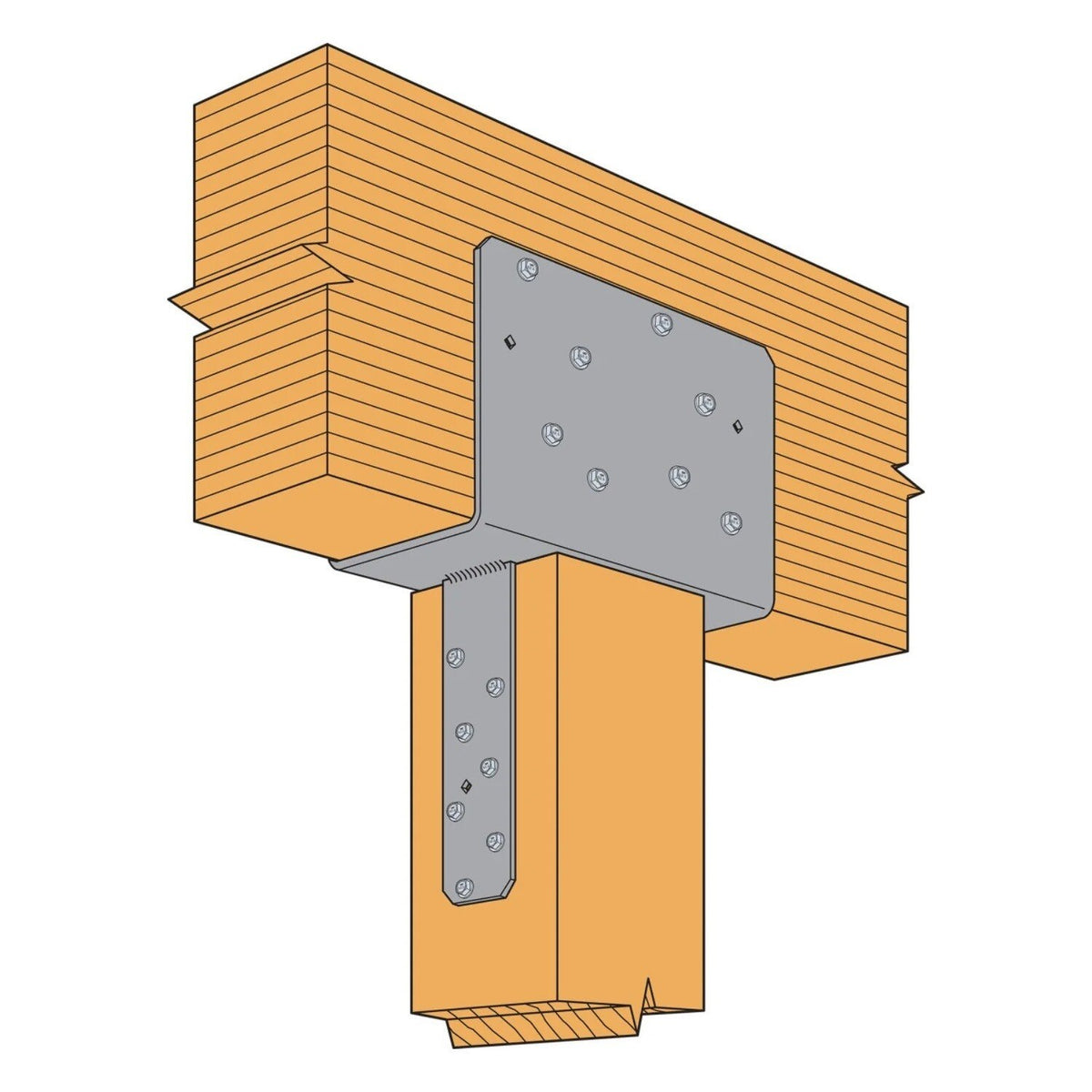

Simpson Strong-Tie CCQ5-6SDS2.5 Installation Overview
- Align the column cap with the beam and post
- Secure temporarily using the diamond holes
- Fasten using the included SDS screws
- Ensure bolt spacing meets NDS code requirements
Simpson Strong-Tie CCQ5-6SDS2.5 Specifications
| Finish | Gray Paint |
| Material | Steel |
| Beam size | 5x |
| For Treated Lumber | No |
| Post size | 6x |
| Thickness | 3 Gauge |
