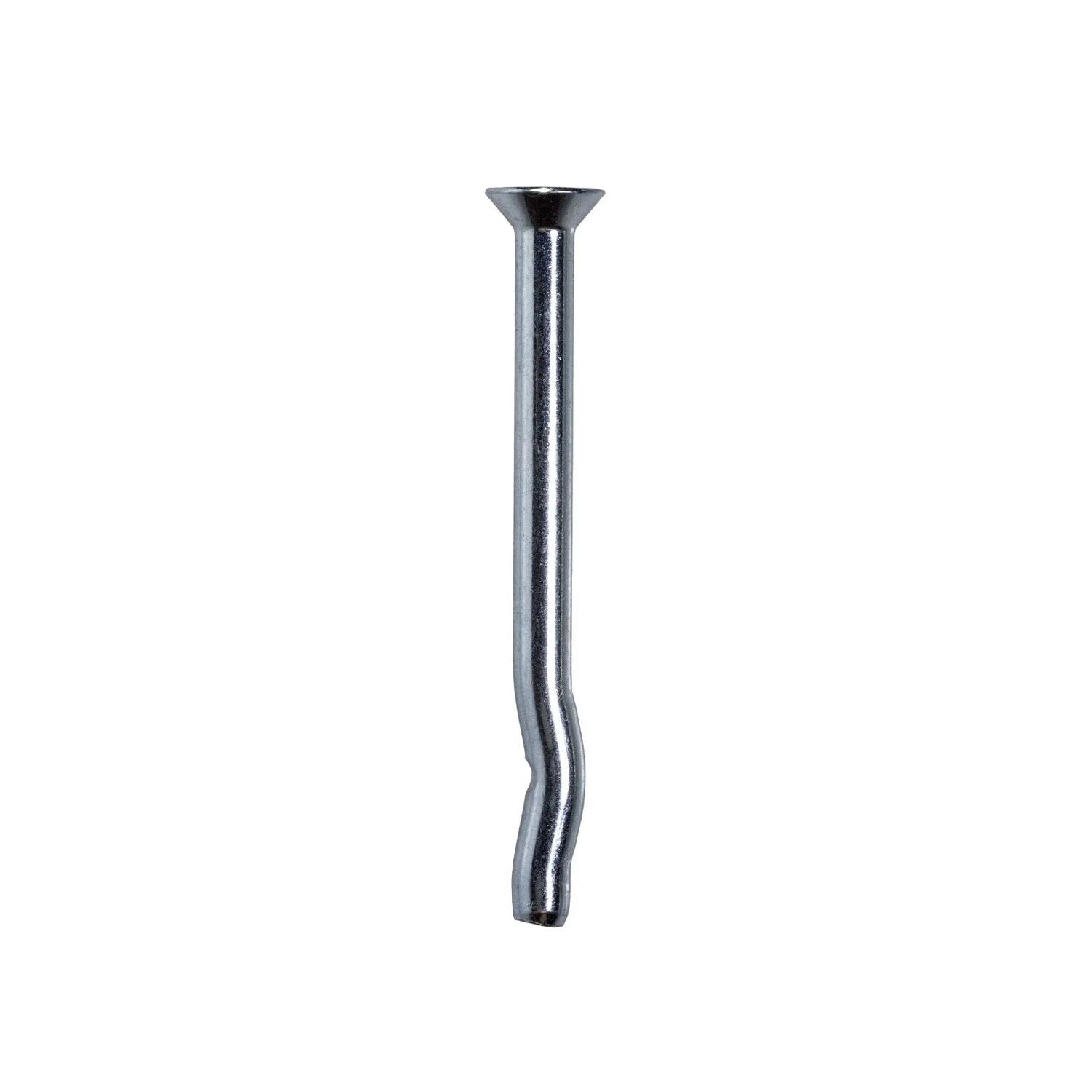

Simpson Strong-Tie CD18300C (3/16" x 3") Crimp Drive Zinc-Plated Countersunk Head Anchor (100 Pack)
Bulk Pricing Available
Bulk Pricing Available
Need to place a large order? Request a quote
Simpson Strong-Tie CD18300C (3/16" x 3") Crimp Drive Zinc...
Key Specifications
Description
Description
Simpson Strong-Tie CD18300C Description
The Simpson Strong-Tie Crimp Drive anchor is an easy-to-install expansion anchor for use in concrete and grout-filled block. The pre-formed curvature along the shaft creates an expansion mechanism that secures the anchor in place and eliminates the need for a secondary tightening procedure.
Simpson Strong-Tie CD18300C Includes
- (100) Crimp Drive Anchor Zinc-Plated Countersunk Head 3/16 in. x 3 in.
Simpson Strong-Tie CD18300C Features
- Unique curved shaft design that speeds up anchor installation and reduces overall project cost
- Countersunk head allows for a smooth surface when attaching wood or light gauge steel to concrete and grout-filled block
- Available in five different head styles
Simpson Strong-Tie CD18300C Applications
- Brick — Solid
- Mushroom head provides a tamper-proof solution
- Countersunk head provides a zero-profile solution
- Rod-coupler head allows for threaded rod attachments
- Tie-wire head for suspended ceiling applications
- Duplex head allows for easy removal in temporary applications
Simpson Strong-Tie CD18300C Installation Overview
- Drill a hole using the specified diameter carbide bit into the base material to a depth of at least 1/2" deeper than the required embedment.
- Blow the hole clean of dust and debris using compressed air. Overhead application need not be blown clean.
- Where a fixture is used, drive the anchor through the fixture into the hole until the head sits flush against the fixture.
- Be sure the anchor is driven to the required embedment depth. The rod coupler and tie-wire models should be driven in until the head is seated against the surface of the base material.
Simpson Strong-Tie CD18300C Specifications
| Material | Carbon Steel |
| Finish | Zinc Plated |
| Diameter | 3/16 in. |
| Length | 3 in. |
| Drill Bit Size | 3/16 in. |
| Fixture Hole Size | 1/4 in. |
| Minimum Embedment Depth | 1-1/4 in. |
| Head Type | Countersunk Head |
| Quantity | 100 |
NOTE: Industry studies show that hardened fasteners can experience performance problems in wet or corrosive environments. Accordingly, with the exception of the duplex anchor, use these products in dry, interior and non-corrosive environments only.
