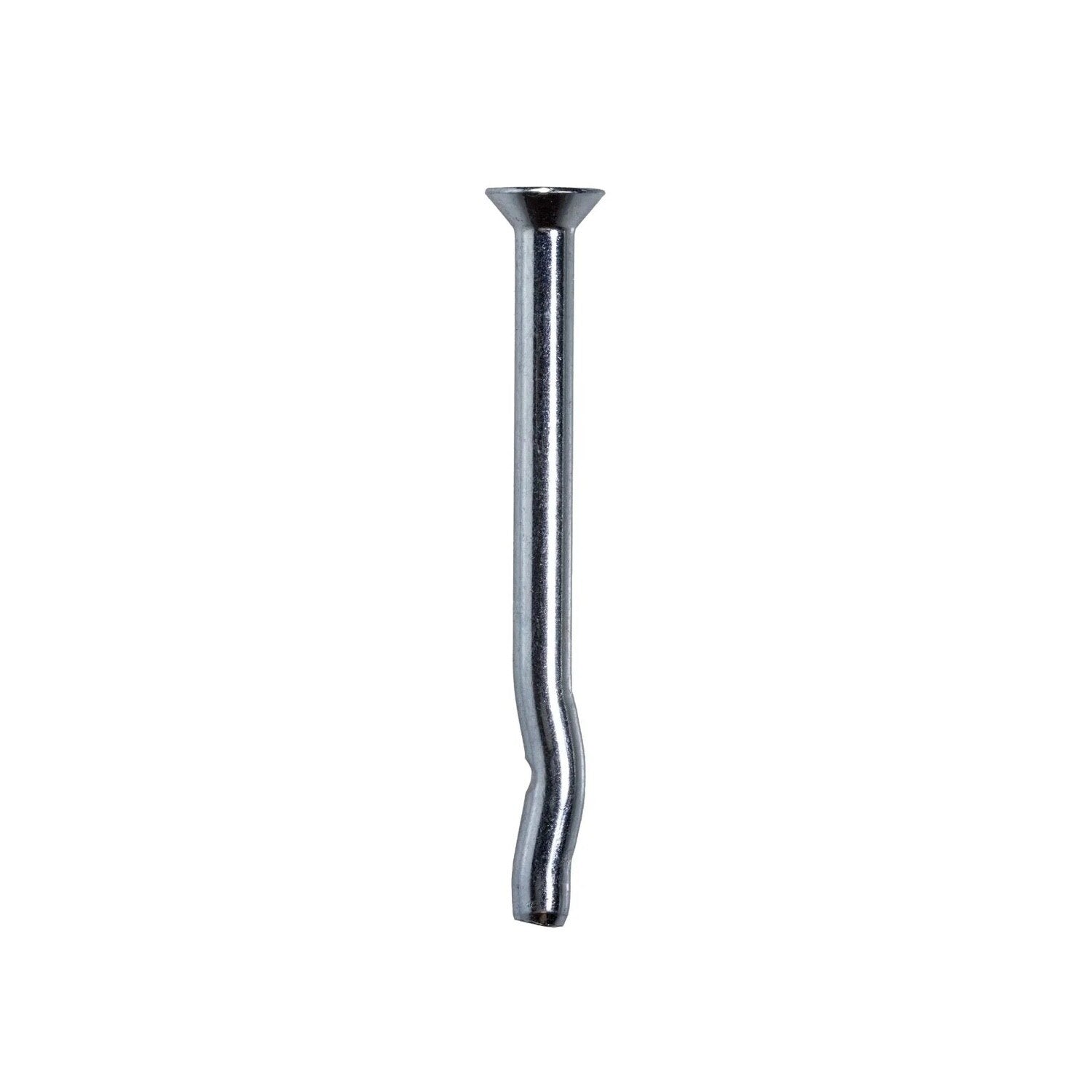

Simpson Strong-Tie CD25300C (1/4" x 3") Crimp Drive Zinc-Plated Countersunk Head Anchor (100 Pack)
Bulk Pricing Available
Bulk Pricing Available
Need to place a large order? Request a quote
Simpson Strong-Tie CD25300C (1/4" x 3") Crimp Drive Zinc-...
Key Specifications
Description
Description
Simpson Strong-Tie CD25300C Description
The Simpson Strong-Tie Crimp Drive anchor is an easy-to-install expansion anchor for use in concrete and grout-filled block. Featuring a countersunk head for a smooth surface, it secures wood or light gauge steel to concrete efficiently.
Simpson Strong-Tie CD25300C Includes
- (100) 1/4 x 3 in. Countersunk Head Crimp Drive Anchor
Simpson Strong-Tie CD25300C Features
- Unique curved shaft design that speeds up anchor installation and reduces overall project cost
- Countersunk head provides a zero-profile solution
- Zinc plated for corrosion resistance
- Made from durable carbon steel
- Ideal for a variety of applications
Simpson Strong-Tie CD25300C Applications
- Securing wood or light gauge steel to concrete and grout-filled block
- Tamper-proof solutions with mushroom head
- Zero-profile solutions with countersunk head
- Threaded rod attachments with rod-coupler head
- Suspended ceiling applications with tie-wire head
- Temporary applications with duplex head
Simpson Strong-Tie CD25300C Installation Overview
- Drill a hole using the specified diameter carbide bit into the base material to a depth of at least 1/2" deeper than the required embedment.
- Blow the hole clean of dust and debris using compressed air.
- Drive the anchor through the fixture into the hole until the head sits flush against the fixture.
- Ensure the anchor is driven to the required embedment depth.
- For rod coupler and tie-wire models, drive in until the head is seated against the surface of the base material.
Simpson Strong-Tie CD25300C Specifications
| Material | Carbon Steel |
| Finish | Zinc Plated |
| Head Type | Countersunk Head |
| Diameter | 1/4" |
| Length | 3" |
| Drill Bit Size | 1/4" |
| Fixture Hole Size | 5/16" |
| Minimum Embedment Depth | 1-1/4" |
| Quantity | 100 |
NOTE: Mechanical galvanizing meets ASTM B695, Class 55, Type 1. Intended for some pressure-treated wood sill plate applications. Not for use in other corrosive or outdoor environments.
WARNING: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov
