Simpson Strong-Tie CD25312C (1/4" x 3-1/2") Crimp Drive Zinc-Plated Countersunk Head Anchor (100 Pack)
Bulk Pricing Available
Bulk Pricing Available
Need to place a large order? Request a quote
Simpson Strong-Tie CD25312C (1/4" x 3-1/2") Crimp Drive Z...
Key Specifications
Description
Description
Simpson Strong-Tie CD25312C Description

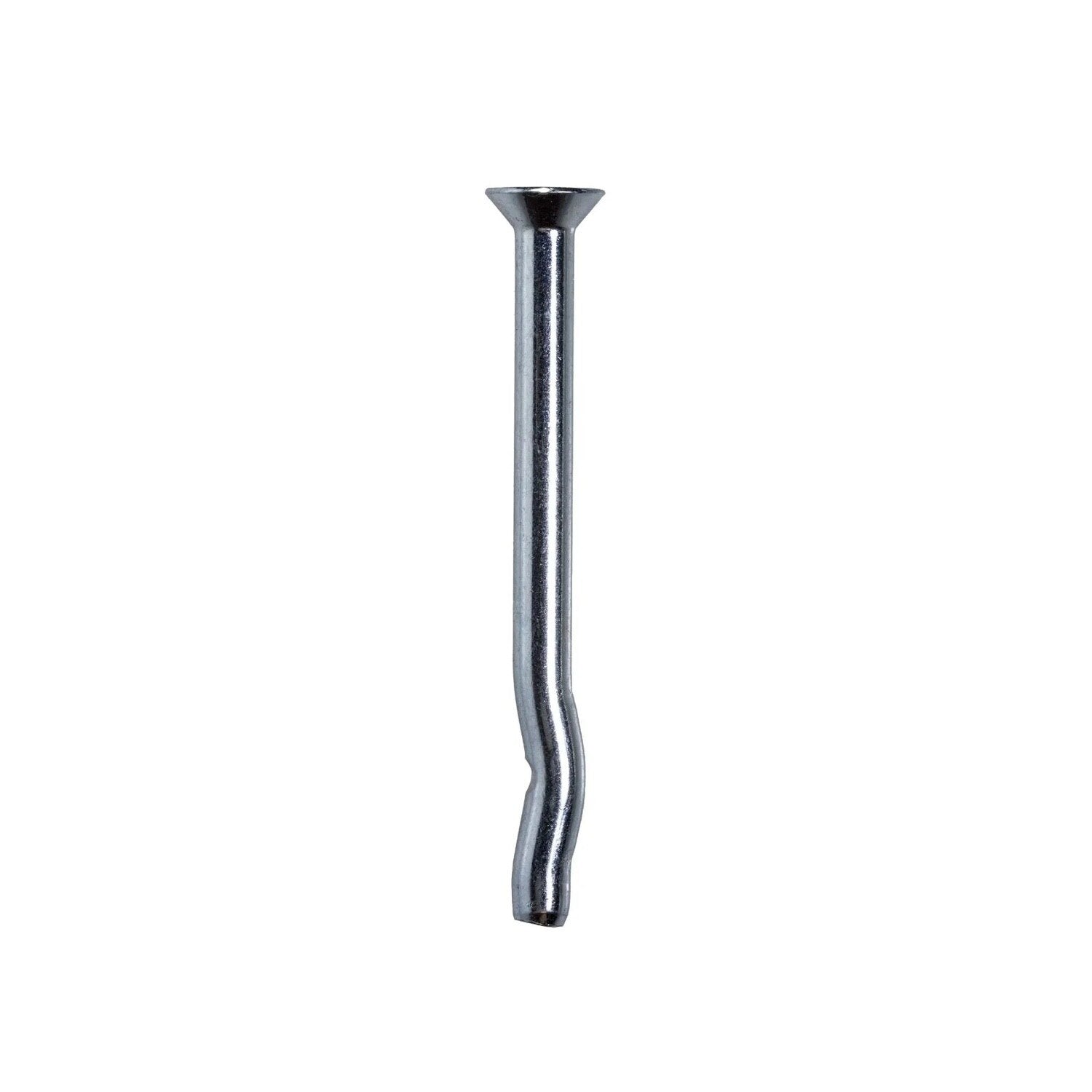

The Simpson Strong-Tie Crimp Drive anchor is an easy-to-install expansion anchor for use in concrete and grout-filled block. The pre-formed curvature along the shaft creates an expansion mechanism that secures the anchor in place and eliminates the need for a secondary tightening procedure.
Simpson Strong-Tie CD25312C Includes
- (100) Crimp Drive Anchor Zinc-Plated Countersunk Head 1/4 in. x 3-1/2 in.
Simpson Strong-Tie CD25312C Features
- Unique curved shaft design that speeds up anchor installation and reduces overall project cost
- Countersunk head allows for a smooth surface when attaching wood or light gauge steel to concrete and grout-filled block
- Available in five different head styles
Simpson Strong-Tie CD25312C Applications
- Brick — Solid
- Countersunk head provides a zero-profile solution
- Ideal for attaching wood or light gauge steel to concrete and grout-filled block
Simpson Strong-Tie CD25312C Installation Overview
- Drill a hole using the specified diameter carbide bit into the base material to a depth of at least 1/2" deeper than the required embedment.
- Blow the hole clean of dust and debris using compressed air.
- Drive the anchor through the fixture into the hole until the head sits flush against the fixture.
- Ensure the anchor is driven to the required embedment depth.
Simpson Strong-Tie CD25312C Specifications
| Material | Carbon Steel |
| Finish | Zinc Plated |
| Diameter | 1/4 in. |
| Length | 3-1/2 in. |
| Drill Bit Size | 1/4 in. |
| Fixture Hole Size | 5/16 in. |
| Minimum Embedment Depth | 1-1/4 in. |
| Quantity | 100 |
NOTE: Use these products in dry, interior, and non-corrosive environments only.
WARNING: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov
