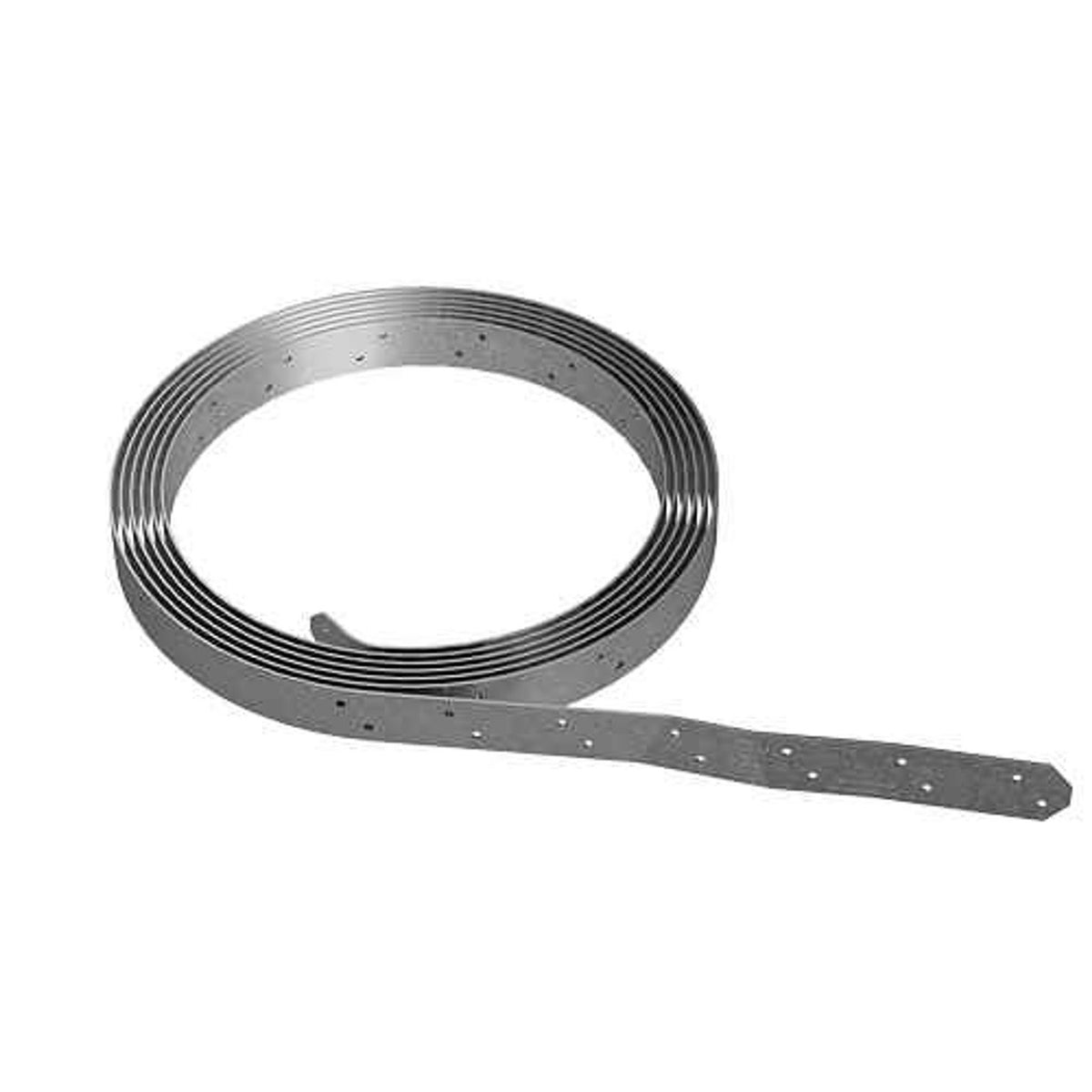

Simpson Strong-Tie CS18-R (18-Gauge 25') Galvanized Coiled Strap
Bulk Pricing Available
Bulk Pricing Available
Need to place a large order? Request a quote
Simpson Strong-Tie CS18-R (18-Gauge 25') Galvanized Coiled Strap
Key Specifications
Description
Description
Simpson CS18-R Description
The Simpson CS18-R is an 18-gauge galvanized coiled strap designed for wood-to-wood fastening applications, providing reliable roof uplift and shear wall overturning resistance.
Simpson CS18-R Includes
- (1) 18-Gauge Galvanized Coiled Strap
Simpson CS18-R Features
- Available in shorter rolls for smaller projects
- Used for roof uplift and shear wall overturning resistance
- A cost-effective alternative to pre-cut straps
Simpson CS18-R Applications
- Roof uplift resistance
- Shear wall overturning resistance
- Wood-to-wood fastening
Simpson CS18-R Installation Overview
- Use all specified fasteners as per General Notes.
- Ensure wood shrinkage after installation does not cause strap buckling.
- Refer to applicable codes for nail penetration and wood edge distances.
- Follow the table for maximum allowable loads and required nails.
- For lap splice and alternative nailing, see the provided tables.

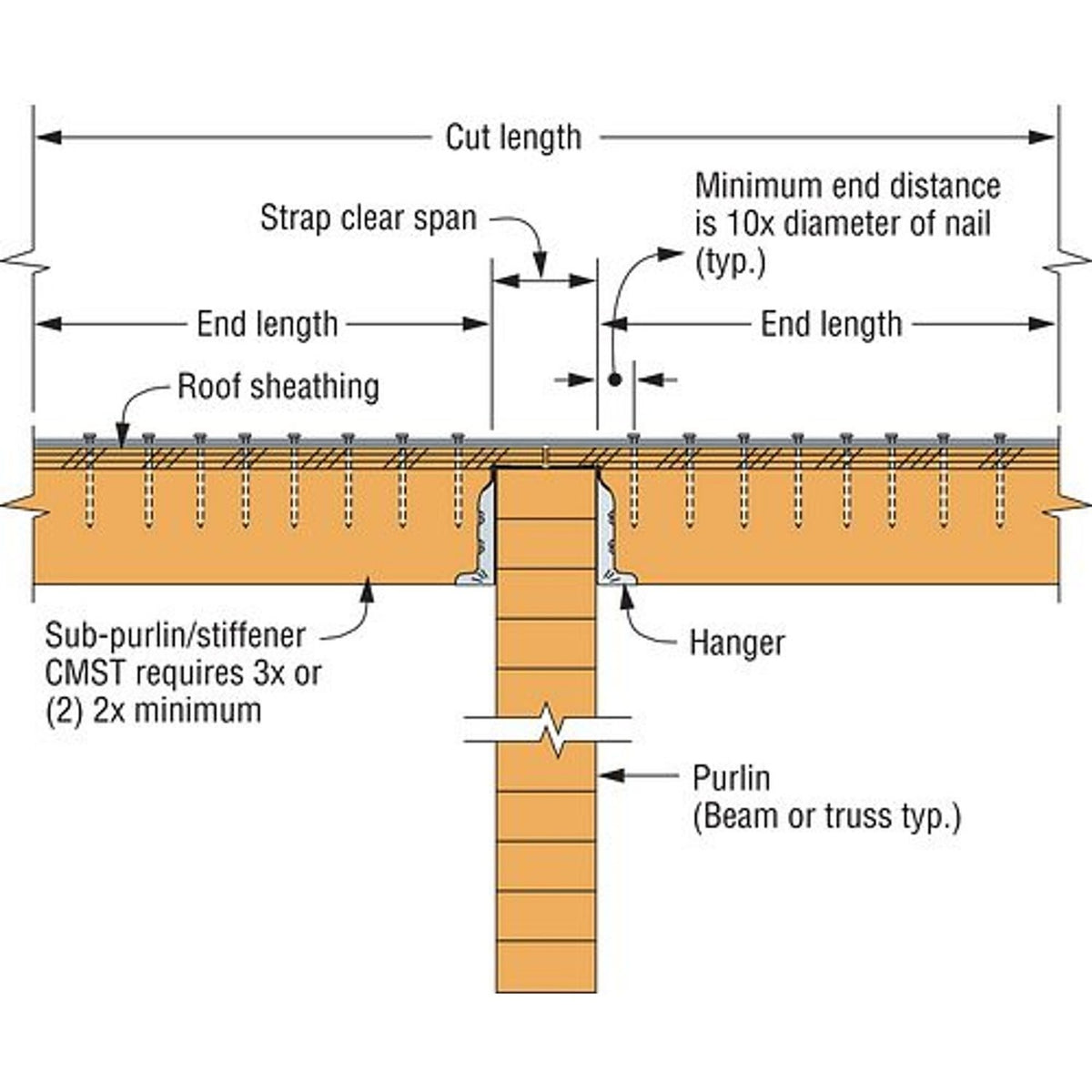

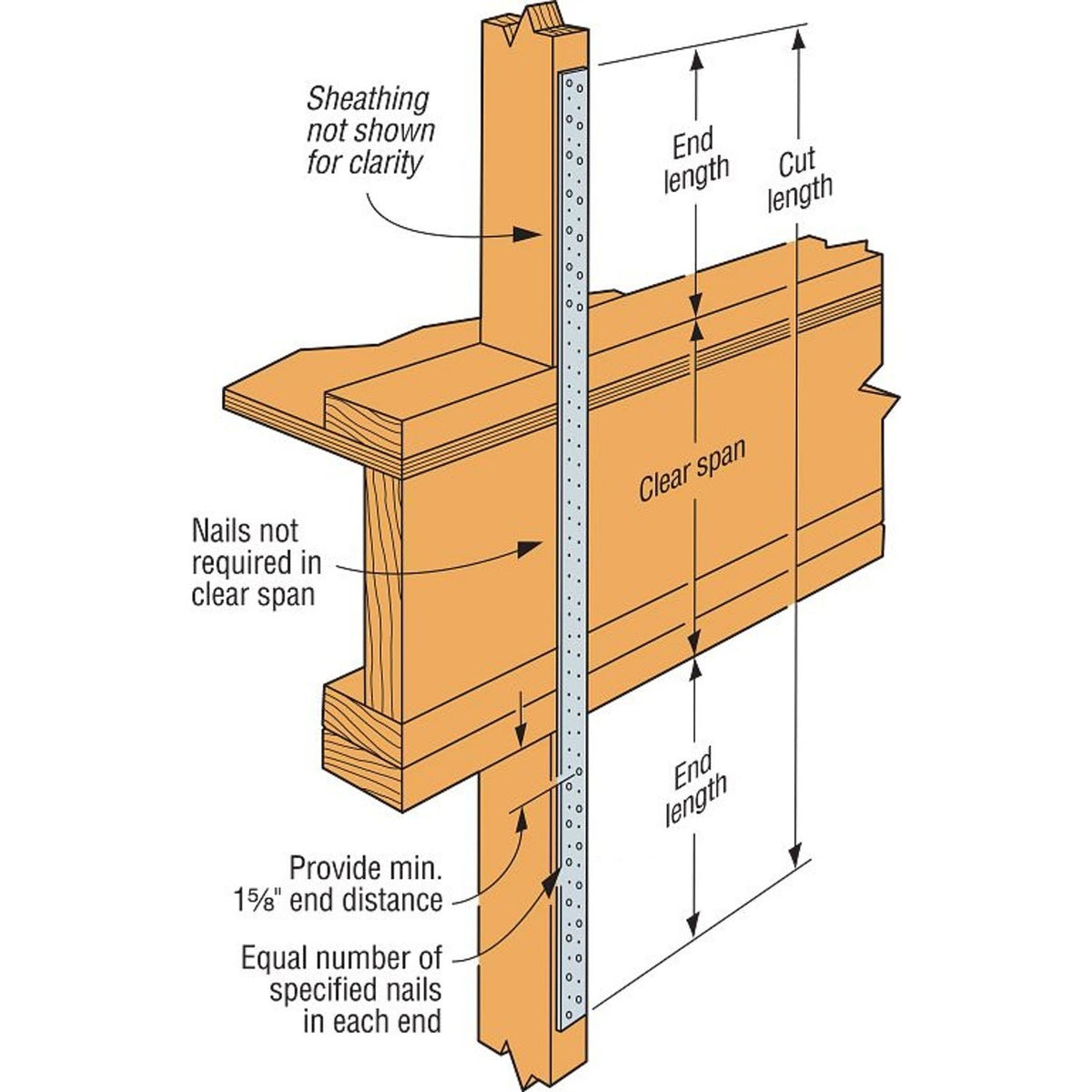

- Cut strap length to twice the noted End Length plus the clear span dimension.
Simpson CS18-R Specifications
| Gauge | 18 |
| Width | 1 1/4 in. |
| Length | 25 ft. |
| Coating/Material | Zinc Galvanized, G90 |
| Packaging Quantity | 1 |
NOTE: Ensure the correct fasteners are used and installed in the specified positions to achieve the published load values
WARNING: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov
