Simpson DGHT3.62/18 Description

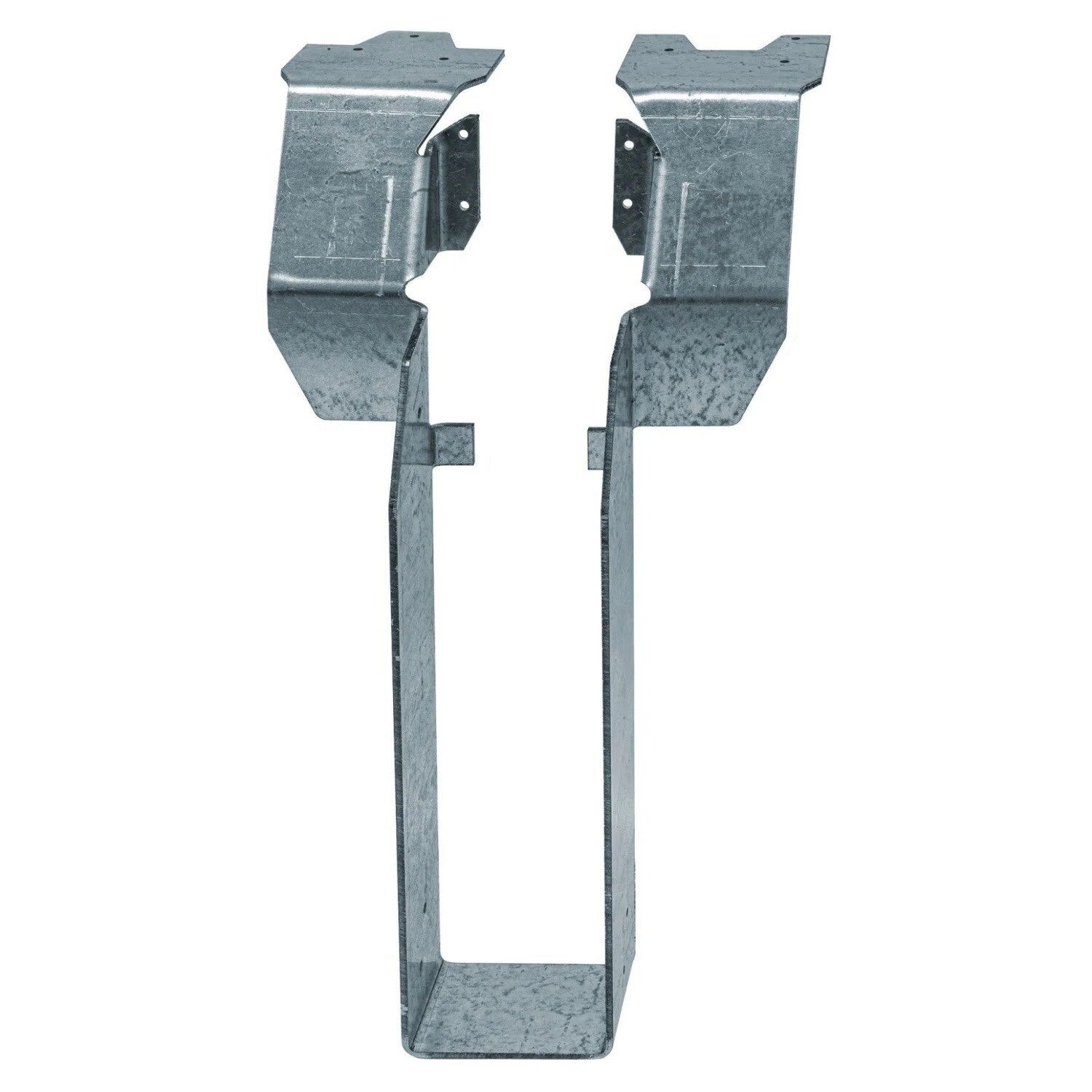

The DGHT3.62/18 is a top-flange fire wall hanger designed for 3-1/2" x 18" engineered wood, featuring a two-hour fire rating and innovative design for efficient installation.
Simpson DGHT3.62/18 Includes
- (1) Top-Flange Fire Wall Hanger for 3-1/2" x 18" Engineered Wood
Simpson DGHT3.62/18 Features
- Two-hour fire rating for enhanced safety

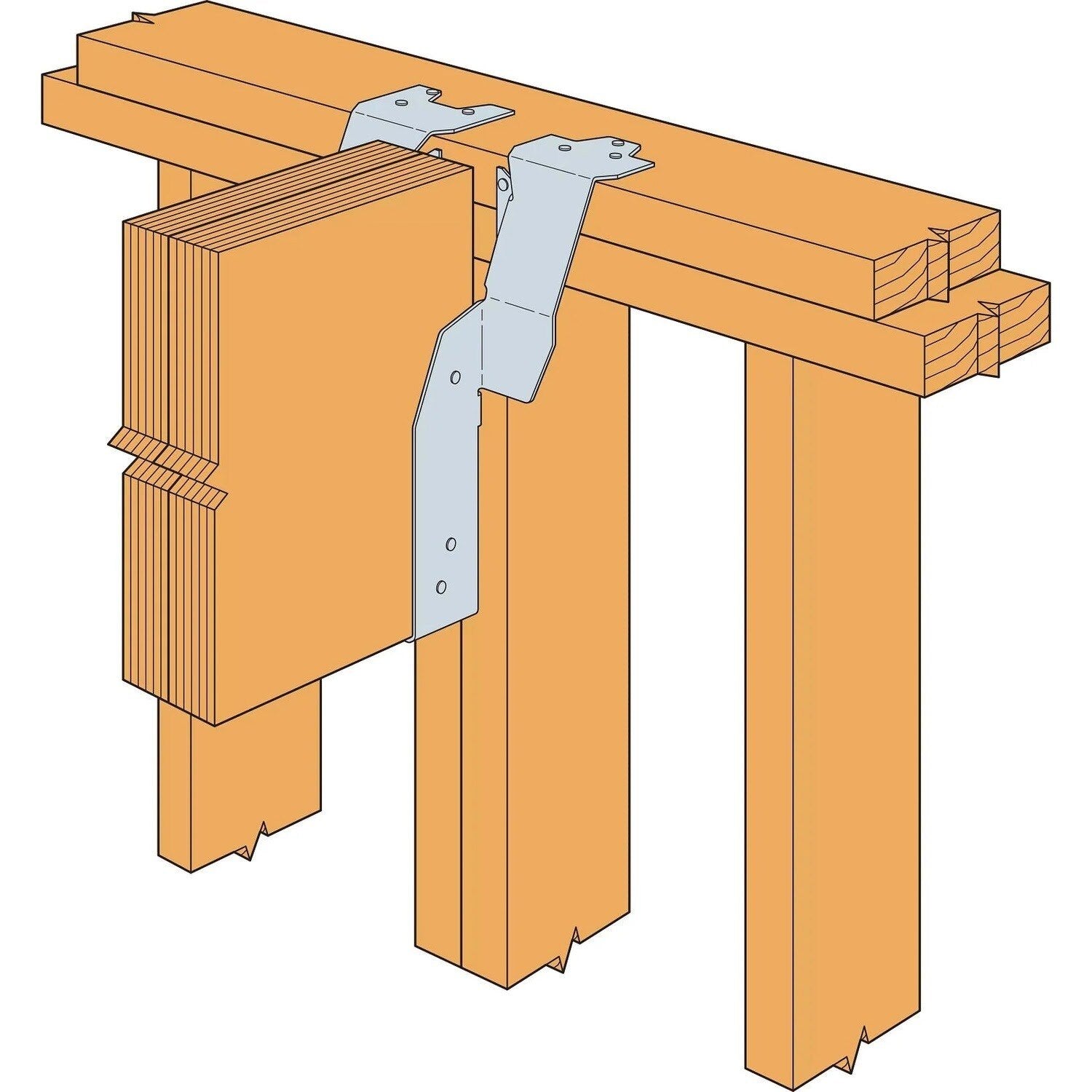

- Innovative top-flange design for back-to-back installation

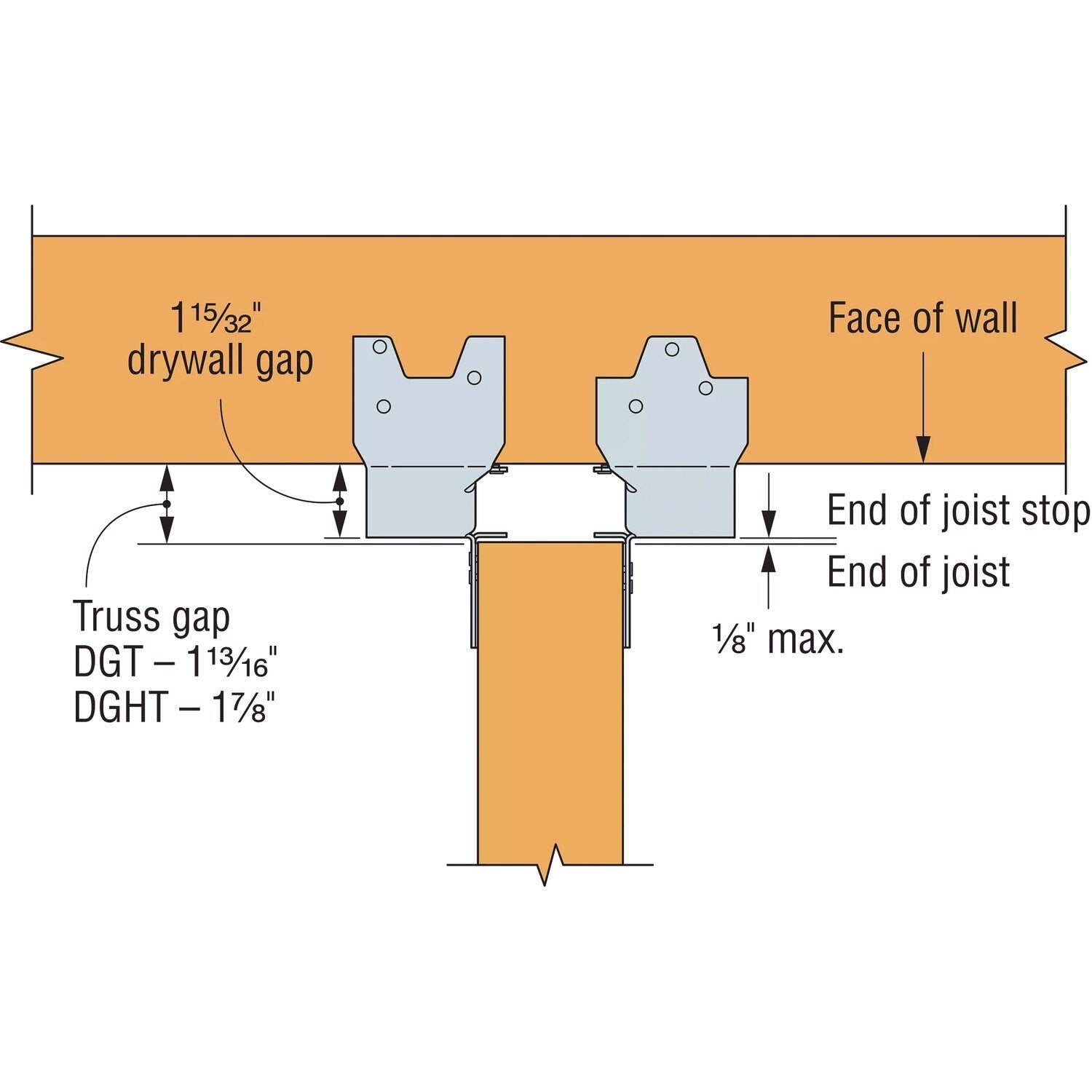

- Space for two layers of 5/8" drywall after framing
- Load-tested and code listed for various nail types
- Designed for multifamily, multilevel Type III residential construction
Simpson DGHT3.62/18 Applications
- Multifamily residential construction
- Type III multilevel buildings
- Fire-rated wall installations
- Engineered wood framing
Simpson DGHT3.62/18 Installation Overview
- Use all specified fasteners

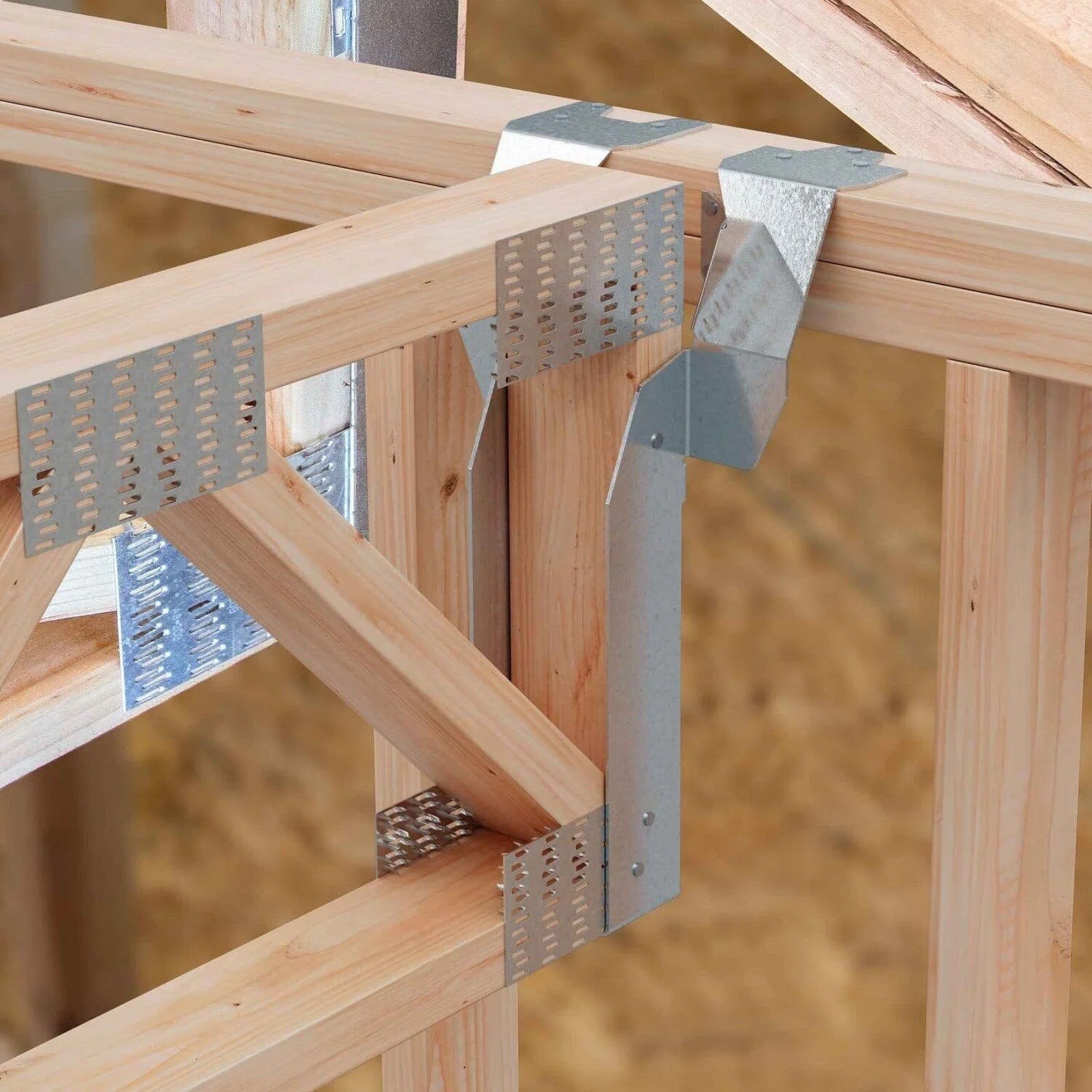

- Mount DGHT like a standard top-flange hanger

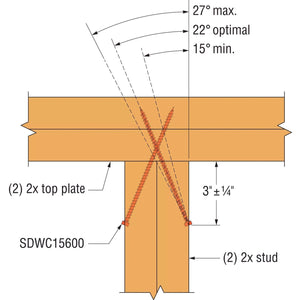

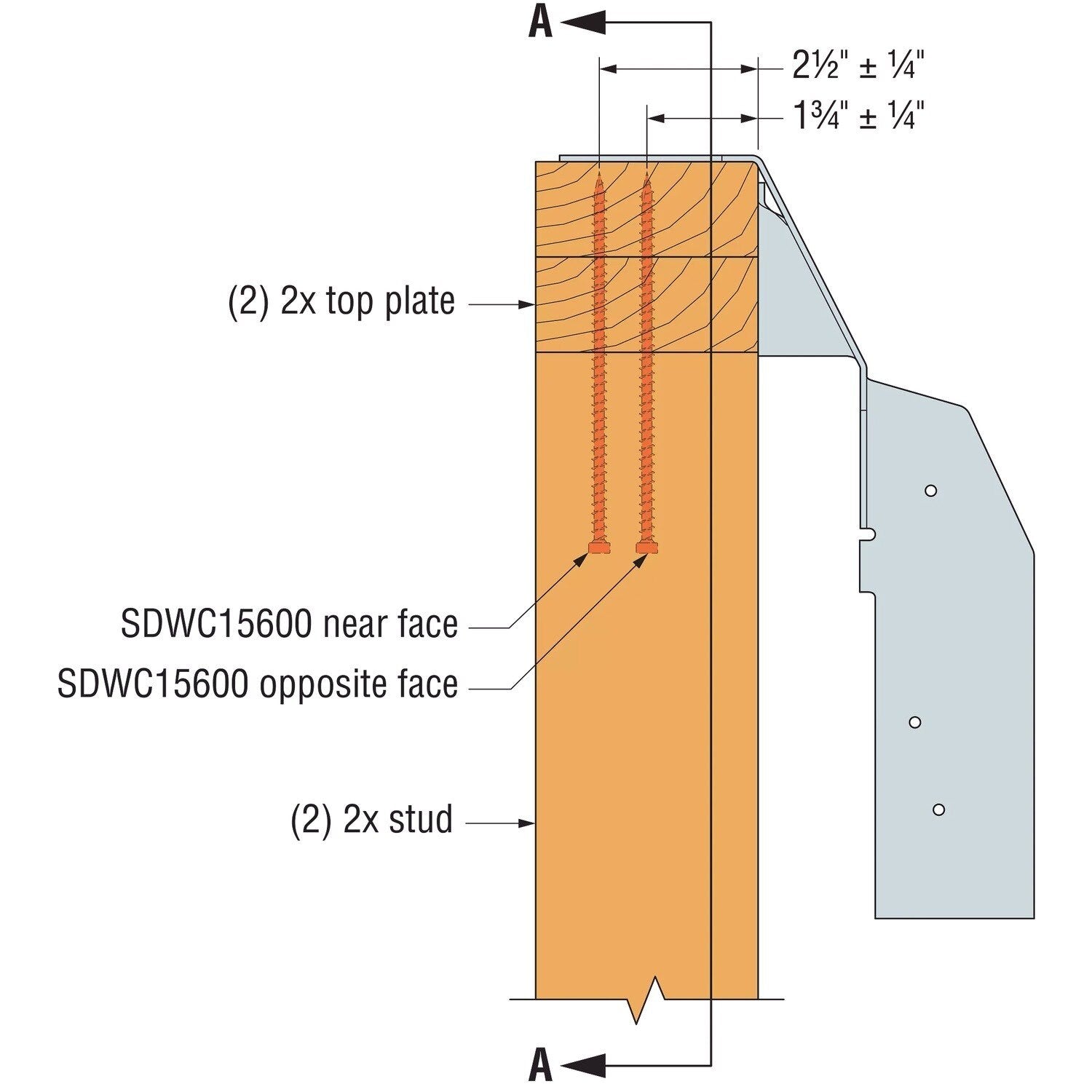

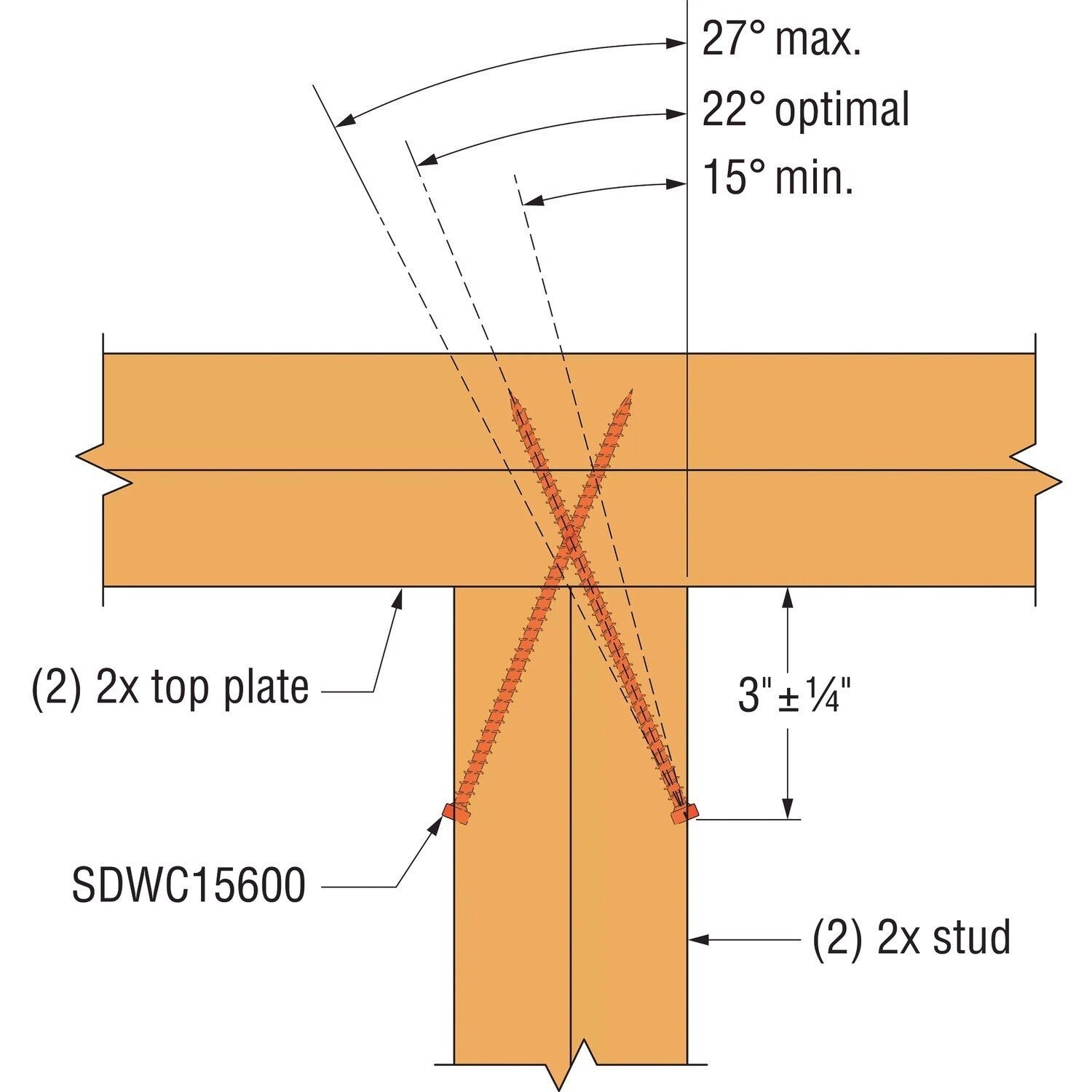

- Ensure stud wall-plate splices occur at stud locations
- Install web stiffeners for I-joists

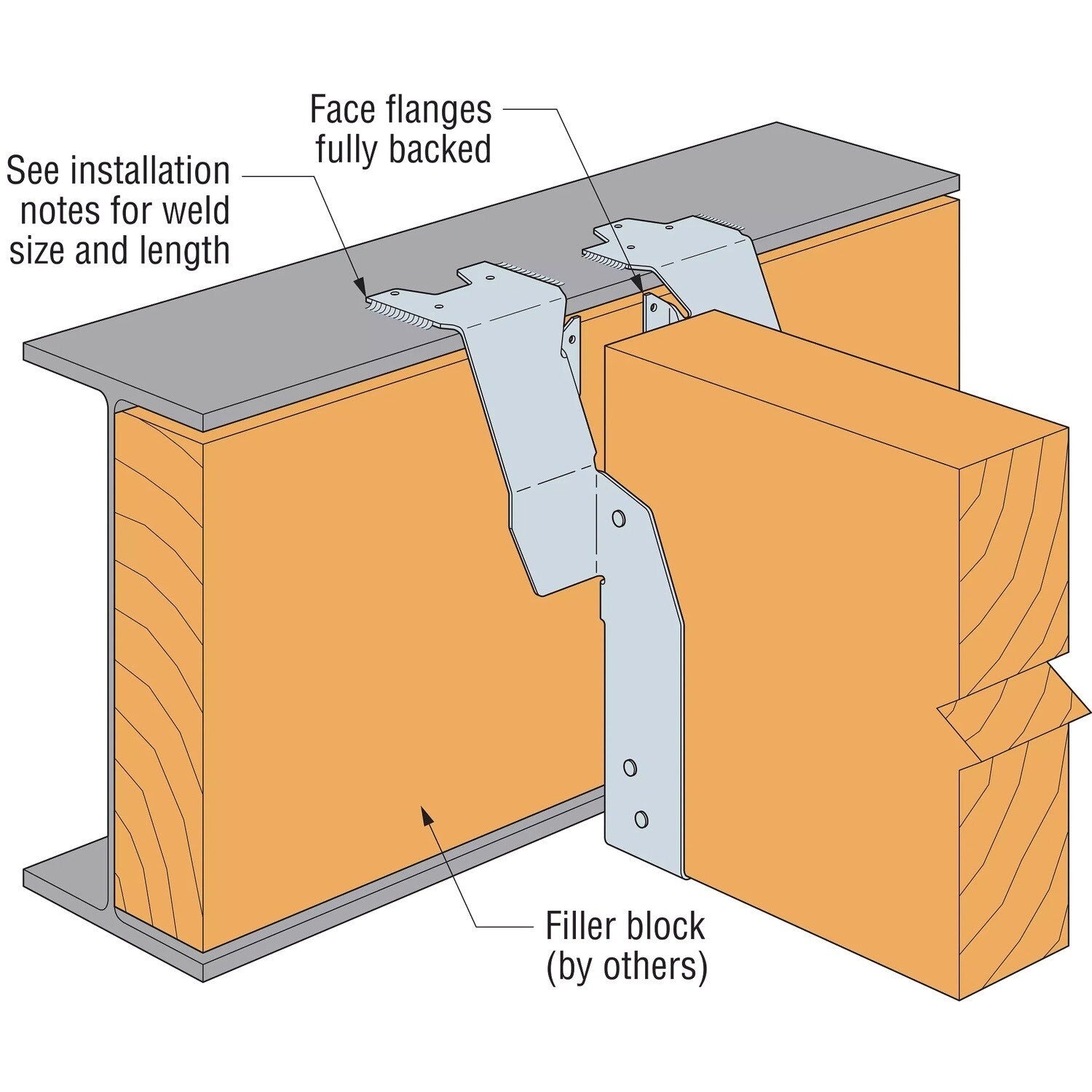

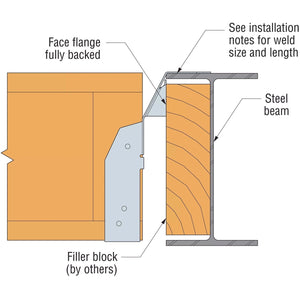

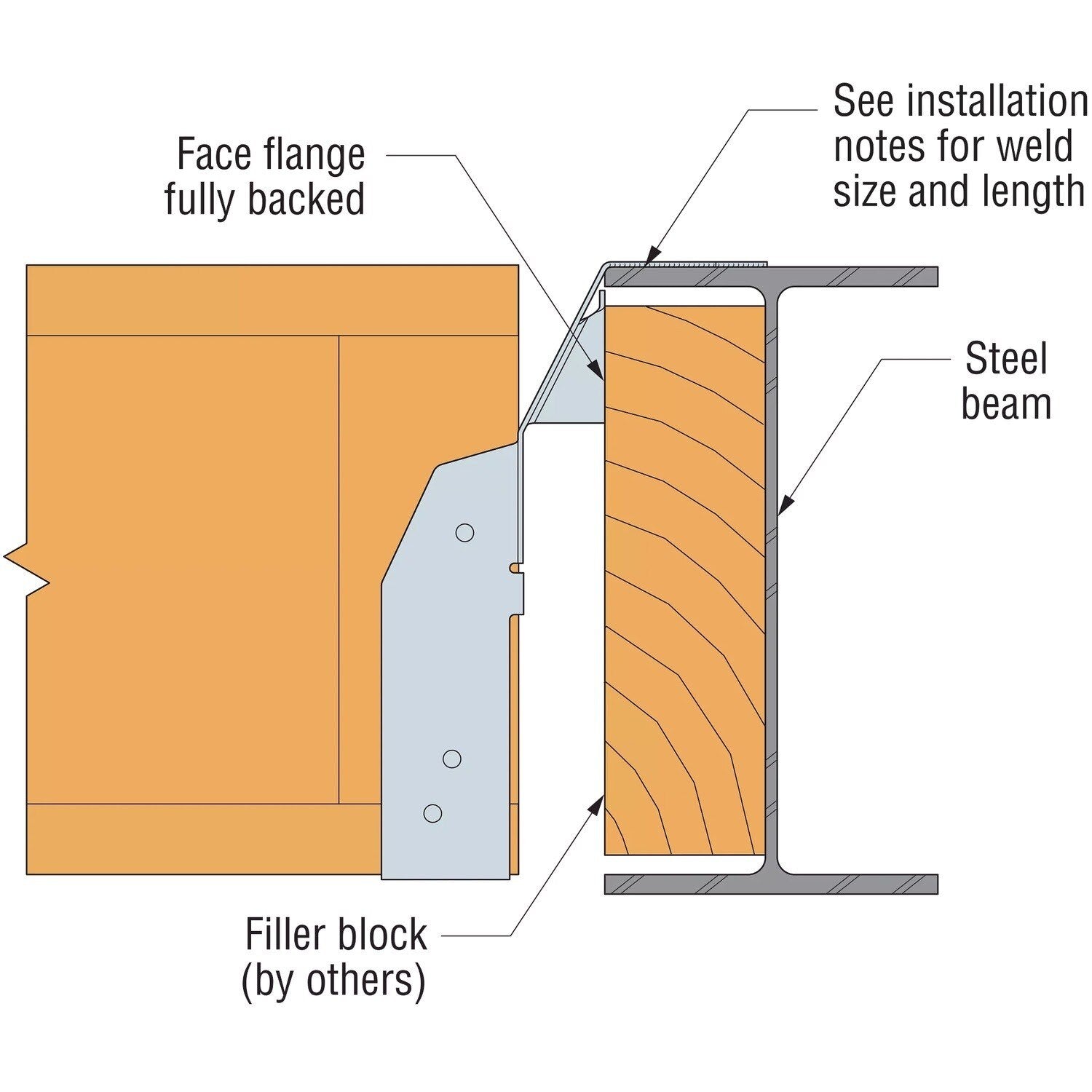

- Follow manufacturer guidelines for welding and fastening
Simpson DGHT3.62/18 Specifications
| Finish | G90 Galvanized |
| Material | Galvanized Steel |
| Fasteners required | TOP: (6) 0.148 in. x 1-1/2 in. OR 0.148 in. x 2-1/2 in. nails in the top FACE: (2) 0.148 in. x 1-1/2 in. nails OR (4) 0.148 in. x 2-1/2 in. nails in the face POST: (6) 0.148 in. x 1-1/2 in. nails in the joist |
| For Treated Lumber | No |
| Height | 17-15/16" |
| Joist size | 3-1/2" x 18" |
| Thickness | 10 Gauge |
| Width | 3-5/8" |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
