Simpson Strong-Tie DGHT5.37/11.88 (5-1/4" x 11-7/8") Top-Flange Fire Wall Hanger for Engineered Wood
Bulk Pricing Available
Bulk Pricing Available
Need to place a large order? Request a quote
Simpson Strong-Tie DGHT5.37/11.88 (5-1/4" x 11-7/8") Top-...
Key Specifications
Description
Description
Simpson Strong-Tie DGHT5.37/11.88 Description

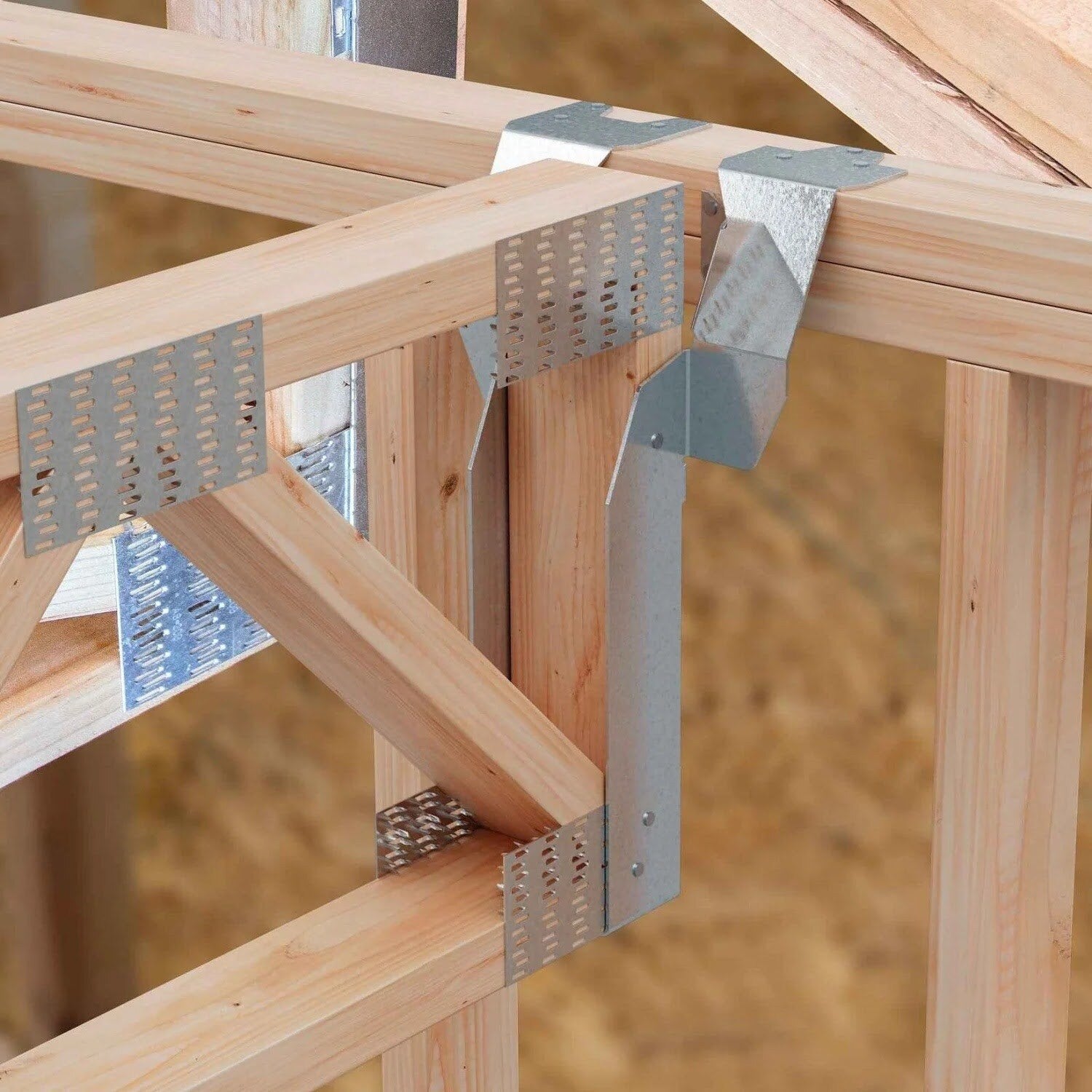

The DGHT5.37/11.88 is a load-tested fire wall hanger with a two-hour fire rating, ideal for multifamily, multilevel Type III residential construction.
Simpson Strong-Tie DGHT5.37/11.88 Includes

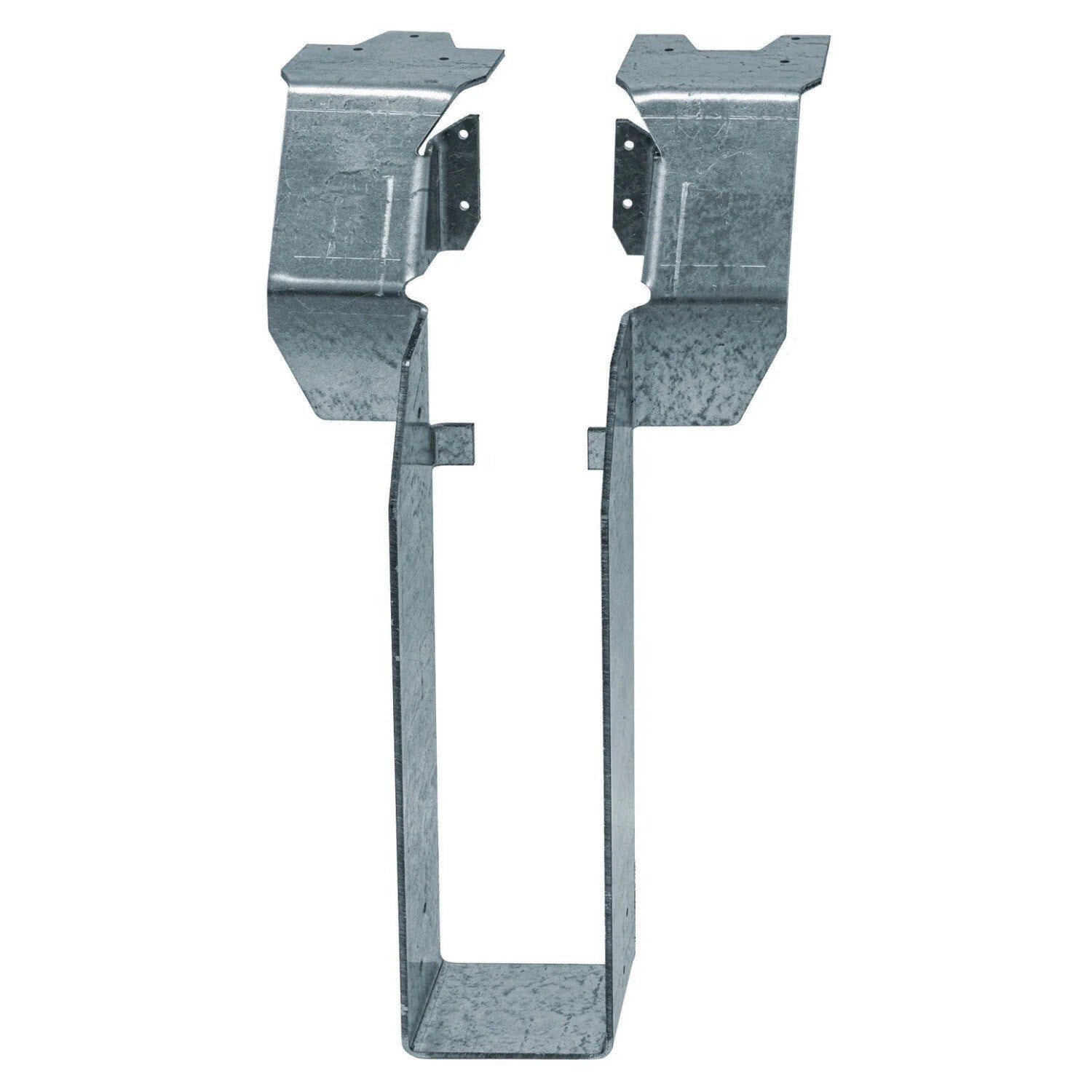

- (1) DGHT5.37/11.88 Top-Flange Fire Wall Hanger
Simpson Strong-Tie DGHT5.37/11.88 Features
- Two-hour fire rating for 2x4 or thicker walls

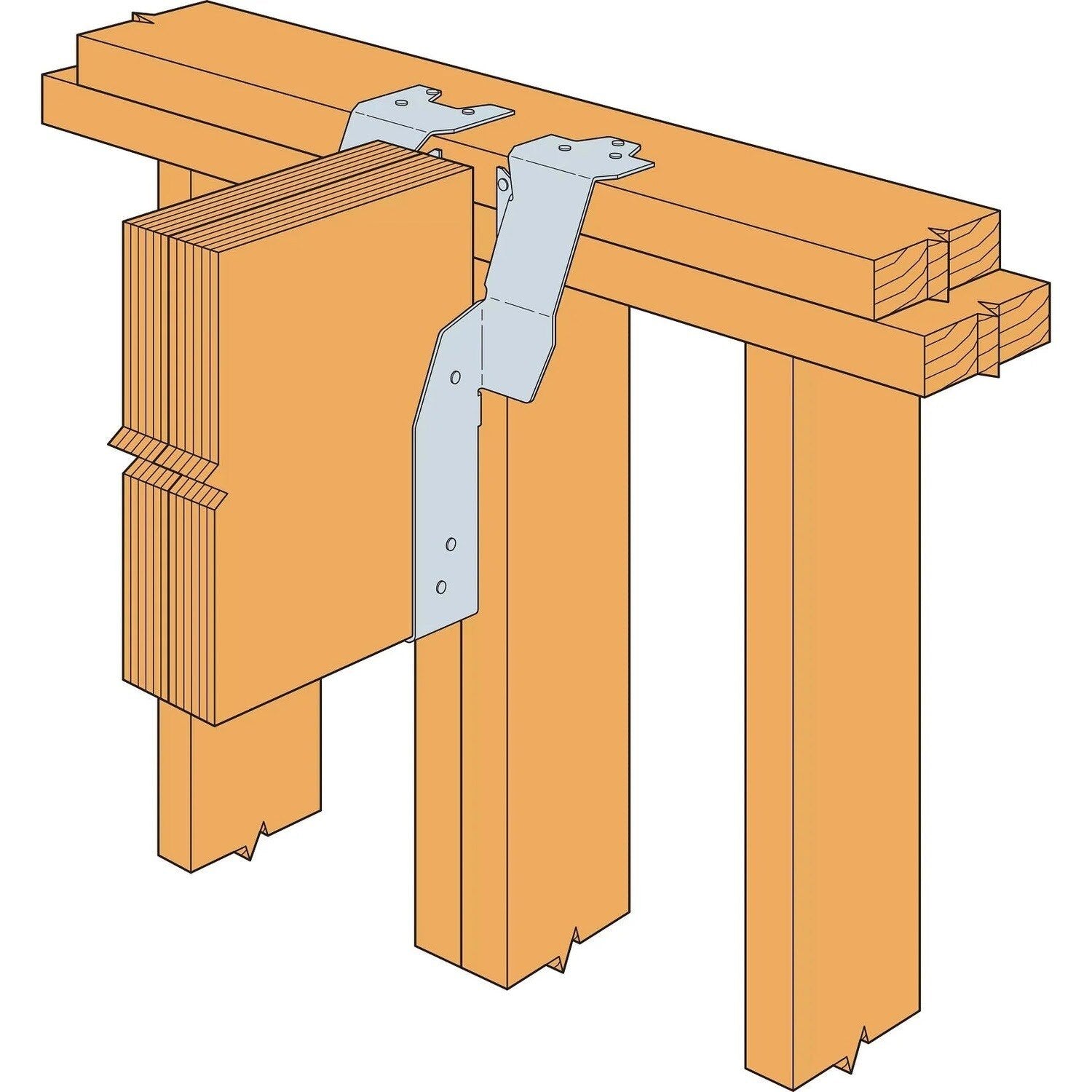

- Innovative top-flange design for back-to-back installation on 2x6 (min.) walls

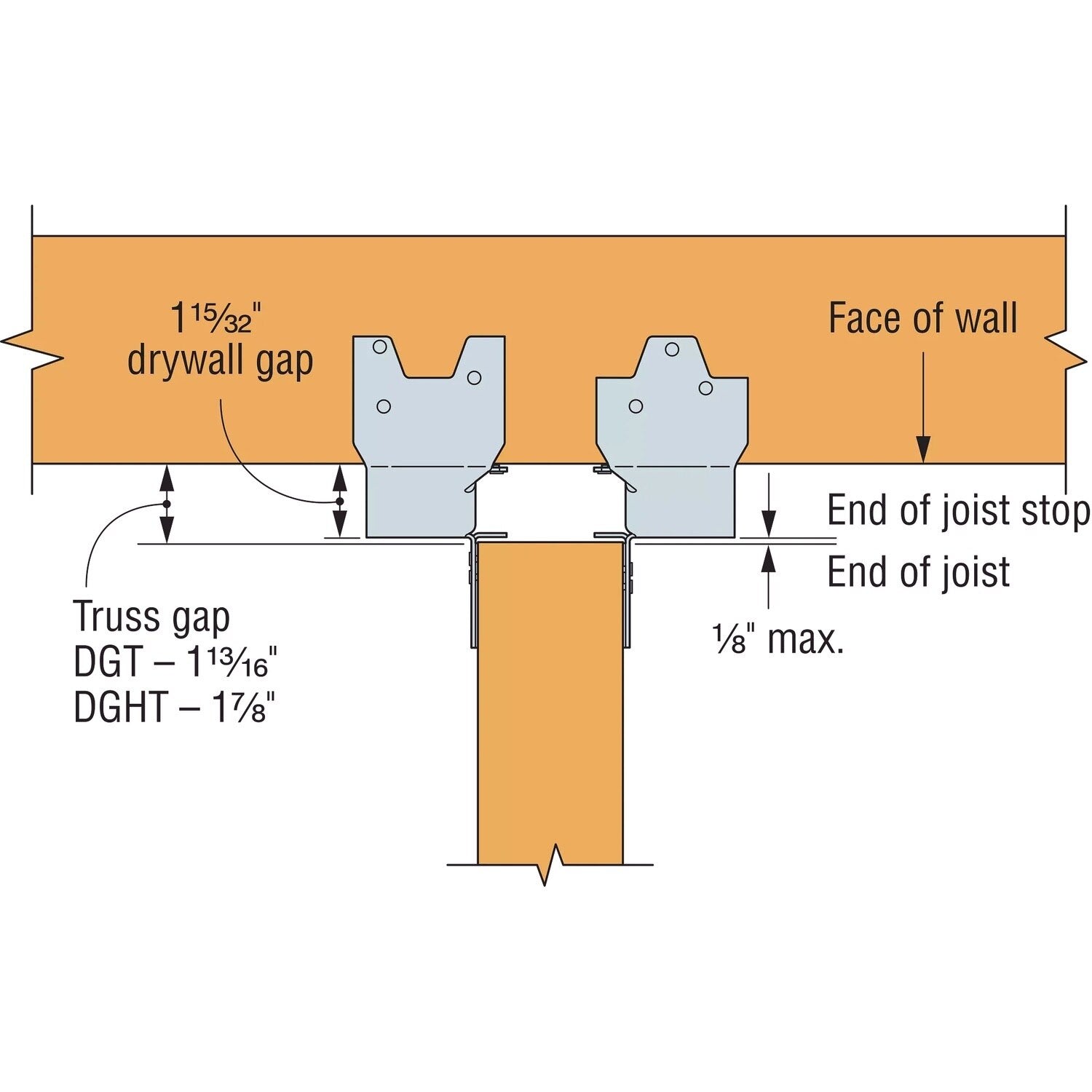

- Space for two layers of 5/8" drywall after framing
- Tested according to ASTM E814
- Available in standard, skewed, or concealed options
Simpson Strong-Tie DGHT5.37/11.88 Applications
- Multifamily residential construction
- Multilevel Type III residential construction
- Fire-rated wall installations
Simpson Strong-Tie DGHT5.37/11.88 Installation Overview
- Use all specified fasteners
- Mount DGHT like a standard top-flange hanger

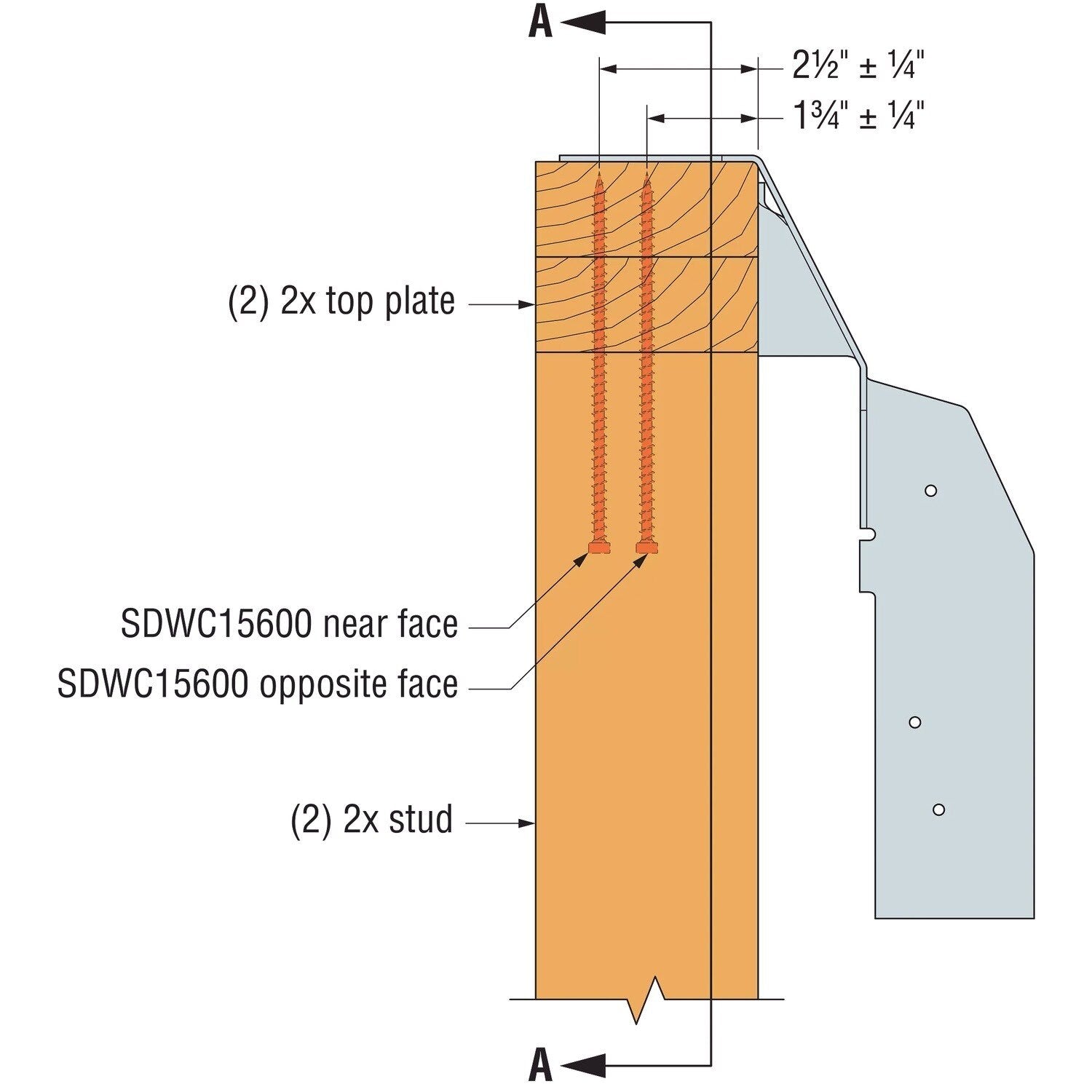

- Ensure stud wall-plate splices occur at a stud location

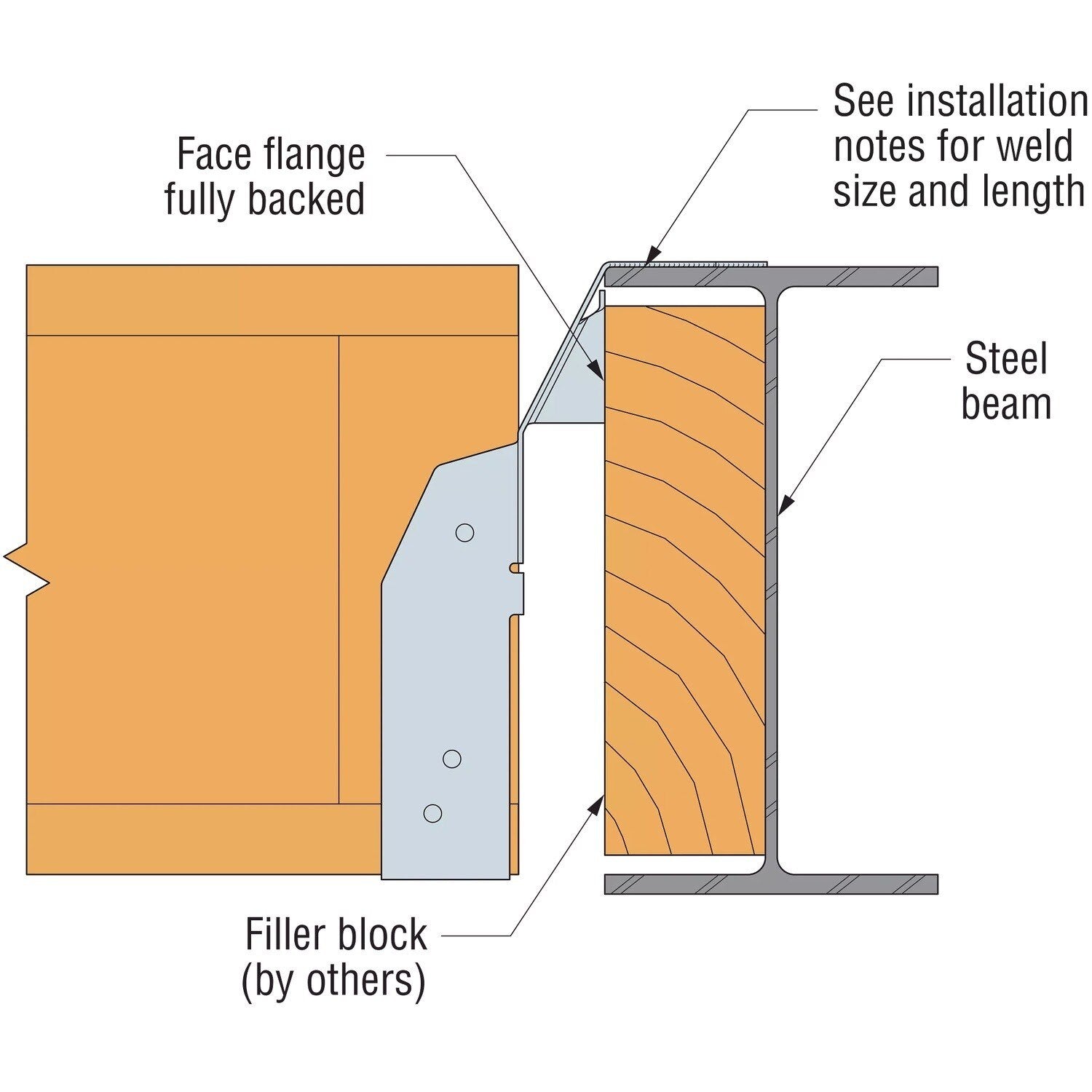

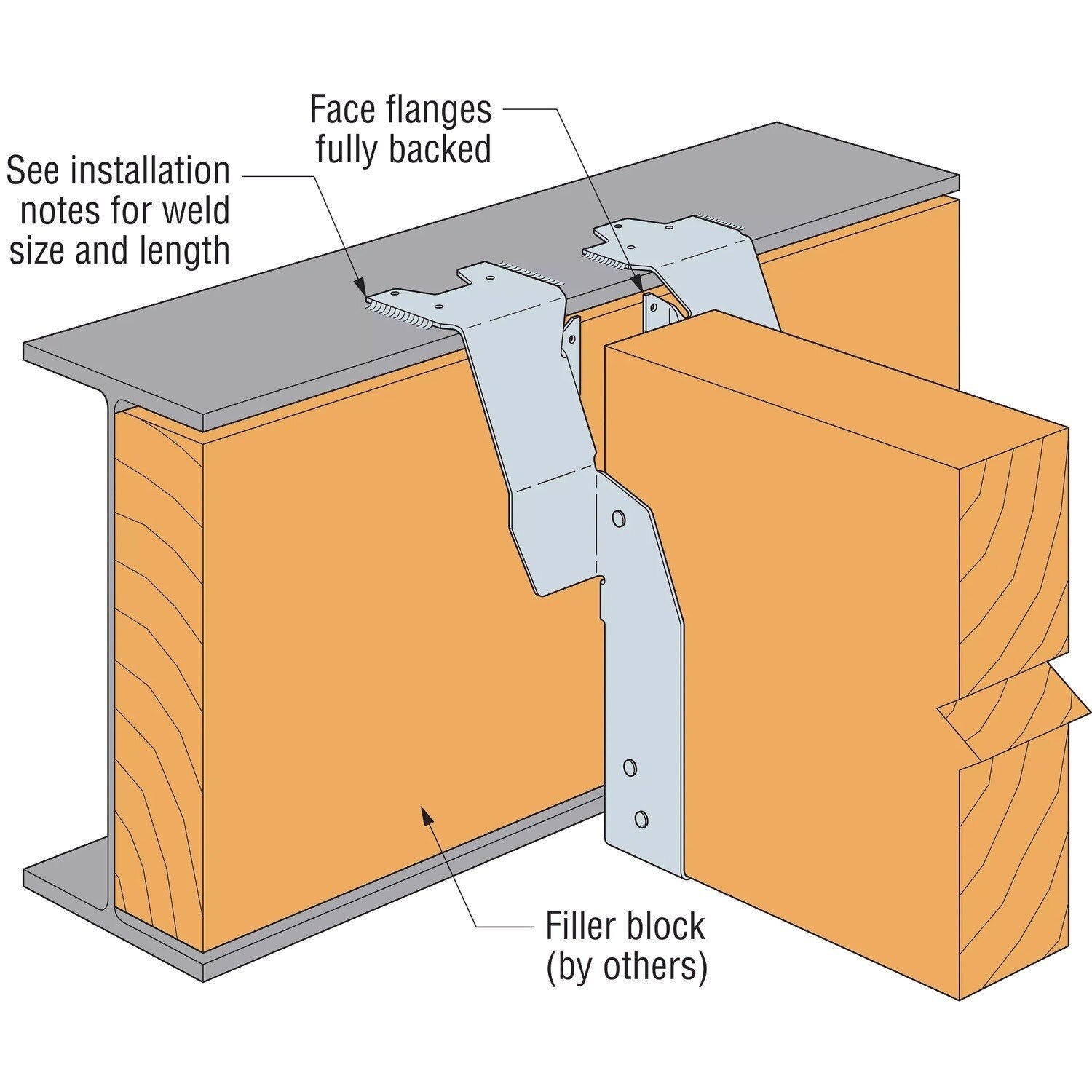

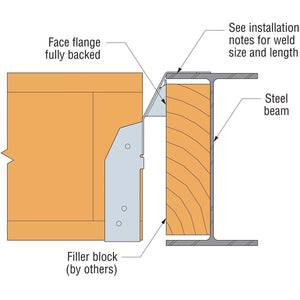

- Weld DGHT to steel header with specified fillet welds and joist nails
- Confirm face flanges have full backing
Simpson Strong-Tie DGHT5.37/11.88 Specifications
| Finish | G90 Galvanized |
| Material | Galvanized Steel |
| Fasteners required | TOP: (6) 0.148 in. x 1-1/2 in. OR 0.148 in. x 2-1/2 in. nails in the top FACE: (2) 0.148 in. x 1-1/2 in. nails OR (4) 0.148 in. x 2-1/2 in. nails in the face POST: (6) 0.148 in. x 1-1/2 in. nails in the joist |
| For Treated Lumber | No |
| Height | 11-13/16" |
| Joist size | 5-1/4” x 11-7/8” |
| Thickness | 10 Gauge |
| Width | 5-3/8" |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
